Toyota Innova
2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General
Supported model
Data version 2021-11

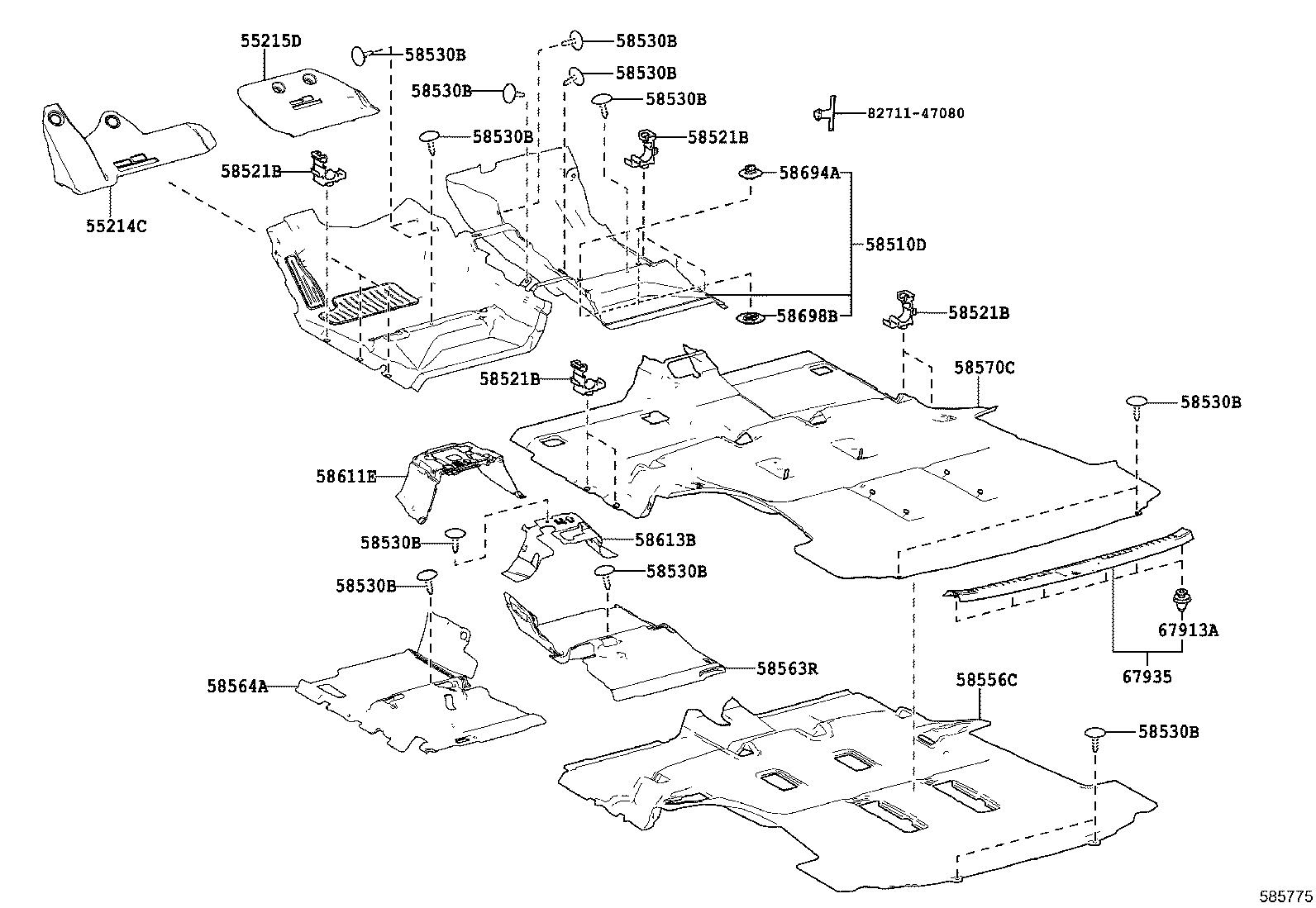

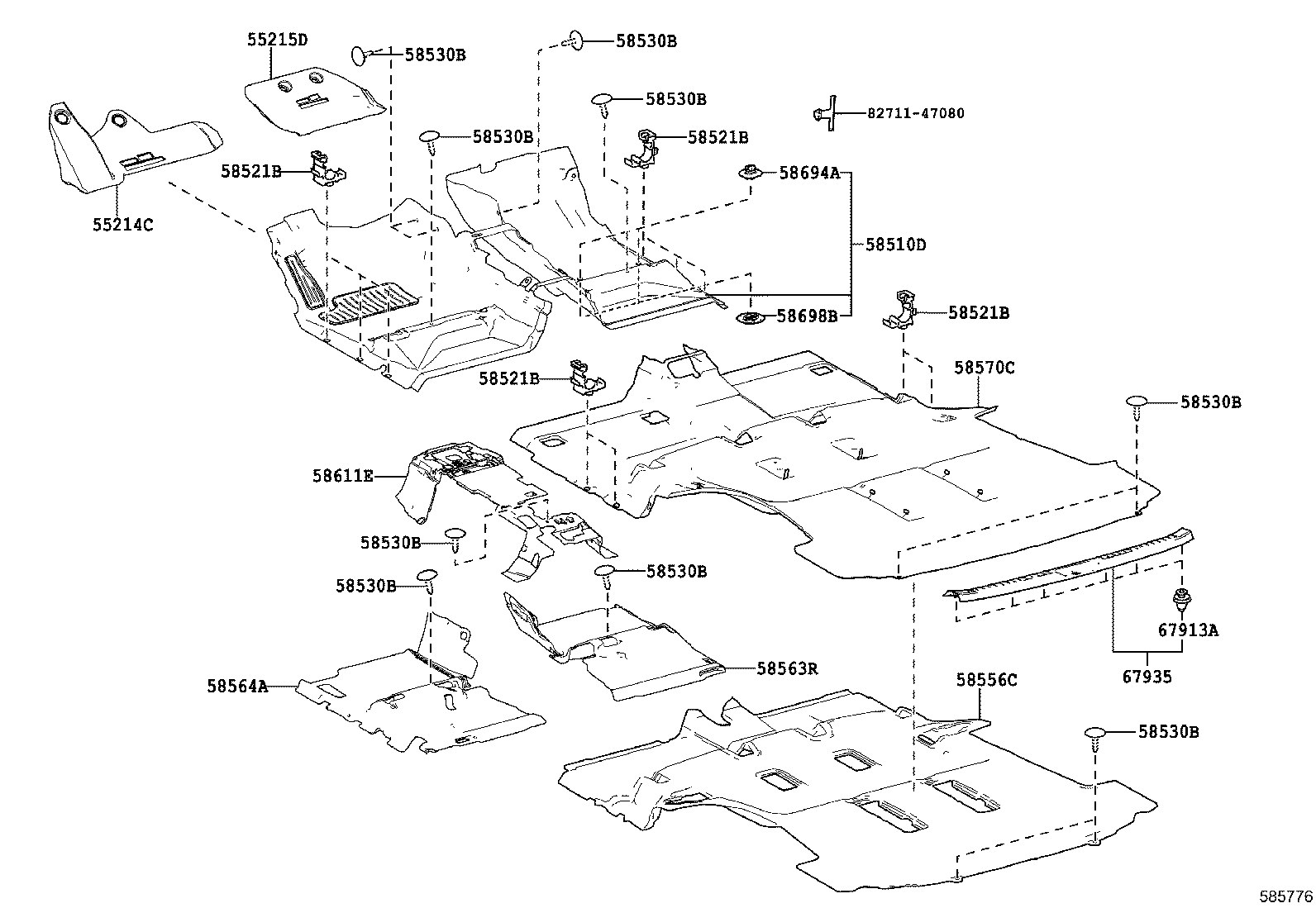

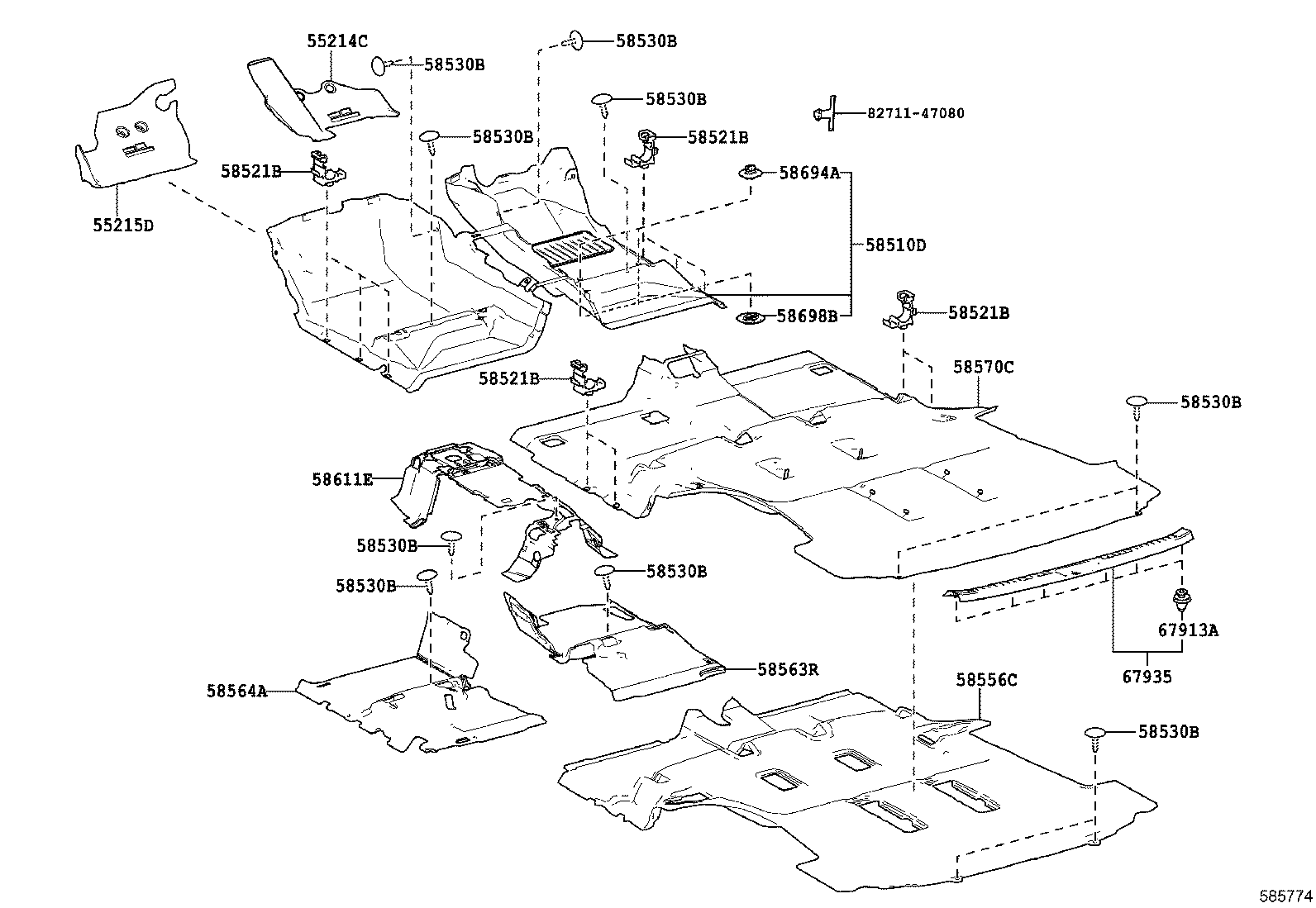

Floor Mat & Silencer Pad
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55214C | Pad, Dash Panel Insulator, NO.2 |
| 55215D | Pad, Dash Panel Insulator, NO.3 |
| 58510D | Carpet Assy, Floor, Front |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58556C | Silencer, Rear Floor |
| 58563R | Silencer, Front Floor, NO.3 |
| 58564A | Silencer, Front Floor, NO.4 |
| 58570C | Carpet Assy, Rear Floor |
| 58611E | Sheet, Front Floor Silencer |
| 58613B | Sheet, Front Floor Silencer, Center |
| 58694A | Plate, Mat Set, Upper |
| 58698B | Plate, Mat Set, Lower |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67935 | Plate, Back Door Scuff |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
