Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

22 part groups · 6 illustrations

Illustrations

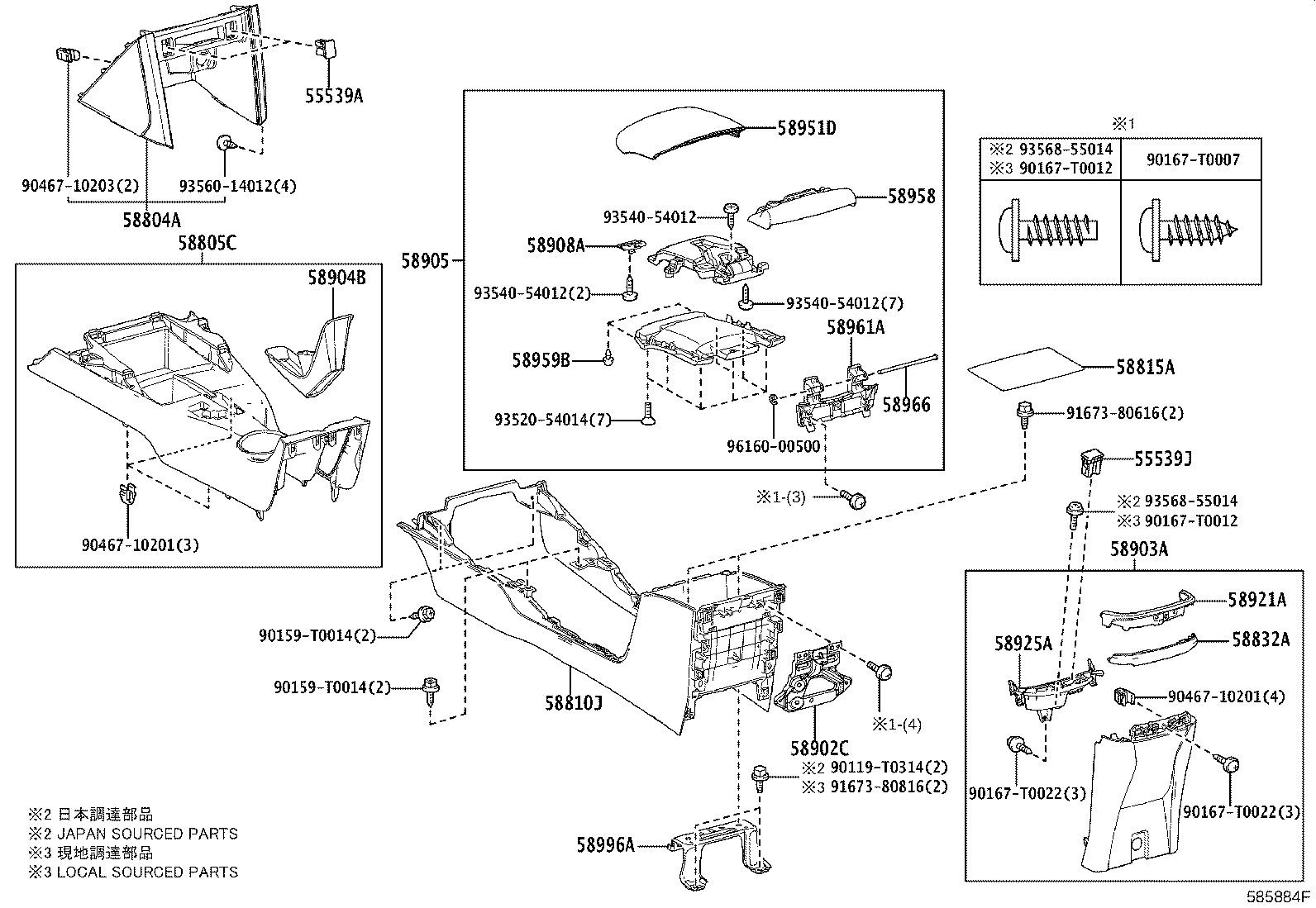

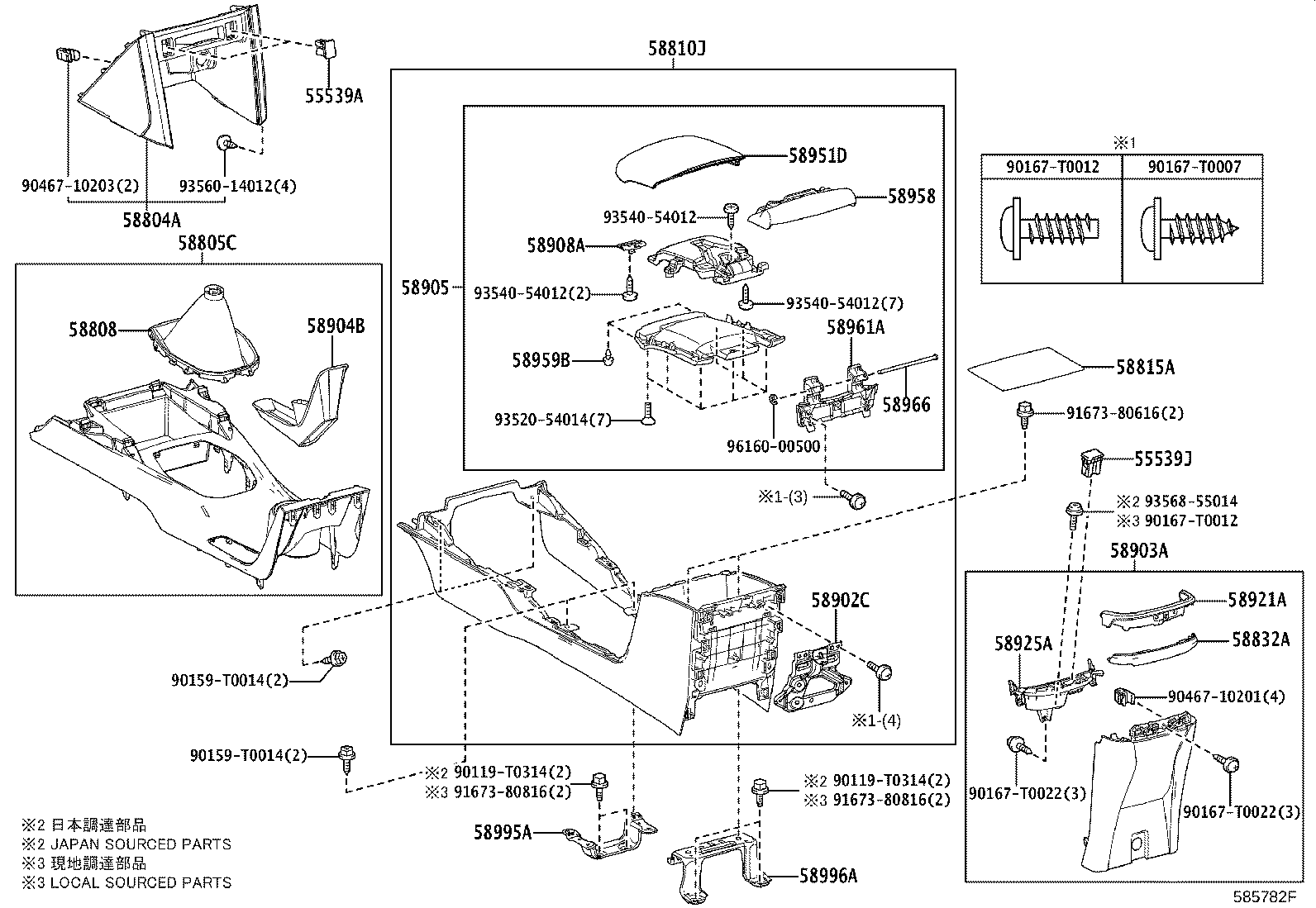

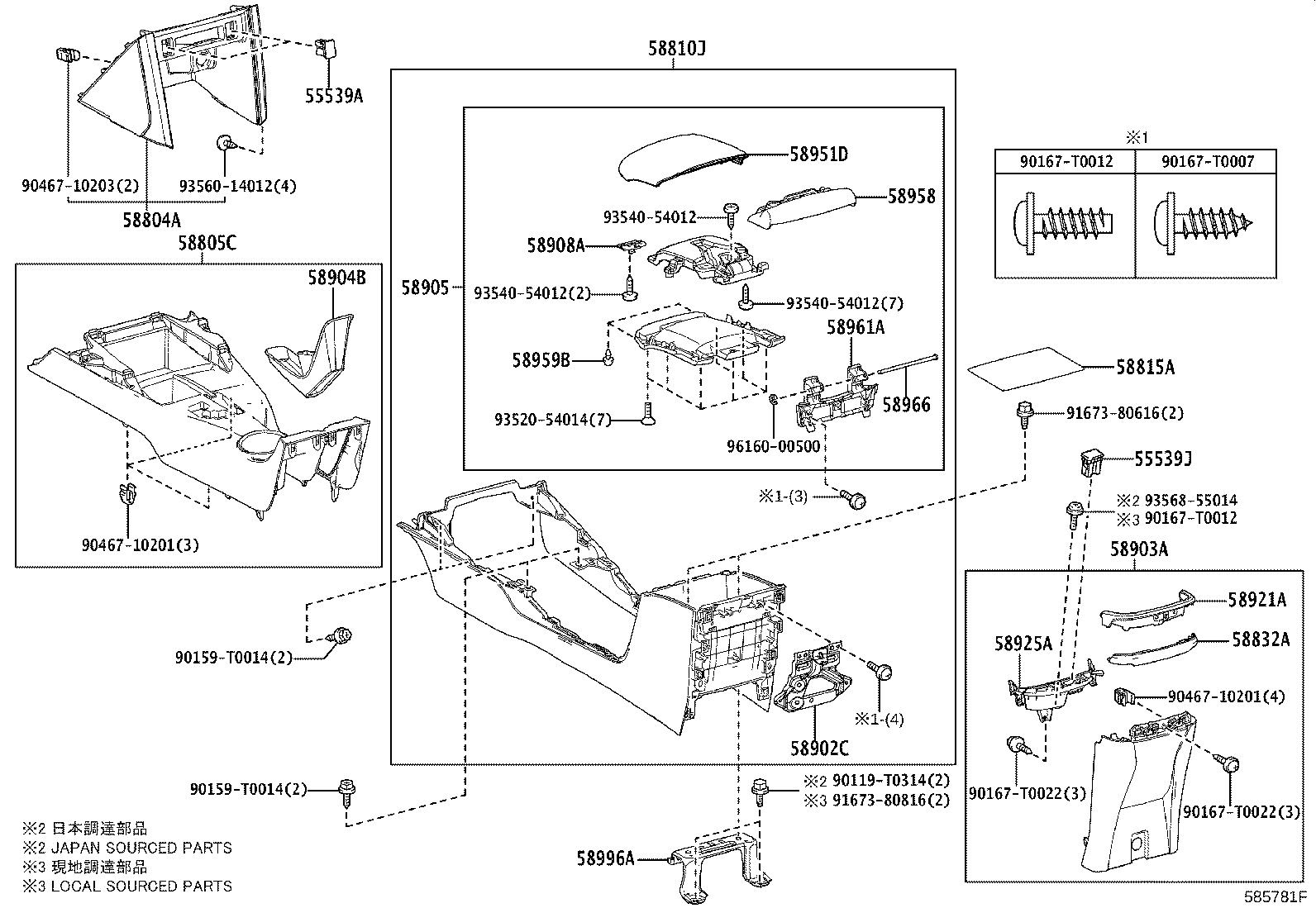

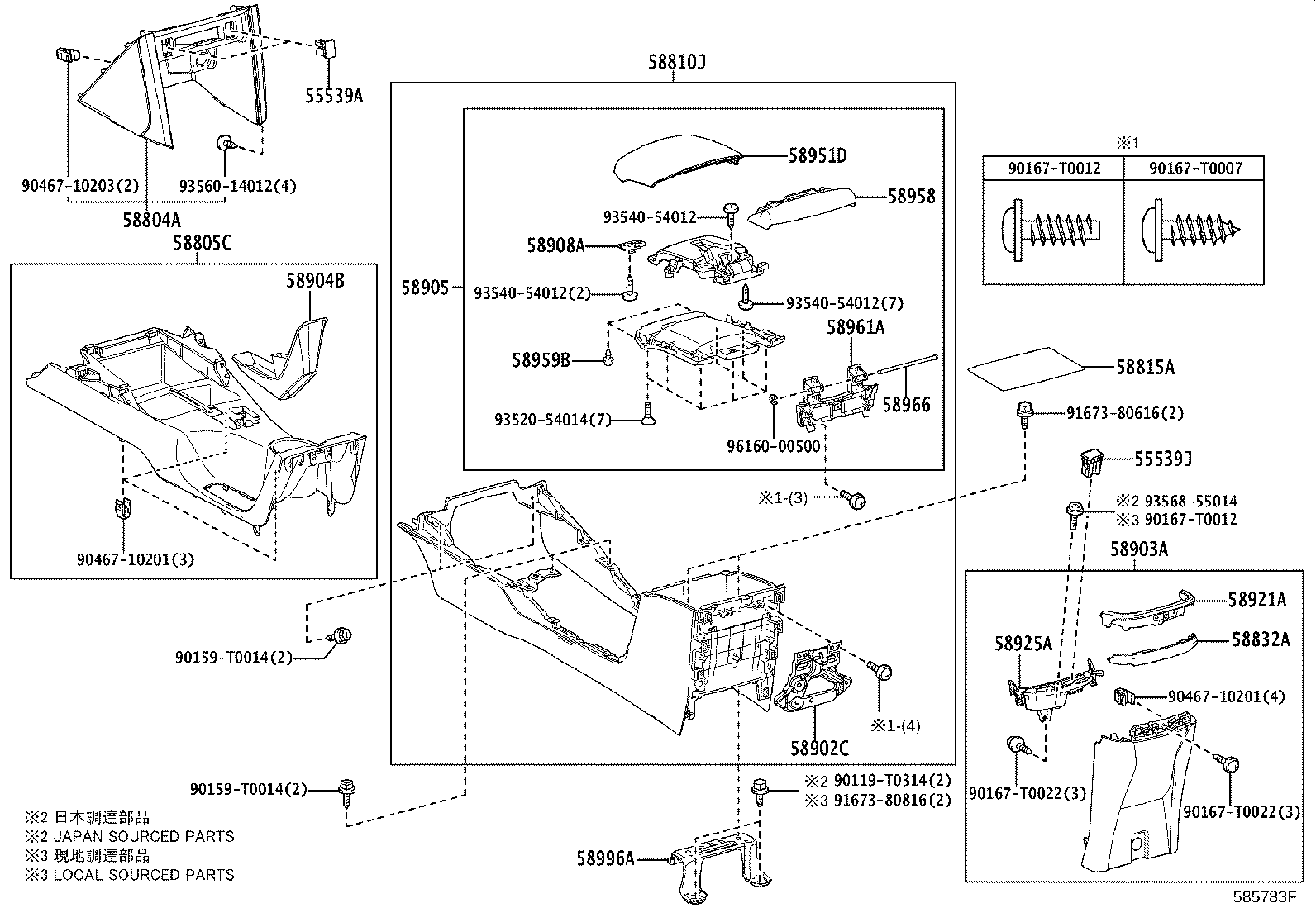

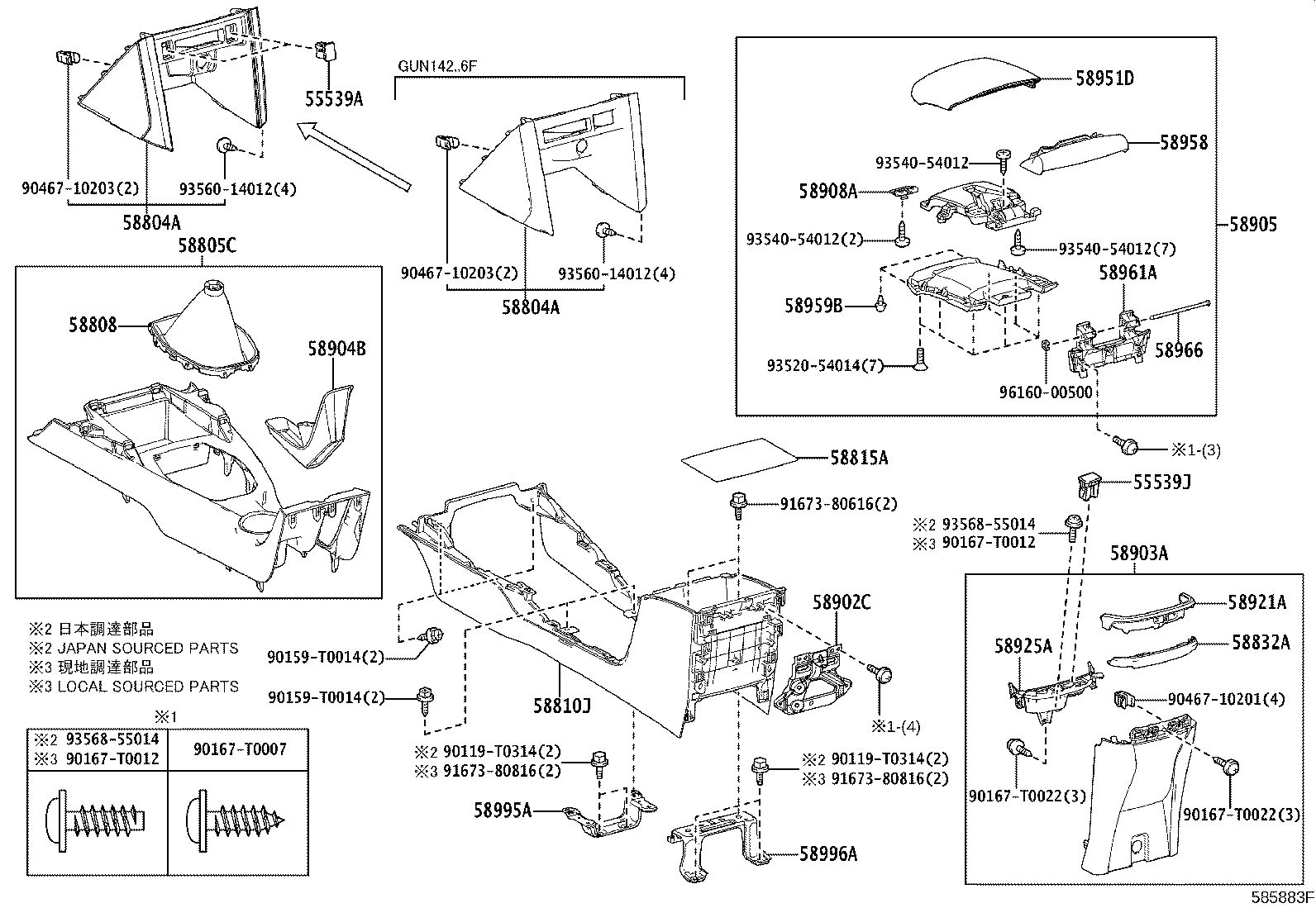

Figure 585780F 585780F 2015-11 → — Figure 585781F 585781F 2015-11 → — Figure 585782F 585782F 2015-11 → — Figure 585783F 585783F 2015-11 → — Figure 585883F 585883F 2016-04 → — Figure 585884F 585884F 2016-04 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58815A Carpet, Console Box
58832A Garnish, Console Upper Panel, Rear
58902C Bracket Sub-assy, Console Box Mounting
58903A Panel Sub-assy, Console Rear End
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58921A Panel, Rear Console, Upper
58925A Pocket, Console Box, Rear
58951D Door, Console Compartment, Outer
58958 Cover, Console Compartment Door Moulding
58959B Cushion, Console Compartment Door
58961A Hinge, Console Compartment Door Male
58966 Shaft, Box Door Hinge
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
