Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

54 part groups · 8 illustrations

Illustrations

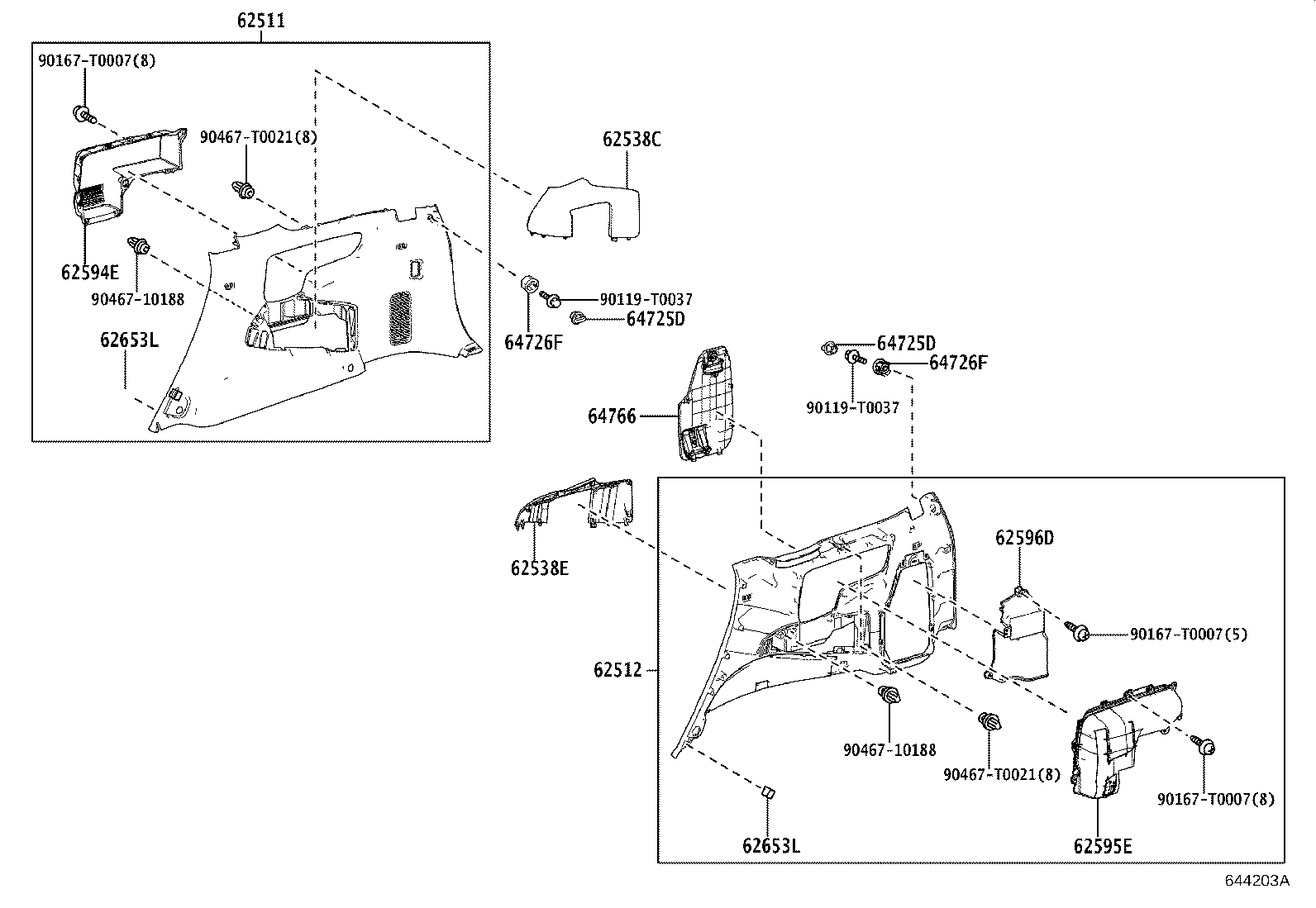

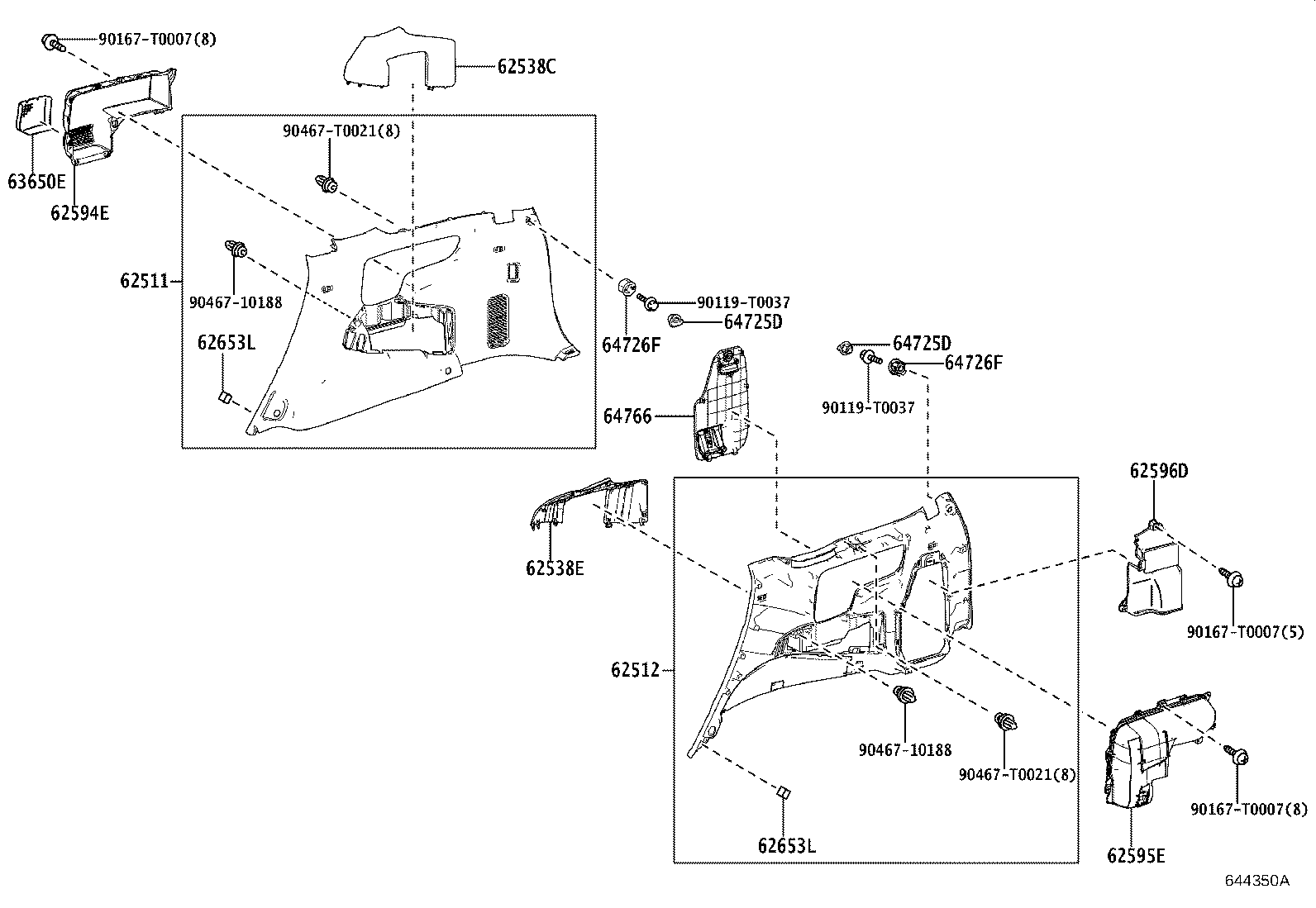

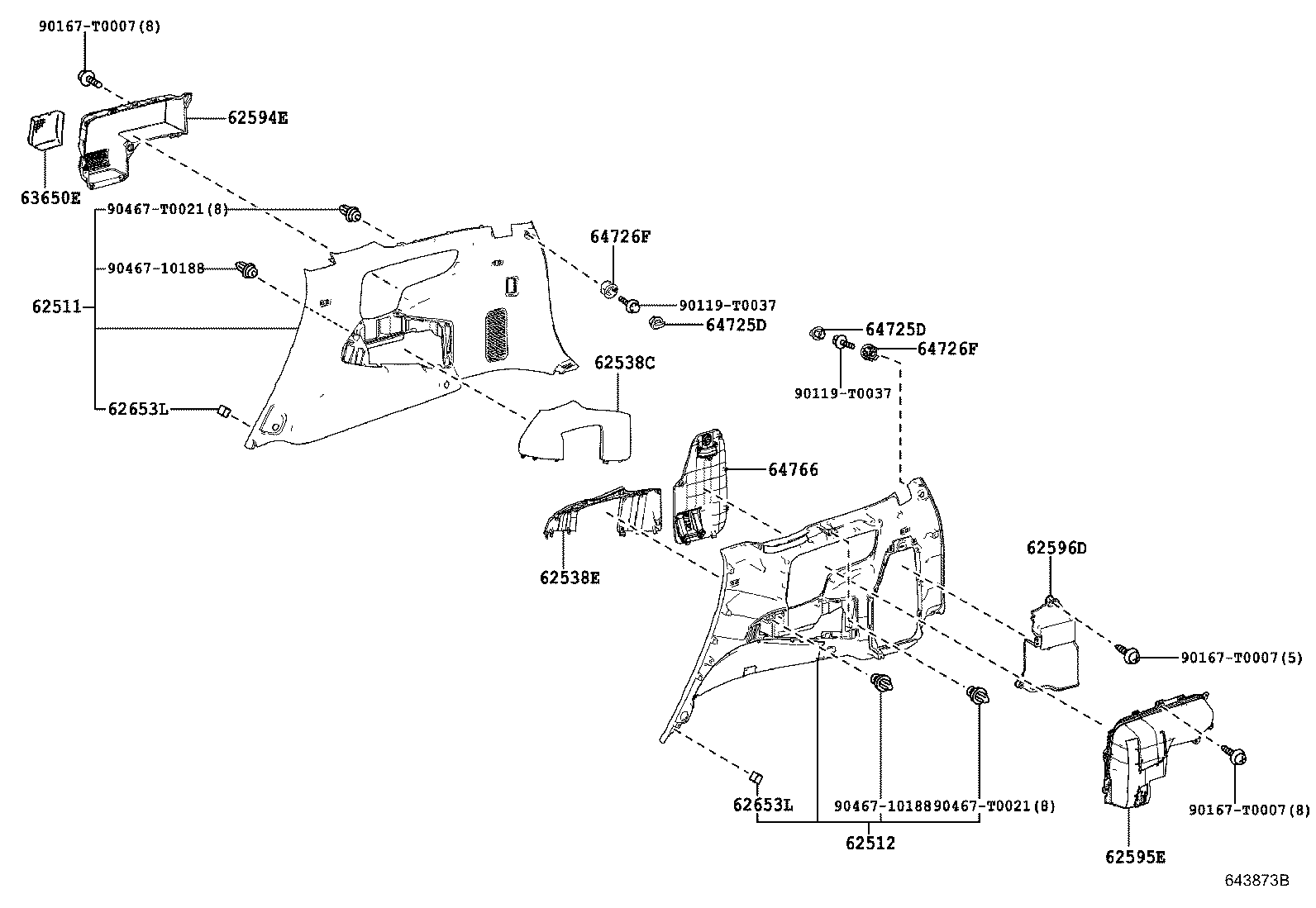

Figure 643872F 643872F 2015-11 → — Figure 643873B 643873B 2015-11 → 2017-08 Figure 644203A 644203A 2017-08 → 2018-02 Figure 644203A 644203A 2017-08 → — Figure 644203A 644203A 2021-01 → — Figure 644350A 644350A 2016-04 → — Figure 644350A 644350A 2018-02 → 2021-01 Figure 644350A 644350A 2018-02 → —

Part groups

PNCDescription
62111C Board, Cowl Side Trim, RH
62112 Board, Cowl Side Trim, LH
62117B Clip, NO.1(FOR COWL SIDE TRIM)
62117C Clip, NO.2(FOR COWL SIDE TRIM)
62170A Airbag Assy, Curtain Shield, RH
62170B Bolt, W/Washer
62180A Airbag Assy, Curtain Shield, LH
62189A Spacer, Curtain Shield Airbag Clip
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62211T Clip(FOR FRONT PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62225A Garnish, Front Pillar, Lower RH
62226 Garnish, Front Pillar, Lower LH
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62331C Weatherstrip, Rear Door Opening Trim, RH
62332C Weatherstrip, Rear Door Opening Trim, LH
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62451A Clip, Side Garnish
62451C Garnish, Roof Side Rail, Rear RH
62452C Garnish, Roof Side Rail, Rear LH
62471D Garnish, Rear Pillar, Upper RH
62471F Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
62472D Garnish, Rear Pillar, Upper LH
62487A Cover, Roof Side Inner Garnish, RH
62488A Cover, Roof Side Inner Garnish, LH
62511 Board, Quarter Inside Trim, RH
62512 Board, Quarter Inside Trim, LH
62538C Cover, Quarter Trim, Hole
62538E Cover, Quarter Trim, Hole
62566B Clamp, Rocker Panel Inner Protecter, NO.1
62594E Pocket, Quarter Trim, RH
62595E Pocket, Quarter Trim, LH
62596D Tray, Quarter Trim Pocket
62631E Retainer, Quater Trim
62638A Garnish, Quarter Pillar, RH
62639A Garnish, Quarter Pillar, LH
62653L Packing (FOR QUARTER INSIDE TRIM BOARD)
63650E Net Assy, Air Intake
64725D Hook, Luggage Compartment Trim, NO.1
64726F Hook, Luggage Compartment Trim, NO.2
64766 Cover Sub-assy, Quarter Trim Jack
67911B Plate, Front Door Scuff, Outside, RH
67912A Plate, Front Door Scuff, Outside LH
67913B Plate, Front Door Scuff, RH
67914B Plate, Front Door Scuff, LH
67915 Plate, Rear Door Scuff, Outside RH
67916 Plate, Rear Door Scuff, Outside LH
67917C Plate, Rear Door Scuff, RH
67918E Plate, Rear Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
