Toyota Innova
2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General
Supported model
Data version 2021-11

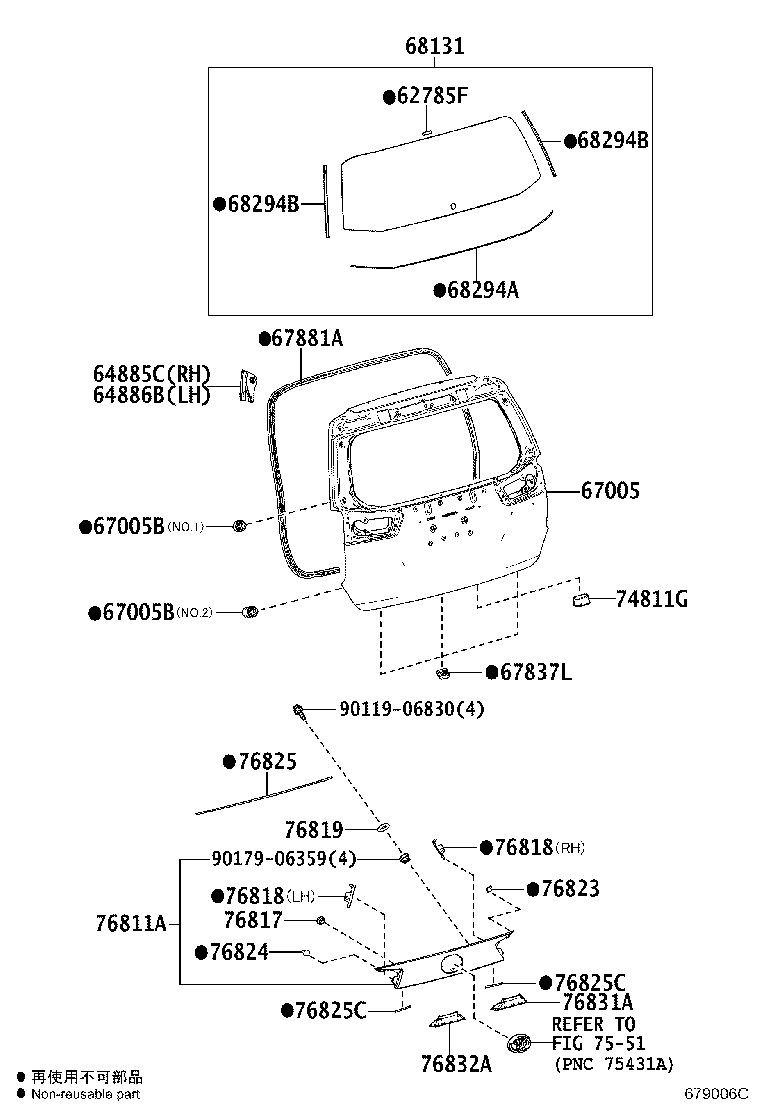

Back Door Panel & Glass
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64885C | Channel, Back Door Glass, RH |
| 64886B | Channel, Back Door Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67837L | Seal, Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68294A | Dam, Back Door Glass Adhesive |
| 68294B | Dam, Back Door Glass Adhesive |
| 74811G | Handle, Door Pull |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76811A | Garnish, Back Door, Outside |
| 76817 | Clip, Back Door Outside Garnish |
| 76818 | Pad, Back Door Outside Garnish |
| 76819 | Seal, Back Door Outside Garnish |
| 76823 | Protector, Back Door Garnish Moulding, RH |
| 76824 | Protector, Back Door Garnish Moulding, LH |
| 76825 | Protector, Back Door Outside Garnish |
| 76825C | Protector, Back Door Outside Garnish |
| 76831A | Cover, Back Door Finish Panel, RH |
| 76832A | Cover, Back Door Finish Panel, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
