Seat & Seat Track

215 part groups · 56 illustrations

Illustrations

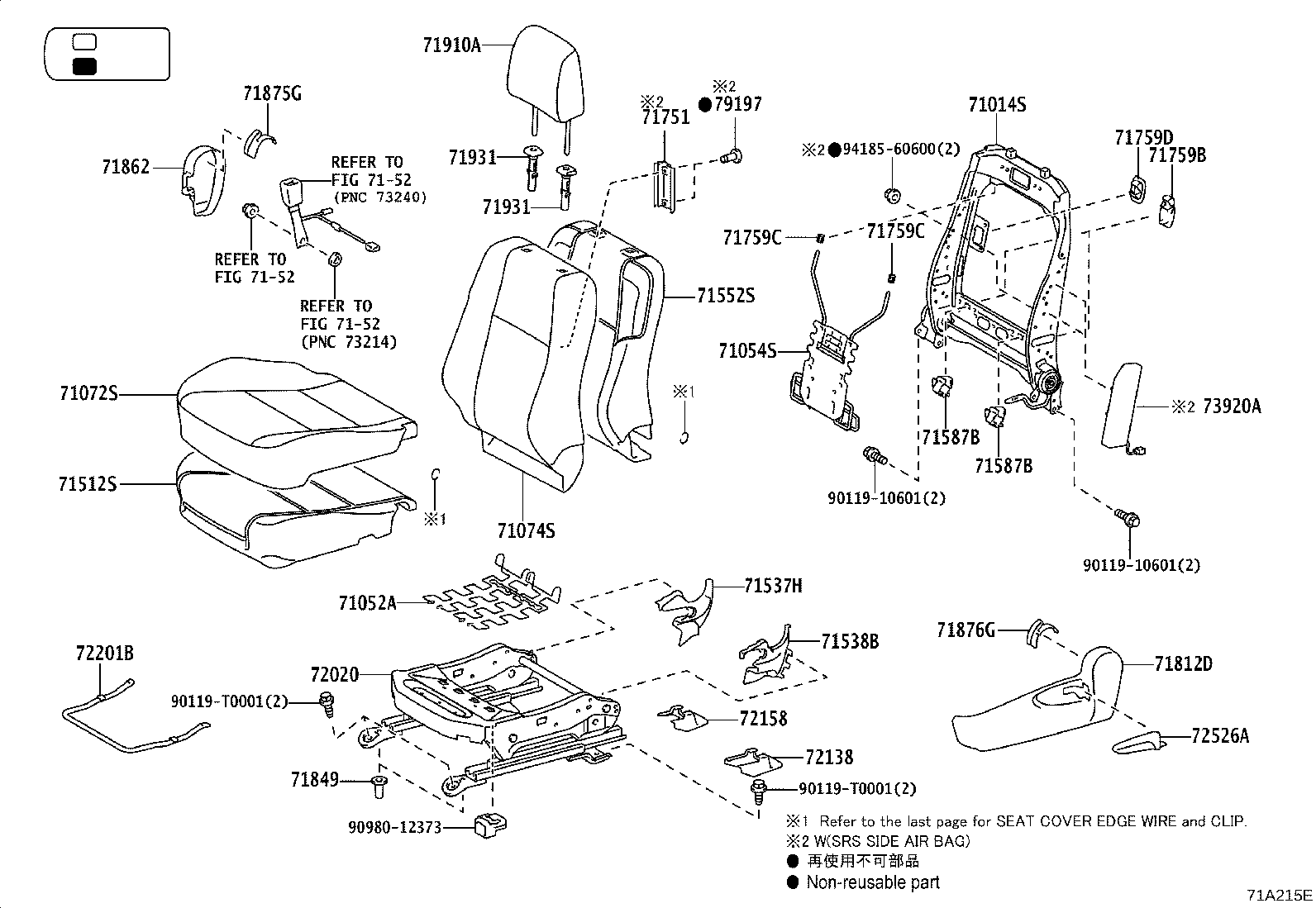

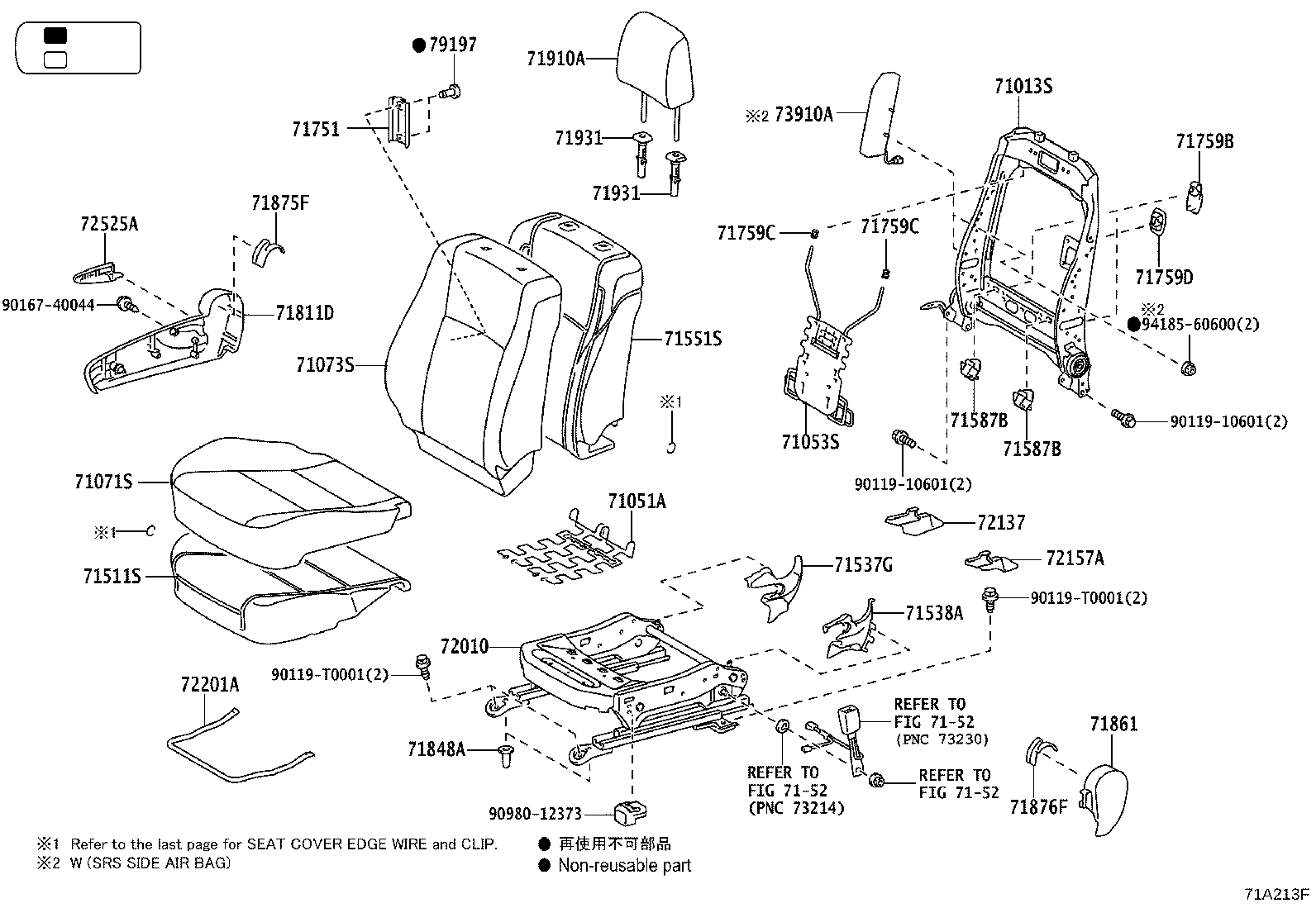

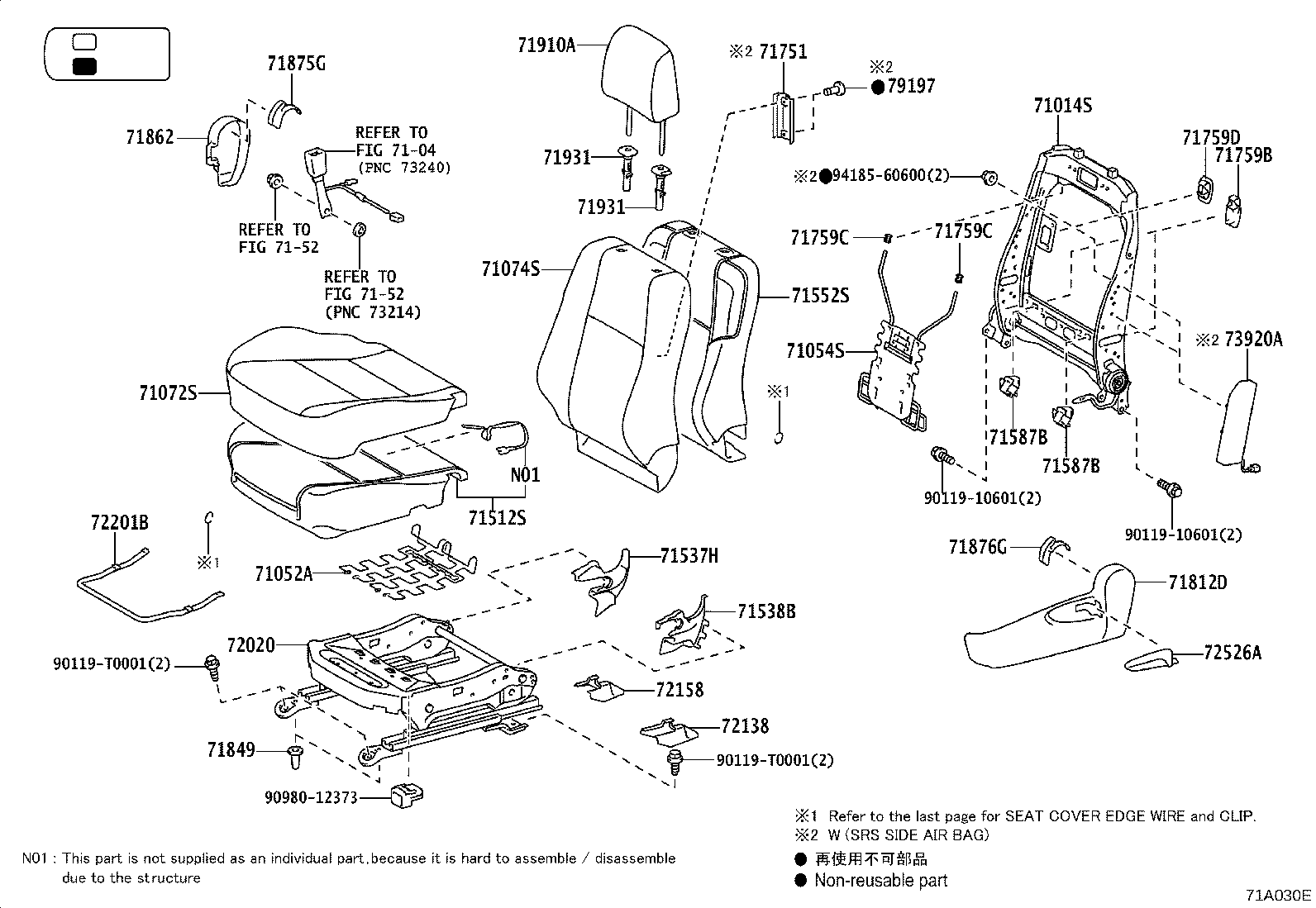

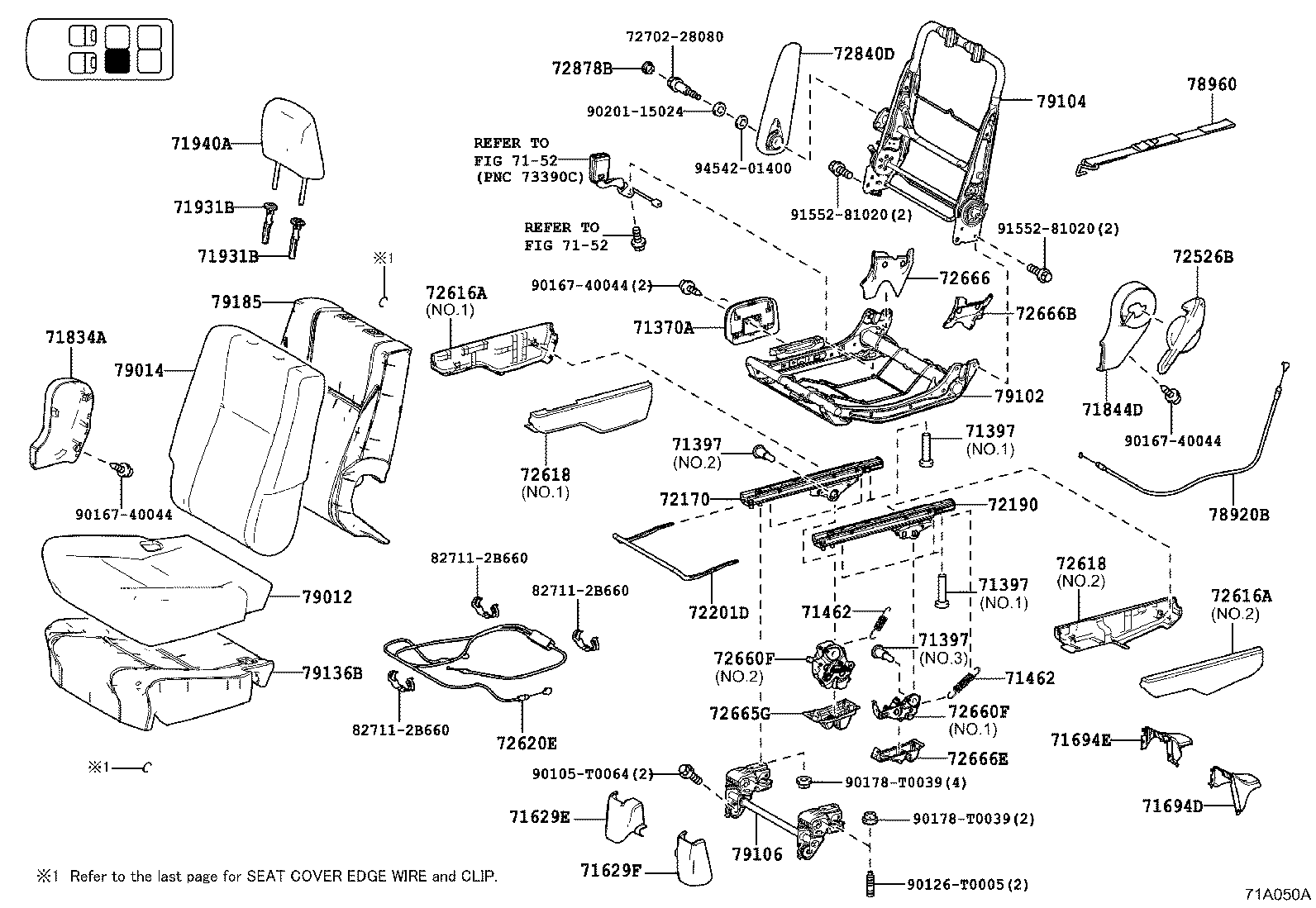

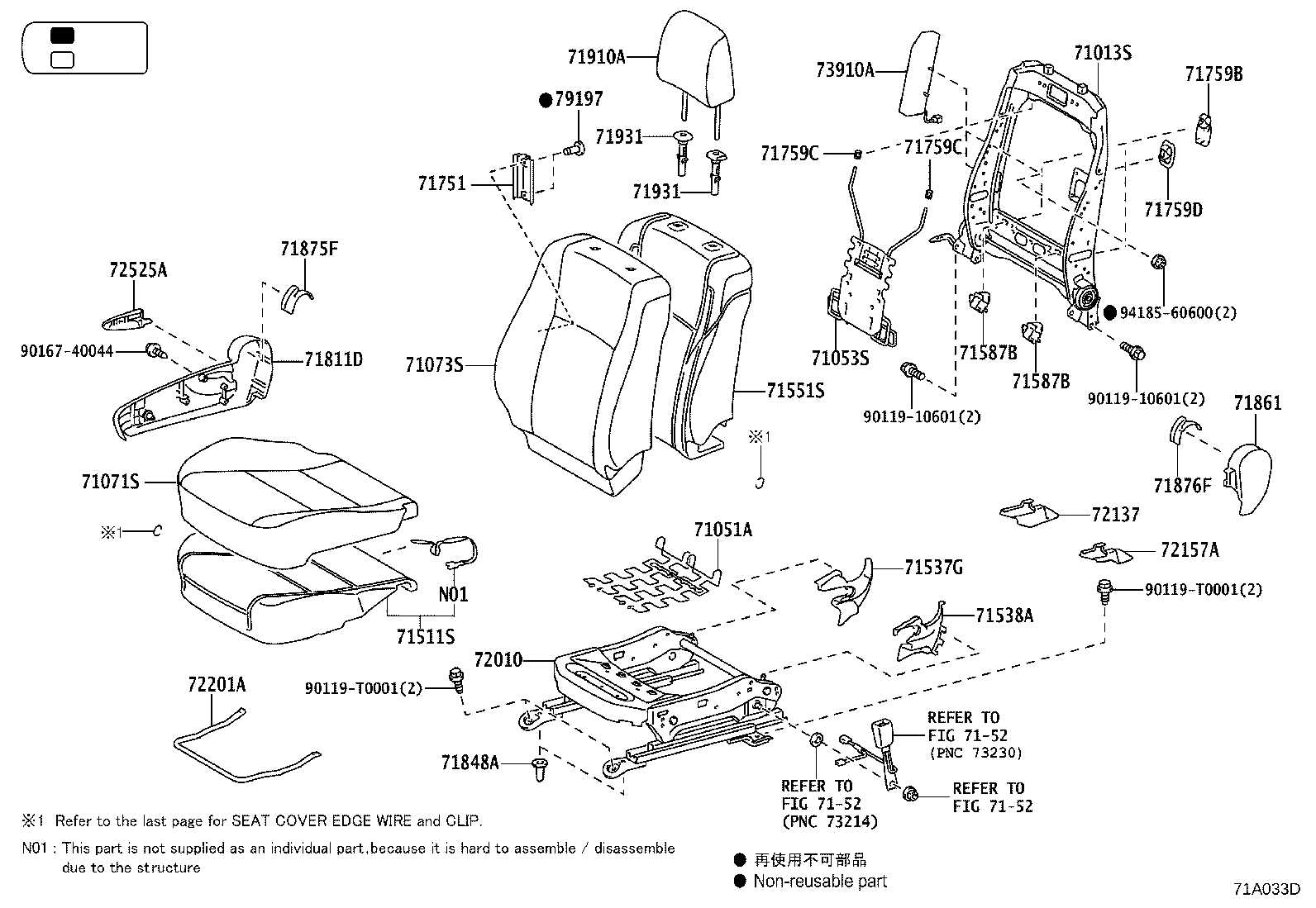

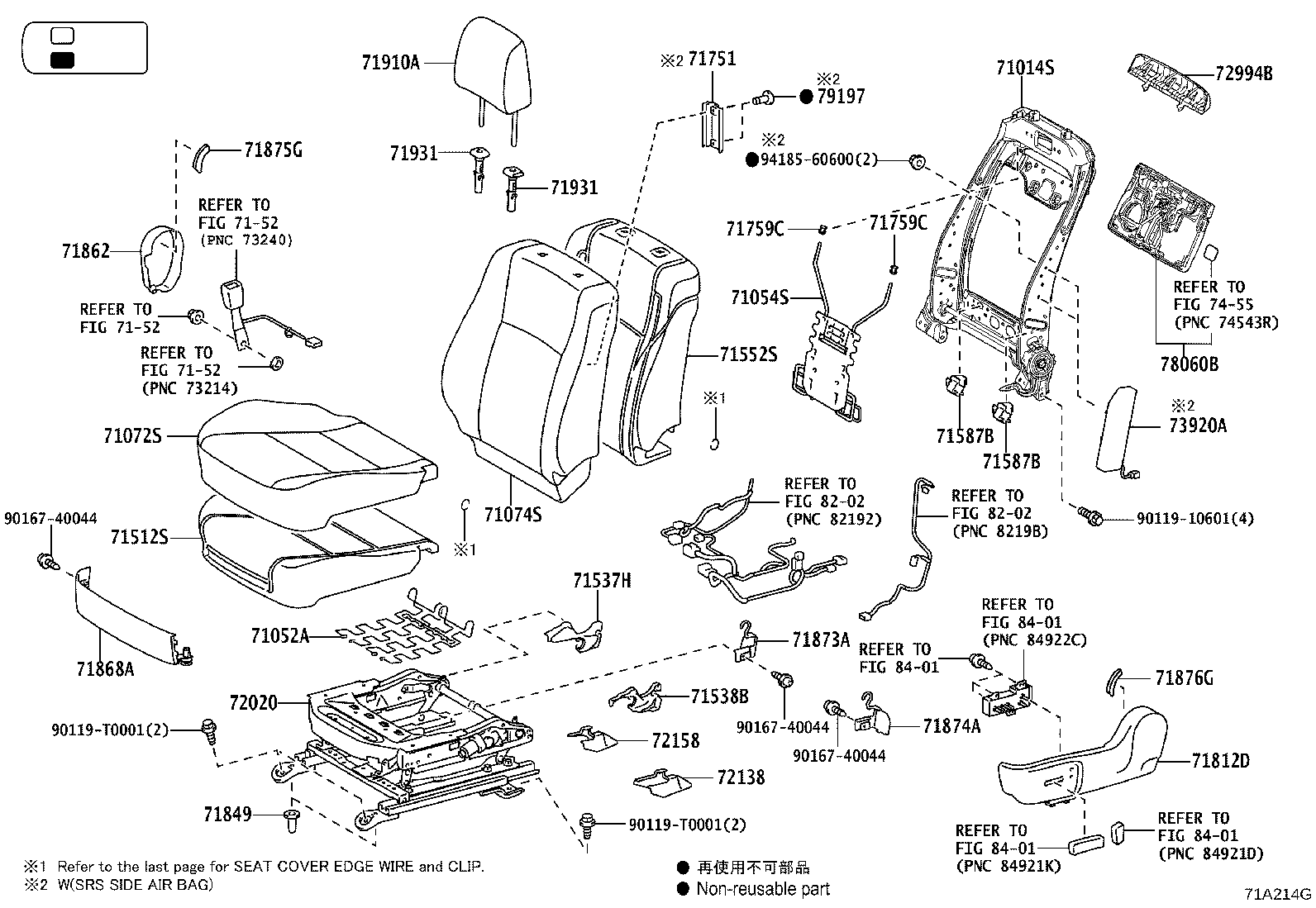

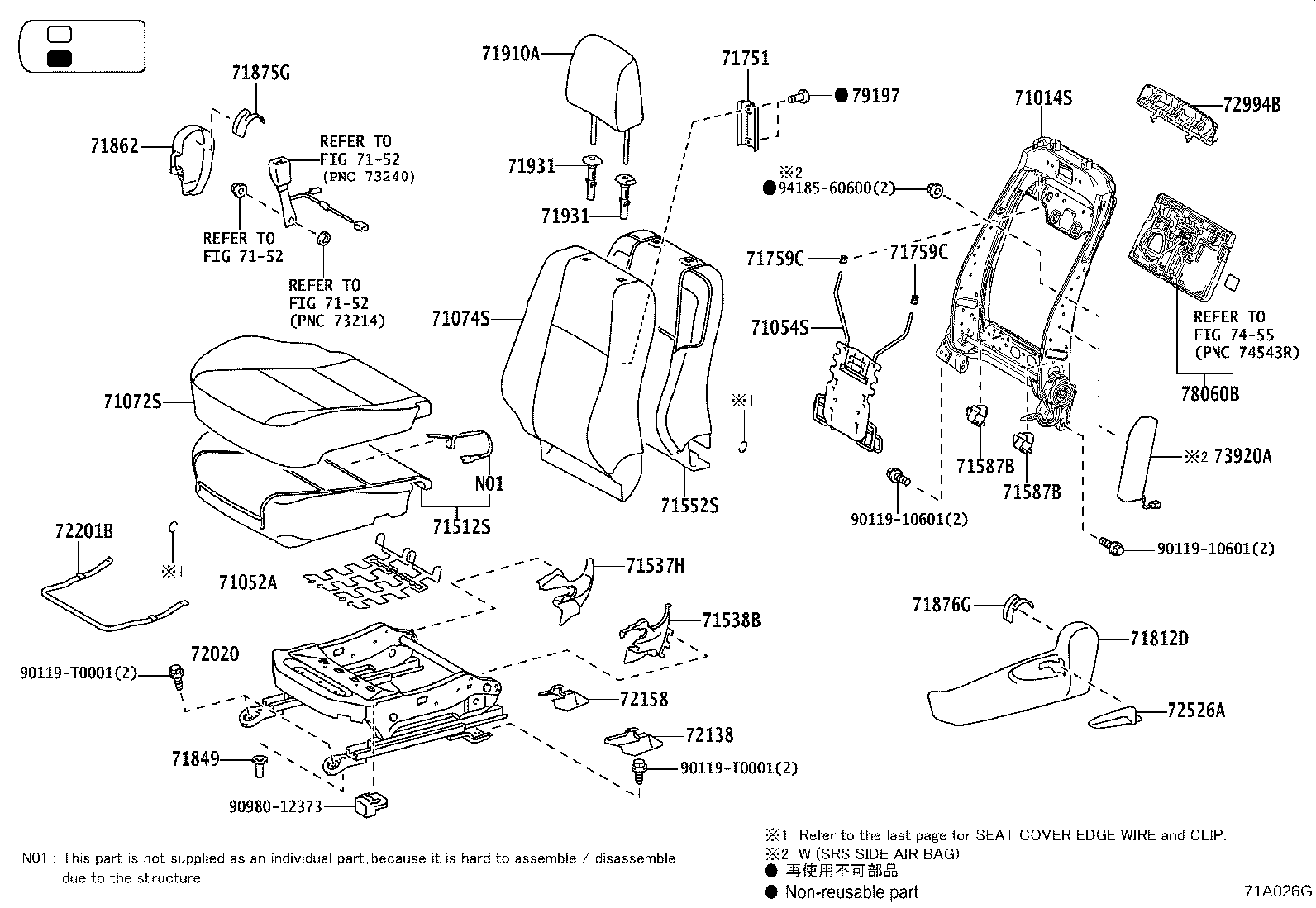

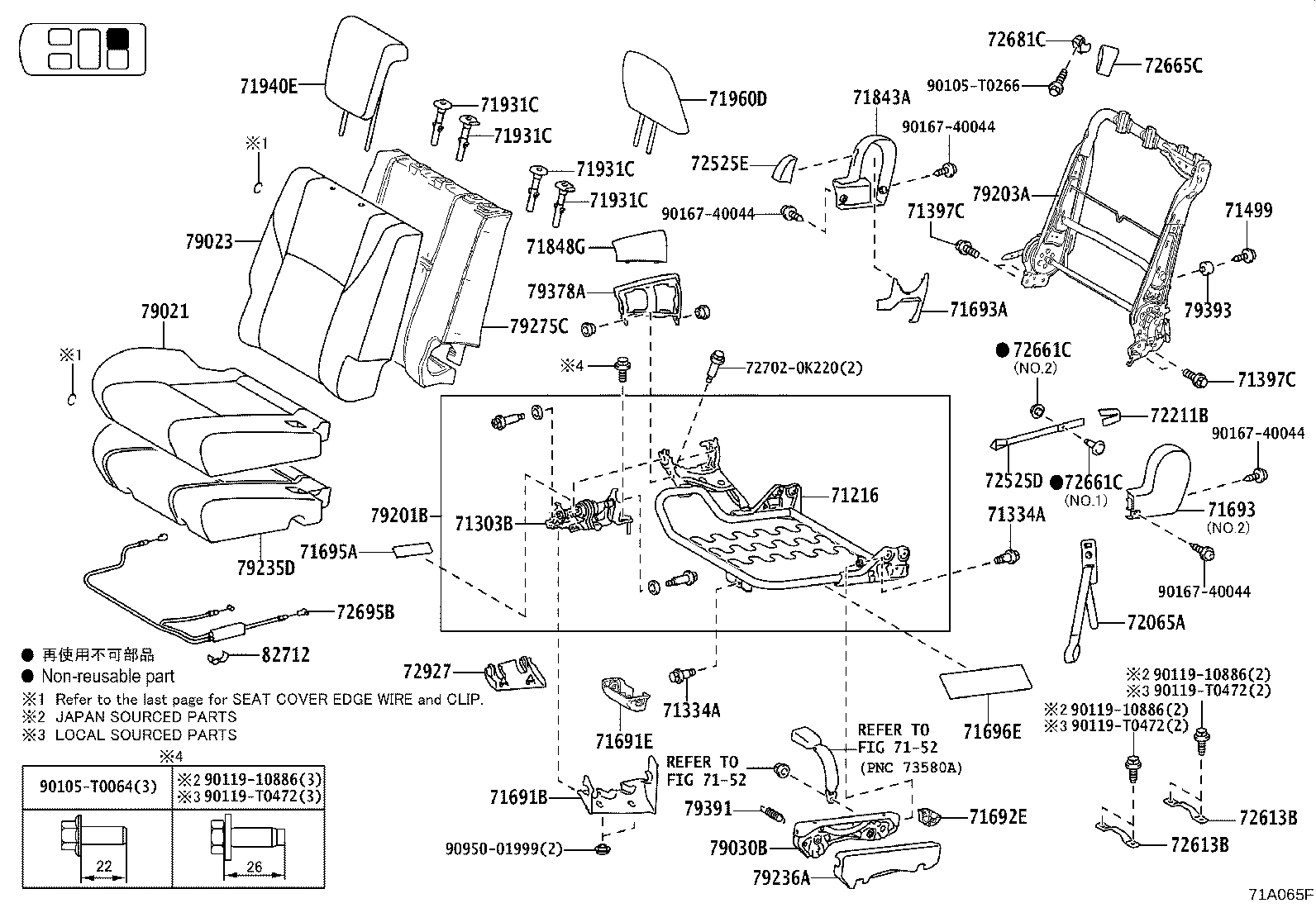

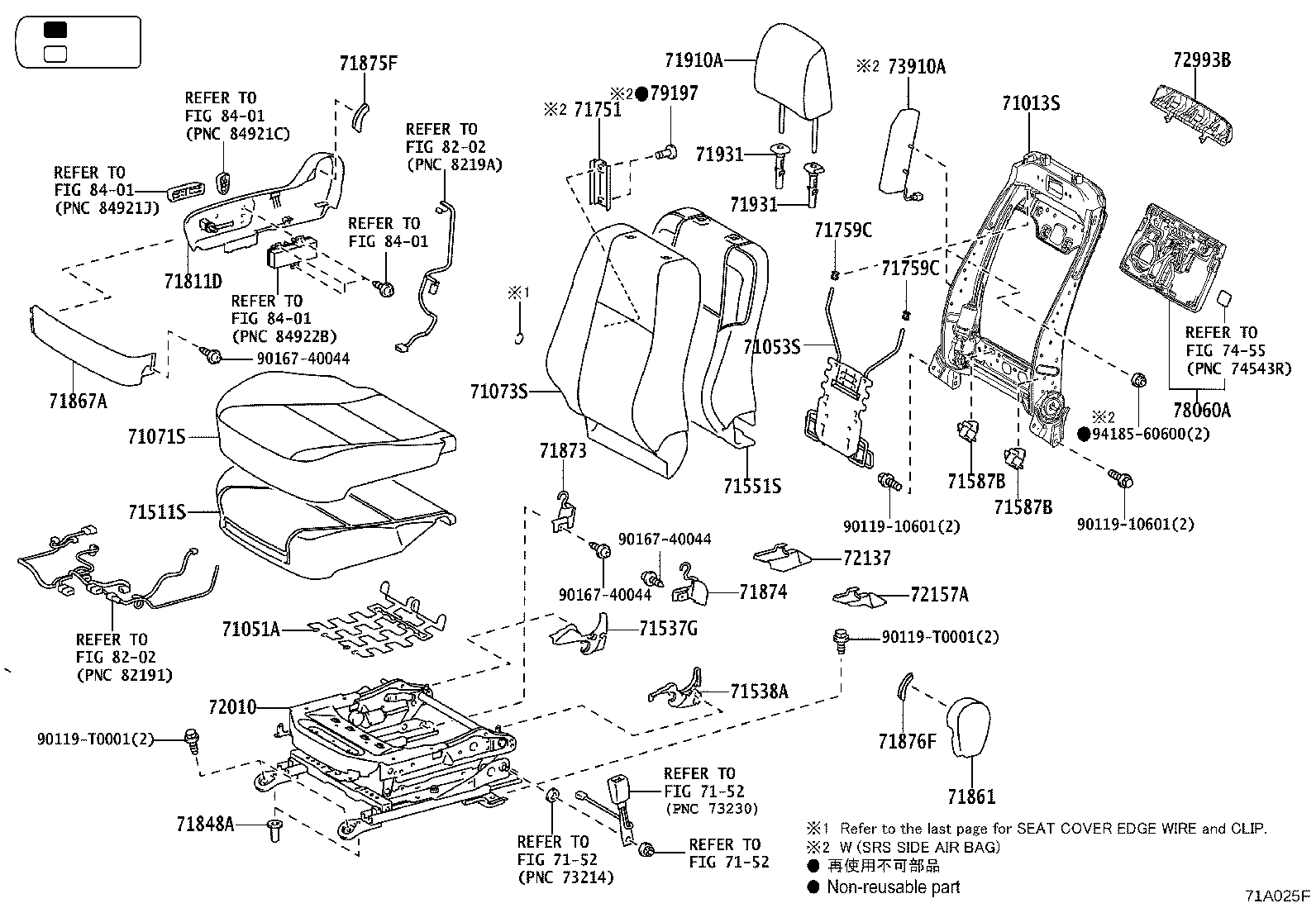

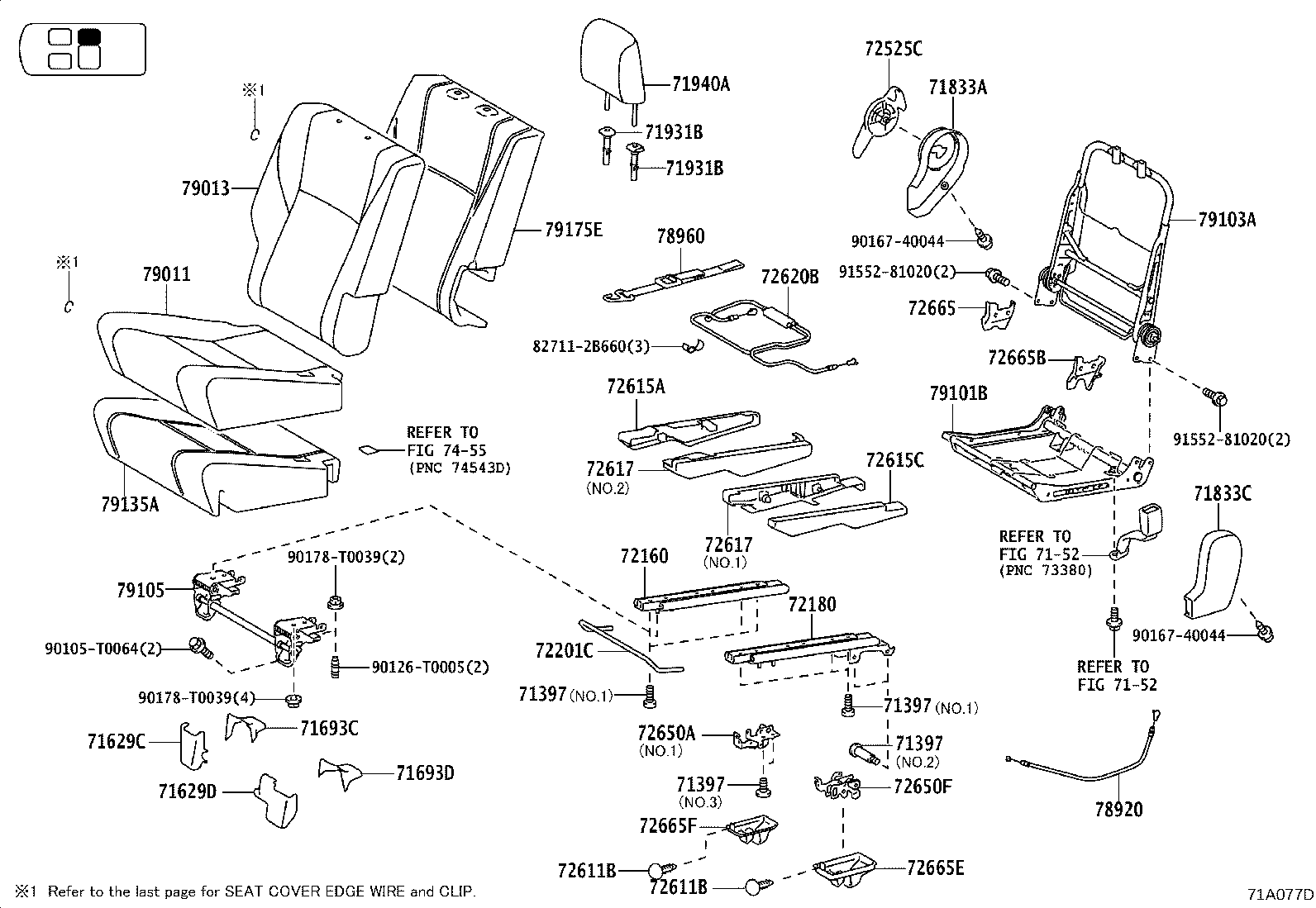

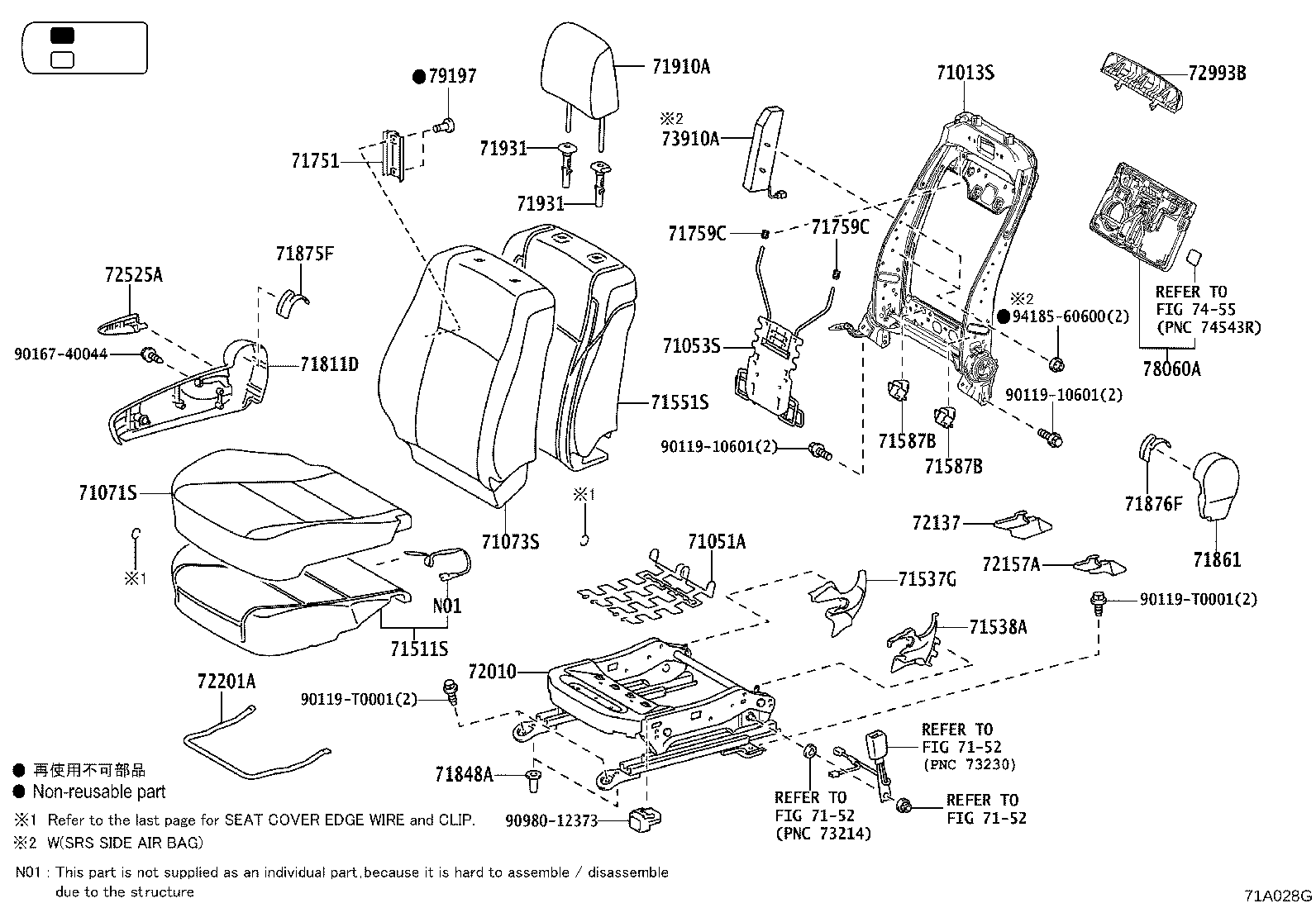

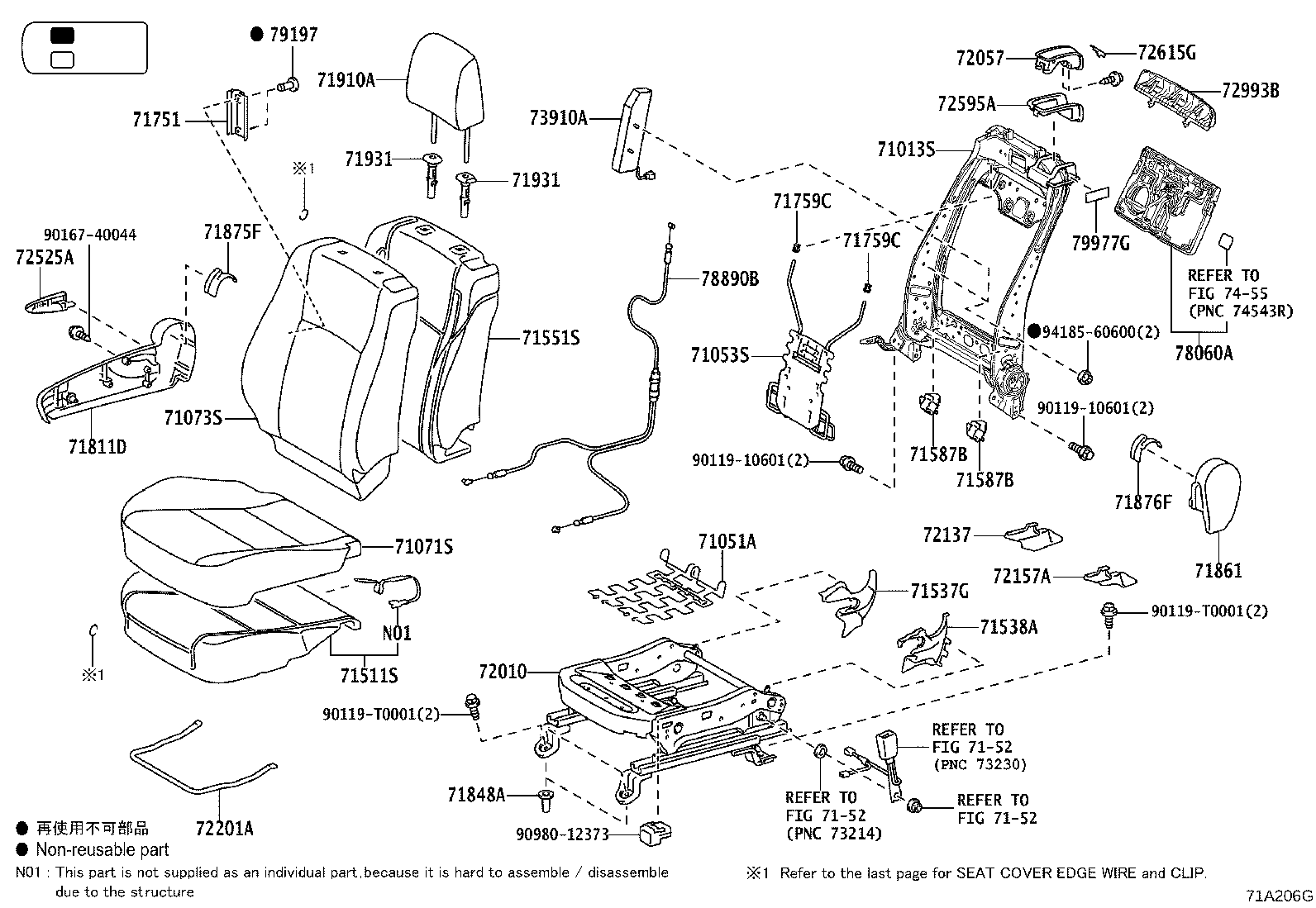

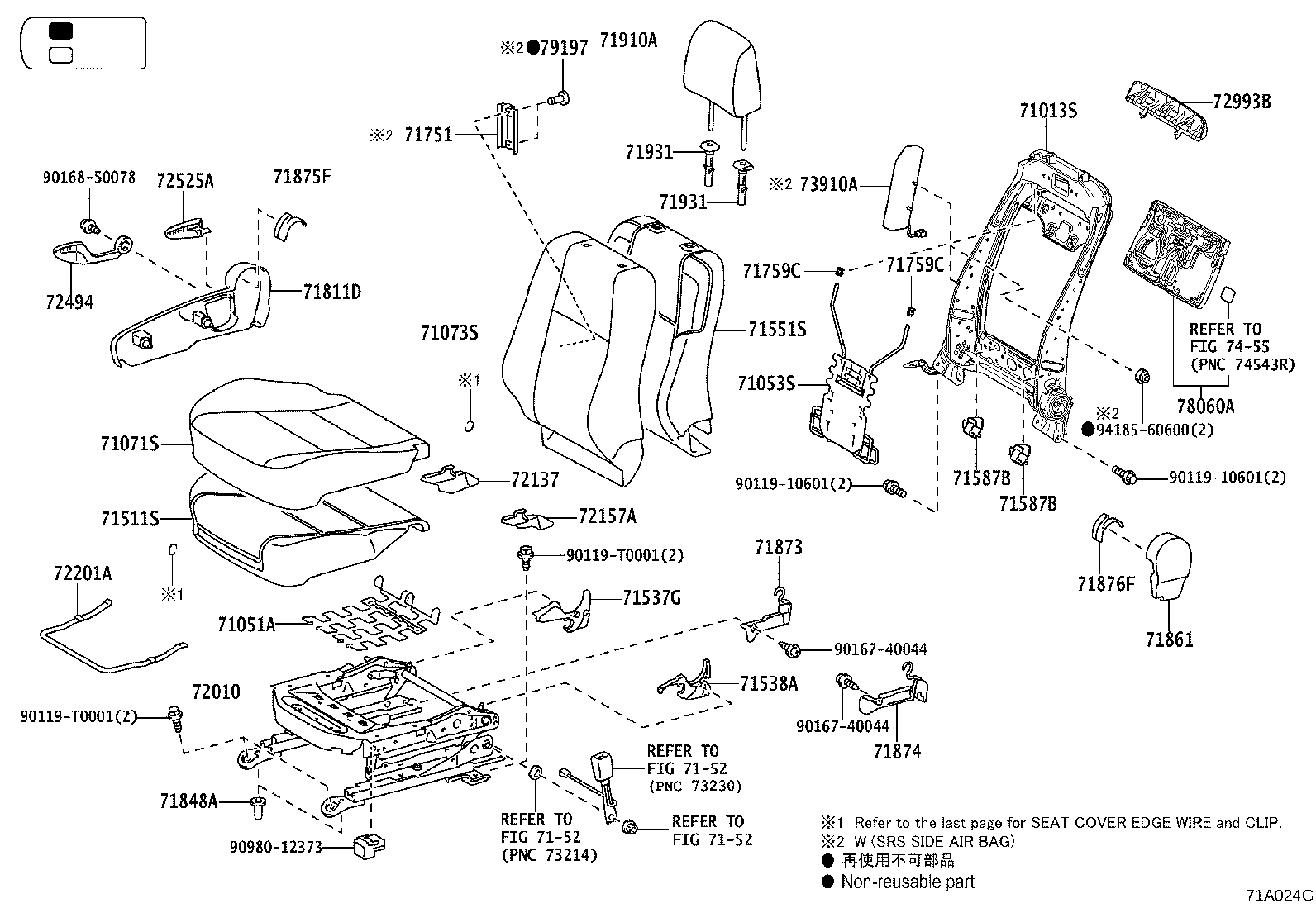

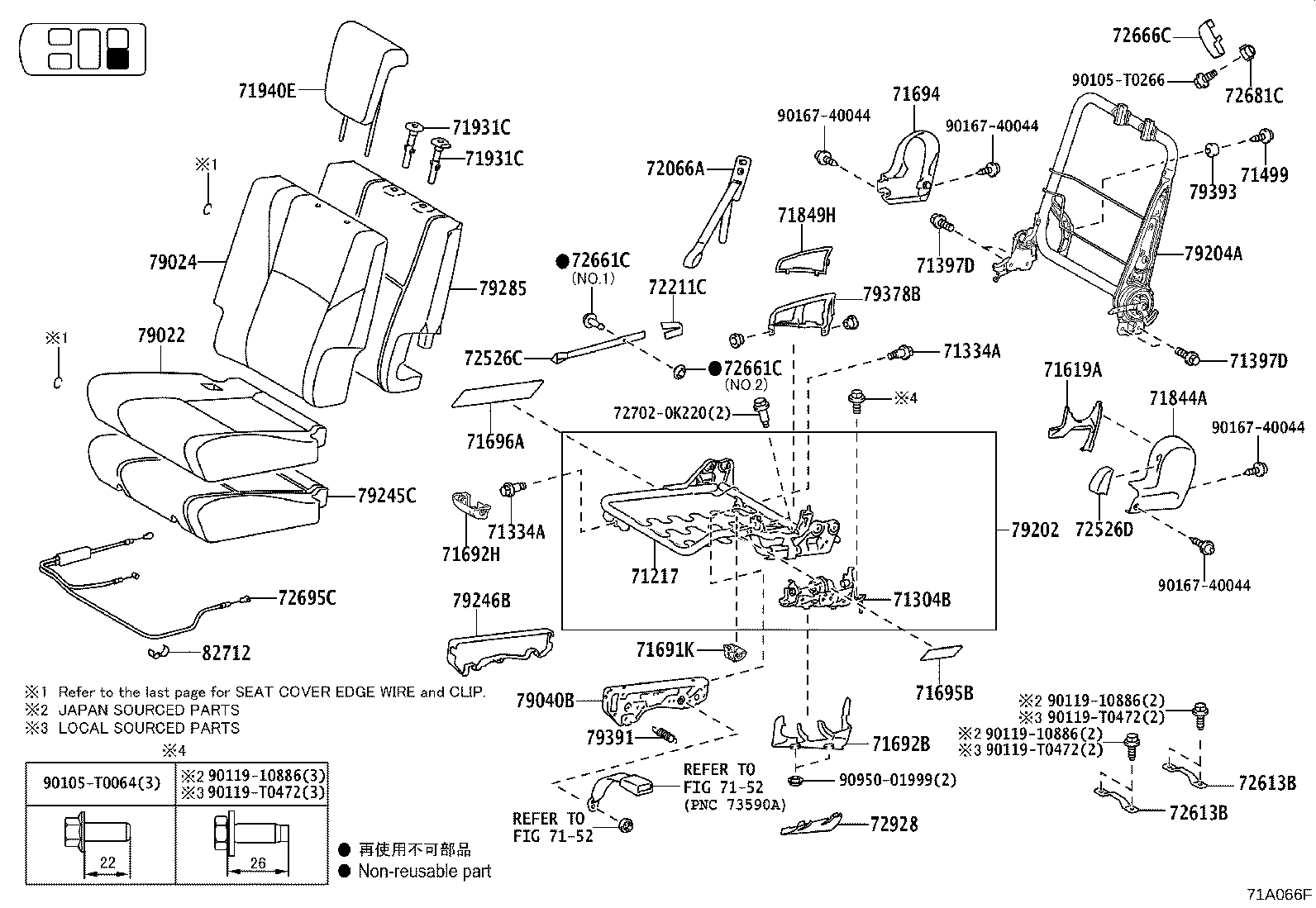

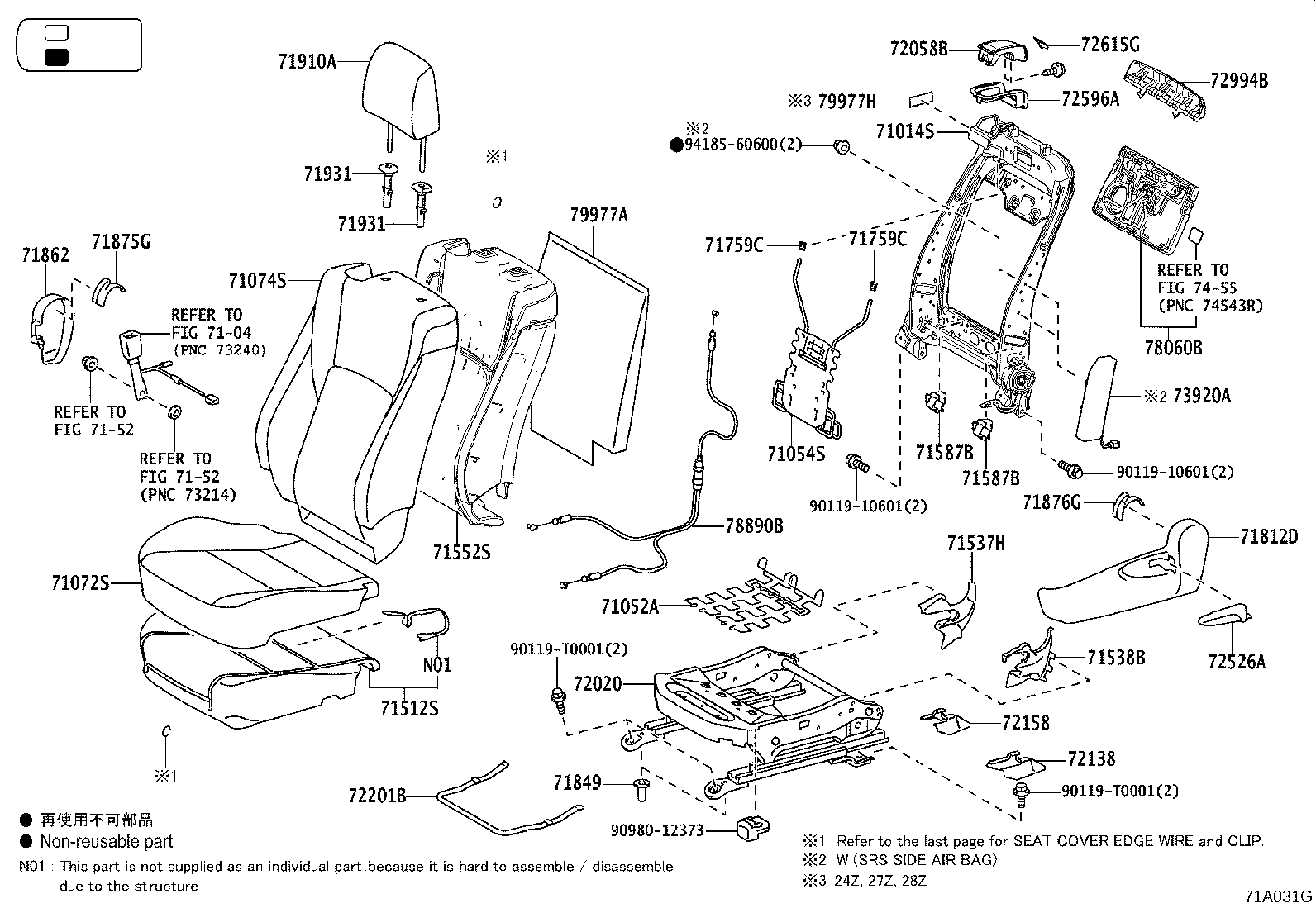

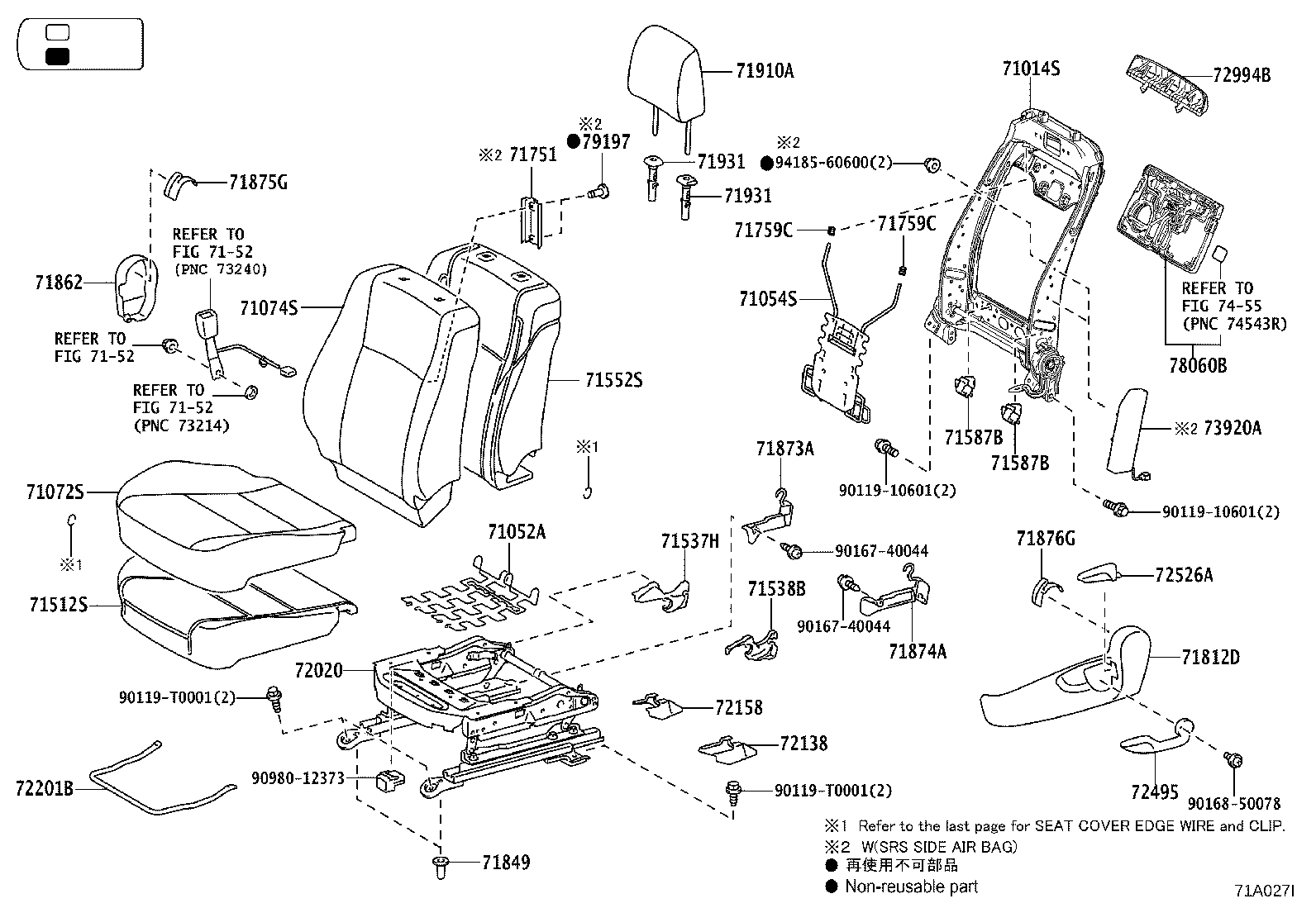

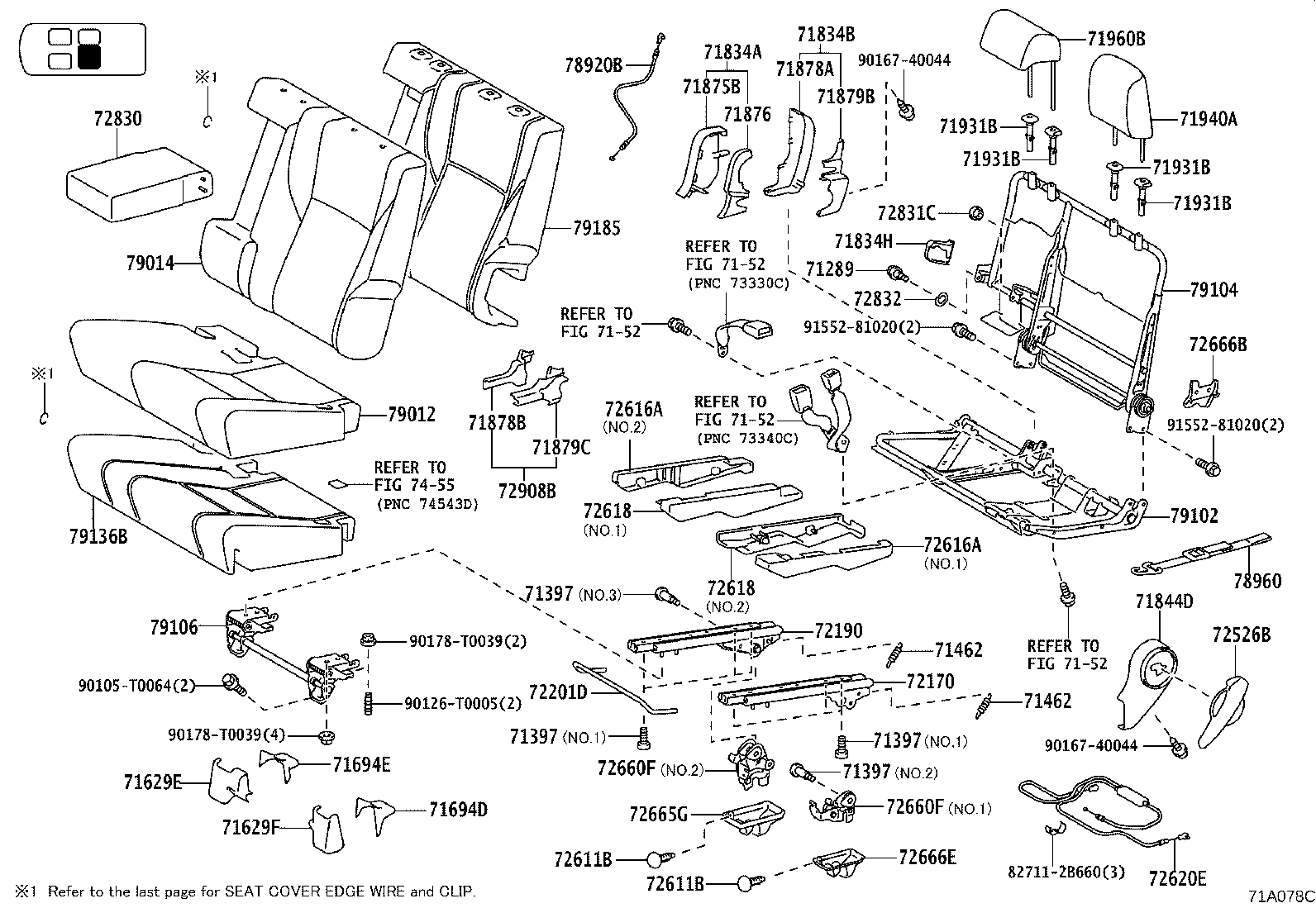

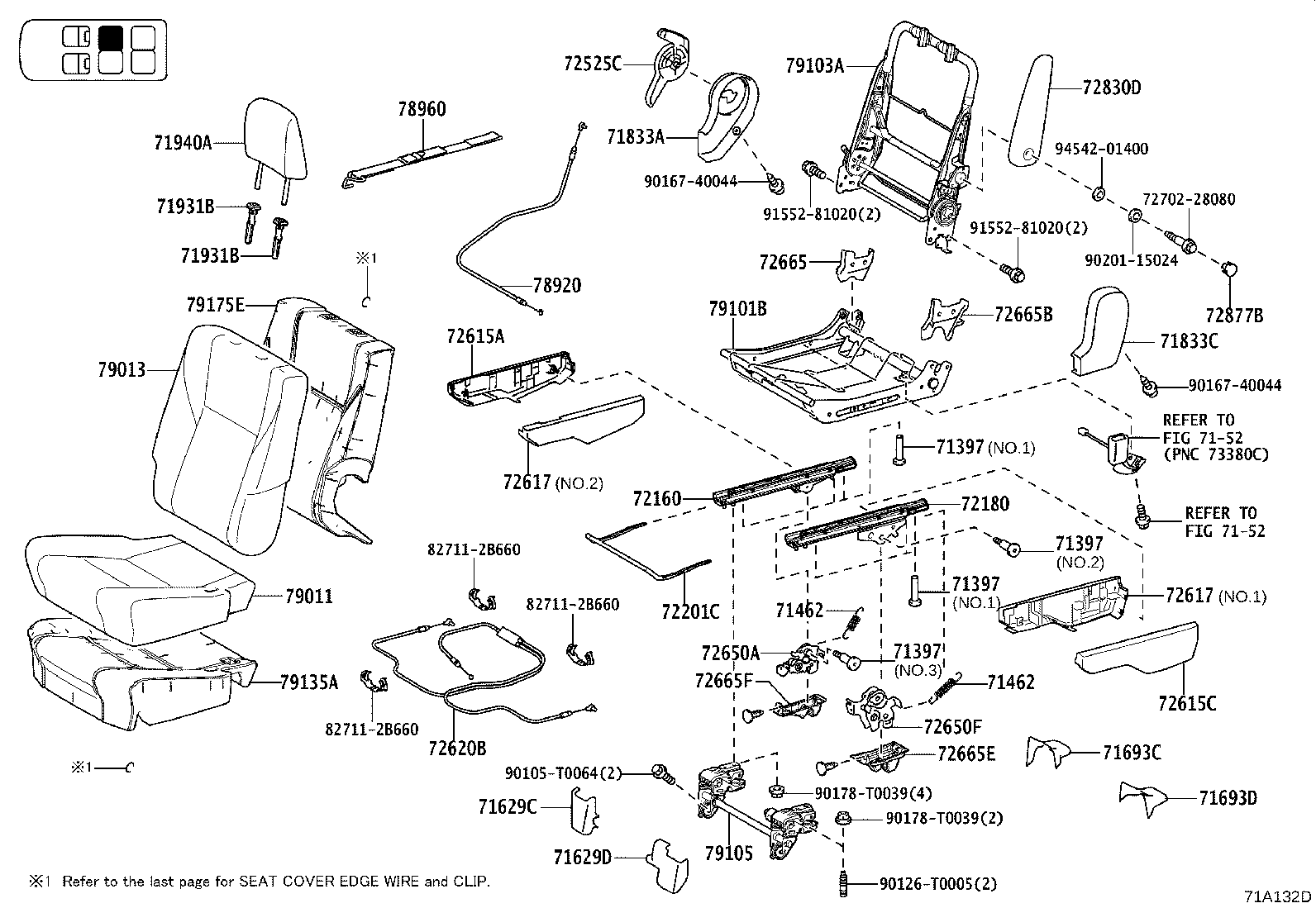

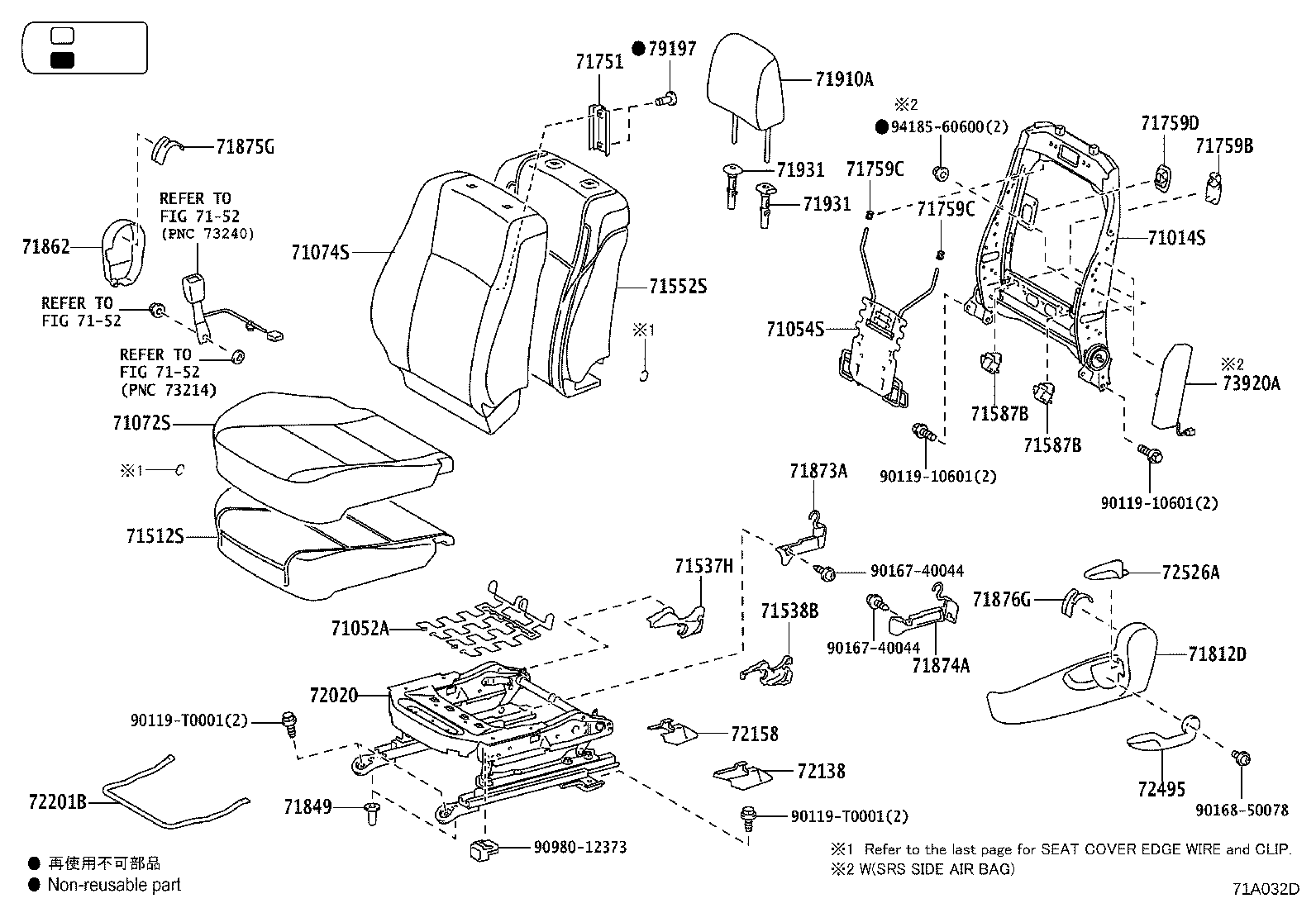

Figure 71A029E 71A029E 2015-11 → 2020-08 Figure 71A029E 71A029E 2016-11 → — Figure 71A029E 71A029E 2017-09 → 2020-01 Figure 71A029E 71A029E 2017-09 → — Figure 71A029E 71A029E 2018-09 → 2020-01 Figure 71A029E 71A029E 2020-09 → — Figure 71A024G 71A024G 2015-11 → — Figure 71A024G 71A024G 2016-04 → — Figure 71A024G 71A024G 2020-09 → — Figure 71A024G 71A024G 2020-10 → — Figure 71A024G 71A024G 2020-11 → — Figure 71A025F 71A025F 2015-11 → — Figure 71A025F 71A025F 2015-11 → — Figure 71A213F 71A213F 2016-04 → 2017-09 Figure 71A213F 71A213F 2016-04 → 2018-09 Figure 71A213F 71A213F 2016-04 → 2020-09 Figure 71A213F 71A213F 2020-10 → — Figure 71A030E 71A030E 2015-11 → — Figure 71A030E 71A030E 2015-11 → — Figure 71A026G 71A026G 2015-11 → — Figure 71A026G 71A026G 2020-10 → — Figure 71A026G 71A026G 2020-11 → — Figure 71A031G 71A031G 2015-11 → — Figure 71A031G 71A031G 2015-11 → — Figure 71A032D 71A032D 2015-11 → — Figure 71A027I 71A027I 2015-11 → — Figure 71A027I 71A027I 2015-11 → — Figure 71A027I 71A027I 2020-10 → — Figure 71A215E 71A215E 2016-04 → — Figure 71A214G 71A214G 2016-07 → — Figure 71A214G 71A214G 2018-08 → — Figure 71A214G 71A214G 2018-09 → 2019-06 Figure 71A214G 71A214G 2020-09 → — Figure 71A033D 71A033D 2015-11 → — Figure 71A028G 71A028G 2015-11 → — Figure 71A028G 71A028G 2015-11 → — Figure 71A206G 71A206G 2016-07 → — Figure 71A206G 71A206G 2018-08 → 2019-05 Figure 71A206G 71A206G 2018-09 → 2019-06 Figure 71A132D 71A132D 2015-11 → 2021-02 Figure 71A132D 71A132D 2015-11 → 2021-02 Figure 71A132D 71A132D 2021-02 → — Figure 71A050A 71A050A 2015-11 → 2021-02 Figure 71A050A 71A050A 2015-11 → 2021-02 Figure 71A050A 71A050A 2021-02 → — Figure 71A077D 71A077D 2015-11 → 2021-02 Figure 71A077D 71A077D 2015-11 → 2021-02 Figure 71A077D 71A077D 2015-11 → 2021-02 Figure 71A077D 71A077D 2021-02 → — Figure 71A078C 71A078C 2015-11 → 2021-02 Figure 71A078C 71A078C 2015-11 → 2021-02 Figure 71A078C 71A078C 2015-11 → 2021-02 Figure 71A078C 71A078C 2021-02 → — Figure 71A065F 71A065F 2015-11 → — Figure 71A066F 71A066F 2015-11 → — Figure 71A064A 71A064A 2015-11 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71216 Frame, Rear Seat Cushion, Rear RH
71217 Frame, Rear Seat Cushion, Rear LH
71289 Pin, Rear Seat Center Armrest
71303B Hinge Sub-assy, Rear NO.2 Seat, RH
71304B Hinge Sub-assy, Rear NO.2 Seat, LH
71334A Stopper, Rear Seat Leg
71370A Holder Assy, Rear Seat Cushion
71397 Stopper, Rear Seat
71397C Stopper, Rear Seat
71397D Stopper, Rear Seat
71462 Spring, Rear Seat Cushion, NO.2
71499 Stopper, Rear Seatback
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587B Protector, Front Seatback Edge
71619A Cover, Rear Seat Cushion Hinge, Lower LH
71629C Cover, Rear Seat Cushion Hinge, Outer RH
71629D Cover, Rear Seat Cushion Hinge, Inner RH
71629E Cover, Rear Seat Cushion Hinge, Inner LH
71629F Cover, Rear Seat Cushion Hinge, Outer LH
71691B Cover, Rear Seat Lock, Outer RH
71691E Cover, Rear Seat Cushion Hinge, NO.1
71691K Cover, Rear Seat Cushion Hinge, NO.4
71692B Cover, Rear Seat Lock, Outer LH
71692E Cover, Rear Seat Cushion Hinge, NO.2
71692H Cover, Rear Seat Cushion Hinge, NO.3
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71693A Cover, Rear Seat Cushion Hinge, NO.3
71693C Cover, Rear Seat Cushion Hinge, Outer RH
71693D Cover, Rear Seat Cushion Hinge, Inner RH
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71694D Cover, Rear Seat Cushion Hinge, Outer LH
71694E Cover, Rear Seat Cushion Hinge, Inner LH
71695A Protector, Rear Seat, NO.1 RH
71695B Protector, Rear Seat, NO.1 LH
71696A Protector, Rear Seat, NO.2 LH
71696E Protector, Rear Seat, NO.2 RH
71751 Hanger, Seat Cover
71759B Hook, Front Seatback
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833C Cover, Rear Seat Reclining, NO.2 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71834H Cover, Rear Seat Reclining, NO.1 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71844D Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71848A Cap, Seat Adjuster Cover, RH
71848G Cap, Seat Adjuster Cover, NO.2
71849 Cap, Seat Adjuster Cover, LH
71849H Cap, Rear NO.2 Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71879B Cover, Rear Seat Reclining, Inner LH
71879C Cover, Rear Seat Reclining, Inner LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71940E Headrest Assy, NO.2 Seat
71960B Headrest Assy, Rear Seat, Center
71960D Headrest Assy, Rear NO.2 Seat, Center
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058B Lever Sub-assy, Rear Seat Lock Control, LH
72065A Hook Sub-assy,Rear Seat Cushion Lock,RH
72066A Hook Sub-assy,Rear Seat Cushion Lock,LH
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72180 Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72201C Handle Sub-assy, Seat Track, RH
72201D Handle Sub-assy, Seat Track, LH
72211B Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72525D Handle, Reclining Adjuster Release, NO.2 RH
72525E Handle, Reclining Adjuster Release, NO.3 RH
72526A Handle, Reclining Adjuster Release, LH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72526C Handle, Reclining Adjuster Release, NO.2 LH
72526D Handle, Reclining Adjuster Release, NO.3 LH
72595A Base, Reclining Remote Control, RH
72596A Base, Reclining Remote Control, LH
72611B Clip(FOR REAR SEAT LOCK BASE)
72613B Striker, Rear Seat Lock
72615A Cover, Rear Seatback Lock Striker, RH
72615C Cover, Rear Seatback Lock Striker
72615G Cover, Front Seatback Lock Striker,NO.2
72616A Cover, Rear Seatback Lock Striker, LH
72617 Retainer, Seatback Lock Striker Cover
72618 Protector, Rear Seatback Lock Striker
72620B Cable Assy, Rear NO.1 Seat Lock
72620E Cable Assy, Rear NO.1 Seat Lock
72650A Lock Assy, Rear Seat, RH
72650F Lock Assy, Rear Seat, RH
72660F Lock Assy, Rear Seat, LH
72661C Button, Rear Seatback Lock Release
72665 Cover, Rear Seatback Lock, RH
72665B Cover, Rear Seatback Lock
72665C Cover, Rear Seat Lock, RH
72665E Cover, Rear Seat Lock, NO.2 RH
72665F Cover, Rear Seat Lock, RH(FOR RH SEAT)
72665G Cover, Rear Seat Lock, RH(FOR LH SEAT)
72666 Cover, Rear Seatback Lock, LH
72666B Cover, Rear Seat Lock, LH
72666C Cover, Rear Seat Lock, NO.2 LH
72666E Cover, Rear Seat Lock, LH(FOR LH SEAT)
72681C Hook, Rear Seatback Lock, Lower
72695B Cable, Rear Seat Lock Control, RH
72695C Cable, Rear Seat Lock Control, LH
72830 Armrest Assy, Rear Seat, Center
72830D Armrest Assy, Rear Seat, RH
72831C Plate, Rear Seat Center Armrest, NO.2
72832 Plate, Rear Seat Armrest
72840D Armrest Assy, Rear Seat, LH
72877B Cover, Seat Armrest, RH
72878B Cover, Seat Armrest, LH
72908B Cover Sub-assy, Rear Seat Cush Under, LH
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72993B Cover, Front Seatback, RH
72994B Cover, Front Seatback, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
78060A Table Assy, Front Seatback, RH
78060B Table Assy, Front Seatback, LH
78890B Cable Assy, Sub-seat Lock Control
78920 Cable Assy, Fold Seat Lock Control, NO.2
78920B Cable Assy, Fold Seat Lock Control, NO.1 LH
78960 Band Assy, Fold Seat Stopper, NO.2
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79030B Leg Assy, Rear NO.2 Seat, RH
79040B Leg Assy, Rear NO.2 Seat, LH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79103A Frame Sub-assy, NO.1 Seatback, RH
79104 Frame Sub-assy, NO.1 Seatback, LH
79105 Leg Sub-assy, NO.1 Seat, RH
79106 Leg Sub Assy, NO.1 Seat, LH
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79175E Pad, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79197 Hook, Seatback Cover
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79203A Frame Sub-assy, NO.2 Seatback, RH
79204A Frame Sub-assy, NO.2 Seatback, LH
79235D Pad, NO.2 Seat Cushion, RH
79236A Cover, NO.2 Seat Leg
79245C Pad, NO.2 Seat Cushion, LH
79246B Cover, NO.2 Seat Leg, B
79275C Pad, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79378A Cover, NO.3 Seat Cushion Hinge, RH
79378B Cover, NO.3 Seat Cushion Hinge, LH
79391 Spring, Rear Seat Cushion
79393 Cushion, Rear NO.2 Seatback
79977A Felt, Seatback
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
82712 Clamp, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
