Toyota Innova
2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General
Supported model
Data version 2021-11

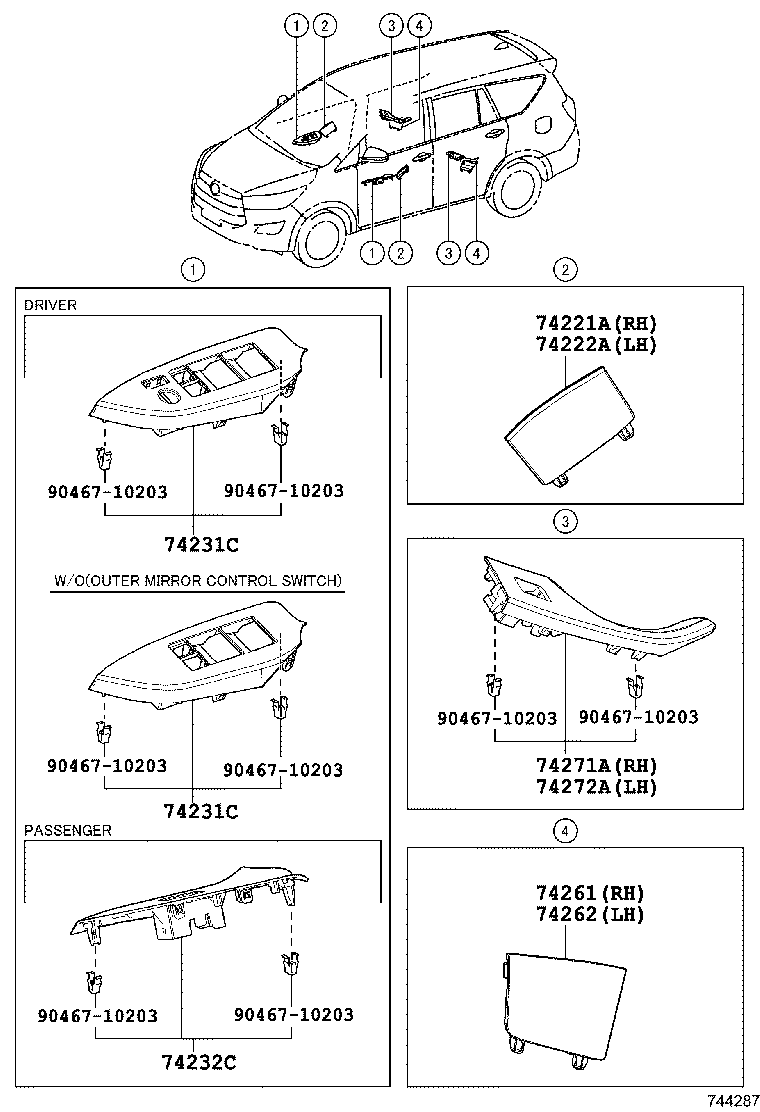

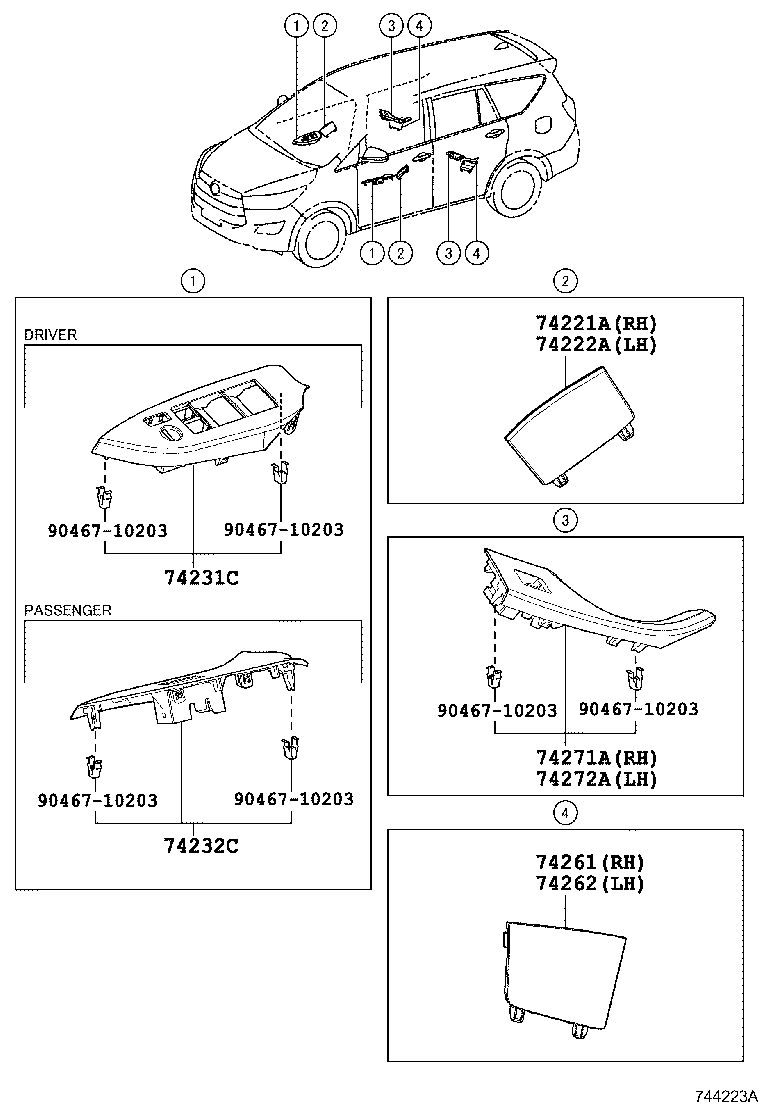

Armrest & Visor
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 74221A | Cover, Front Door Armrest, RH |
| 74222A | Cover, Front Door Armrest, LH |
| 74231C | Panel, Front Door Armrest Base, Upper Driver Side |
| 74232C | Panel, Front Door Armrest Base, Upper Passenger Side |
| 74261 | Cover, Rear Door Armrest, RH |
| 74262 | Cover, Rear Door Armrest, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |

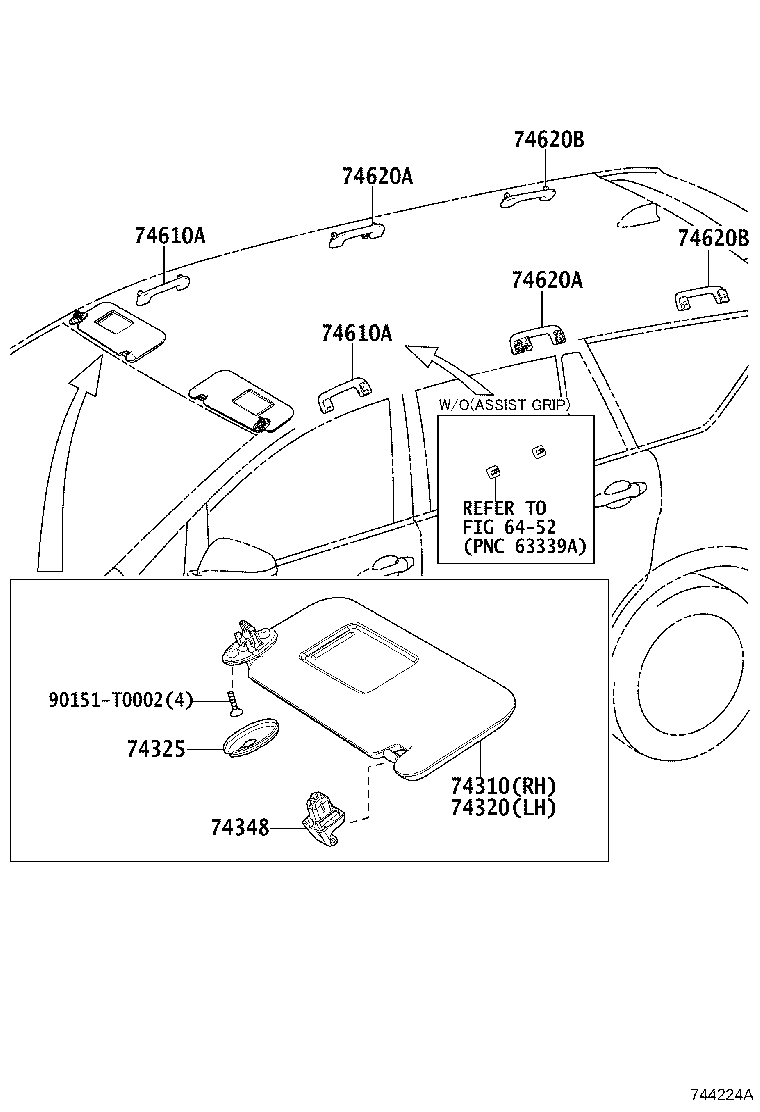

| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74325 | Cover, Visor Bracket |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74620A | Grip Assy, Assist, Rear |
| 74620B | Grip Assy, Assist, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
