Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

15 part groups · 3 illustrations

Illustrations

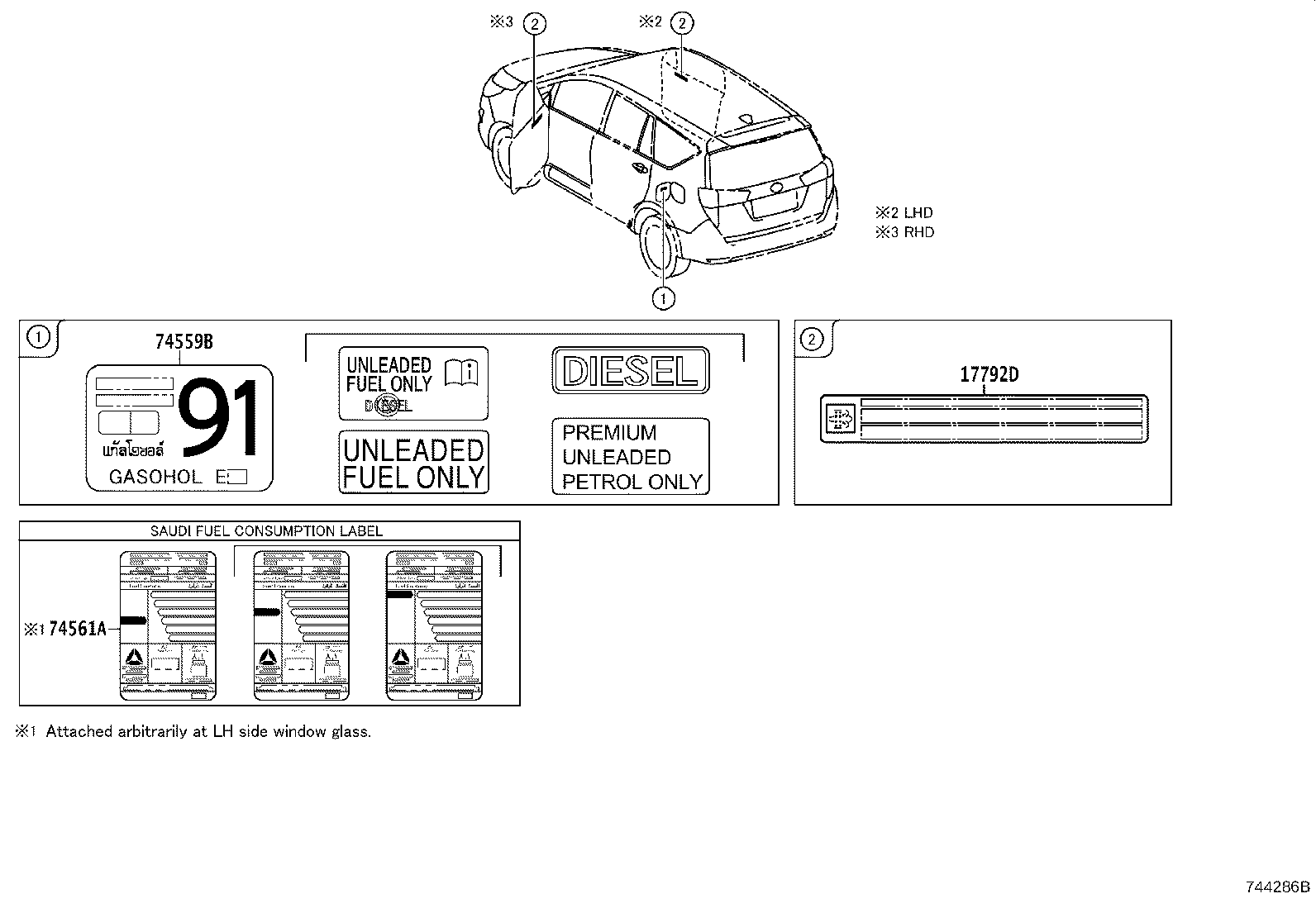

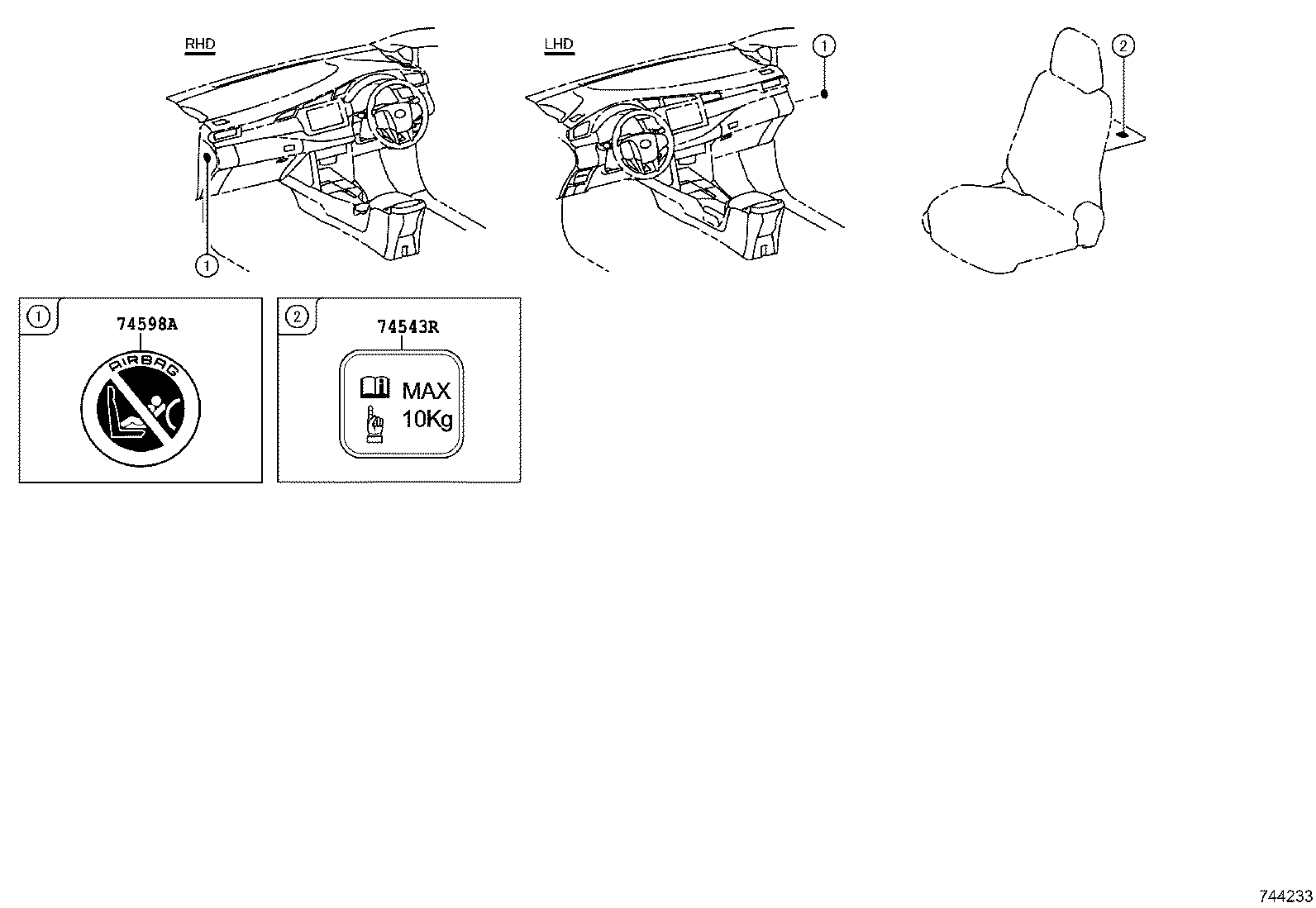

Figure 744232D 744232D 2015-11 → — Figure 744286B 744286B 2015-11 → — Figure 744233 744233 2015-11 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11295B Label, Engine Service Notice, NO.1
11298B Label, Emission Control Information
17792D Label, Emission Control Device Information
69339C Label, Child Protector Information
74515C Label, Theft Warning Information
74543R Label, Rear Seat Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74567A Plate, E.C.E Approved Number
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88218 Label, Speed Governor Information
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
