Toyota Innova
2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General
Supported model
Data version 2021-11

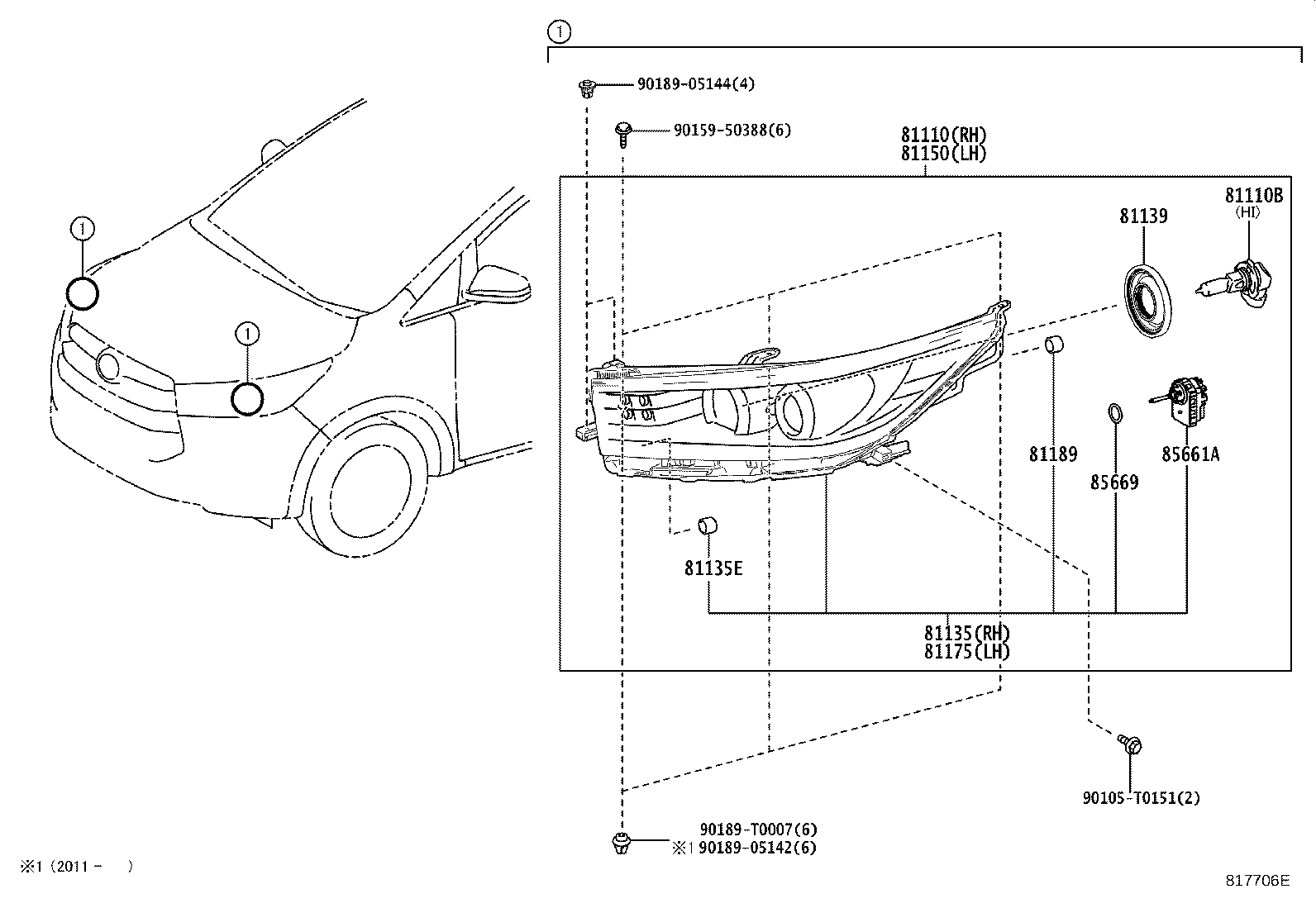

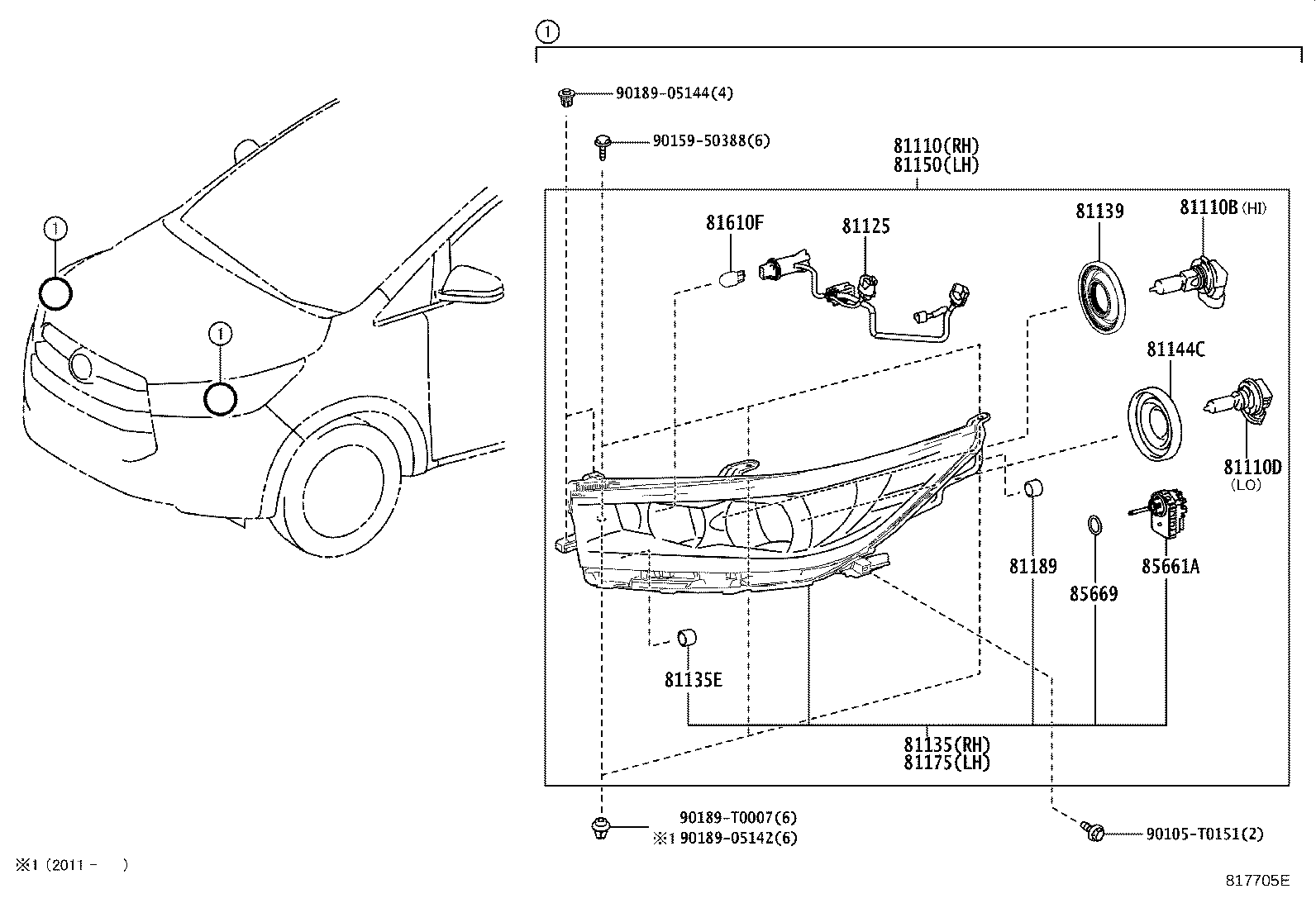

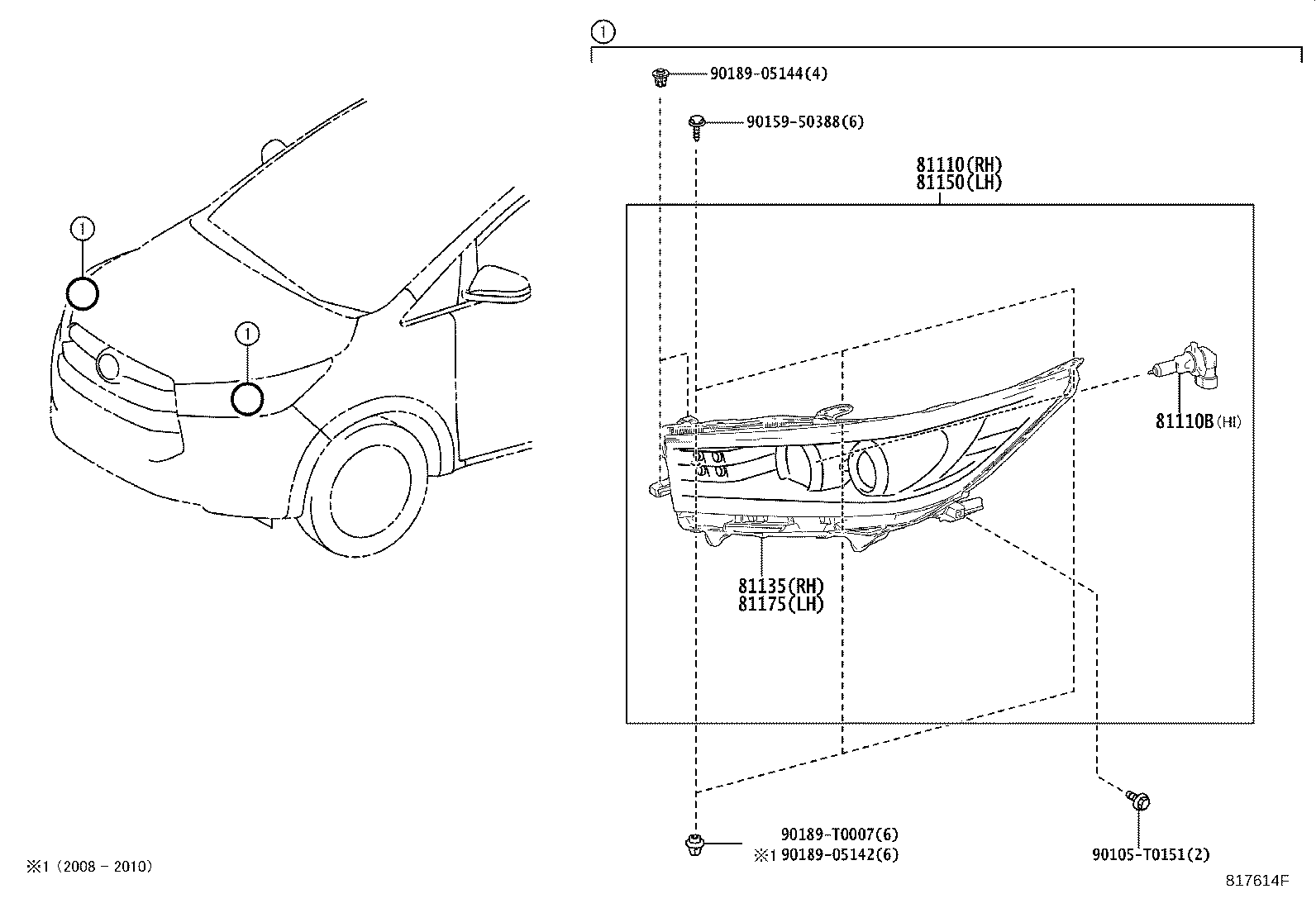

Headlamp
14 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81125 | Cord, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81135E | Cap, Headlamp Unit |
| 81139 | Cover, Headlamp Socket |
| 81144C | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81189 | Cover, Headlamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 85661A | Motor, Headlamp Leveling |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
