Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

3 part groups · 5 illustrations

Illustrations

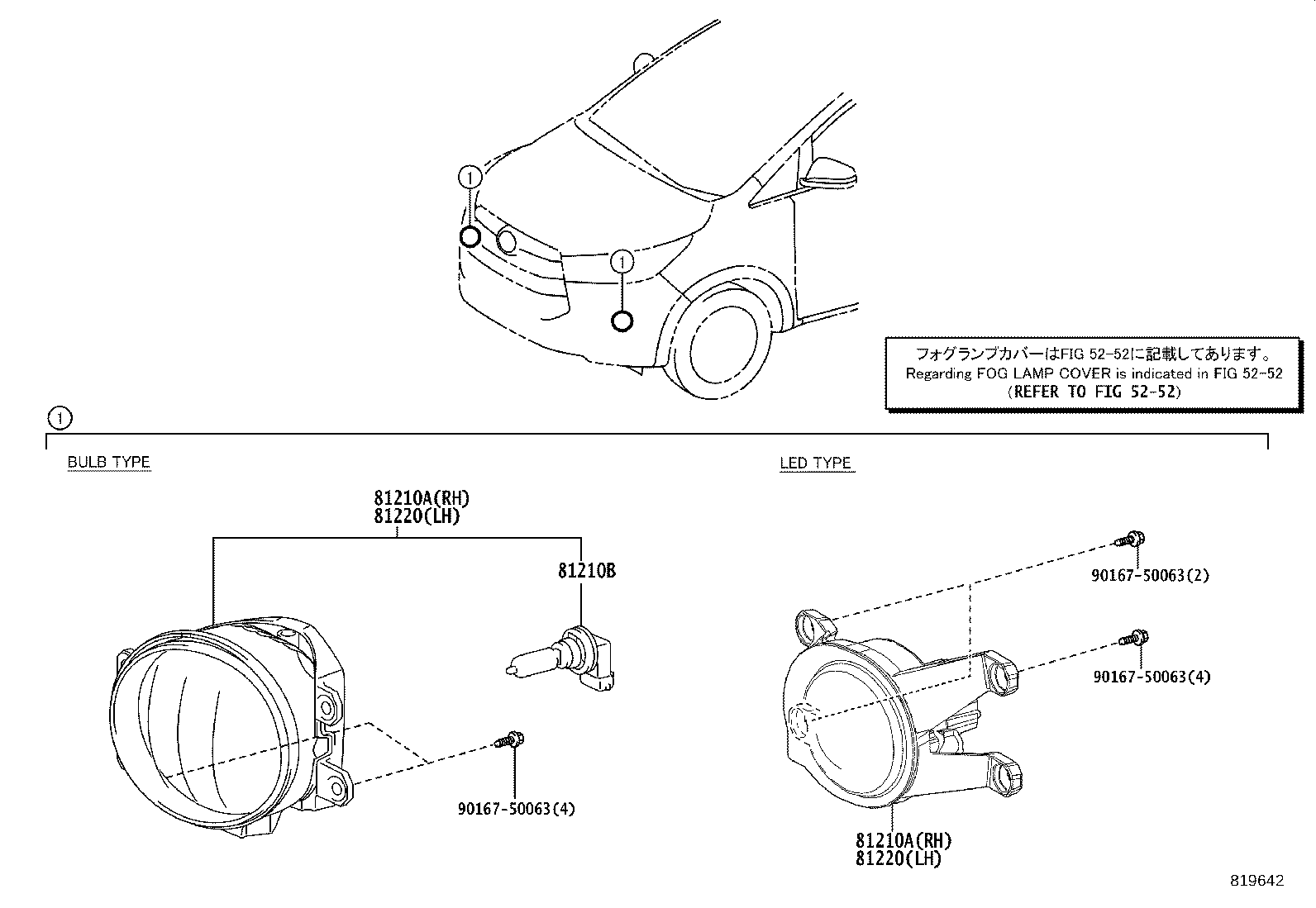

Figure 817615C 817615C 2015-11 → — Figure 817615C 817615C 2015-11 → — Figure 817615C 817615C 2015-11 → — Figure 819642 819642 2020-09 → — Figure 819642 819642 2020-09 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81220 Lamp Assy, Fog, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
