Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

6 part groups · 3 illustrations

Illustrations

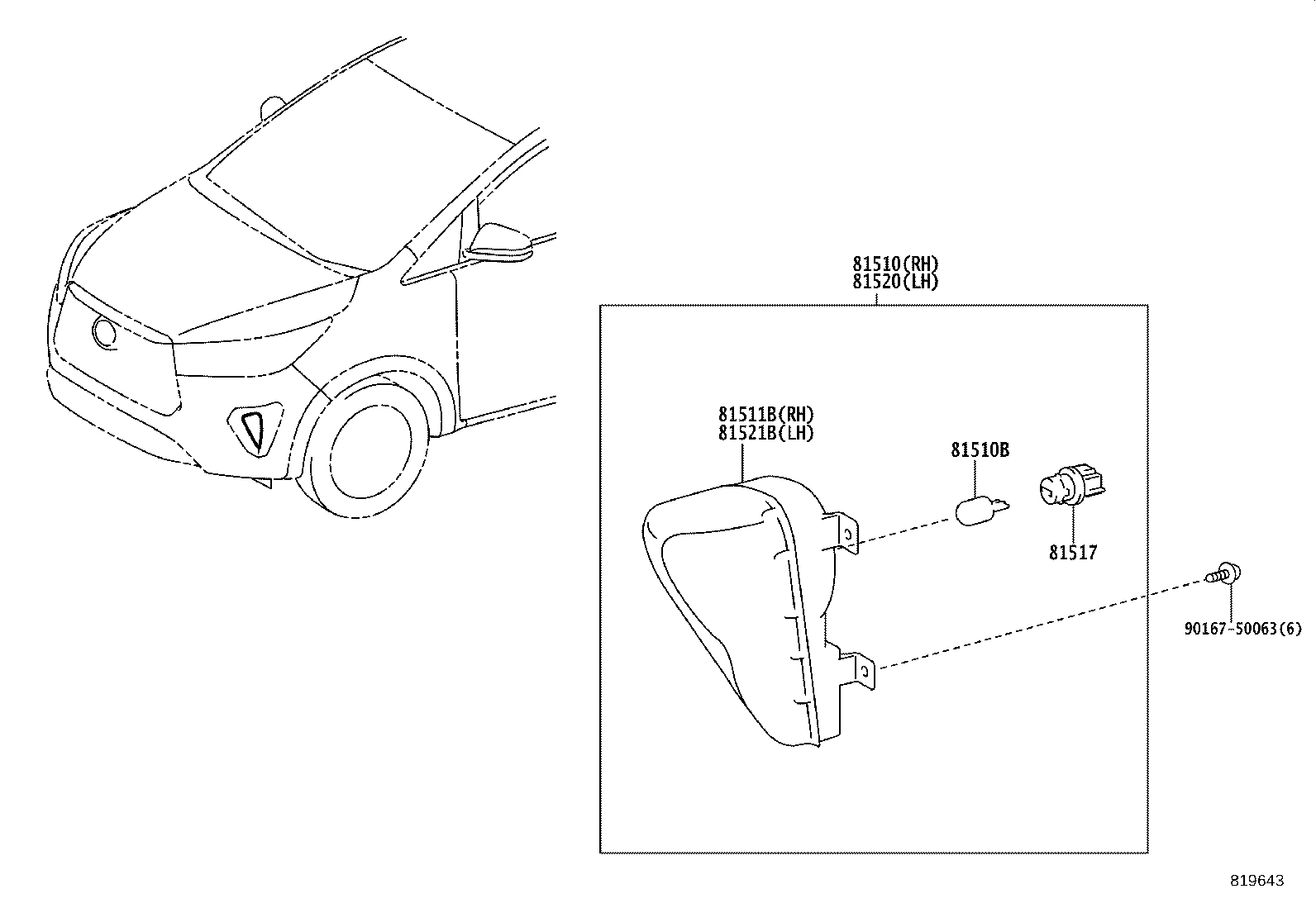

Figure 817616A 817616A 2015-11 → — Figure 819643 819643 2020-09 → — Figure 819643 819643 2020-09 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511B Lens & Body, Front Turn Signal Lamp, RH
81517 Socket, Front Turn Signal Lamp
81520 Lamp Assy, Front Turn Signal, LH
81521B Lens & Body, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
