Toyota Innova
2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General
Supported model
Data version 2021-11

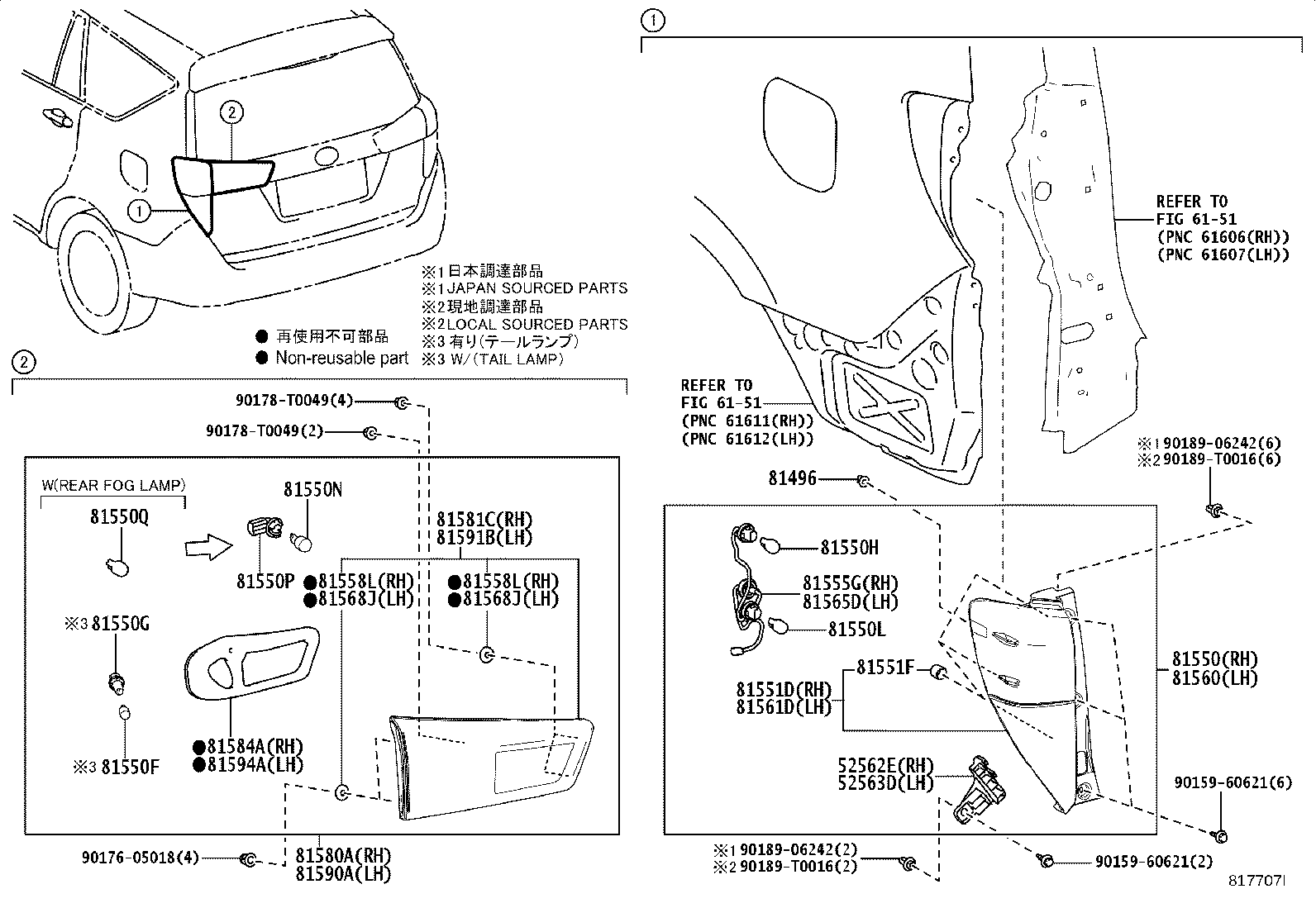

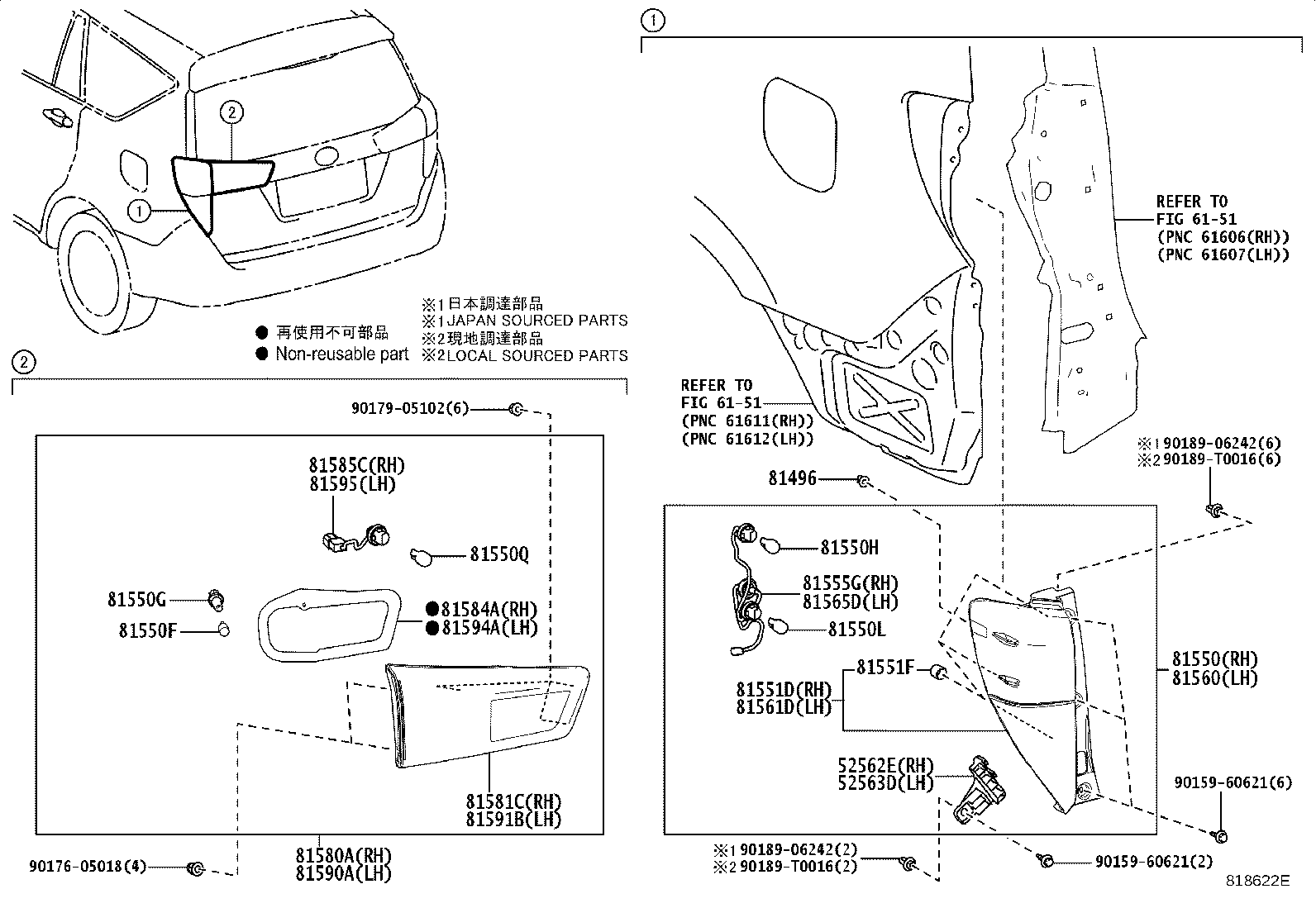

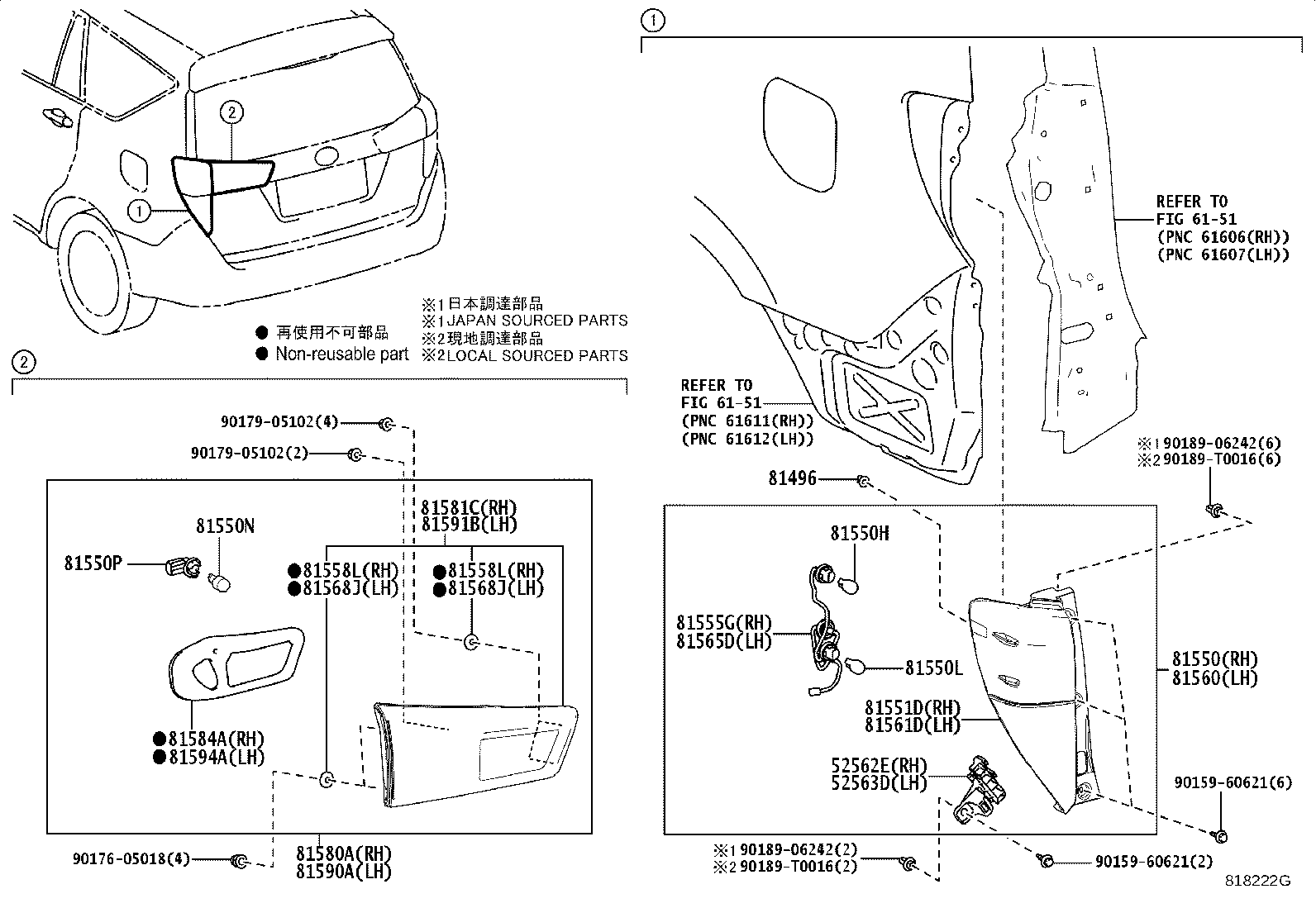

Rear Combination Lamp
27 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 52562E | Retainer, Rear Bumper, Upper RH |
| 52563D | Retainer, Rear Bumper, Upper LH |
| 81496 | Guide, Rear Combination Lamp |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550F | Bulb, Taillamp |
| 81550G | Socket, Taillamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550P | Socket, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81551F | Cover, Rear Combination Lamp Lens & Body |
| 81555G | Cord, Rear Combination Lamp, RH |
| 81558L | Protector, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81565D | Cord, Rear Combination Lamp, LH |
| 81568J | Protector, Rear Combination Lamp, LH |
| 81580A | Lamp Assy, Rear |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
