Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

16 part groups · 12 illustrations

Illustrations

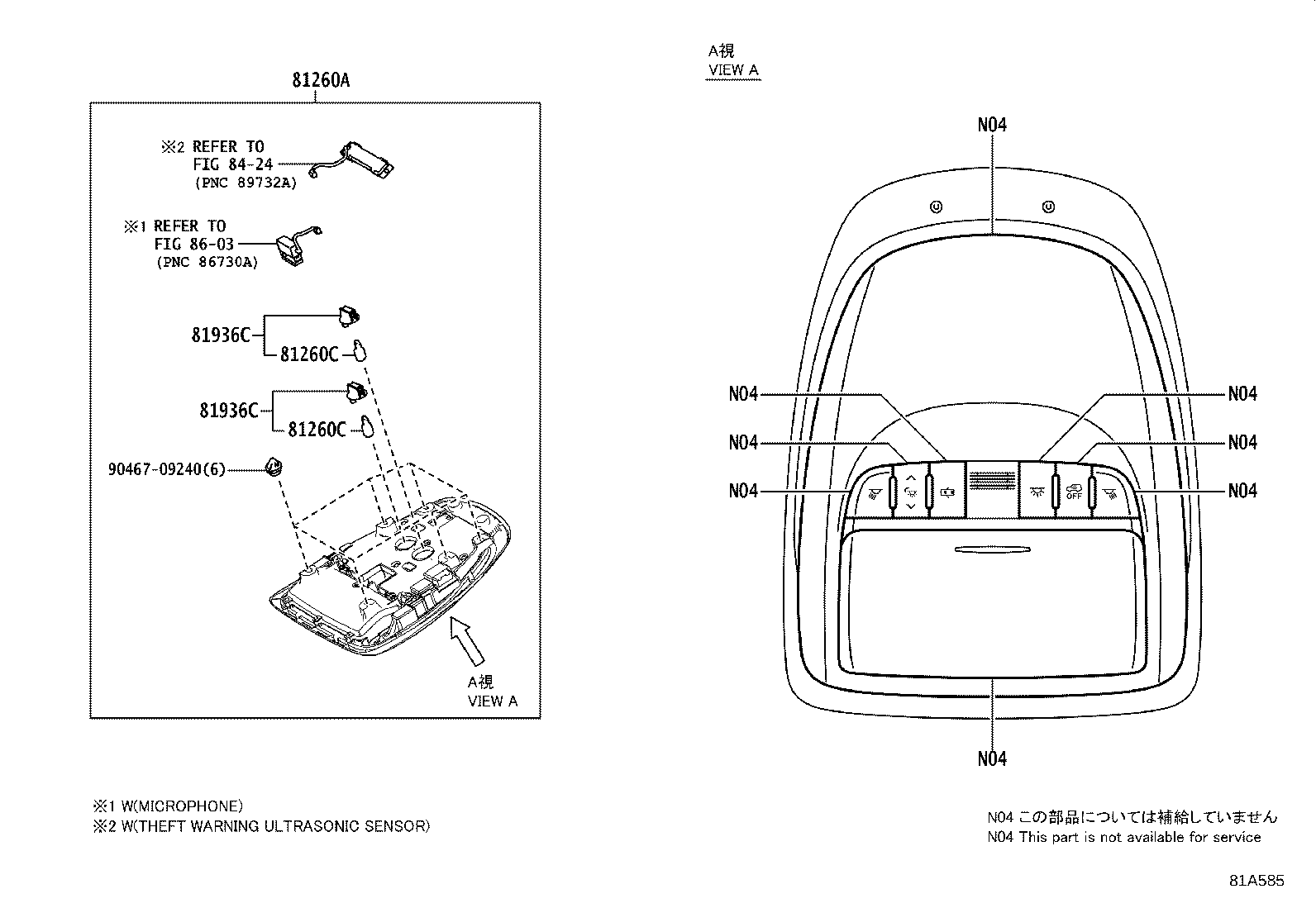

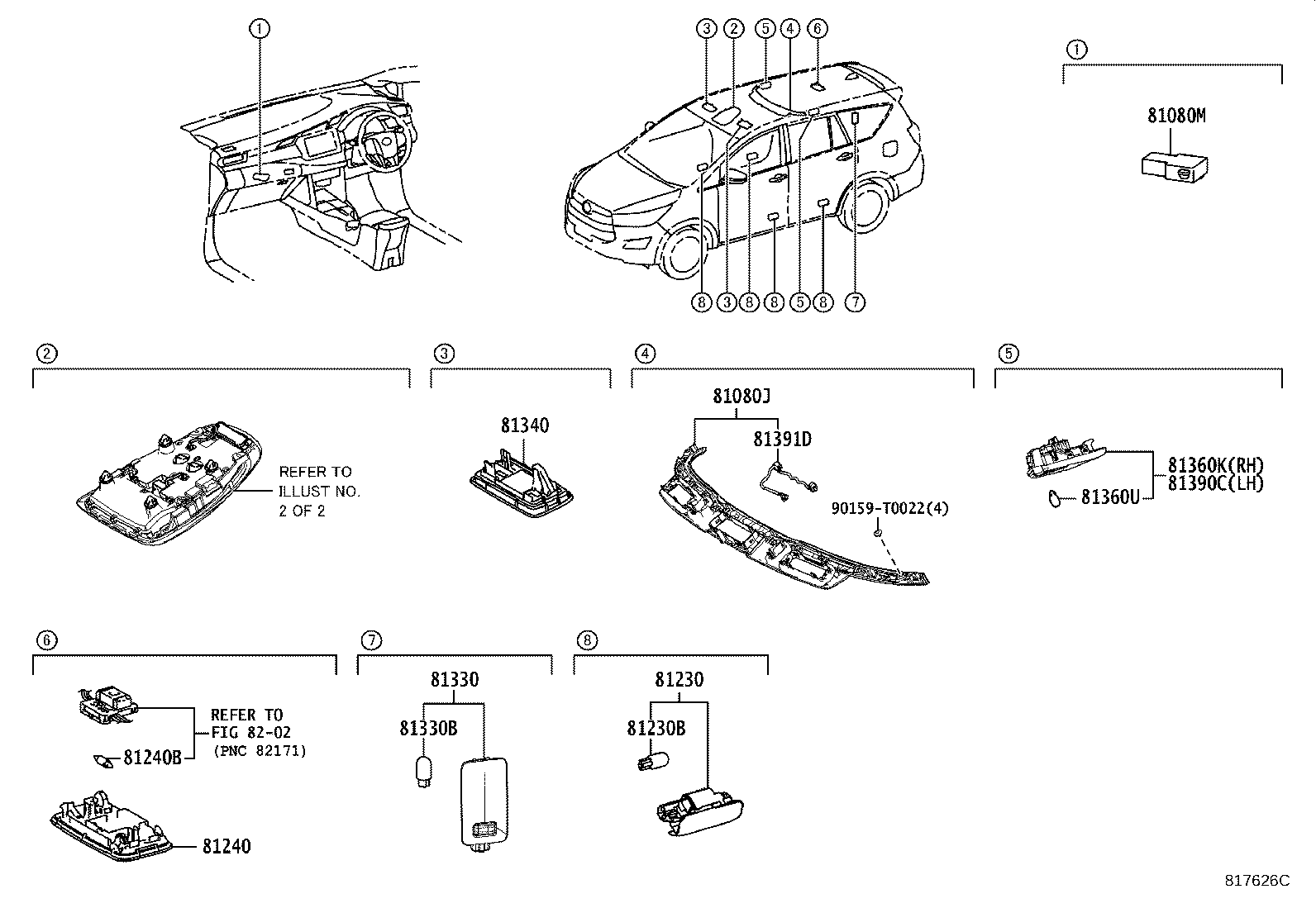

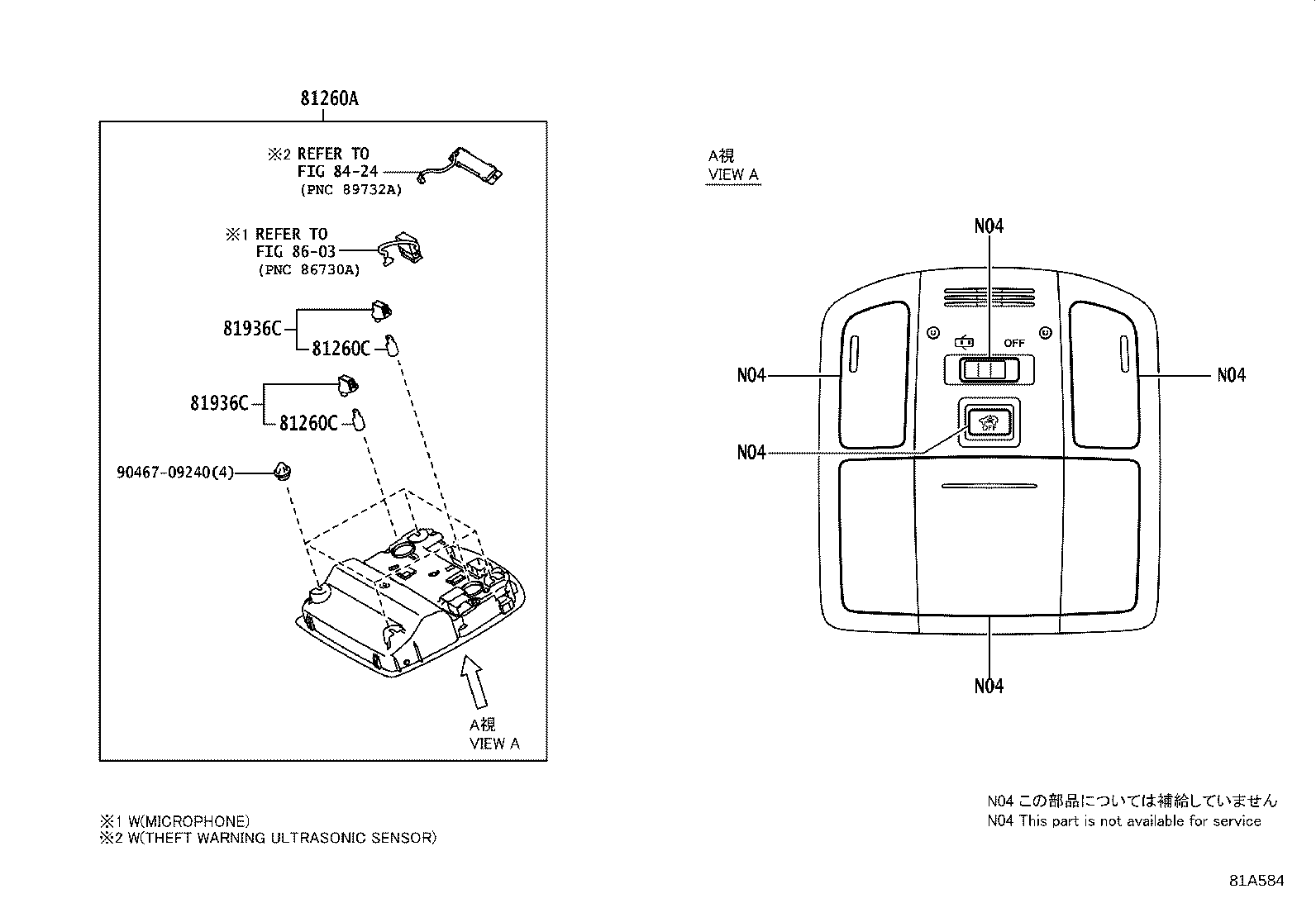

Figure 817627B 817627B 2015-11 → — Figure 817627B 817627B 2015-11 → — Figure 817627B 817627B 2015-11 → — Figure 81A584 81A584 2015-11 → — Figure 81A584 81A584 2015-11 → — Figure 81A584 81A584 2015-11 → — Figure 817626C 817626C 2015-11 → — Figure 817626C 817626C 2015-11 → — Figure 817626C 817626C 2015-11 → — Figure 81A585 81A585 2015-11 → — Figure 81A585 81A585 2015-11 → — Figure 81A585 81A585 2015-11 → —

Part groups

PNCDescription
81080J Lamp Assy, Interior Illumination, NO.1
81080M Lamp Assy, Interior Illumination, NO.1
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81360K Lamp Assy, Spot, RH
81360U Bulb, Spot Lamp
81390C Lamp Assy, Spot, LH
81391D Holder, Lamp Bulb
81936C Bulb Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
