Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

36 part groups · 39 illustrations

Illustrations

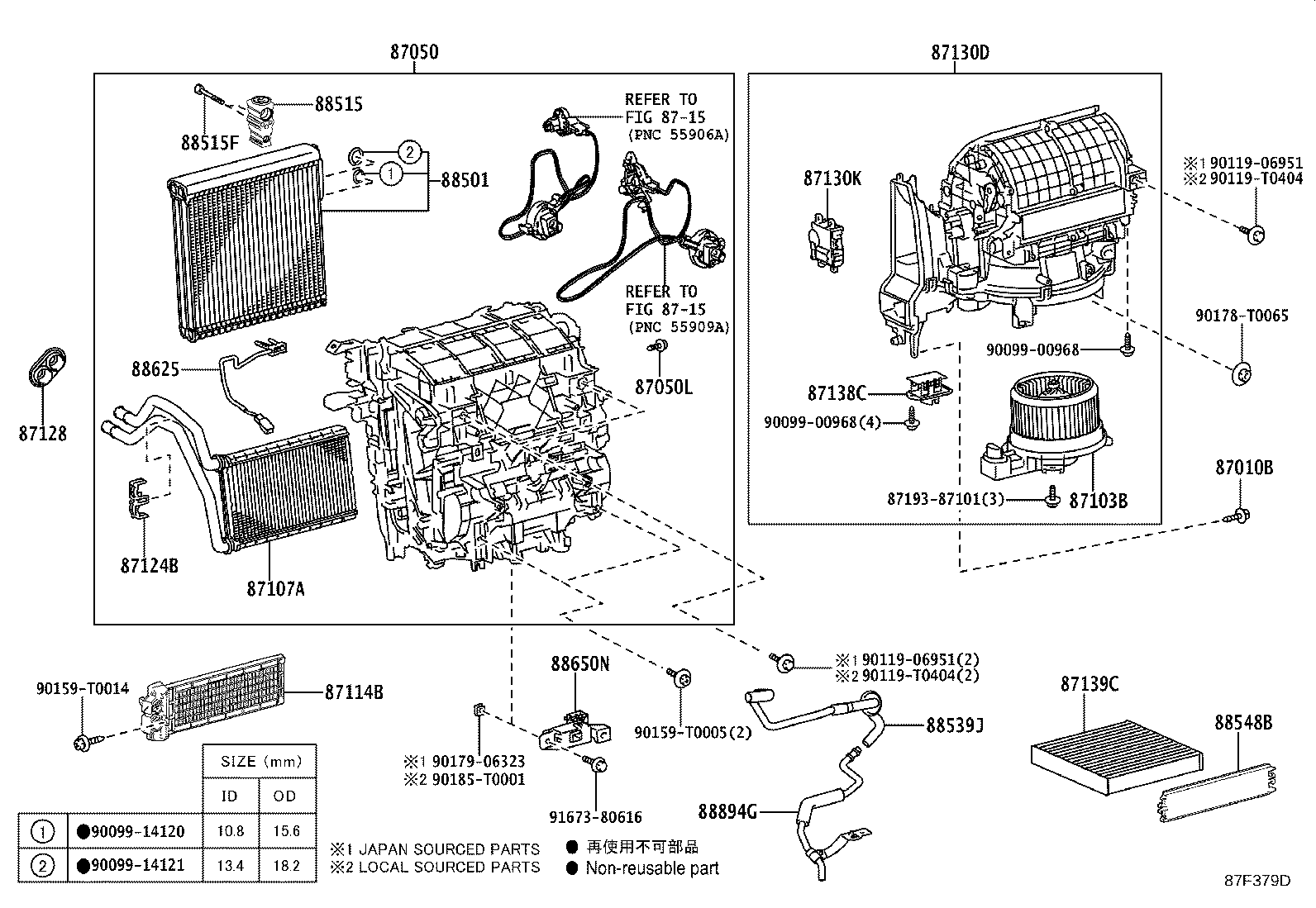

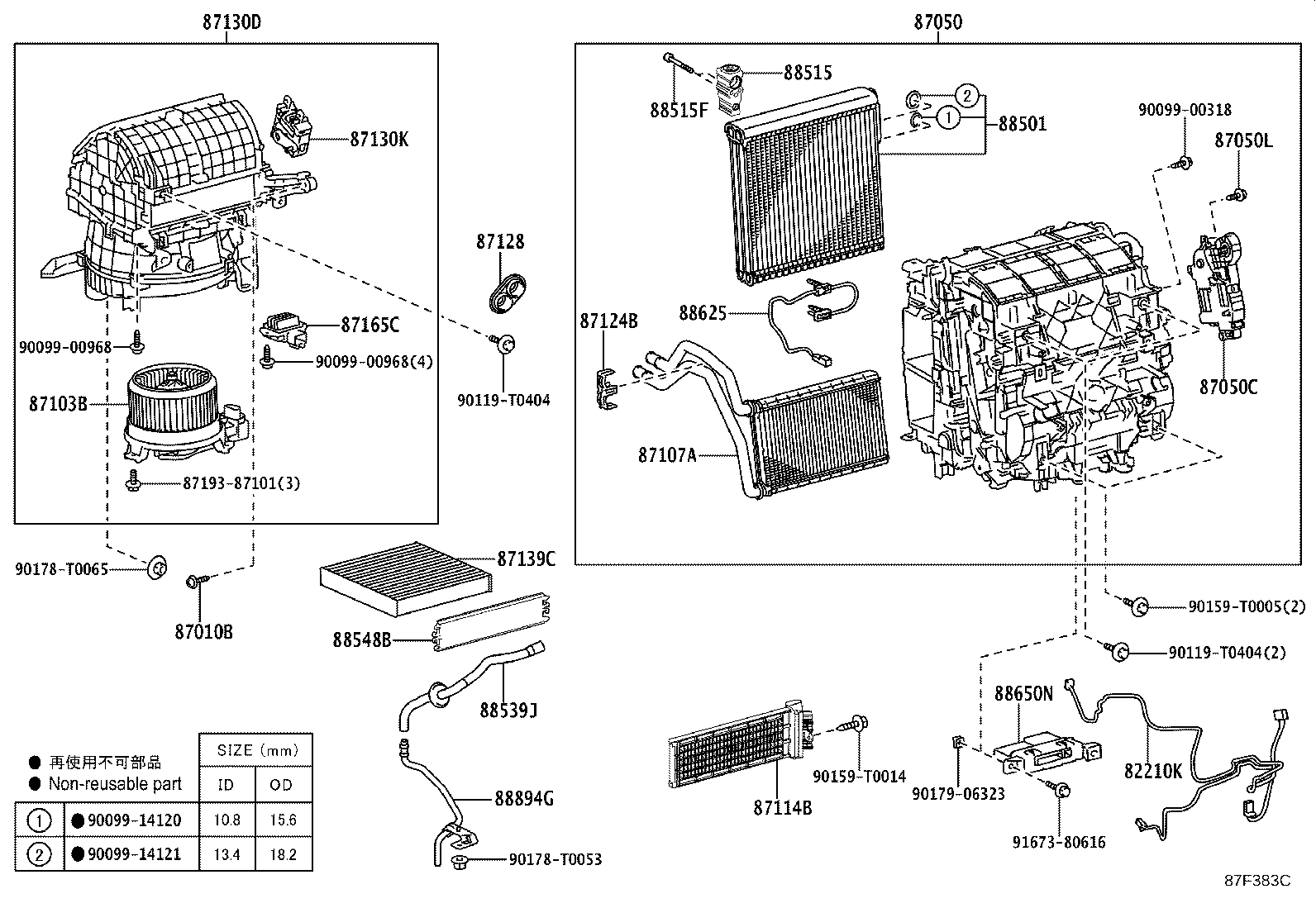

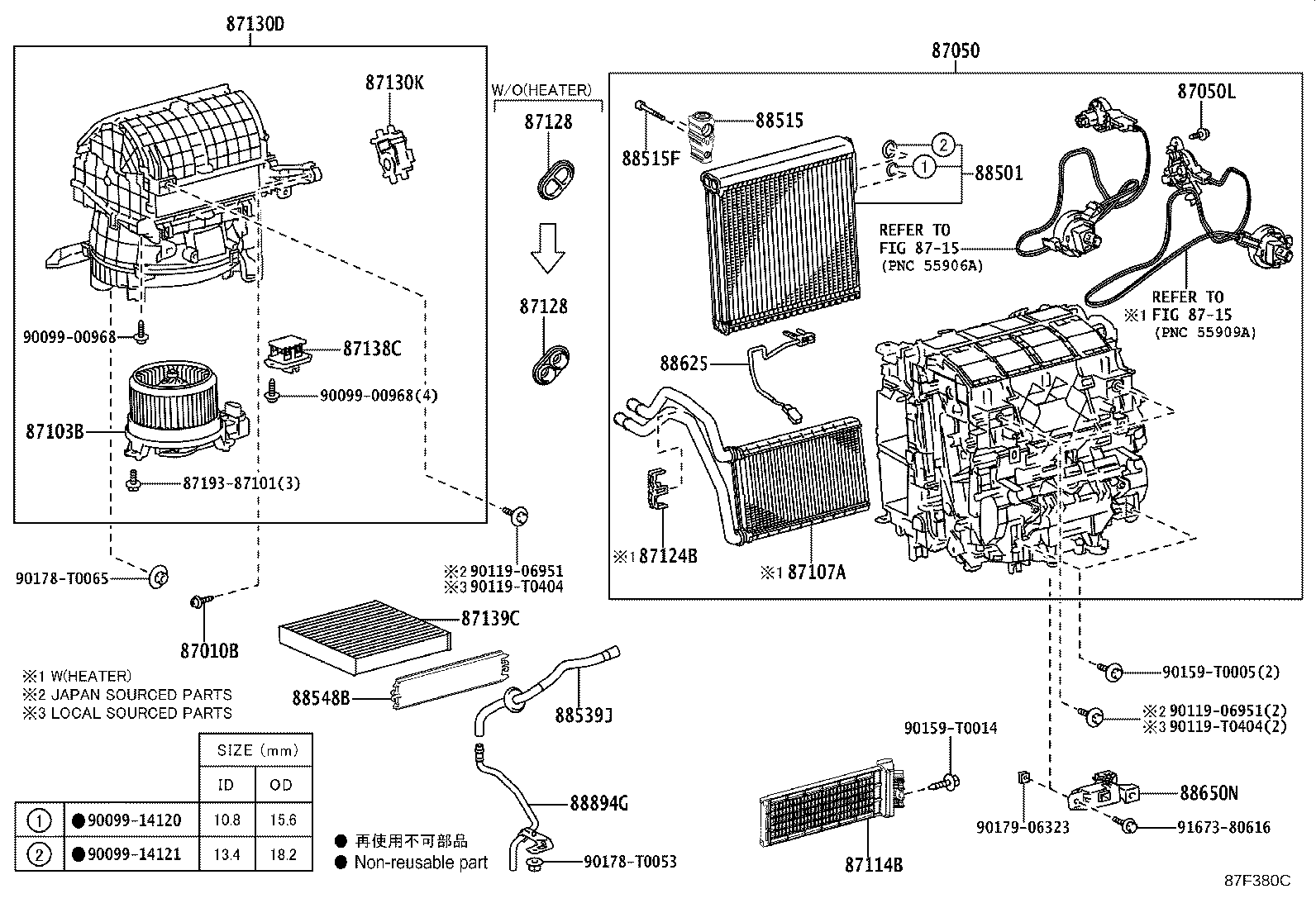

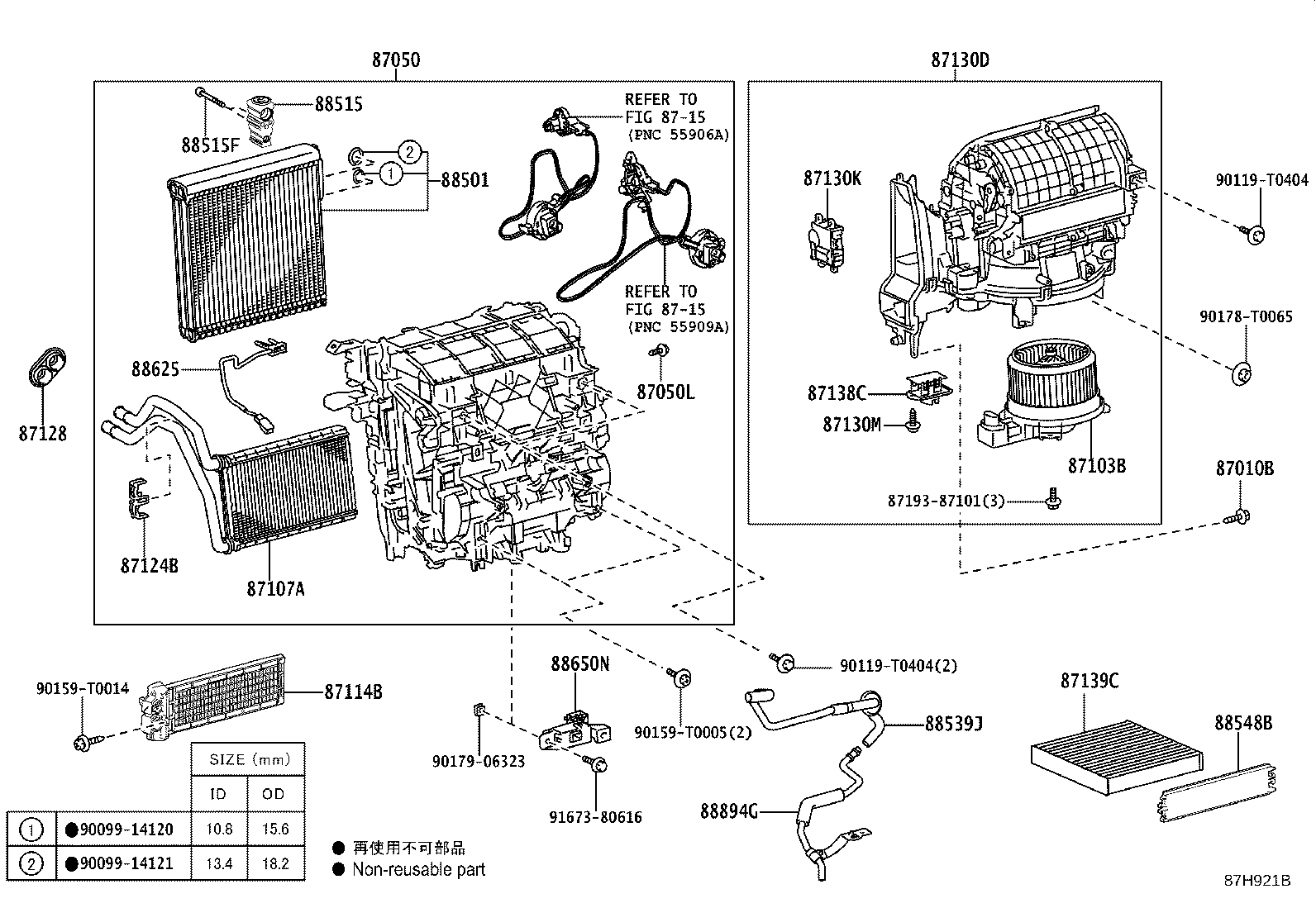

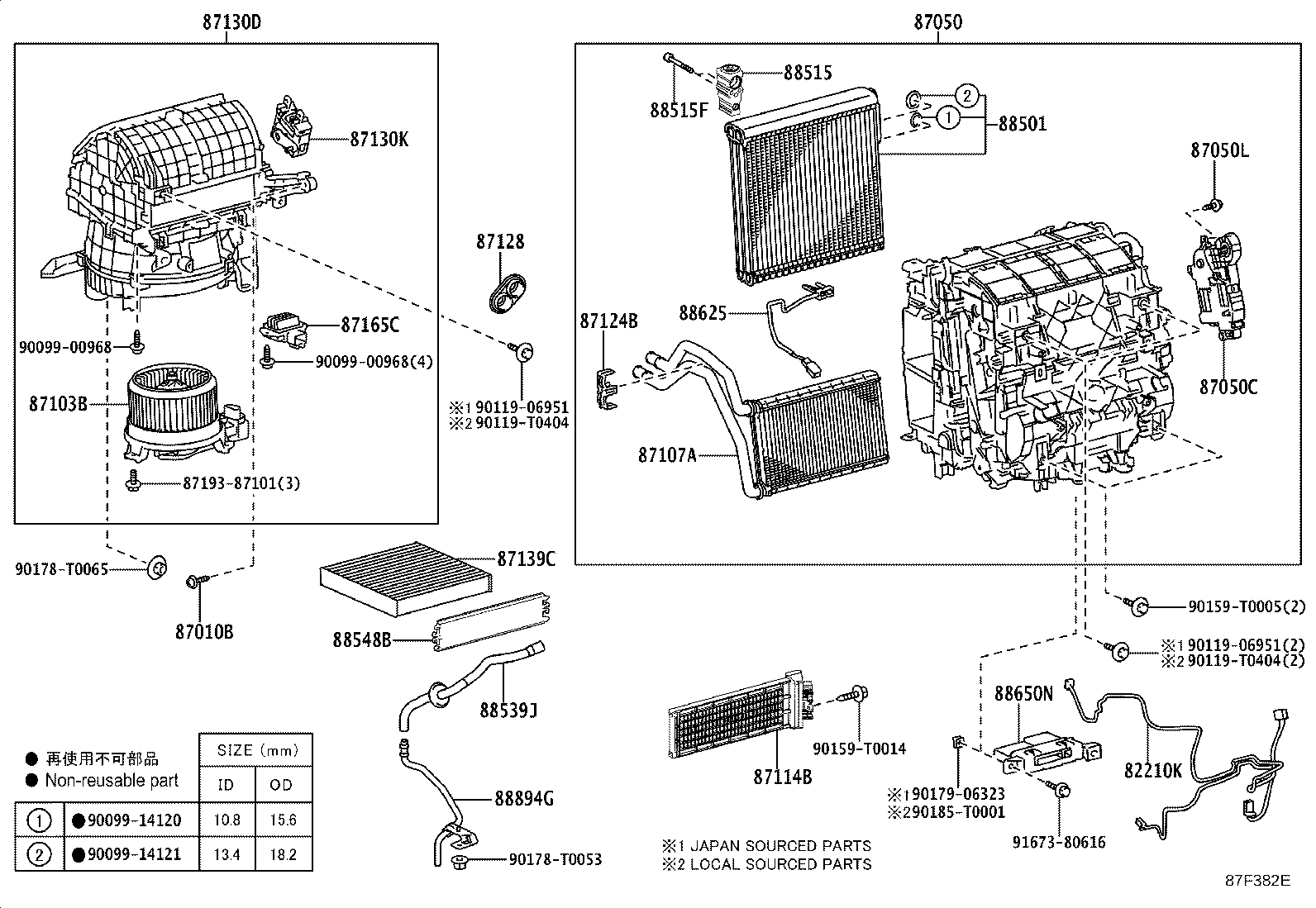

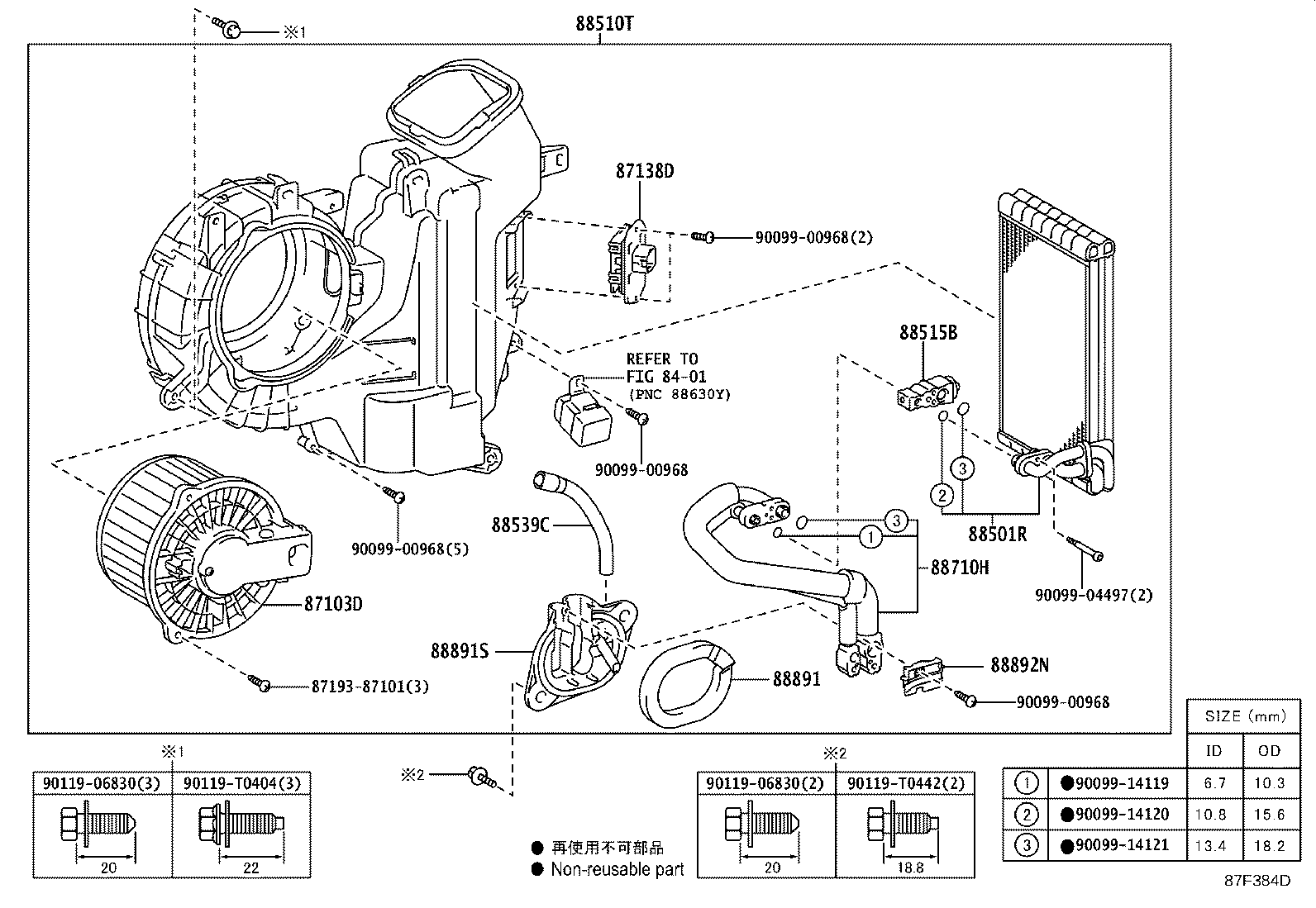

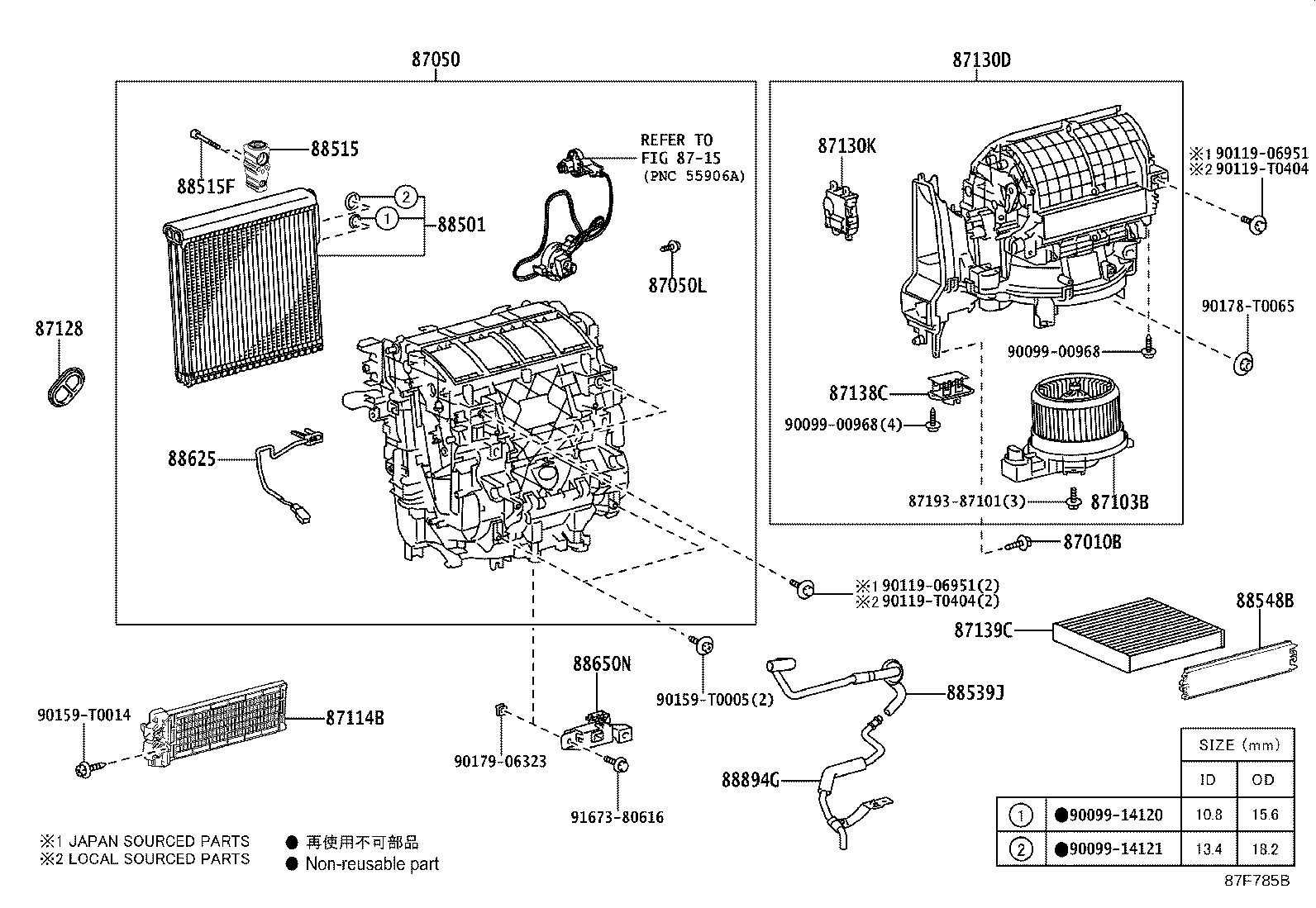

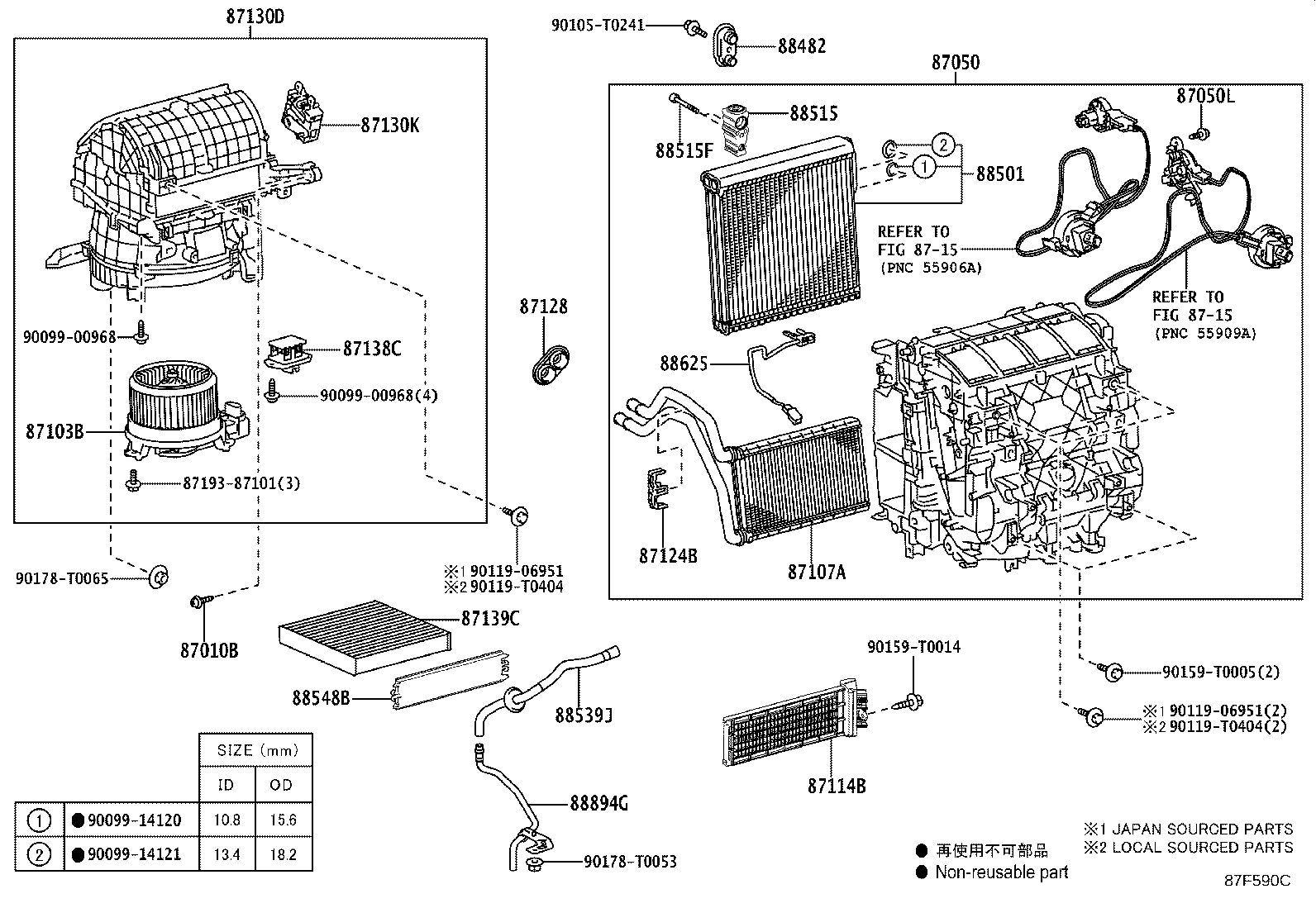

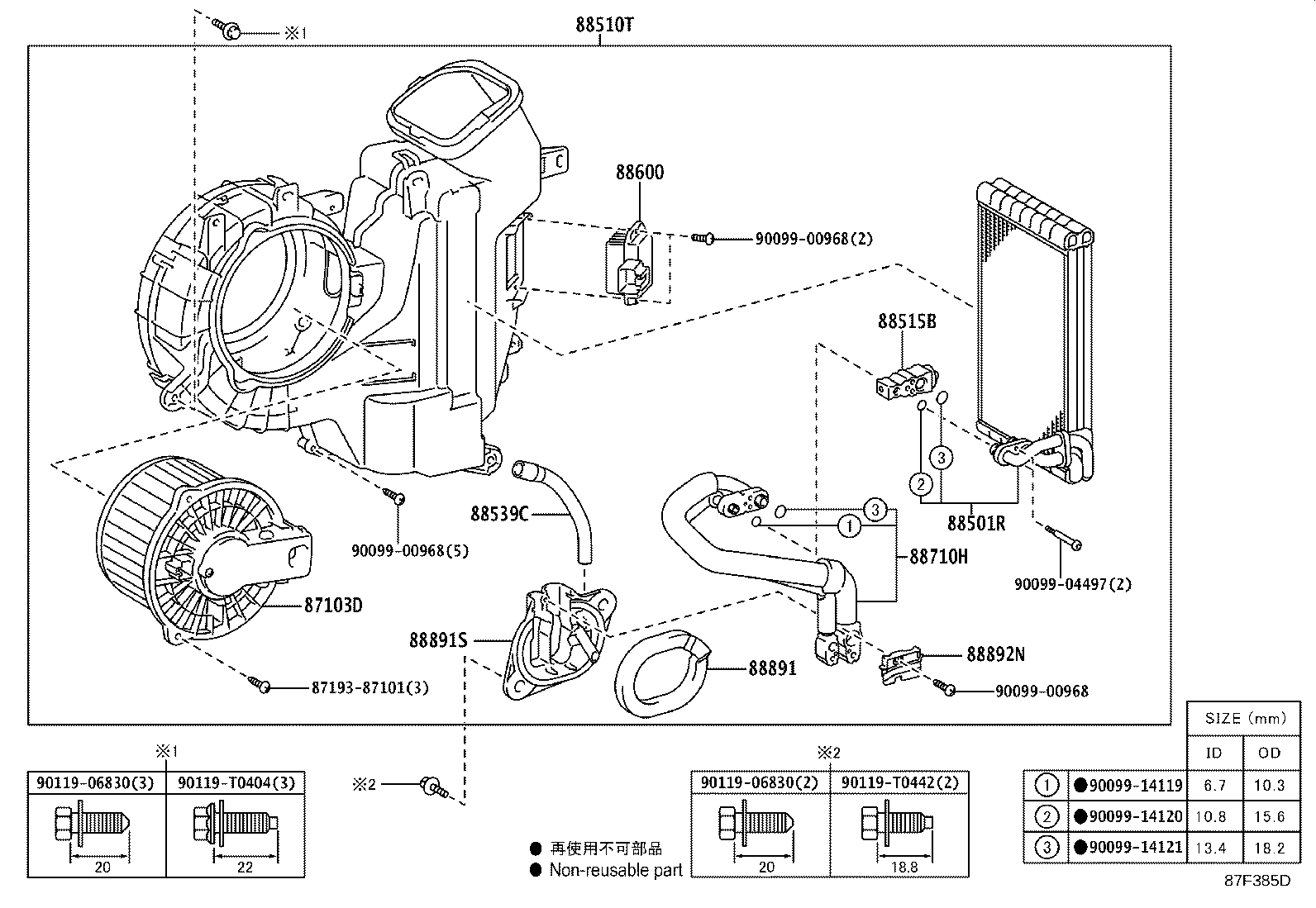

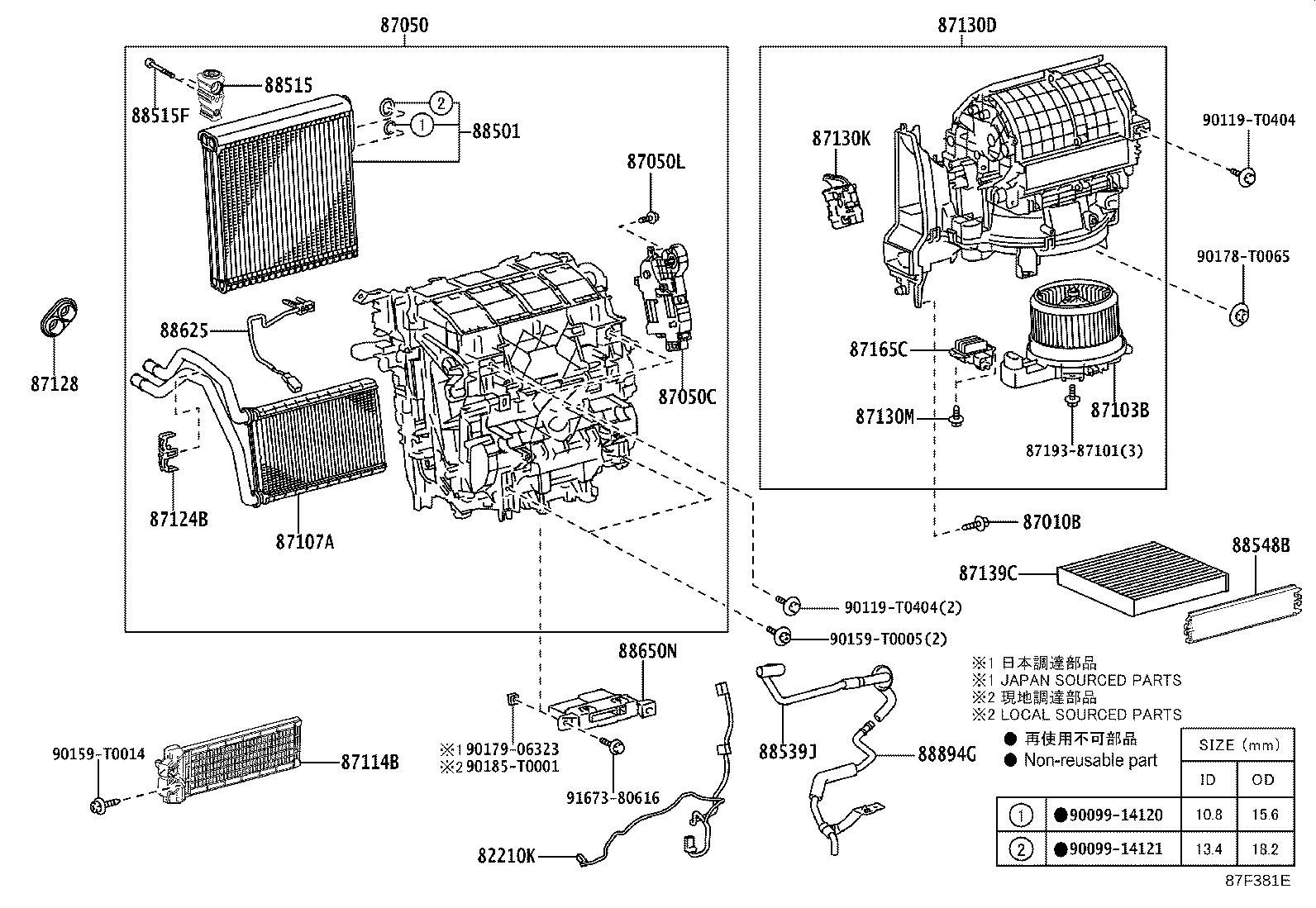

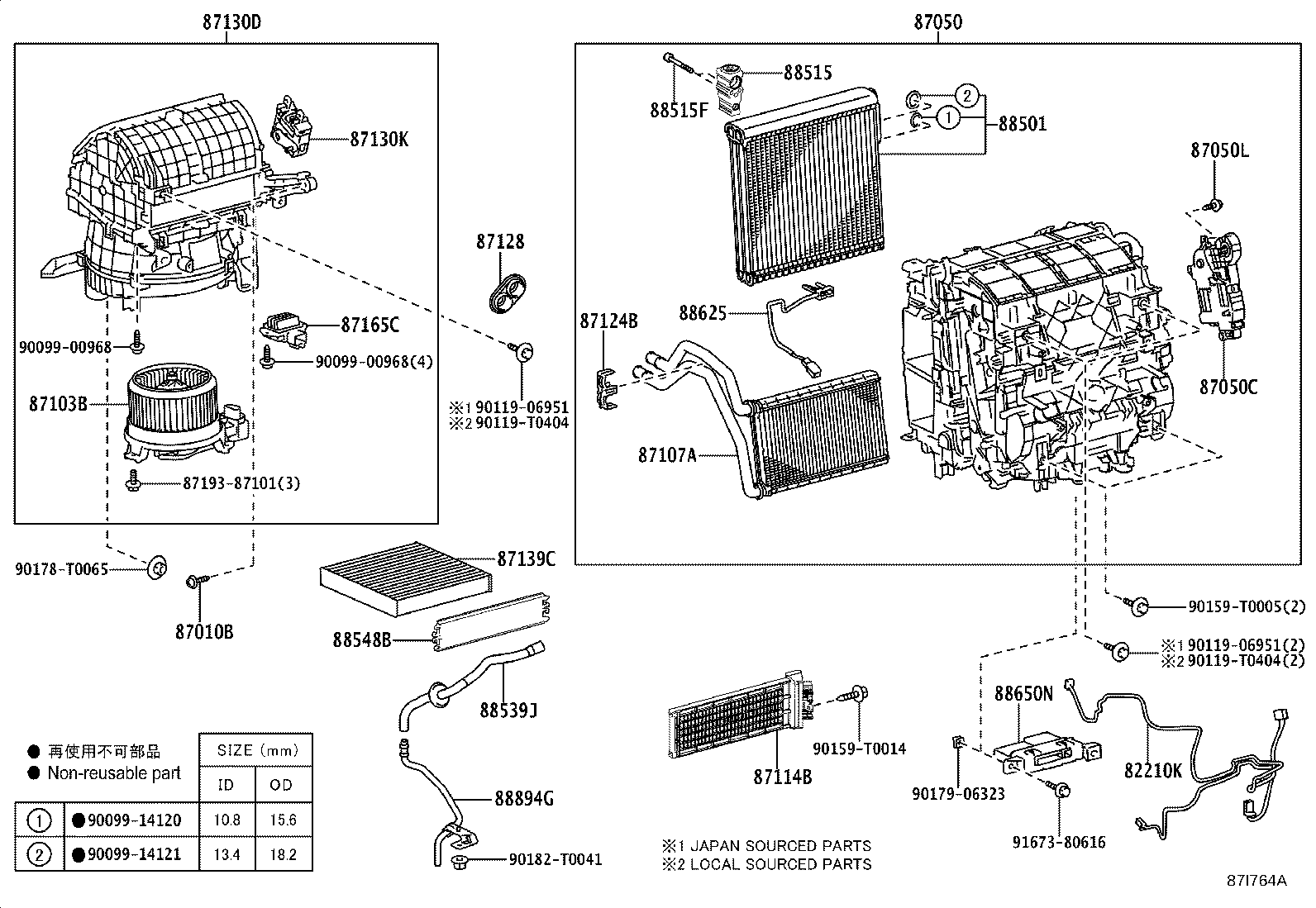

Figure 87F589C 87F589C 2016-04 → — Figure 87F589C 87F589C 2021-02 → — Figure 87F785B 87F785B 2016-08 → — Figure 87F785B 87F785B 2020-09 → — Figure 87F590C 87F590C 2016-04 → — Figure 87F590C 87F590C 2020-10 → — Figure 87F379D 87F379D 2015-11 → — Figure 87F379D 87F379D 2020-09 → — Figure 87F380C 87F380C 2015-11 → 2020-05 Figure 87F380C 87F380C 2020-05 → — Figure 87F380C 87F380C 2020-05 → — Figure 87F380C 87F380C 2020-09 → — Figure 87F380C 87F380C 2020-09 → — Figure 87I763A 87I763A 2020-05 → — Figure 87F591C 87F591C 2016-07 → 2019-02 Figure 87H921B 87H921B 2019-02 → — Figure 87H921B 87H921B 2020-10 → — Figure 87F381E 87F381E 2015-11 → — Figure 87F381E 87F381E 2020-09 → — Figure 87F381E 87F381E 2020-09 → — Figure 87F382E 87F382E 2015-11 → 2020-05 Figure 87F382E 87F382E 2020-05 → — Figure 87F382E 87F382E 2020-05 → — Figure 87F382E 87F382E 2020-09 → — Figure 87F382E 87F382E 2020-09 → — Figure 87I764A 87I764A 2020-05 → — Figure 87F383C 87F383C 2015-11 → 2017-07 Figure 87F383C 87F383C 2017-09 → — Figure 87F383C 87F383C 2020-10 → — Figure 87F384D 87F384D 2015-11 → — Figure 87F384D 87F384D 2015-11 → — Figure 87F384D 87F384D 2015-11 → — Figure 87F384D 87F384D 2020-09 → — Figure 87F384D 87F384D 2020-09 → — Figure 87F385D 87F385D 2015-11 → — Figure 87F385D 87F385D 2015-11 → — Figure 87F385D 87F385D 2015-11 → — Figure 87F385D 87F385D 2020-09 → — Figure 87F385D 87F385D 2020-09 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87010B Screw(FOR AIR CONDITIONER UNIT)
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050L Screw(FOR AIR CONDITIONER RADIATOR)
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87124B Clamp, Heater
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87130M Screw(FOR BLOWER)
87138C Resistor, Blower
87138D Resistor, Blower (REAR)
87139C Filter, Clean Air
87165C Control, Blower Motor
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539C Hose, Cooler Unit Drain, NO.2
88539J Hose, Drain Cooler
88548B Case, Air Filter
88600 Control Assy, Air Conditioner
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88891 Packing (FOR COOLER)
88891S Cover, Cooler, NO.1
88892N Cover, Cooler, NO.2
88894G Connector, Drain Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
