Heating & Air Conditioning - Control & Air Duct

30 part groups · 8 illustrations

Illustrations

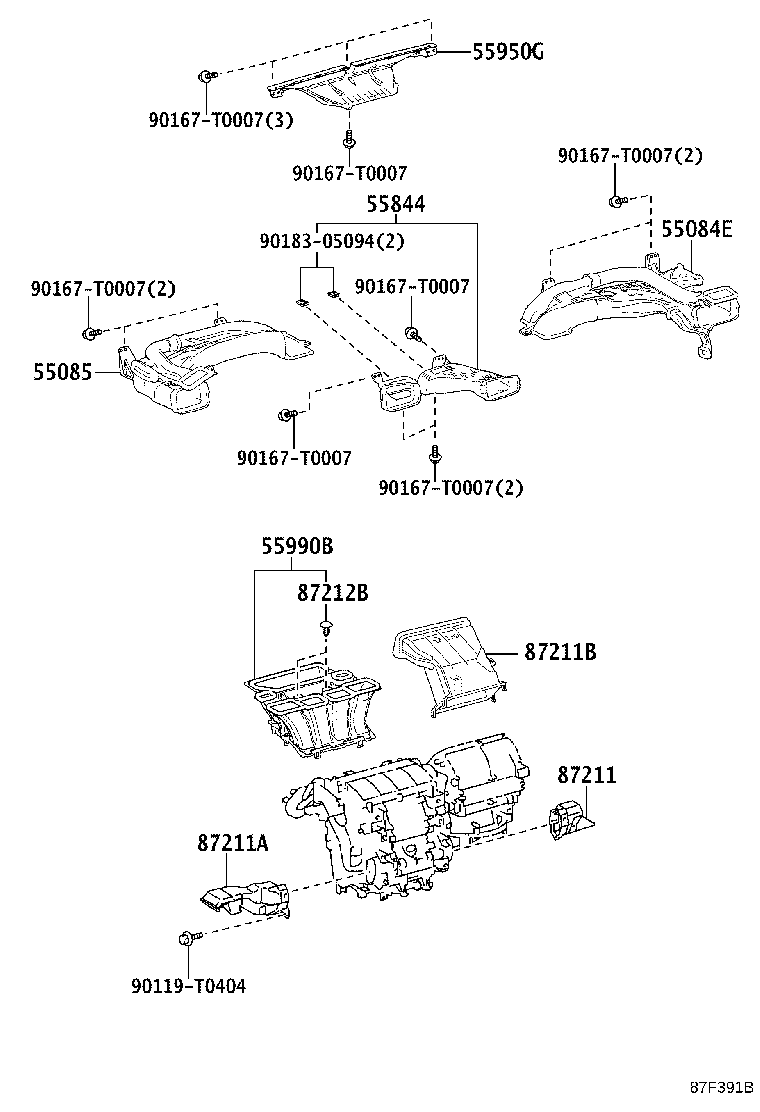

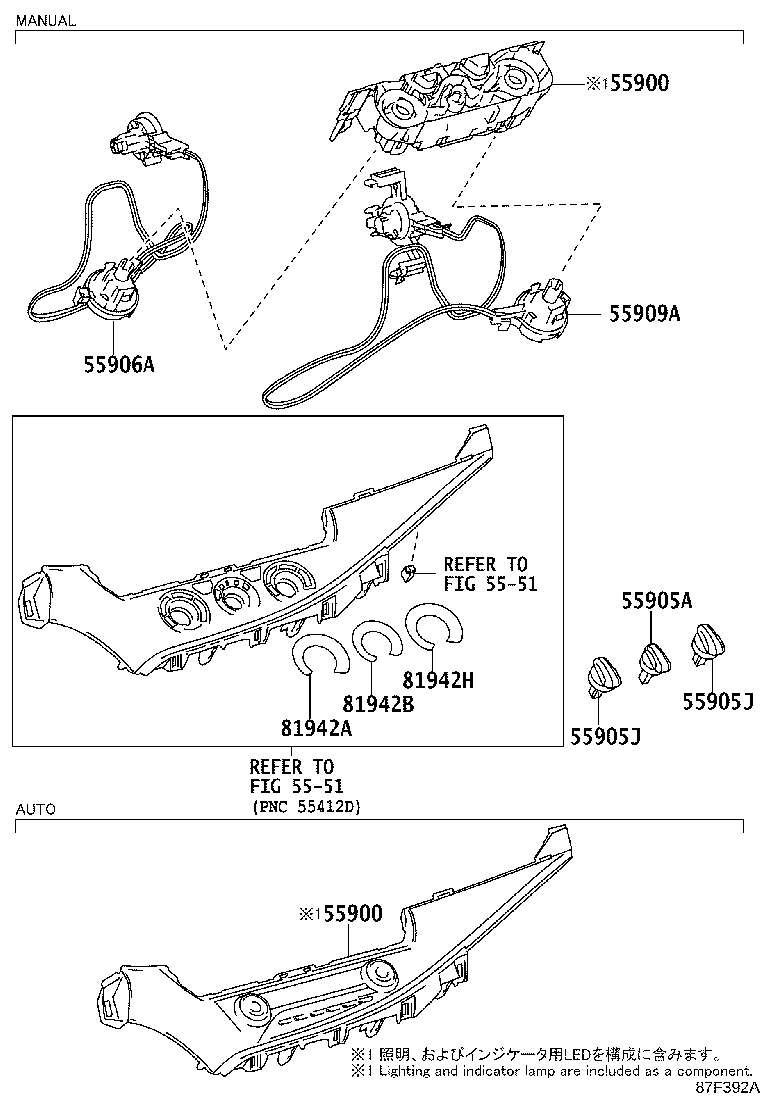

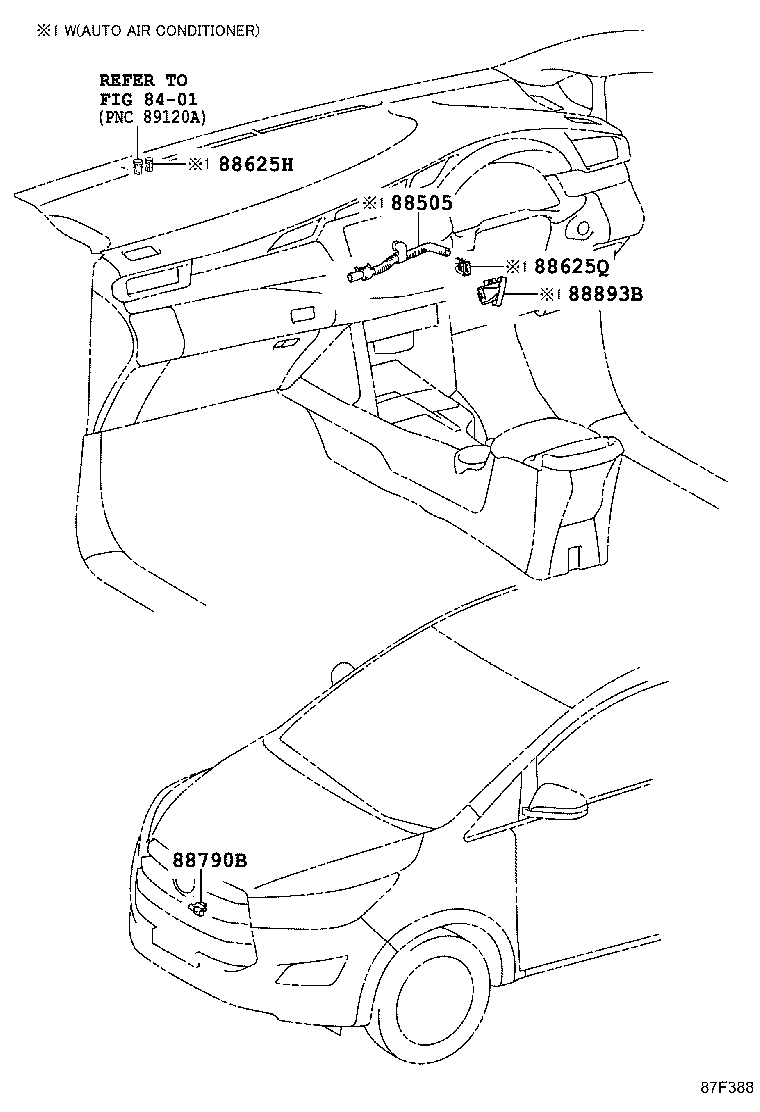

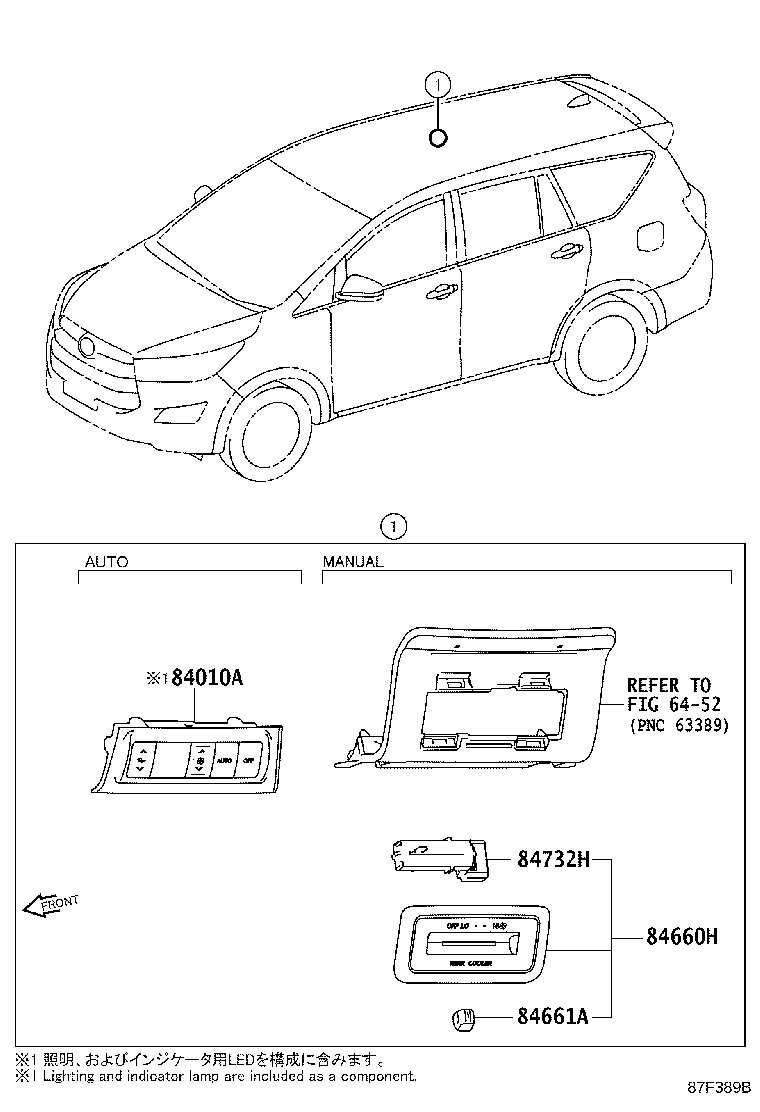

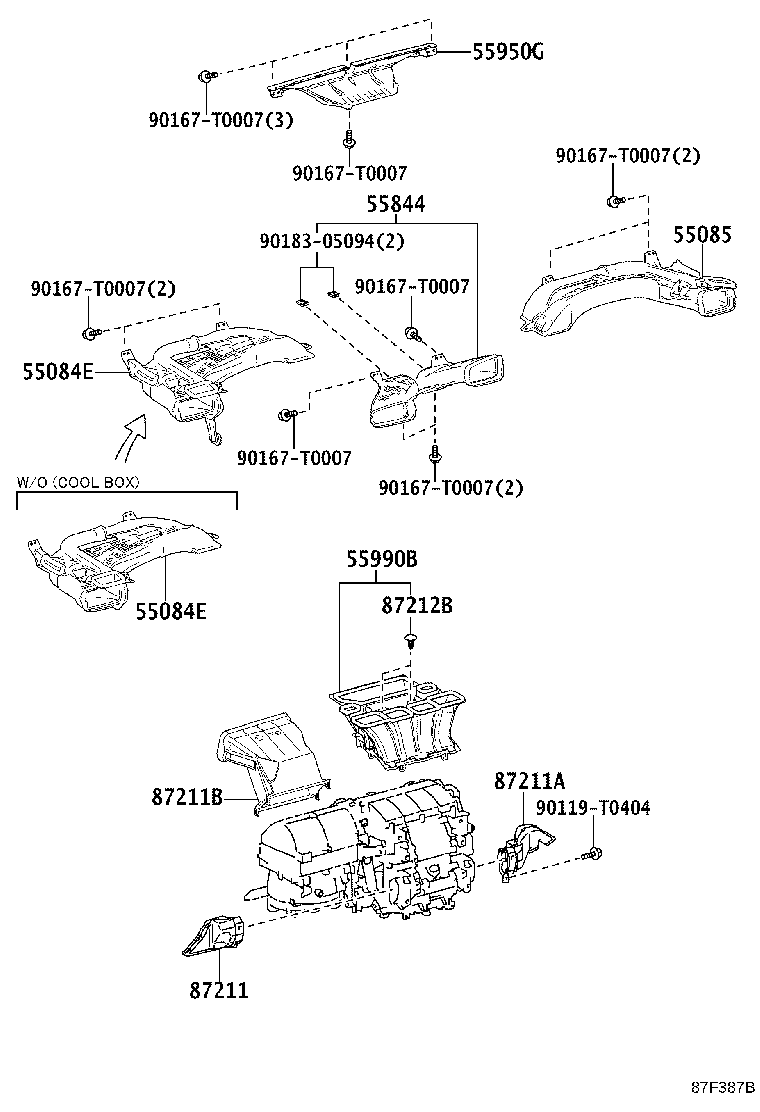

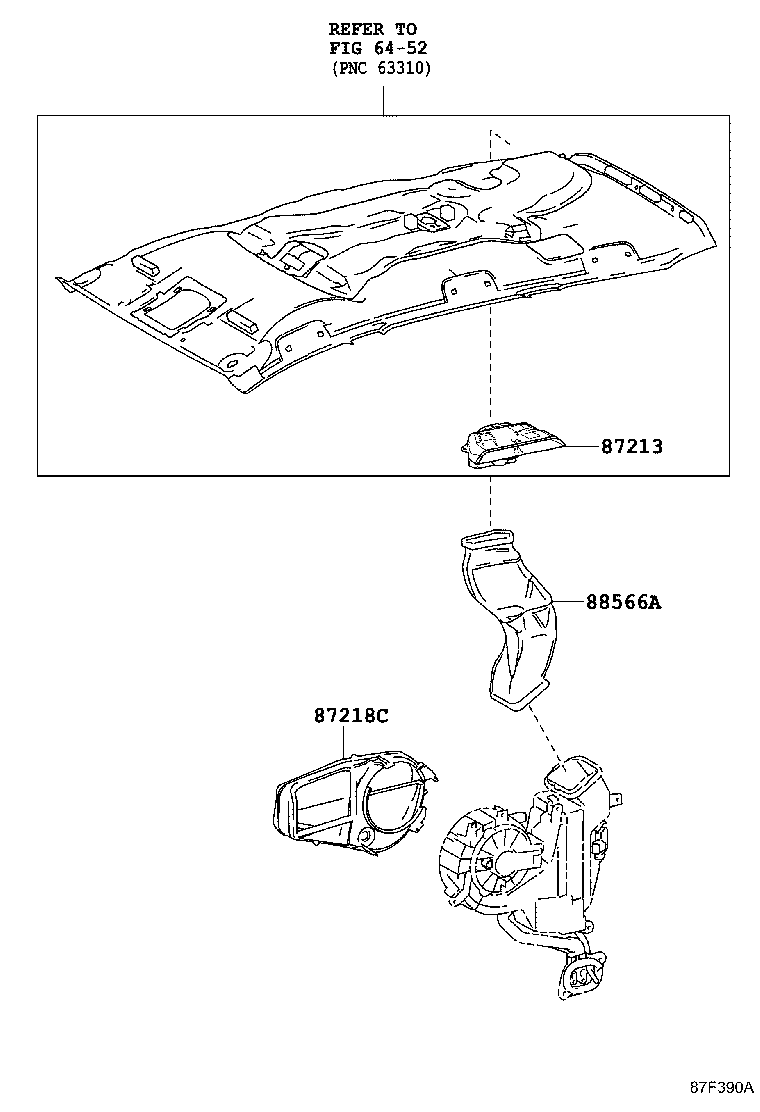

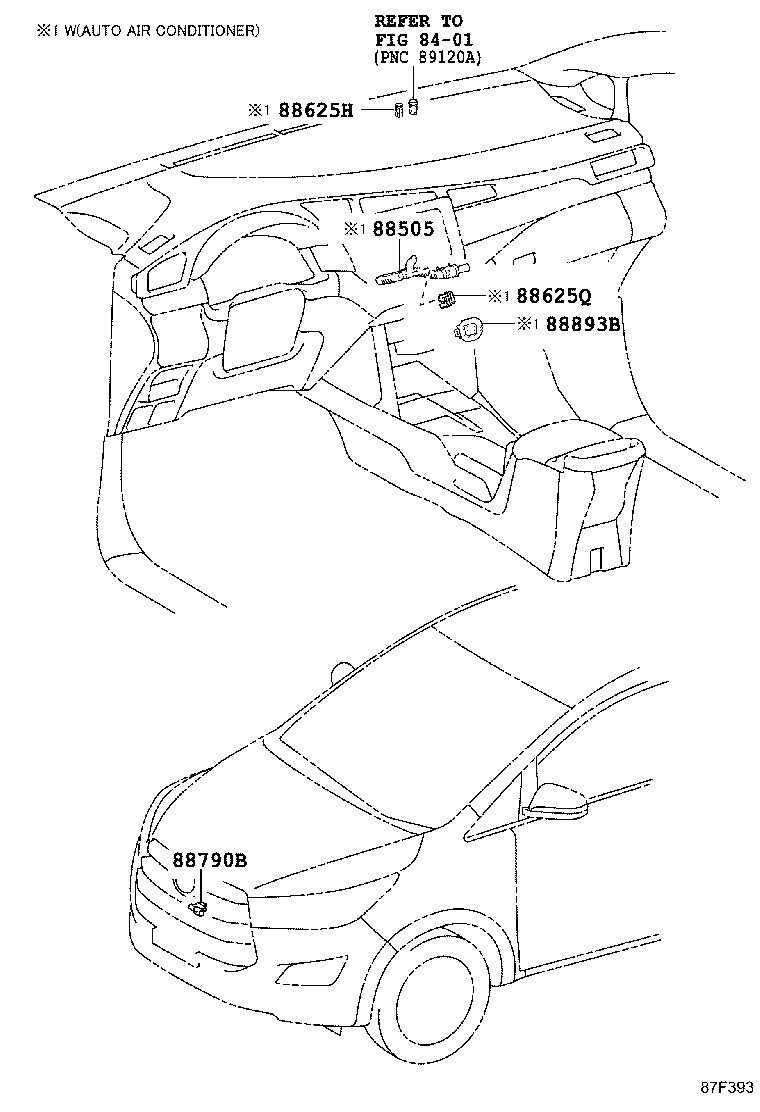

Figure 87F386B 87F386B 2015-11 → — Figure 87F392A 87F392A 2015-11 → — Figure 87F389B 87F389B 2015-11 → — Figure 87F387B 87F387B 2015-11 → — Figure 87F391B 87F391B 2015-11 → — Figure 87F390A 87F390A 2015-11 → — Figure 87F388 87F388 2015-11 → — Figure 87F393 87F393 2015-11 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55905A Knob, Heater Control
55905J Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
84010A Control & Panel Assy, Integration
84660H Switch Assy, Cooler Control
84661A Knob, Cooler Control Switch
84732H Switch, Heater Blower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212B Clip, Air Duct
87213 Duct, Air, Rear NO.2
87218C Duct, Air, Rear NO.6
88505 Duct Sub-assy,Air Conditioner
88566A Duct, Cooler Air, NO.1
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88893B Clamp (FOR COOLER AIR HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
