Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

7 part groups · 8 illustrations

Illustrations

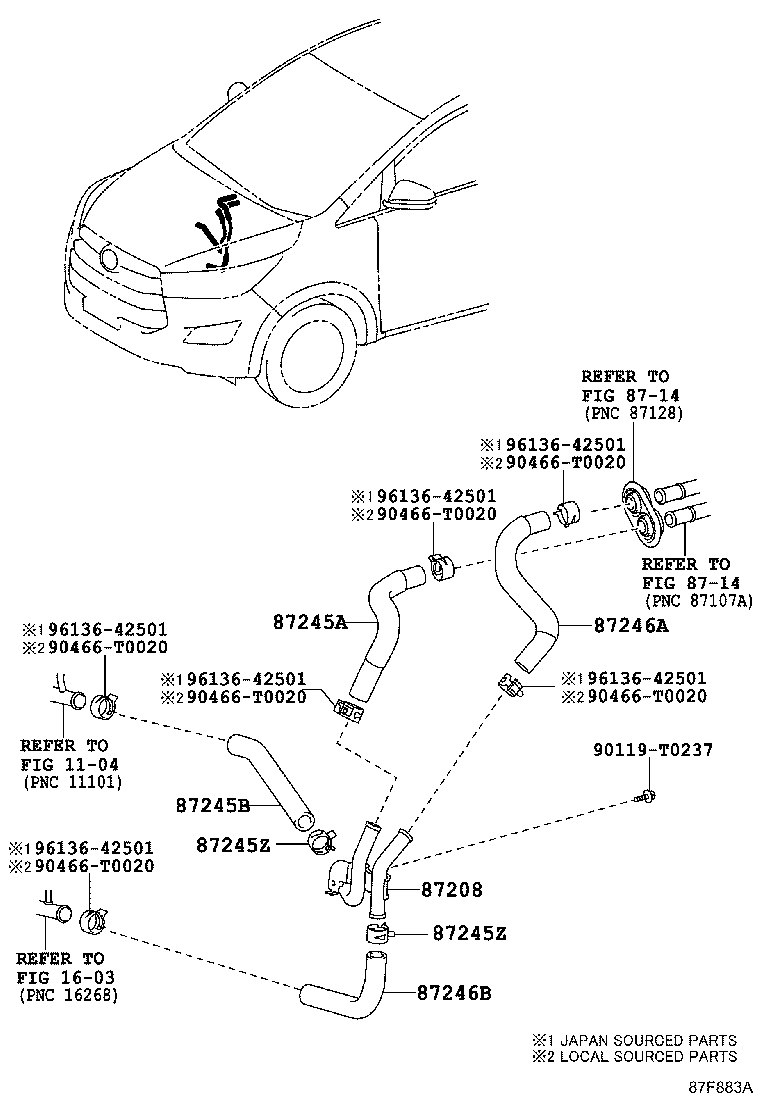

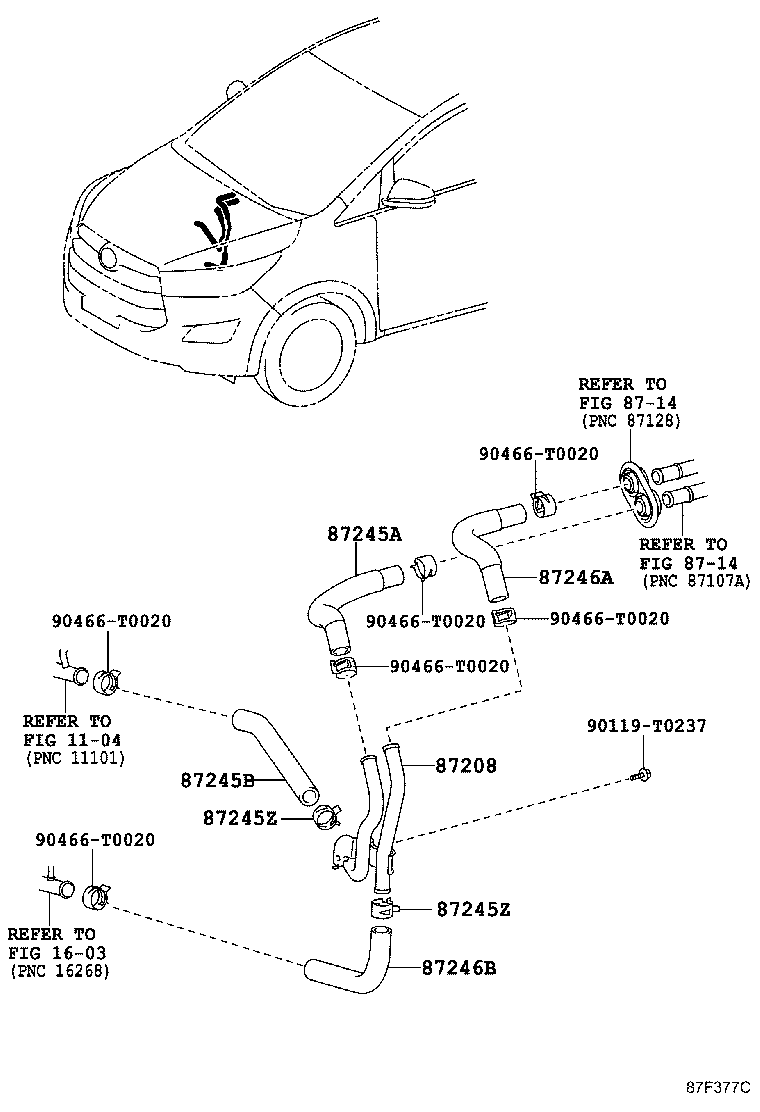

Figure 87F404B 87F404B 2015-11 → — Figure 87F404B 87F404B 2015-11 → — Figure 87F404B 87F404B 2020-09 → — Figure 87F883A 87F883A 2016-07 → — Figure 87F883A 87F883A 2020-09 → — Figure 87F377C 87F377C 2015-11 → — Figure 87F377C 87F377C 2020-09 → — Figure 87F377C 87F377C 2020-09 → —

Part groups

PNCDescription
87124 Clamp, Heater
87208 Pipe Sub-assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
