Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

32 part groups · 45 illustrations

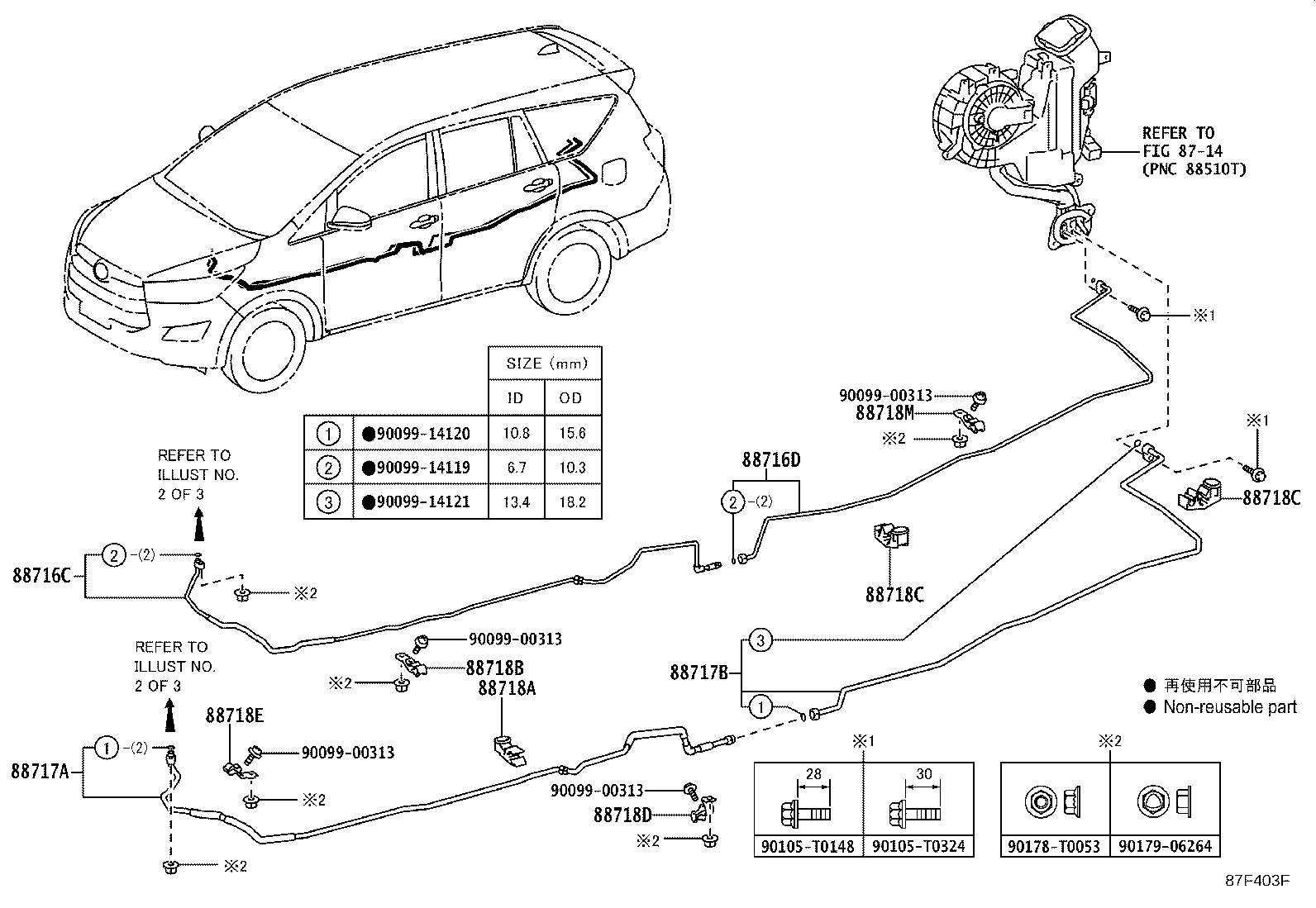

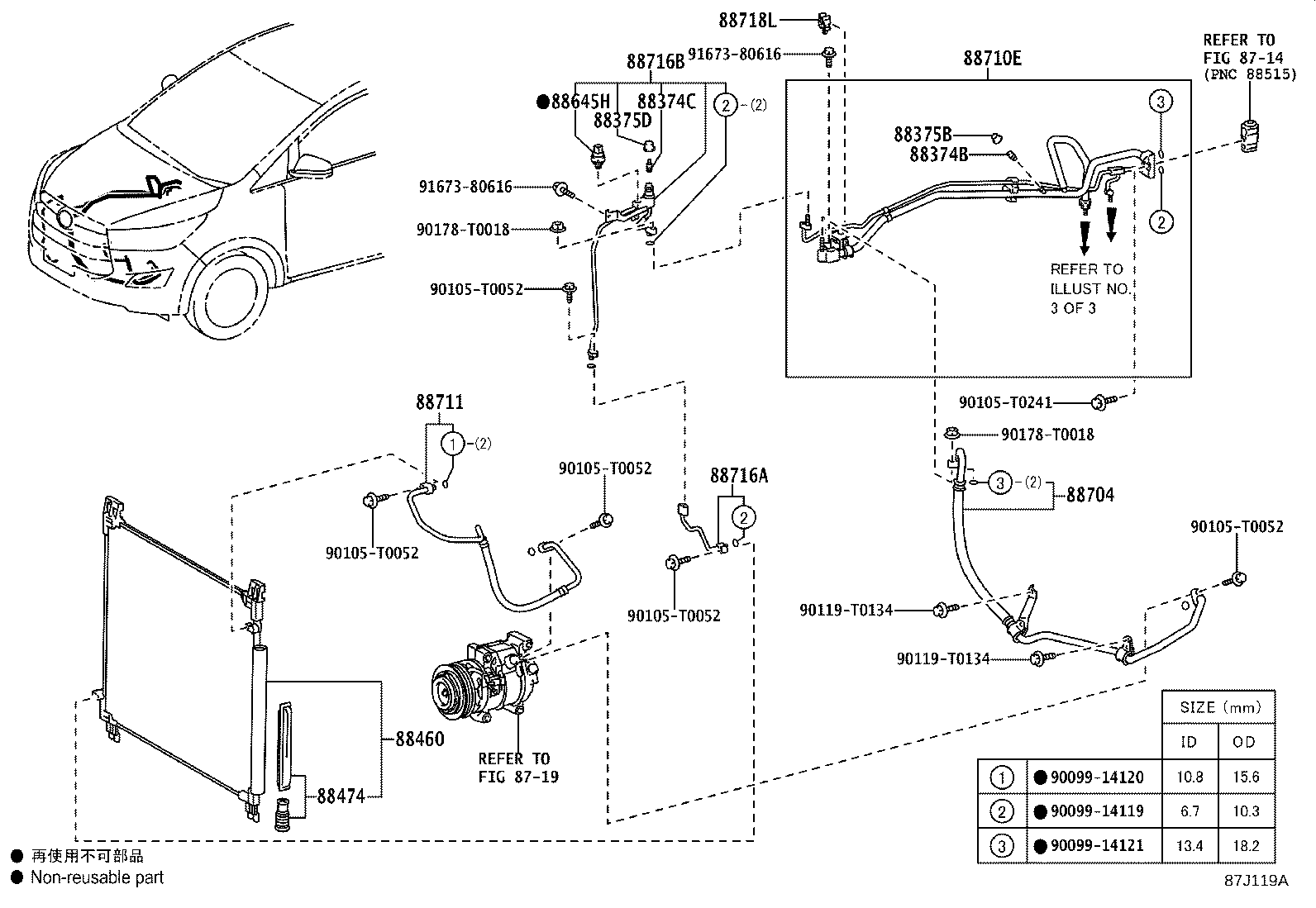

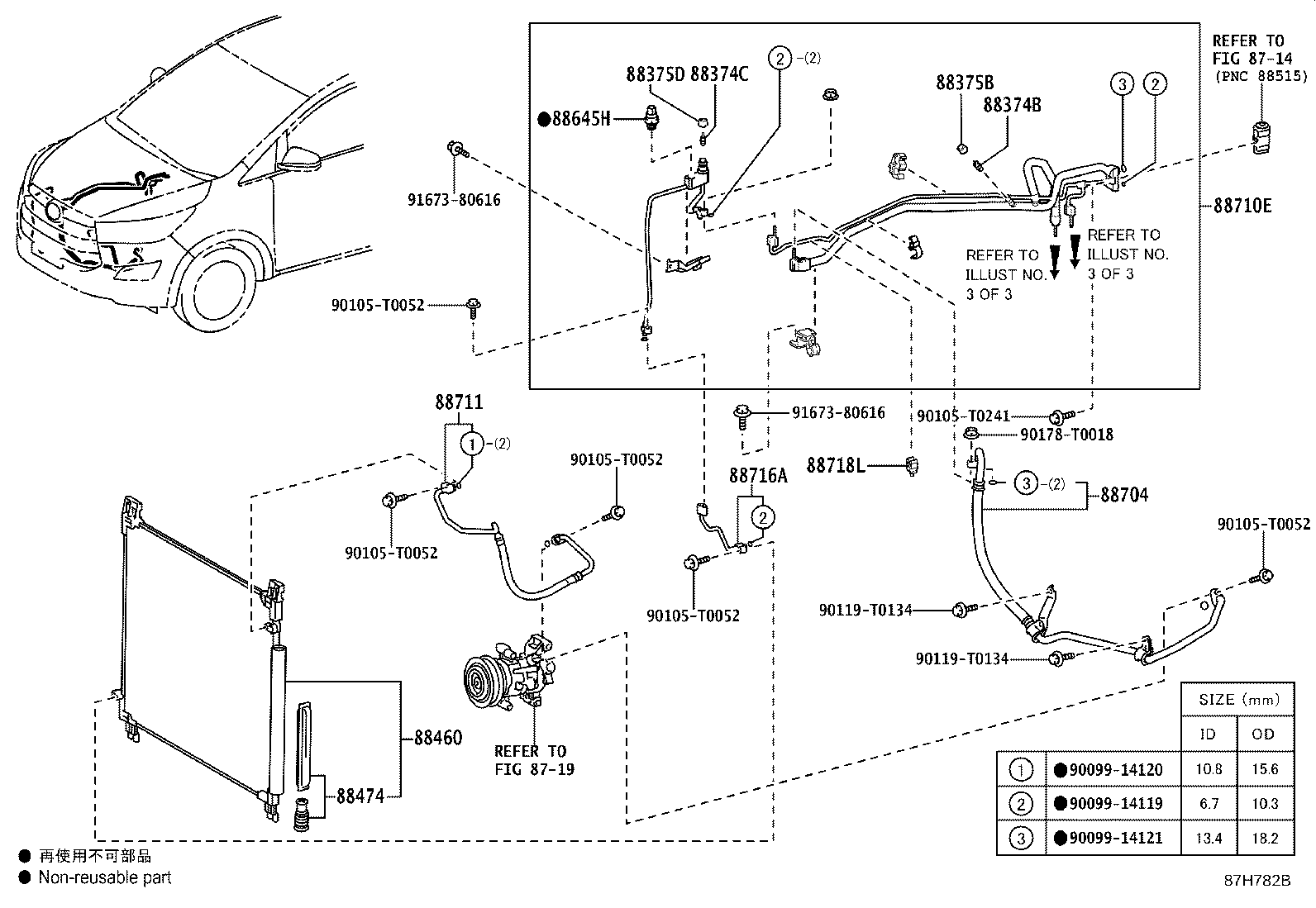

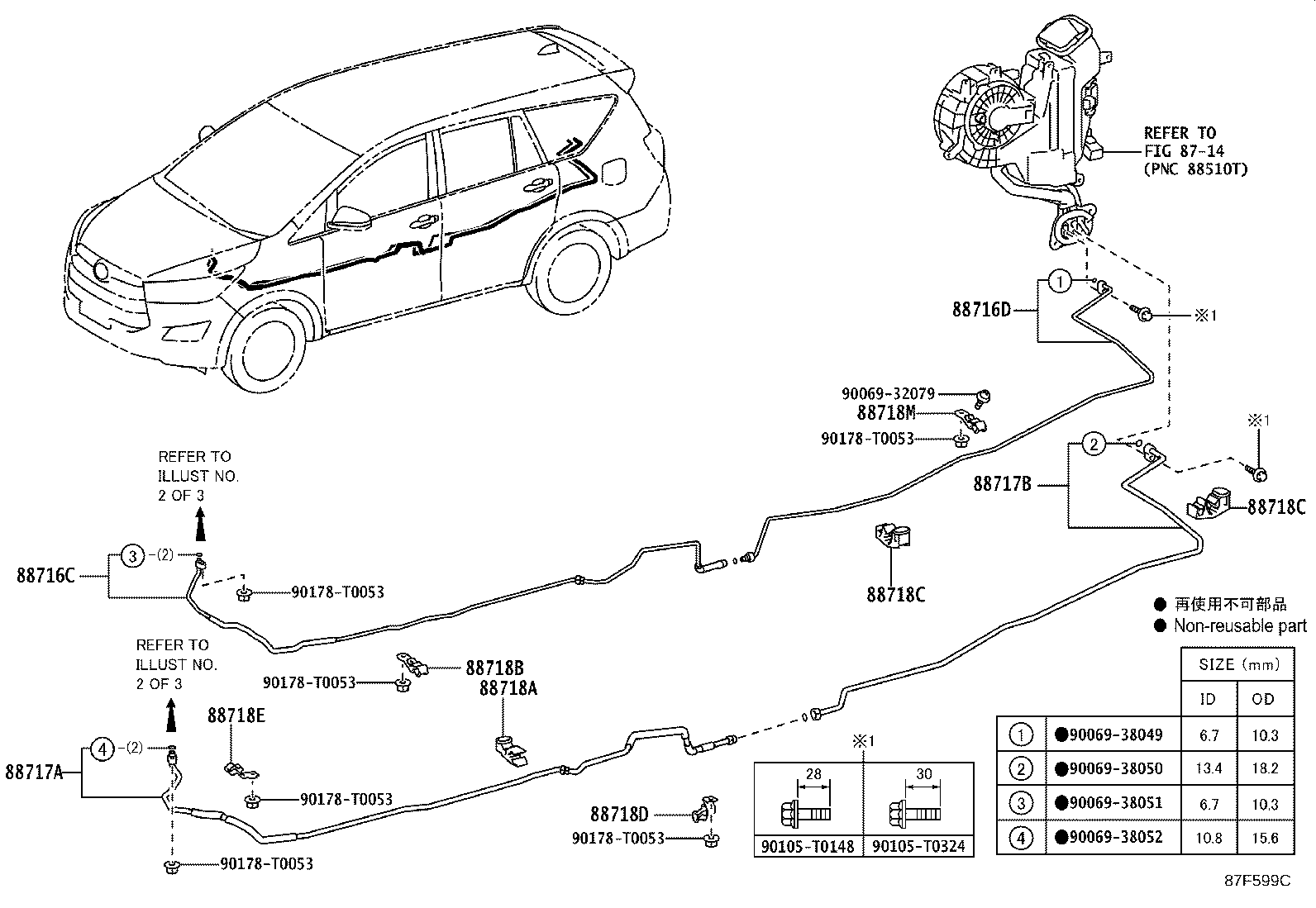

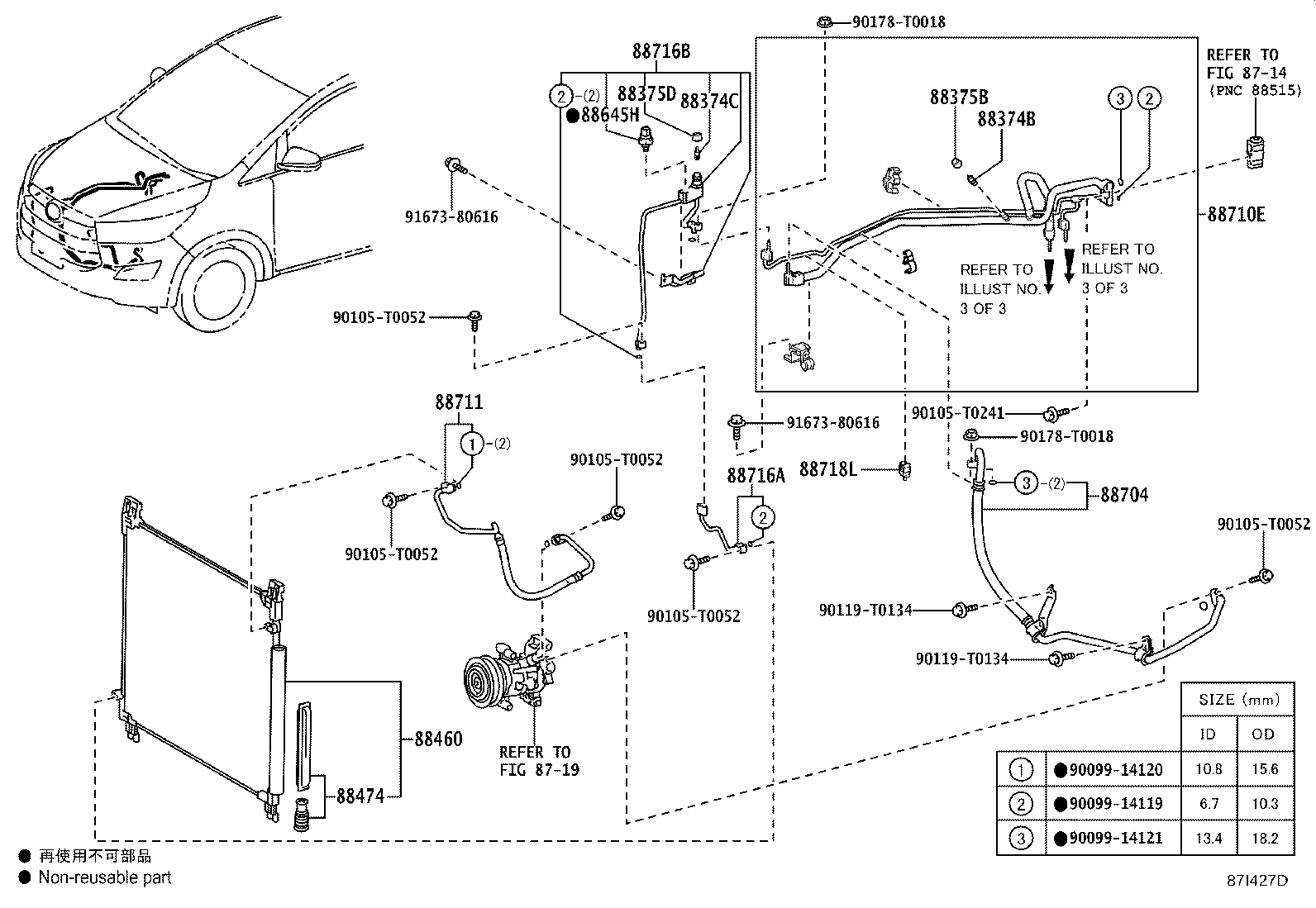

Illustrations

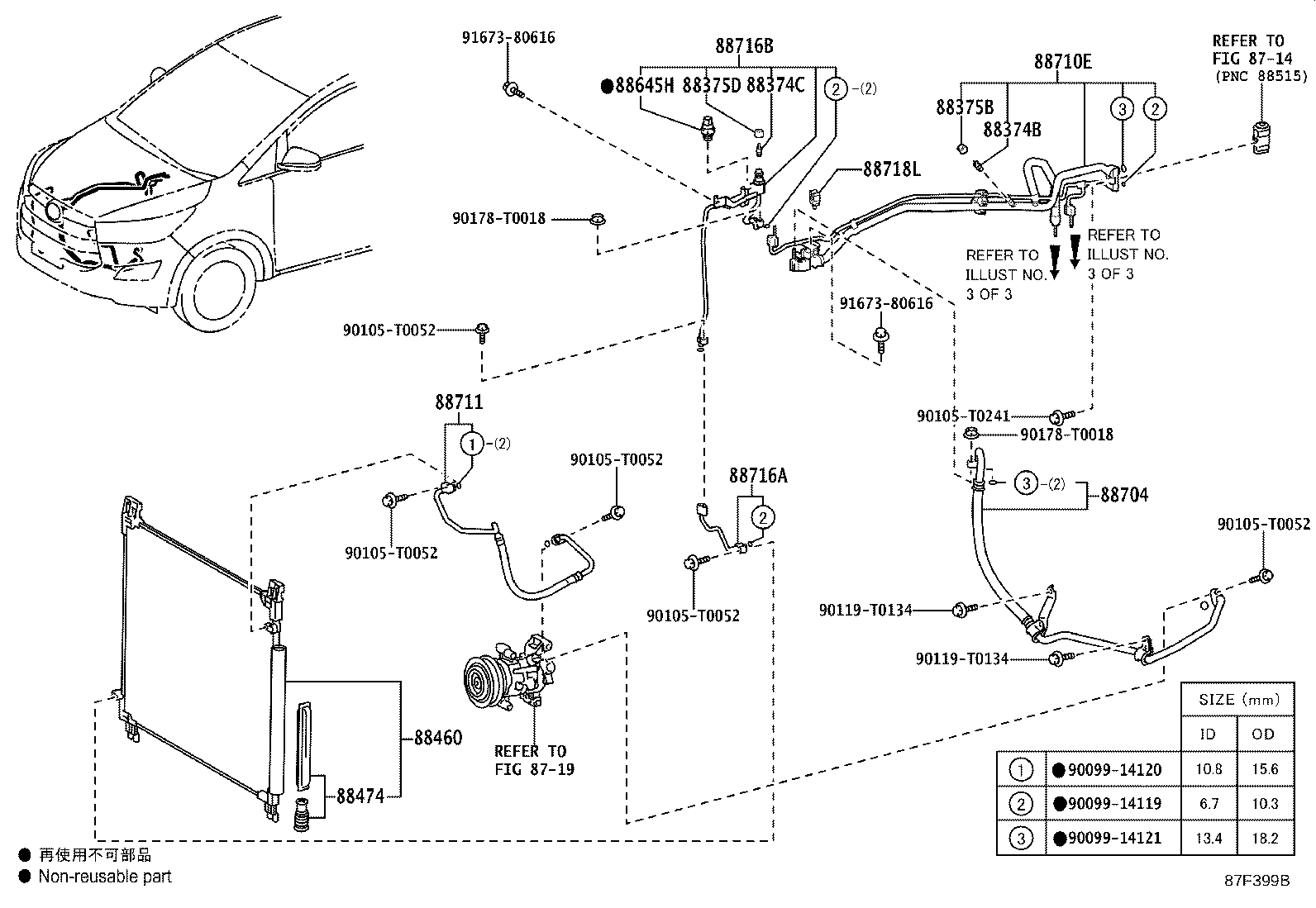

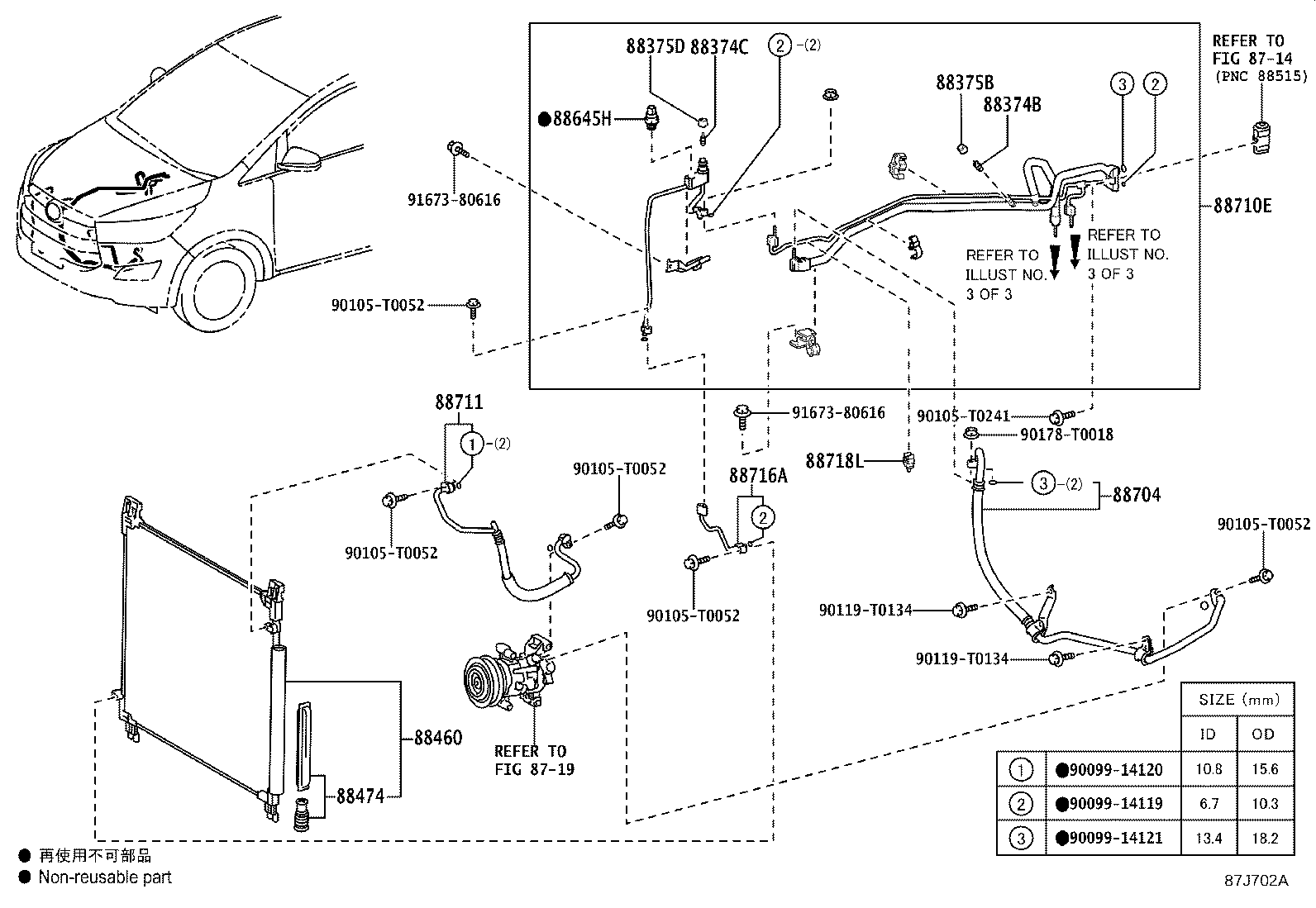

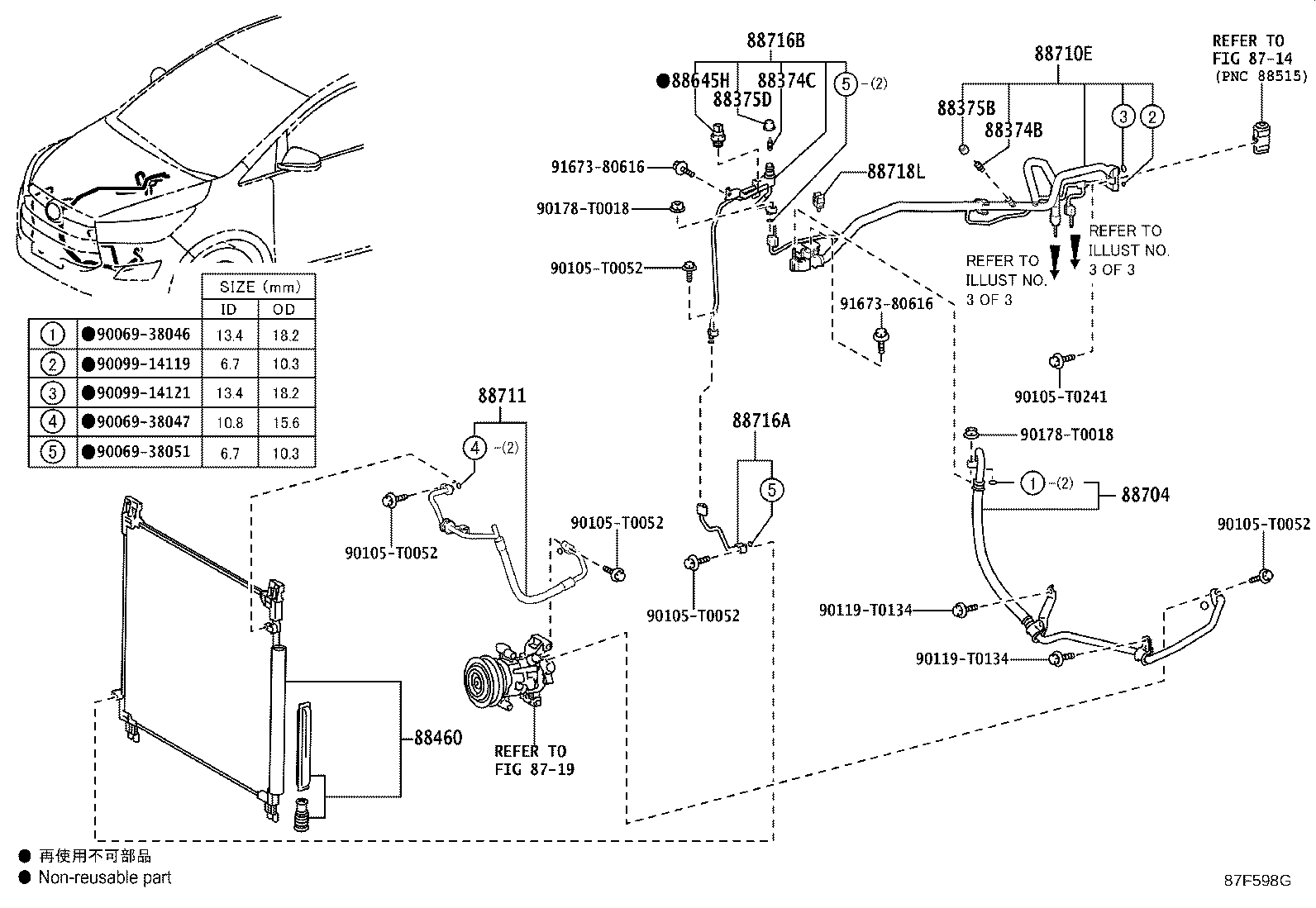

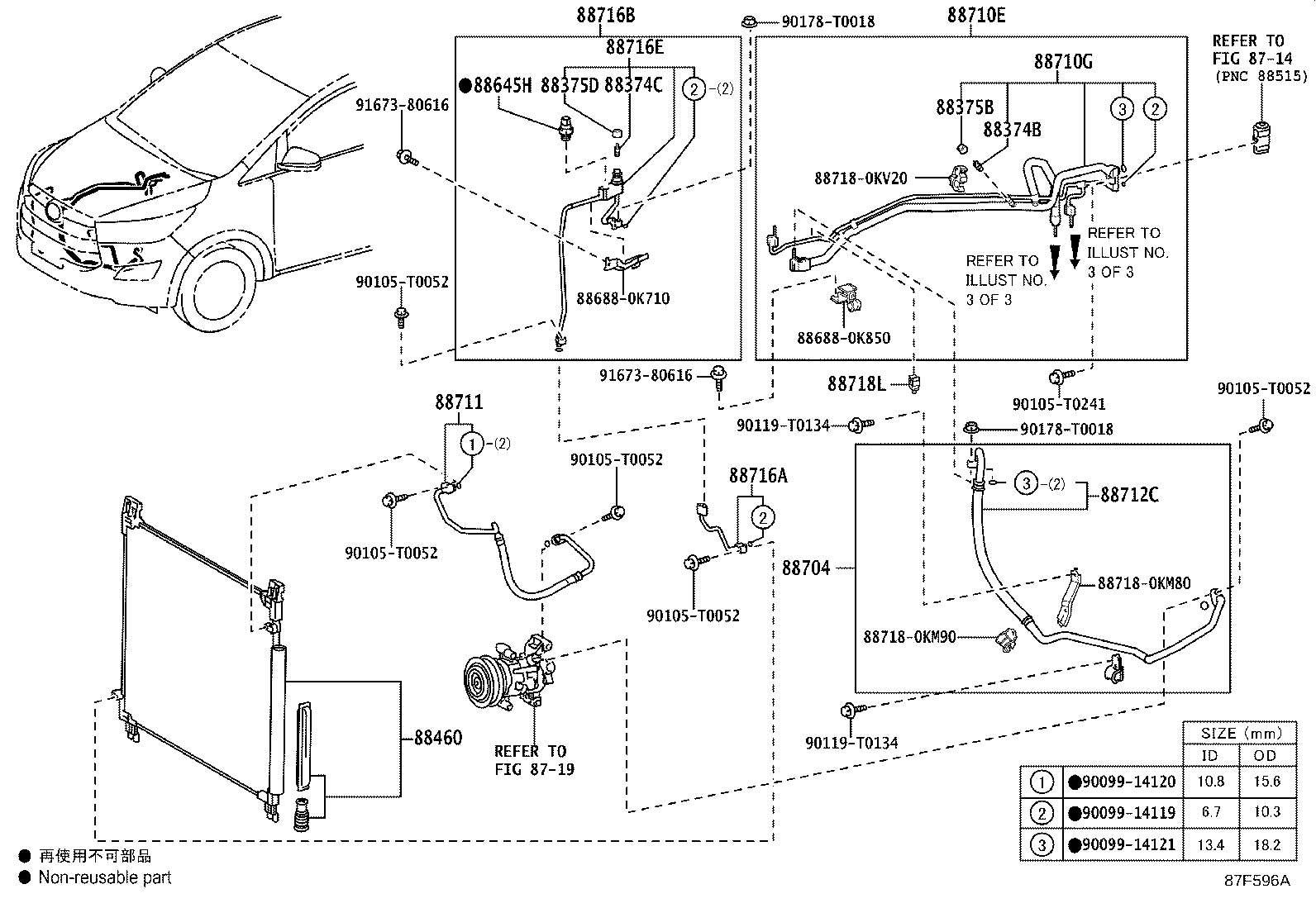

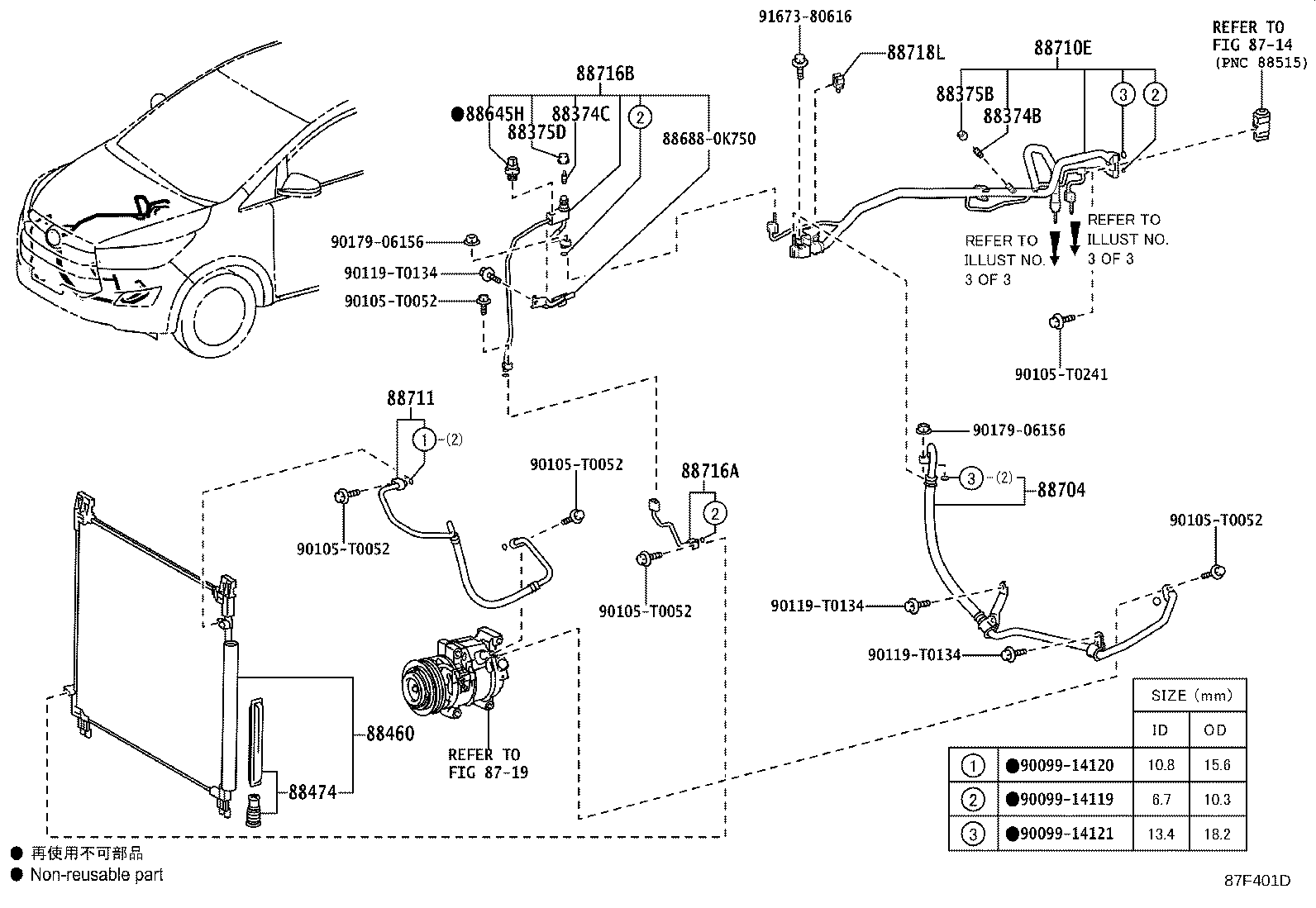

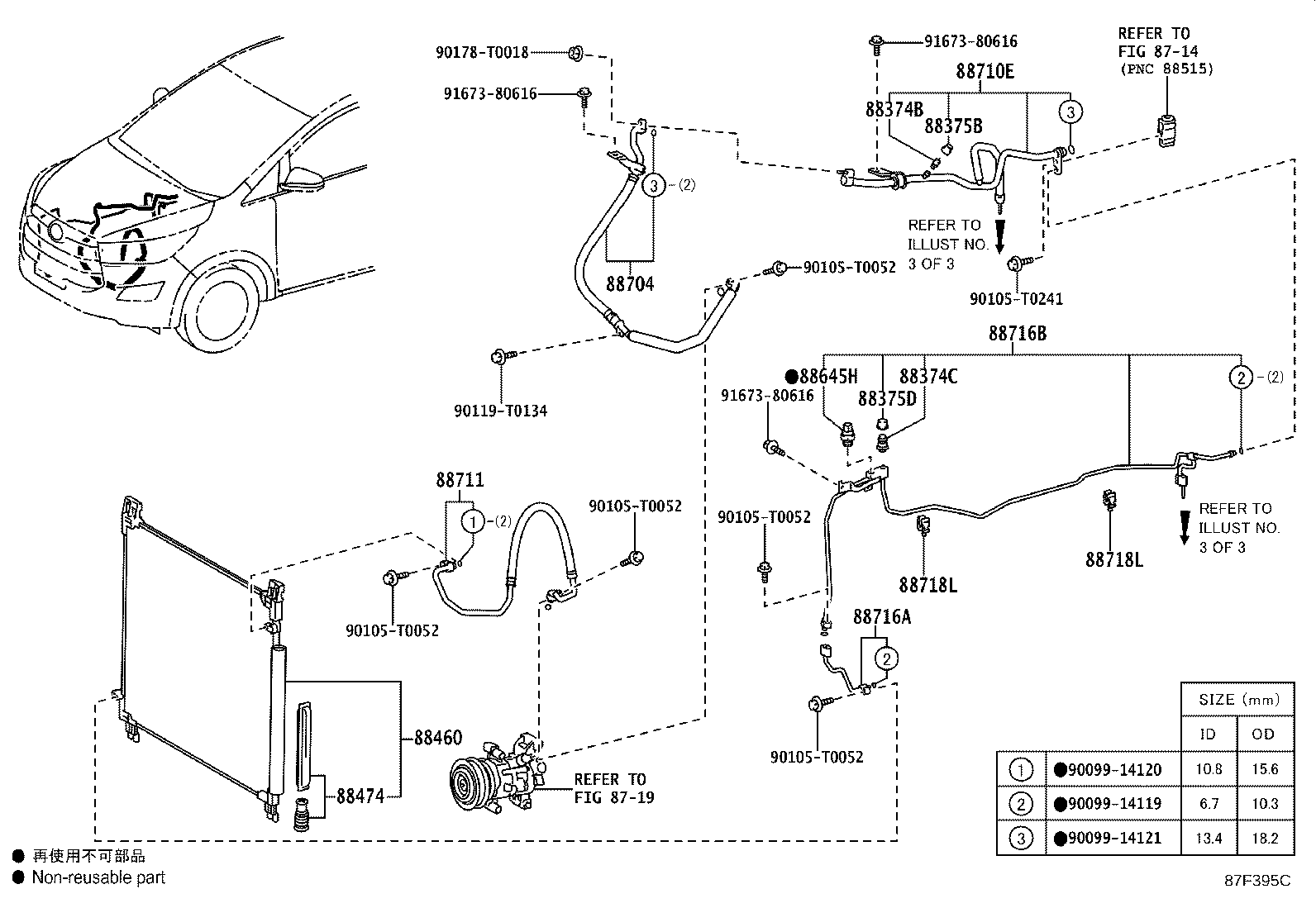

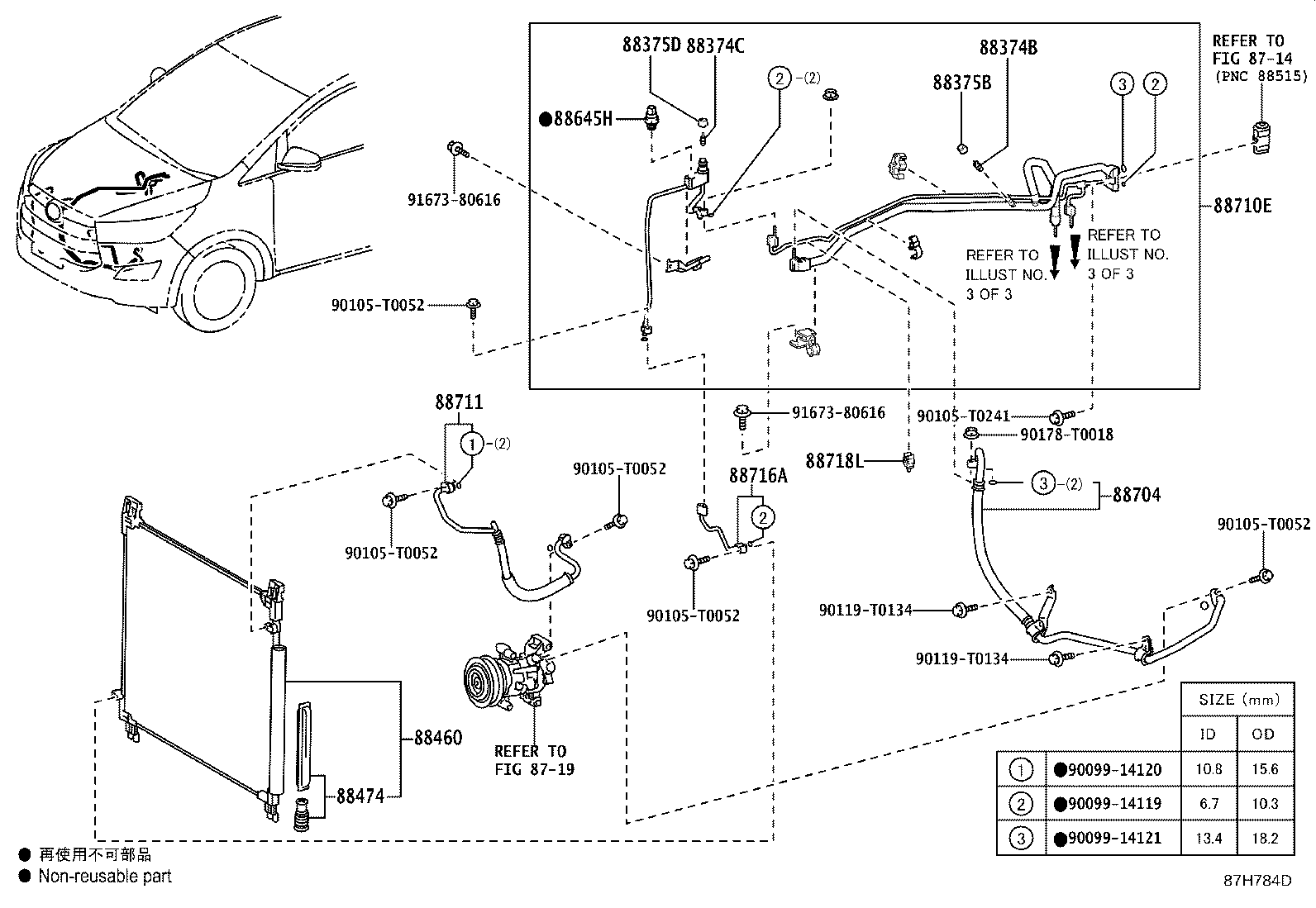

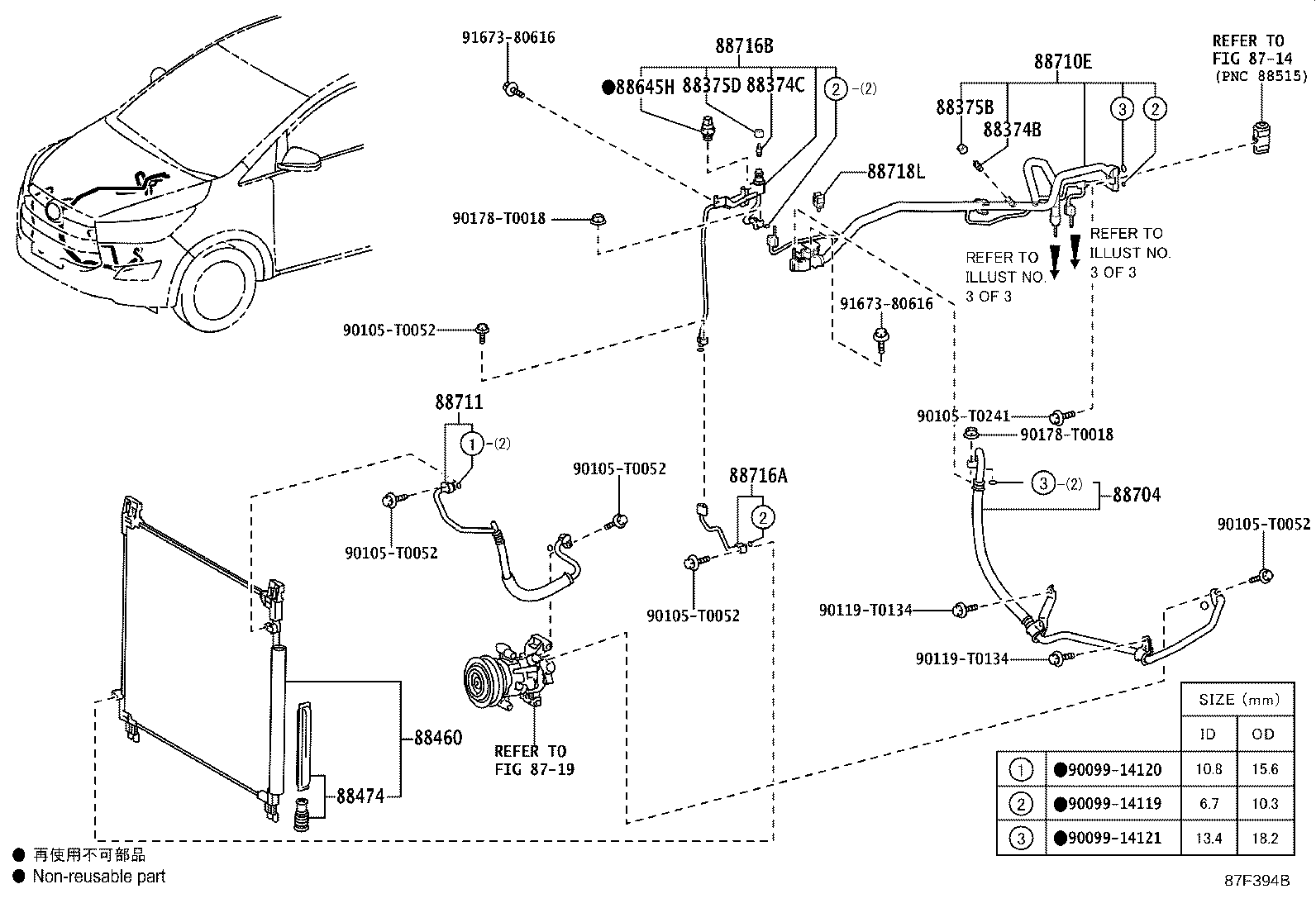

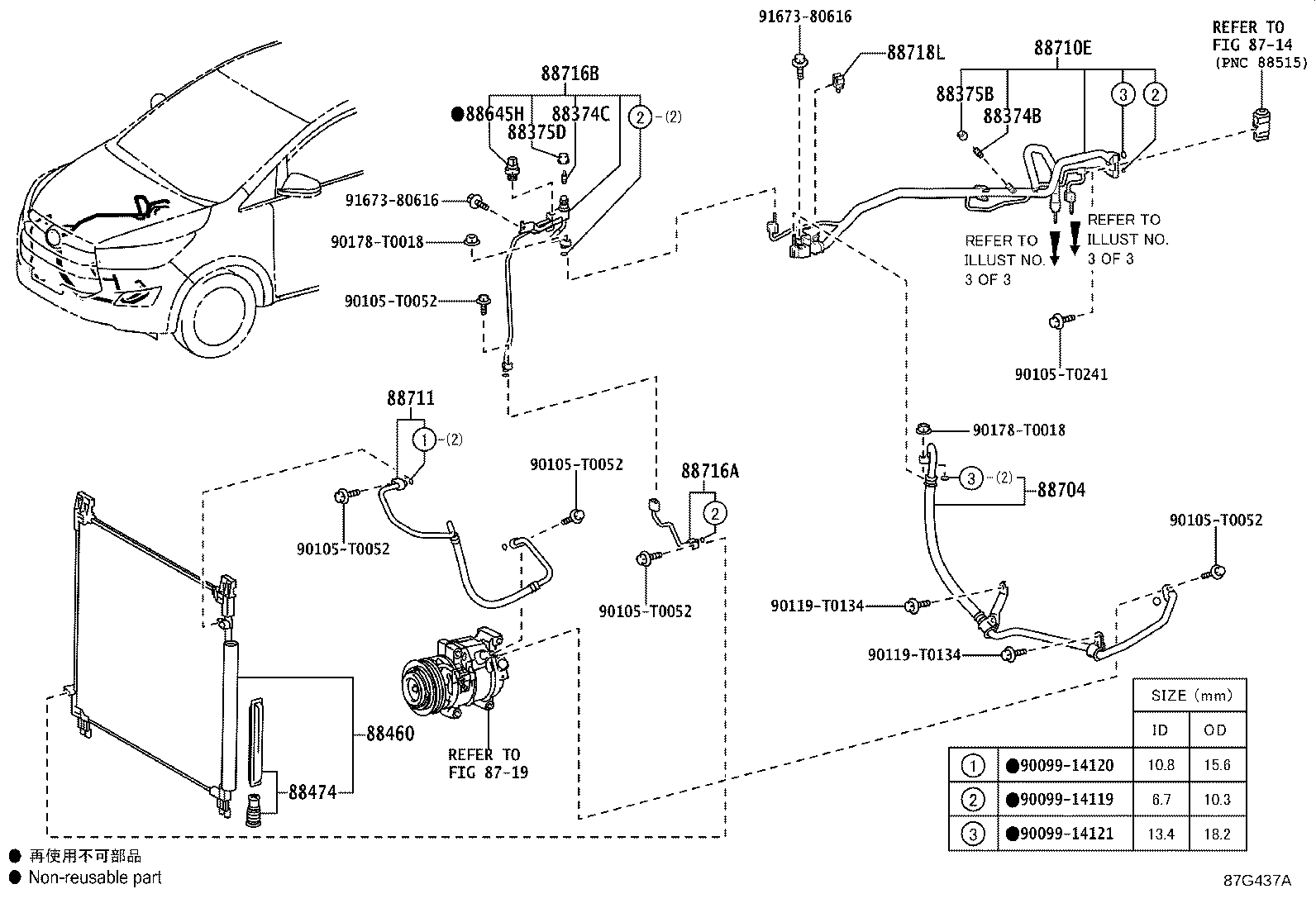

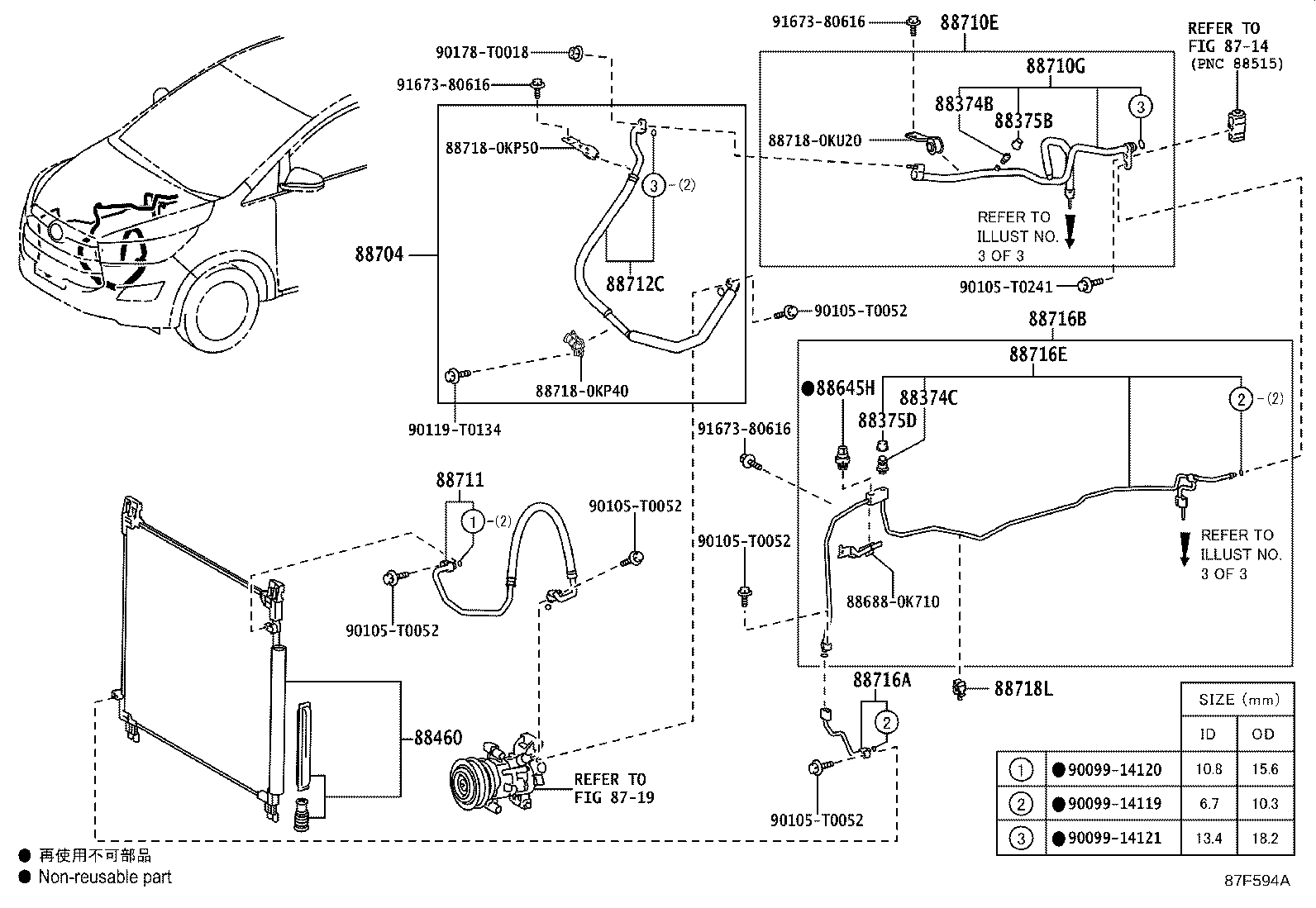

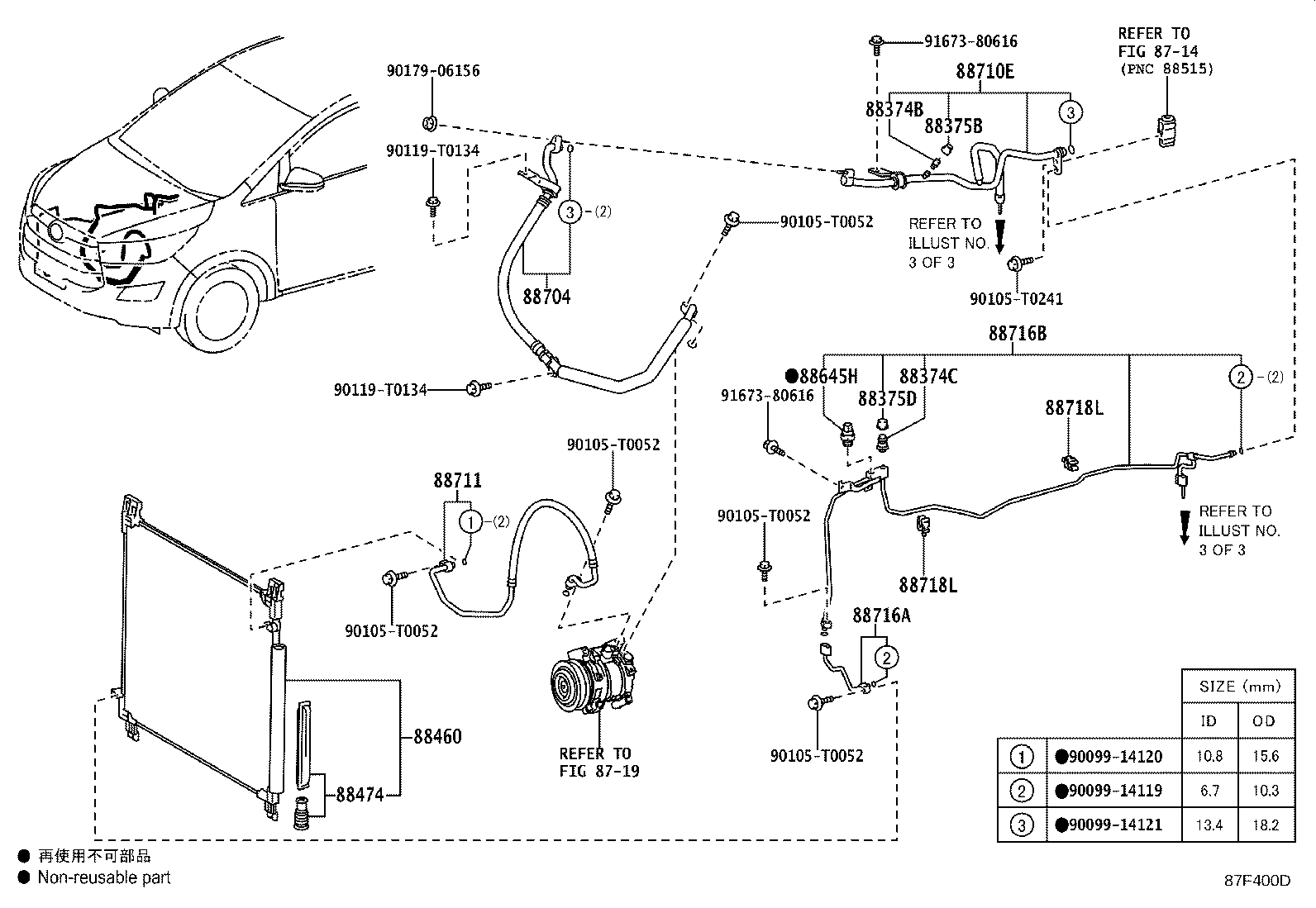

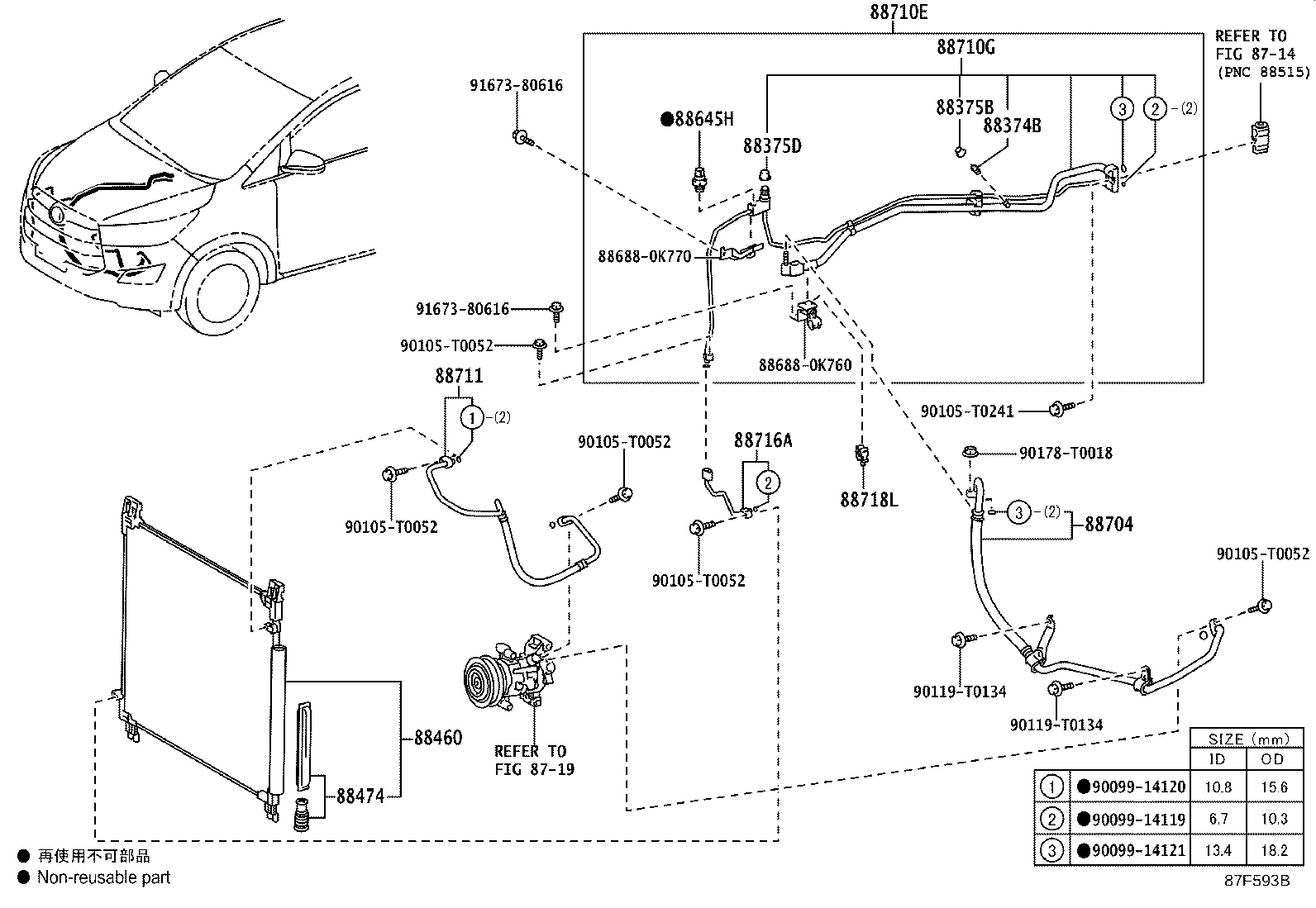

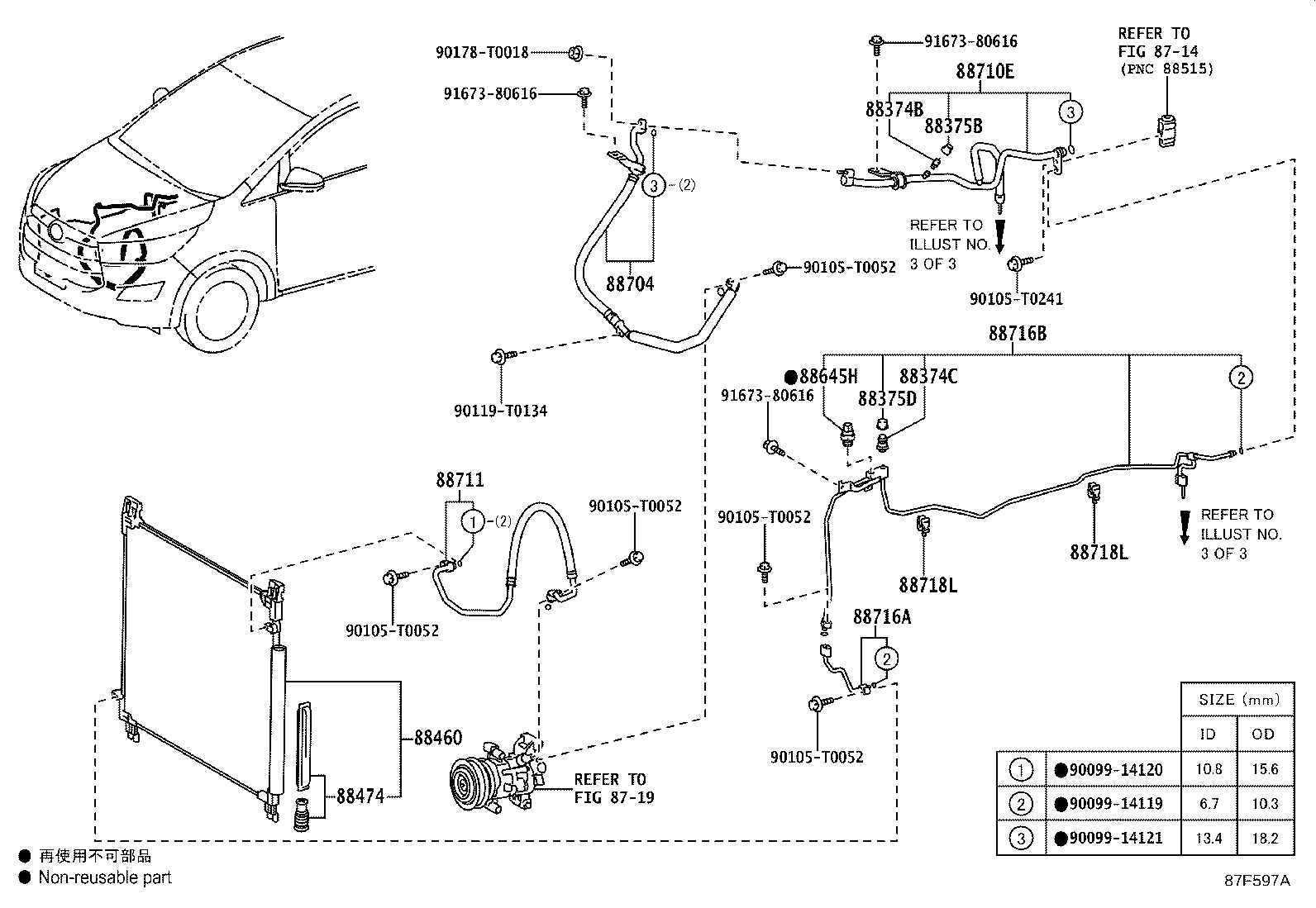

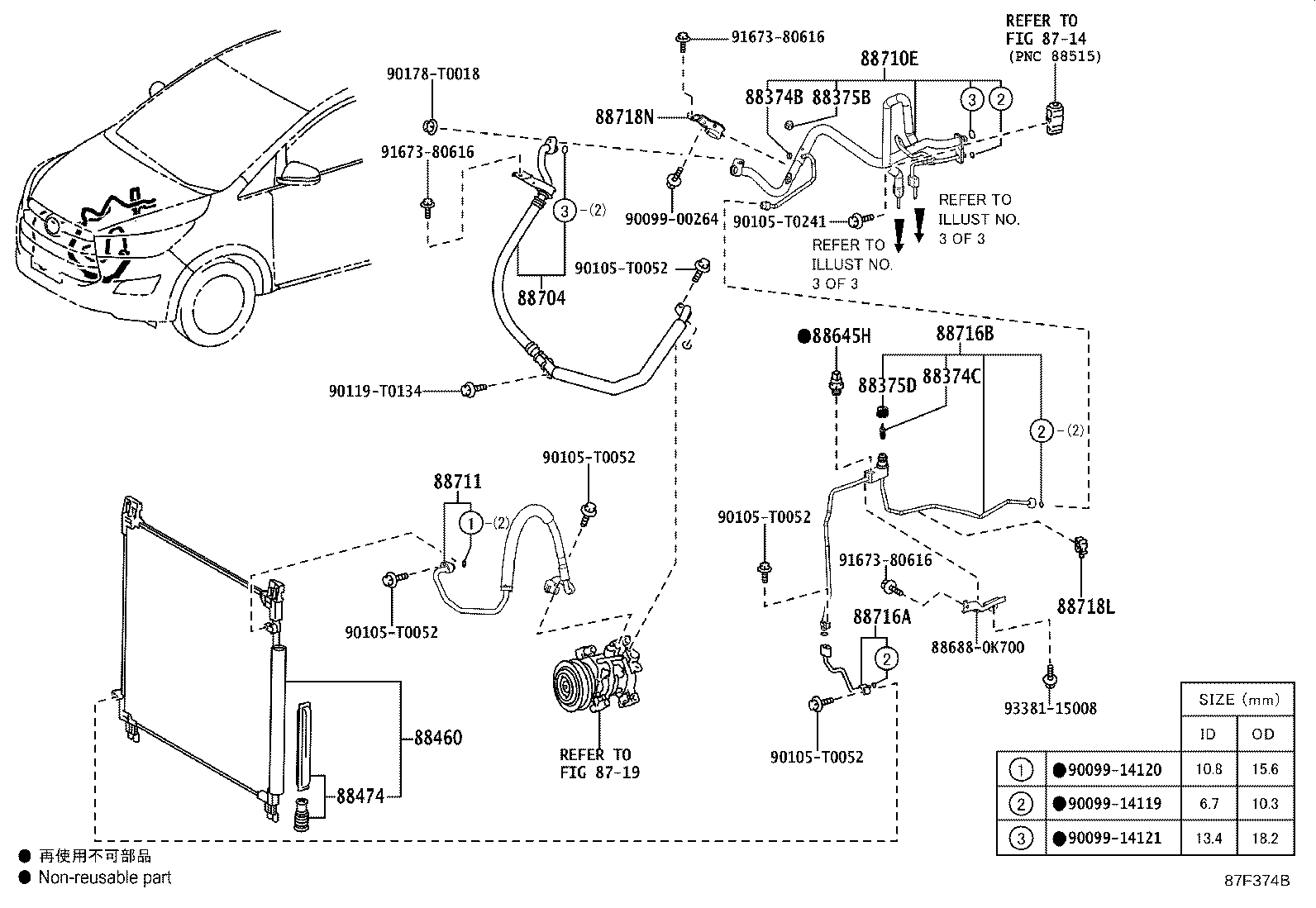

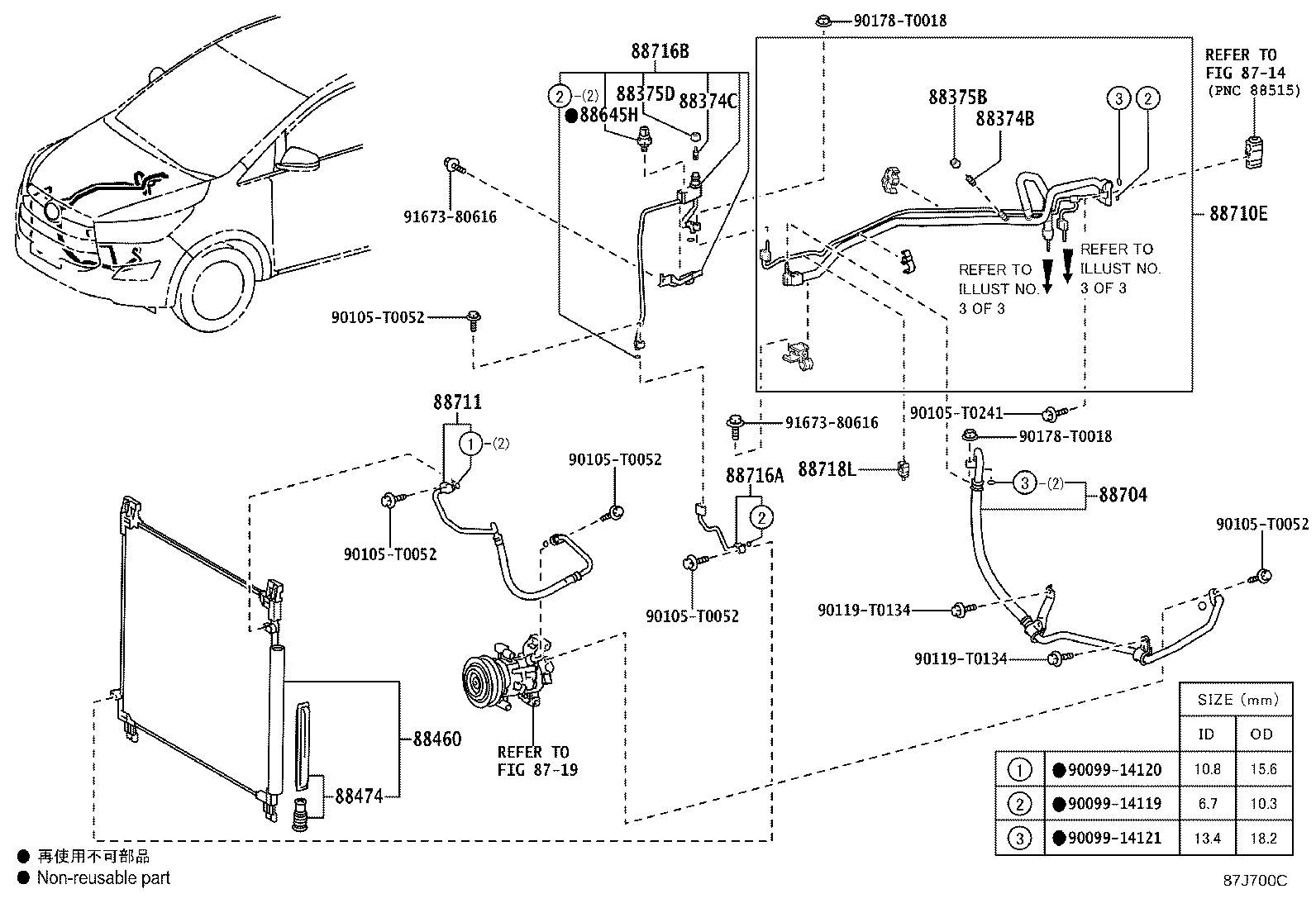

Figure 87F402D 87F402D 2015-11 → — Figure 87F402D 87F402D 2020-09 → — Figure 87F374B 87F374B 2015-11 → — Figure 87F374B 87F374B 2020-09 → — Figure 87F394B 87F394B 2015-11 → 2019-05 Figure 87H784D 87H784D 2019-05 → 2020-08 Figure 87F395C 87F395C 2015-11 → — Figure 87F395C 87F395C 2016-08 → — Figure 87F395C 87F395C 2017-09 → — Figure 87F395C 87F395C 2020-09 → — Figure 87F399B 87F399B 2015-11 → 2019-05 Figure 87F399B 87F399B 2016-04 → — Figure 87F399B 87F399B 2016-08 → 2019-05 Figure 87F399B 87F399B 2017-08 → 2019-05 Figure 87F399B 87F399B 2018-08 → 2019-05 Figure 87J701B 87J701B 2019-05 → 2020-08 Figure 87H783C 87H783C 2019-05 → — Figure 87F400D 87F400D 2015-11 → 2016-08 Figure 87F401D 87F401D 2015-11 → 2016-08 Figure 87G437A 87G437A 2016-08 → 2017-07 Figure 87G437A 87G437A 2017-09 → — Figure 87G437A 87G437A 2020-10 → — Figure 87F593B 87F593B 2016-04 → — Figure 87F593B 87F593B 2020-10 → — Figure 87F594A 87F594A 2016-04 → — Figure 87F594A 87F594A 2021-02 → — Figure 87F596A 87F596A 2016-04 → — Figure 87F596A 87F596A 2021-02 → — Figure 87F598G 87F598G 2016-04 → — Figure 87F598G 87F598G 2021-02 → — Figure 87F597A 87F597A 2016-07 → — Figure 87F597A 87F597A 2020-10 → — Figure 87J700C 87J700C 2020-02 → 2020-10 Figure 87H782B 87H782B 2020-09 → — Figure 87J702A 87J702A 2020-09 → — Figure 87I427D 87I427D 2020-11 → — Figure 87J119A 87J119A 2020-11 → — Figure 87F403F 87F403F 2015-11 → — Figure 87F403F 87F403F 2015-11 → — Figure 87F403F 87F403F 2015-11 → — Figure 87F403F 87F403F 2020-09 → — Figure 87F403F 87F403F 2020-09 → — Figure 87F403F 87F403F 2020-09 → — Figure 87F599C 87F599C 2016-04 → — Figure 87F599C 87F599C 2021-02 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
