Toyota Innova

2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

10 part groups · 11 illustrations

Illustrations

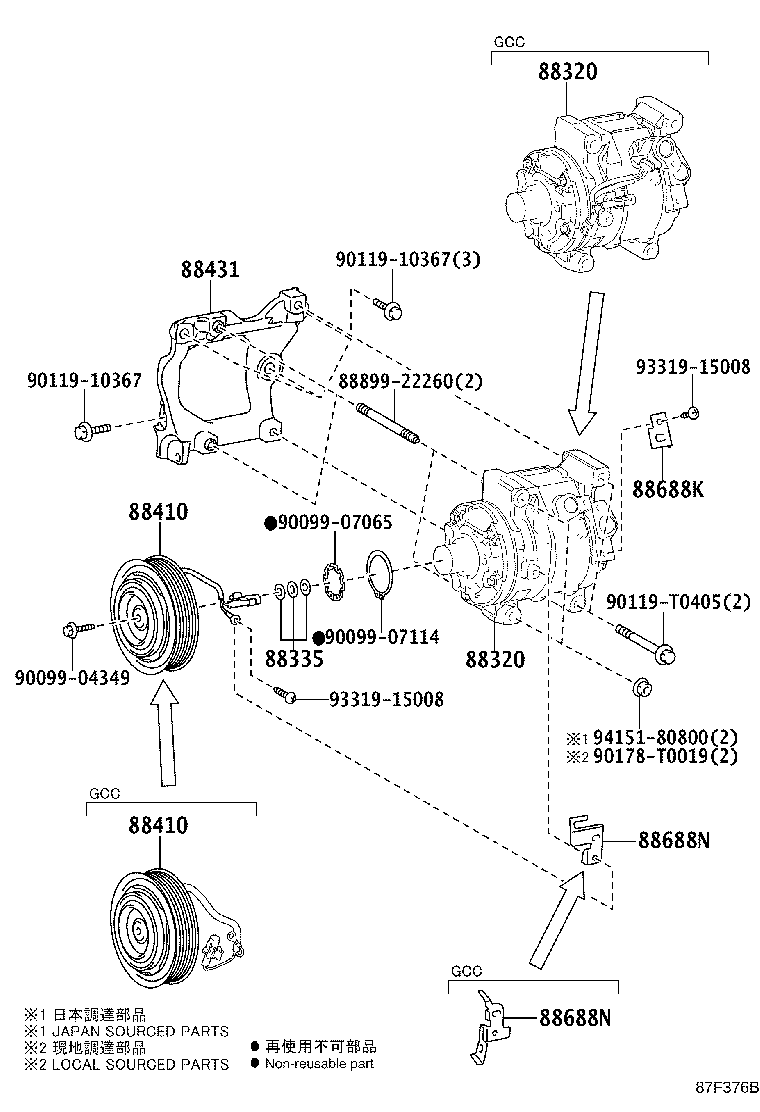

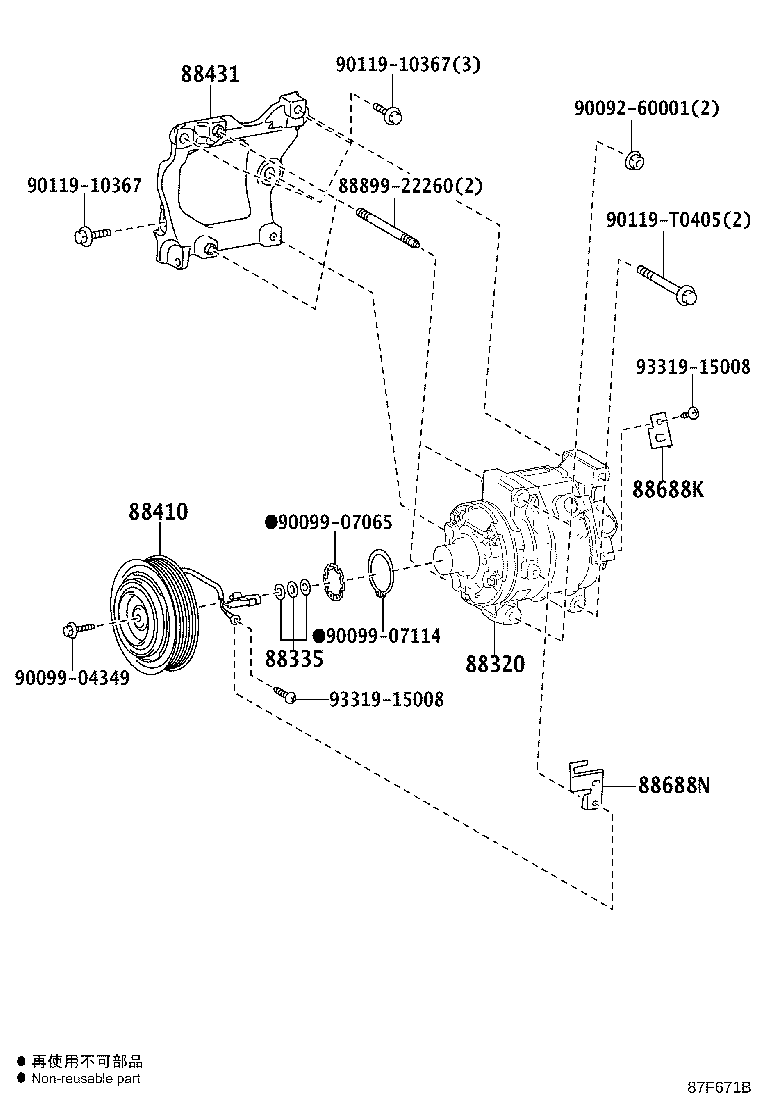

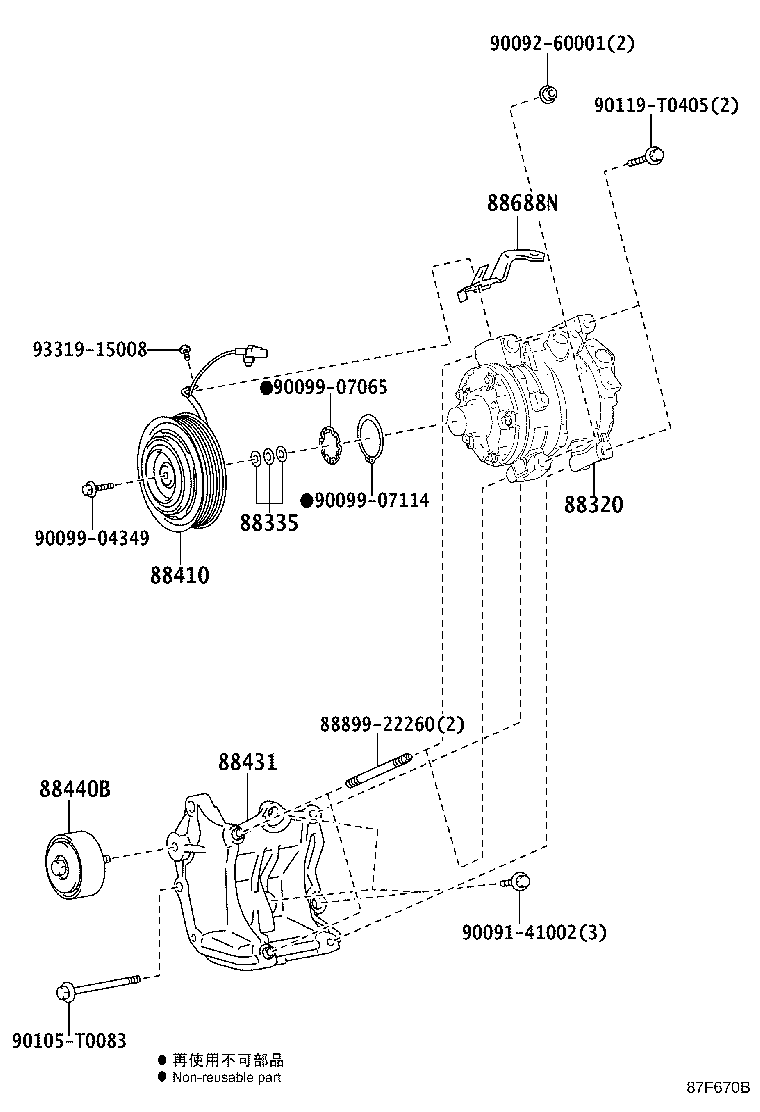

Figure 87F375B 87F375B 2015-11 → — Figure 87F375B 87F375B 2020-09 → — Figure 87F375B 87F375B 2020-09 → — Figure 87F376B 87F376B 2015-11 → — Figure 87F376B 87F376B 2015-11 → — Figure 87F376B 87F376B 2020-09 → — Figure 87F376B 87F376B 2020-09 → — Figure 87F670B 87F670B 2015-11 → — Figure 87F671B 87F671B 2015-11 → — Figure 87G314B 87G314B 2016-04 → — Figure 87G314B 87G314B 2021-02 → —

Part groups

PNCDescription
88317 Spacer, Cooler Compressor
88320 Compressor Assy, Cooler
88329E Bolt, Compressor, NO.1
88335 Gasket Kit, Overhaul
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
