Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Housing & Transmission Case (MTM)

13 part groups · 12 illustrations

Illustrations

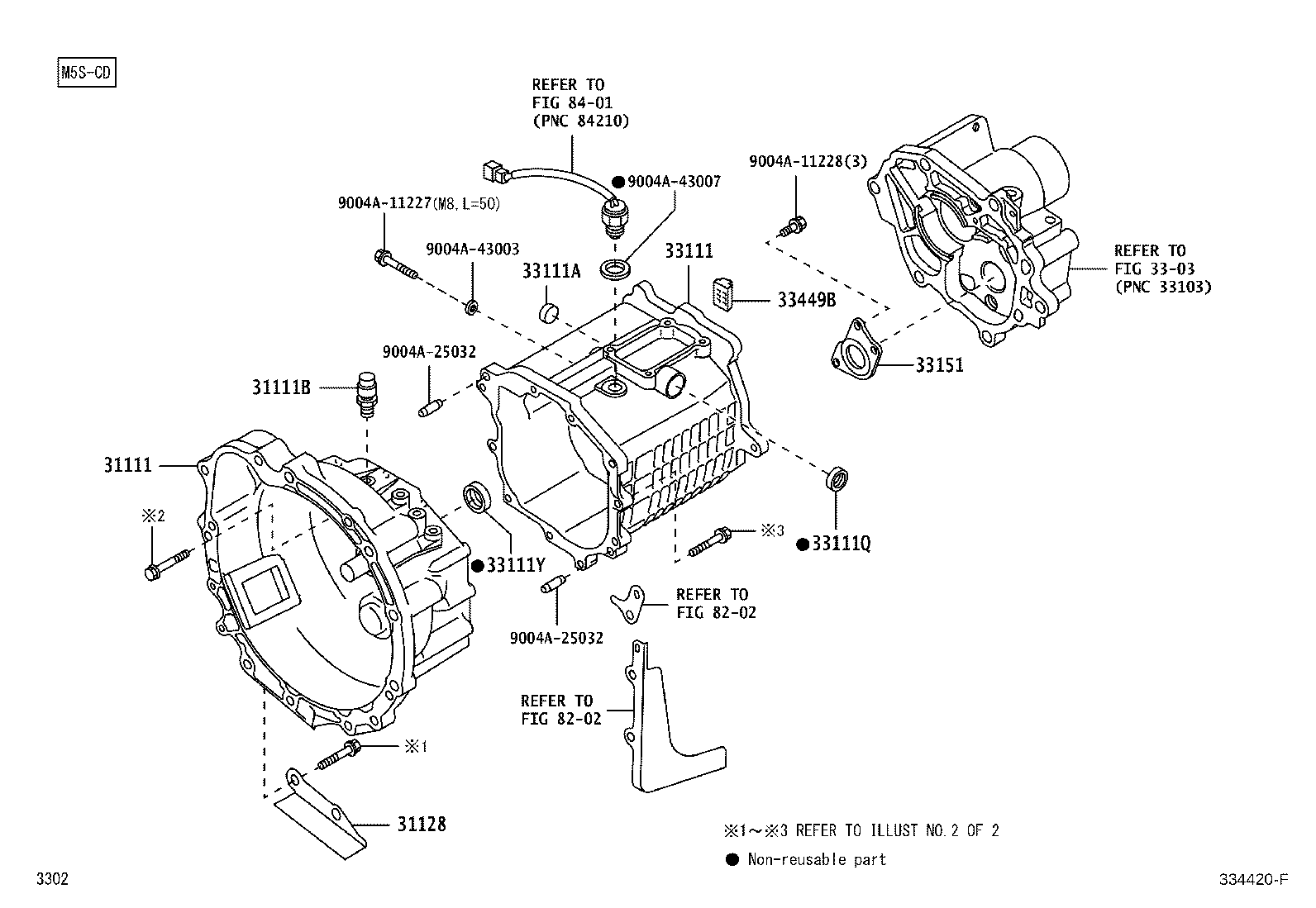

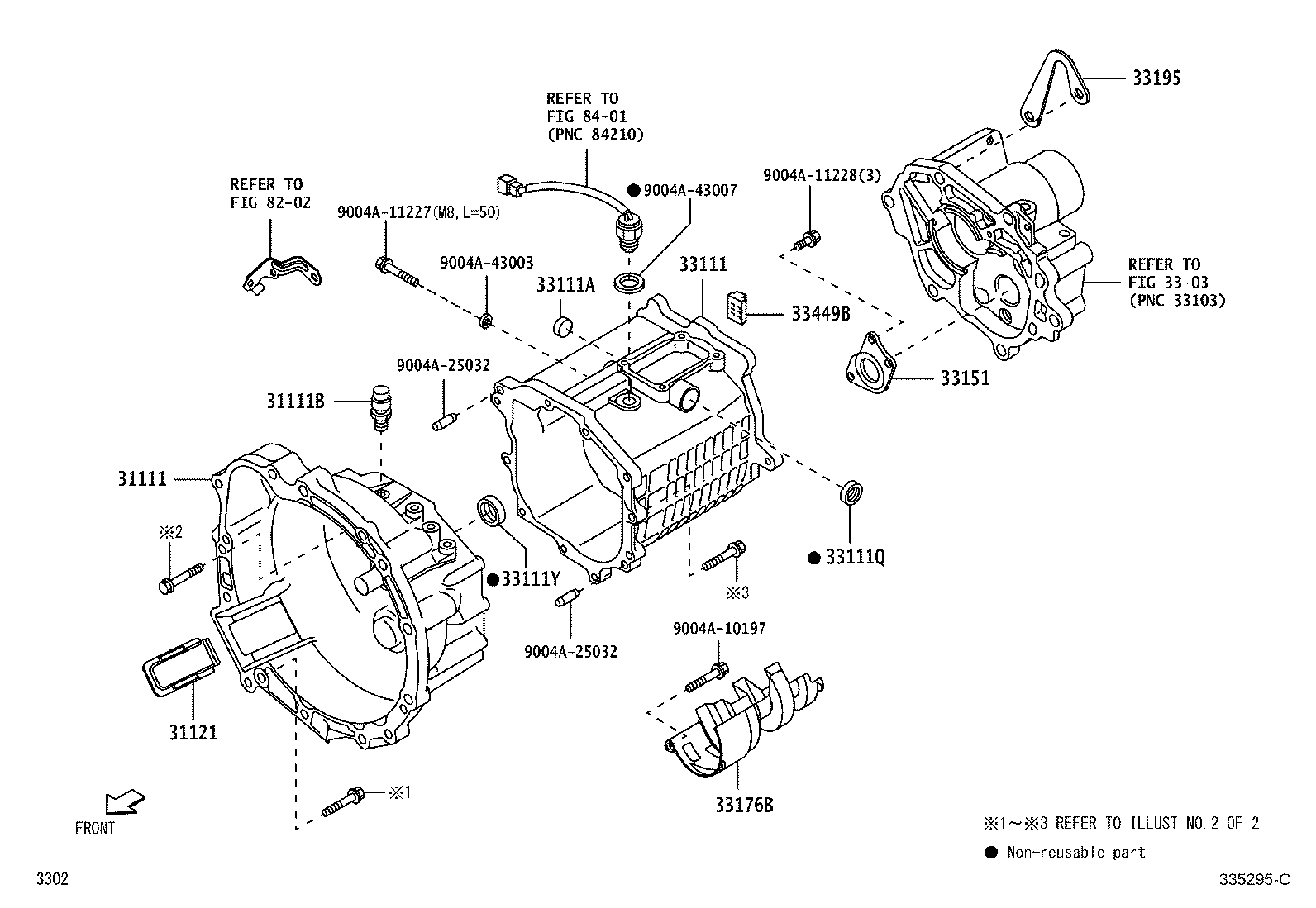

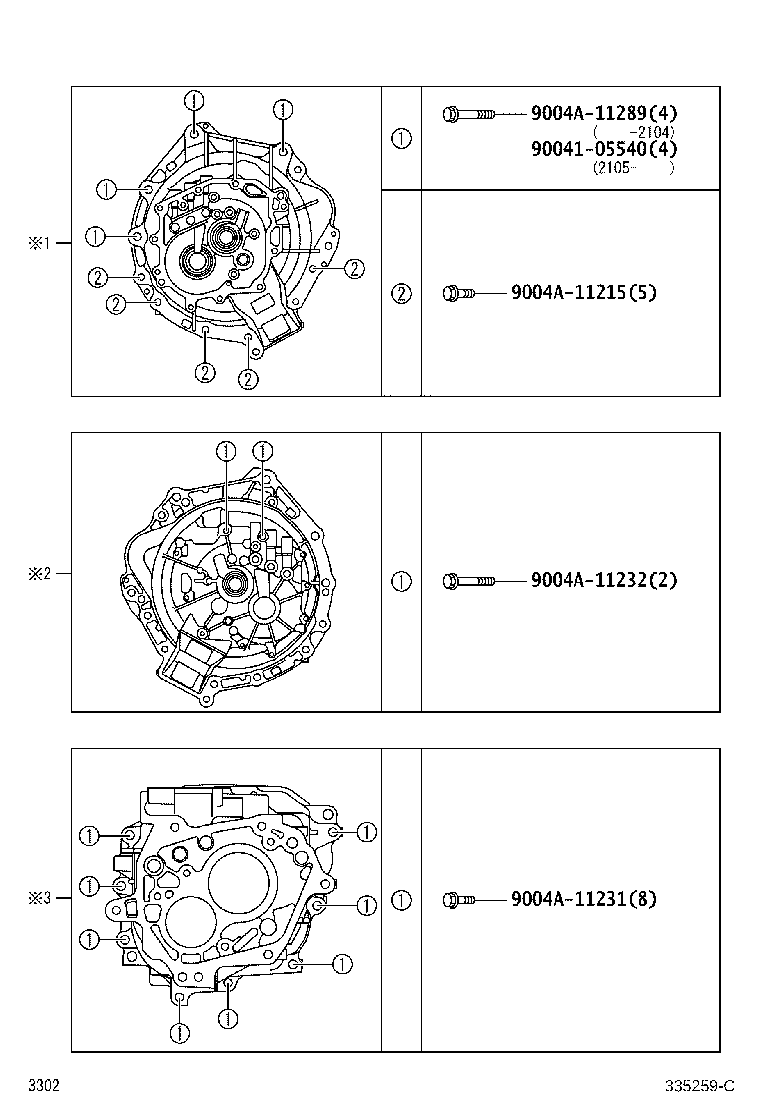

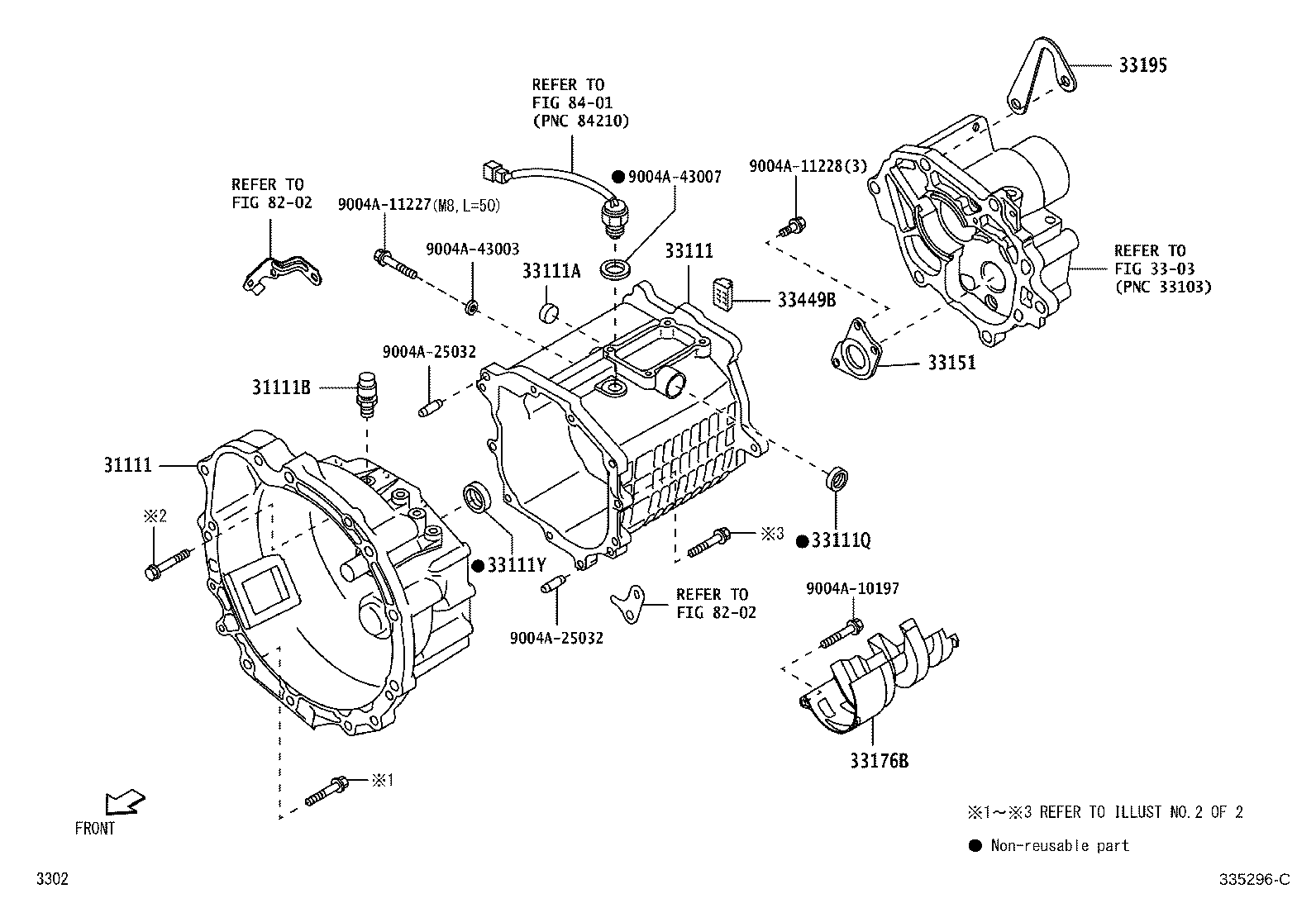

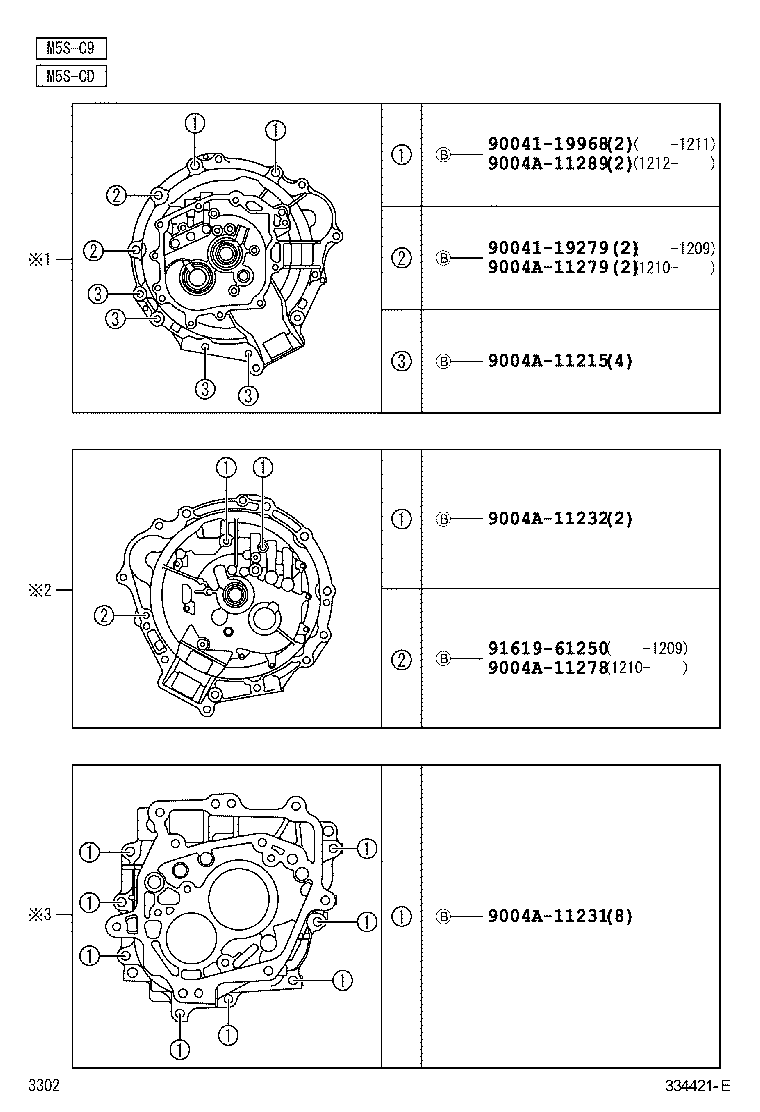

Figure 335418A 335418A 2011-11 → 2015-07 Figure 335418A 335418A 2011-11 → 2015-08 Figure 335295C 335295C 2015-07 → — Figure 335295C 335295C 2015-08 → — Figure 334420F 334420F 2011-11 → 2015-07 Figure 334420F 334420F 2011-11 → 2015-08 Figure 335296C 335296C 2015-07 → — Figure 335296C 335296C 2015-08 → — Figure 334421E 334421E 2011-11 → 2015-07 Figure 334421E 334421E 2011-11 → 2015-08 Figure 335259C 335259C 2015-07 → — Figure 335259C 335259C 2015-08 → —

Part groups

PNCDescription
31111 Housing, Clutch
31111B Plug(FOR CLUTCH HOUSING)
31121 Cover, Clutch Housing, NO.1
31123 Cover, Clutch Housing, NO.2
31128 Cover, Clutch Housing Under
33111 Case, Manual Transmission
33111A Plug, Manual Transmission Case
33111Q Seal, Oil(FOR TRANSMISSION CASE)
33111Y Seal, Oil(FOR TRANSMISSION CASE)
33151 Retainer, Output Shaft Rear Bearing(MTM)
33176B Separator, Transmission Oil(MTM)
33195 Hanger, Transmission Case, NO.1
33449B Magnet, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
