Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

13 part groups · 2 illustrations

Illustrations

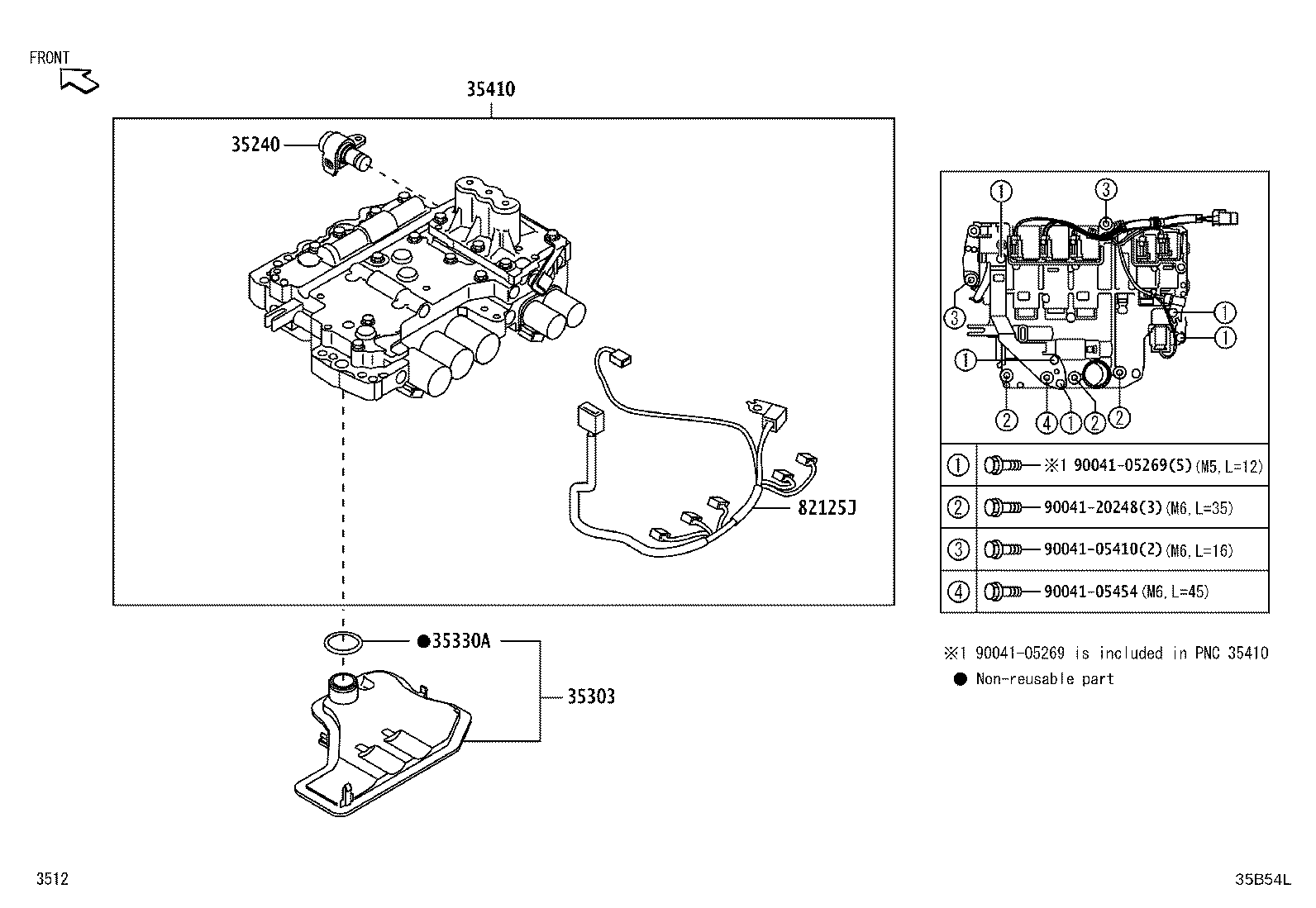

Figure 35B54K 35B54K 2011-11 → 2015-08 Figure 35B54L 35B54L 2015-07 → —

Part groups

PNCDescription
35210 Solenoid Assy, Clutch Control, NO.1
35220 Solenoid Assy, Clutch Control, NO.2
35240 Solenoid Assy, Automatic Transmission 3Way
35240A Ring, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)
35240B Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)
35280 Solenoid Assy, Lock UP Control
35285 Plate, Solenoid Lock
35303 Strainer Sub-assy, Oil
35330A Ring, O (FOR OIL STRAINER)
35410 Body Assy, Transmission Valve
35481B Clamp, Valve Body Wire Harness
35960 Wire, Solenoid
82125J Wire, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
