Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General
Discontinued model
Data version 2019-04

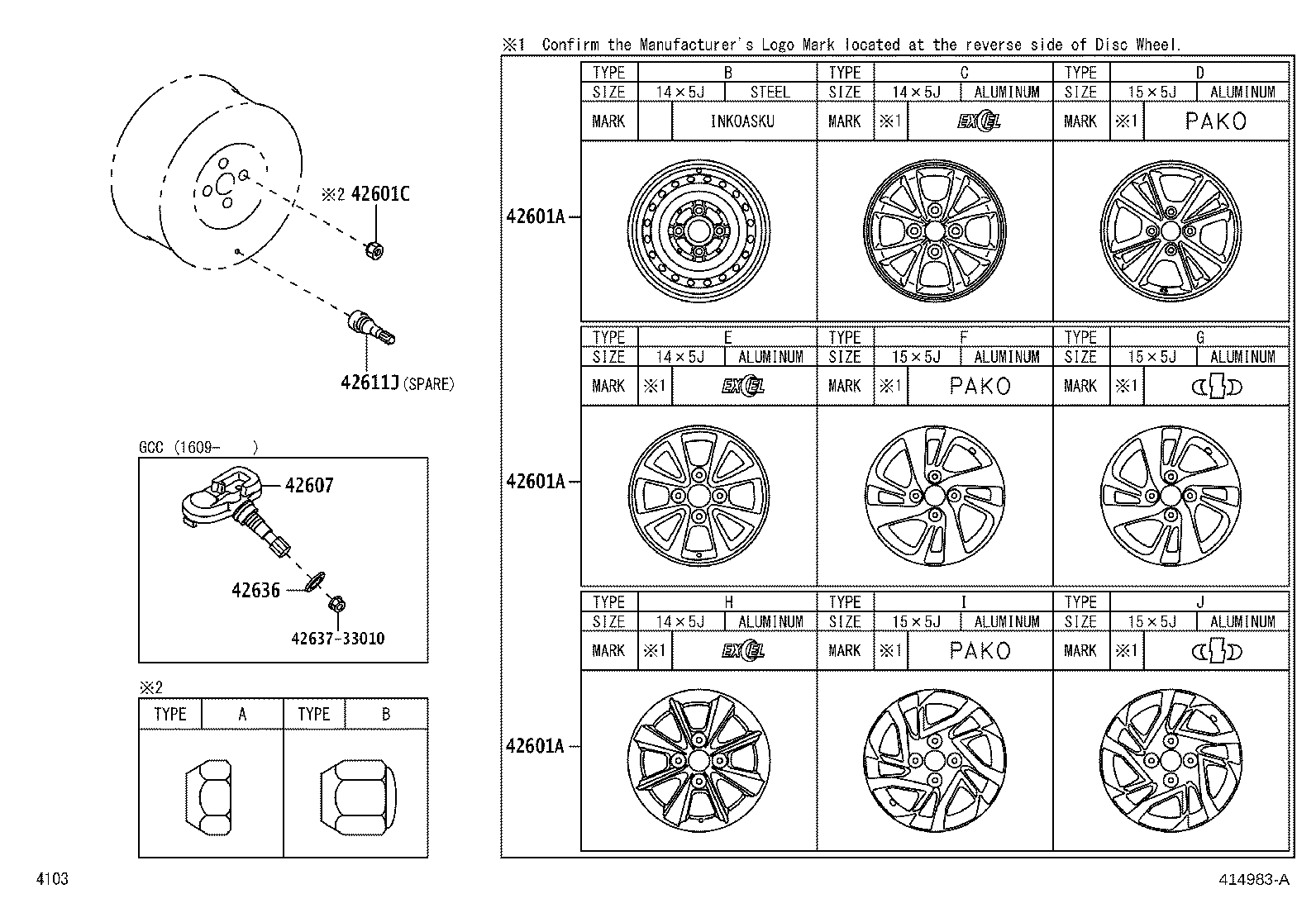

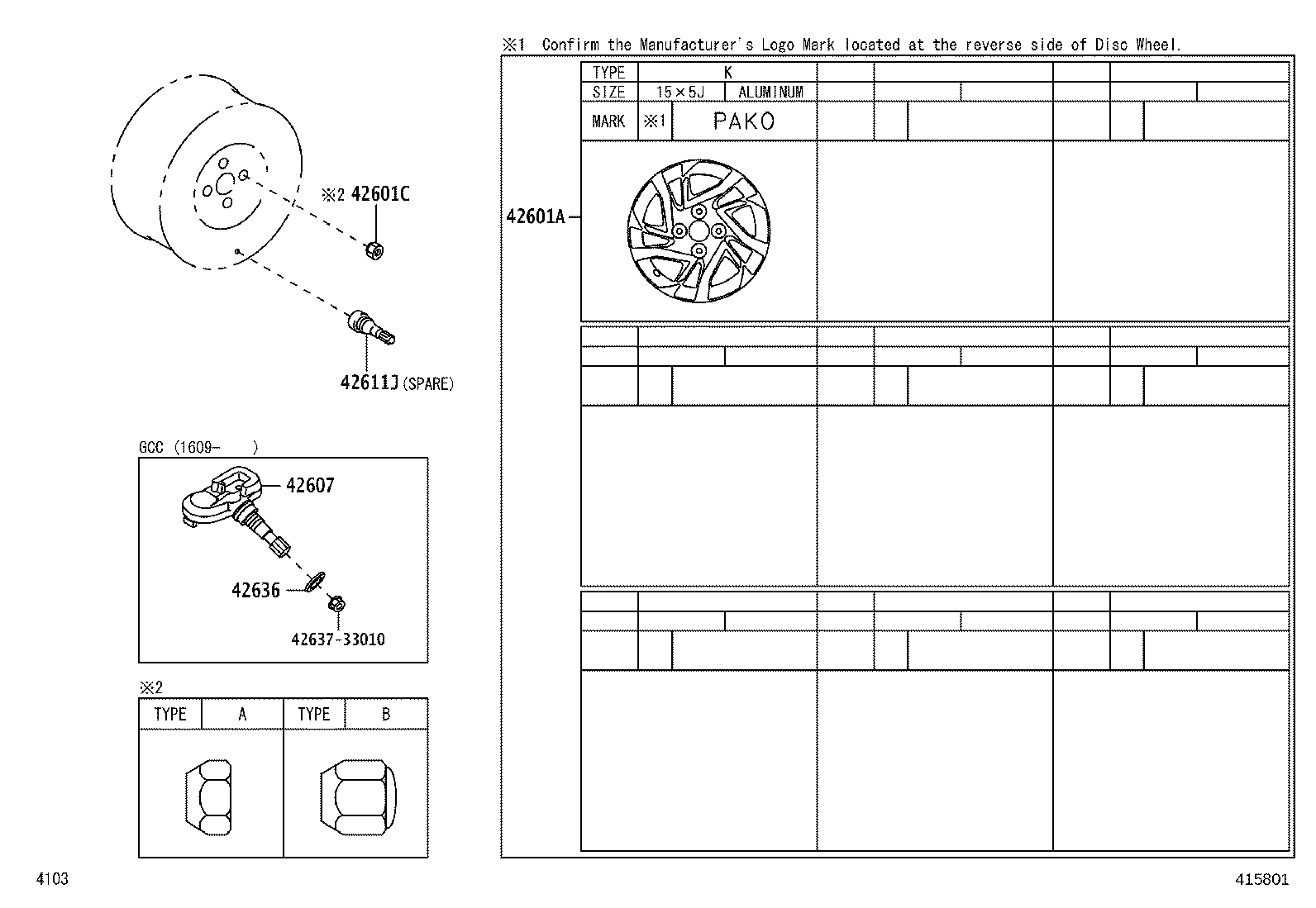

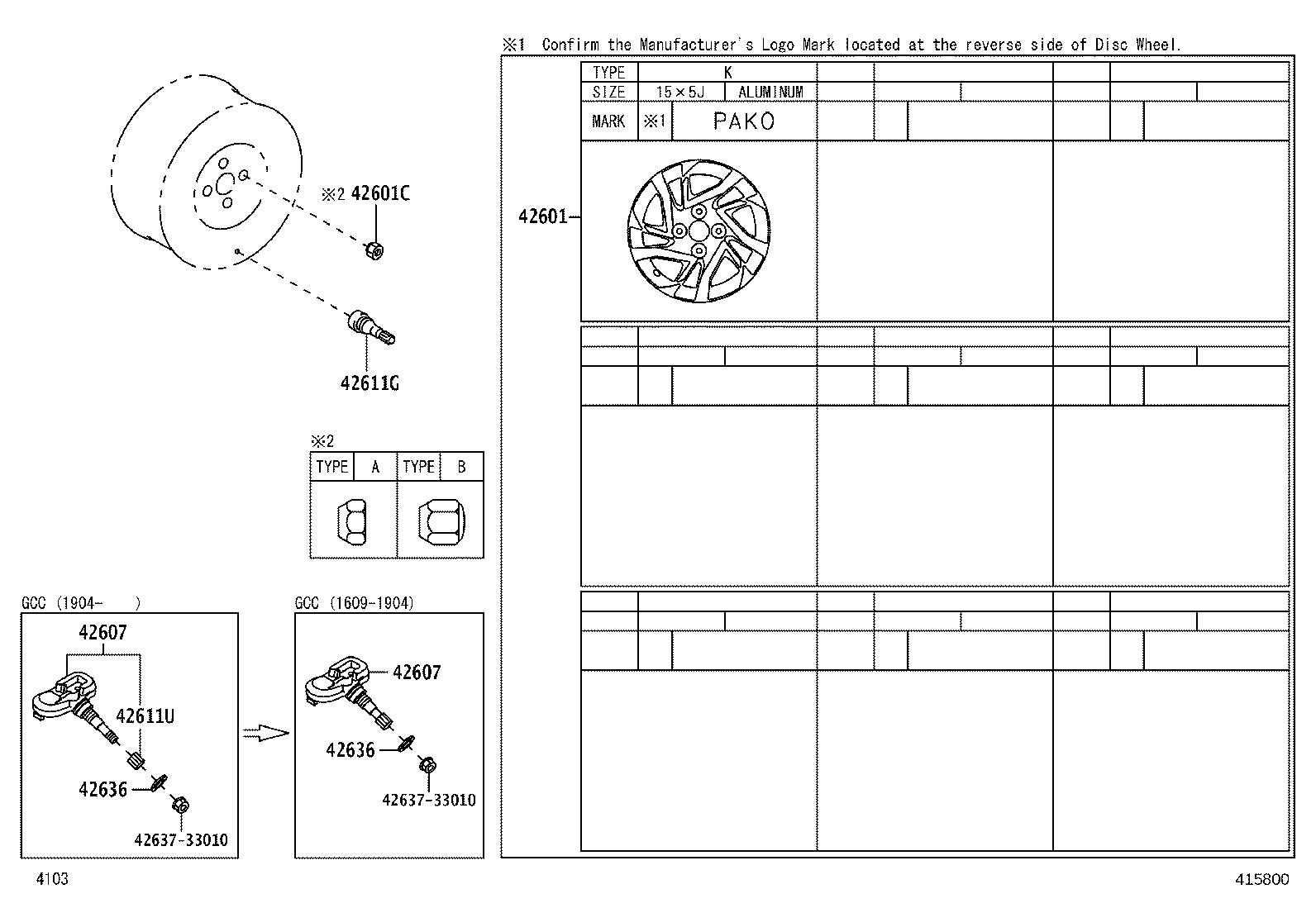

Disc Wheel & Wheel Cap
10 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42607 | Valve Sub-assy, Tire Pressure Monitor |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42611U | Cap, Tire Valve |
| 42621 | Cap, Wheel |
| 42636 | Washer, Tire Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
