Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

11 part groups · 2 illustrations

Illustrations

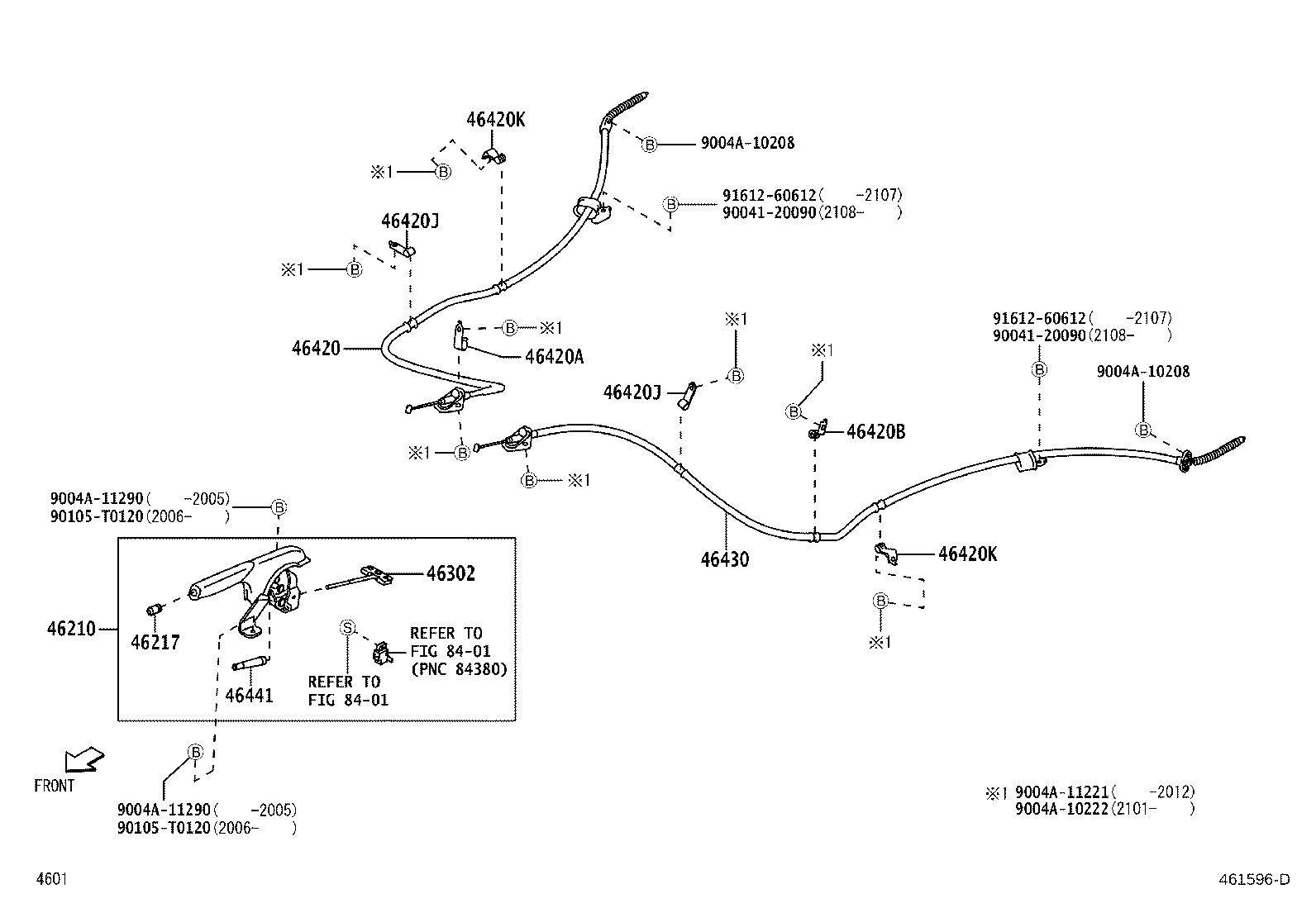

Figure 461510C 461510C 2011-11 → 2017-12 Figure 461596D 461596D 2017-12 → —

Part groups

PNCDescription
46210 Lever Assy, Parking Brake
46217 Knob, Parking Brake Release Rod
46302 Rod Sub-assy, Parking Brake Pull, NO.1
46334A Protector, Parking Brake Cable Joint
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46420K Clamp, NO.4(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
