Brake Pedal & Bracket

11 part groups · 6 illustrations

Illustrations

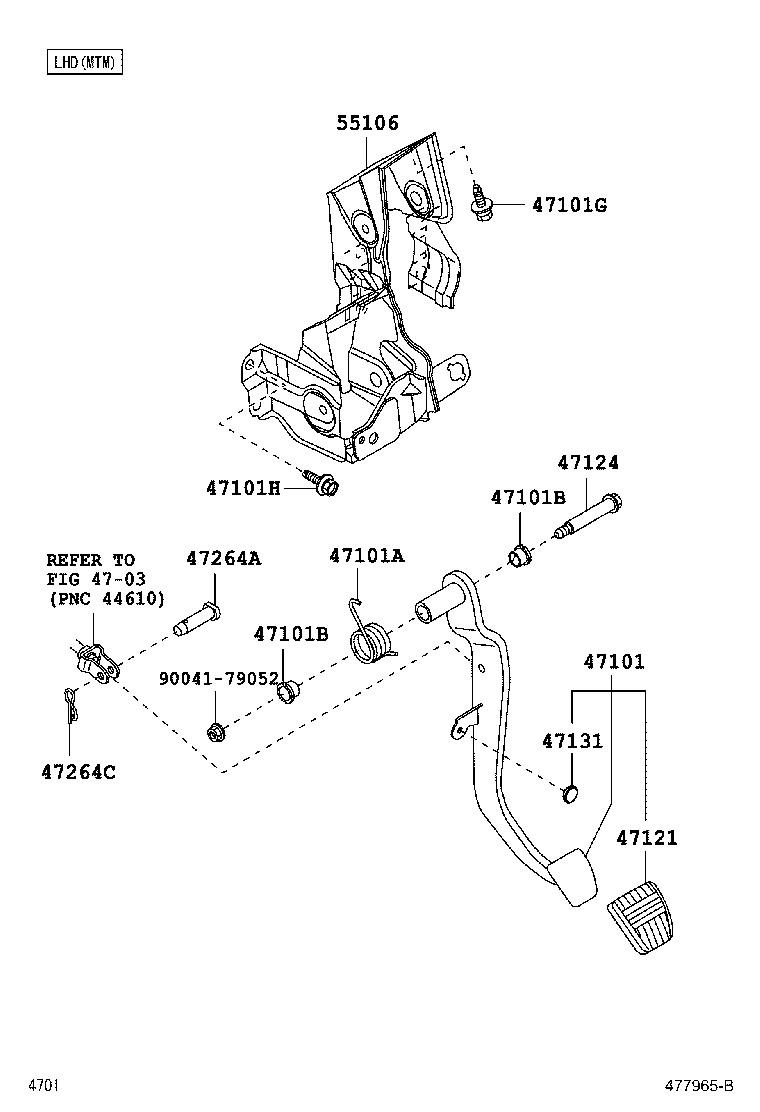

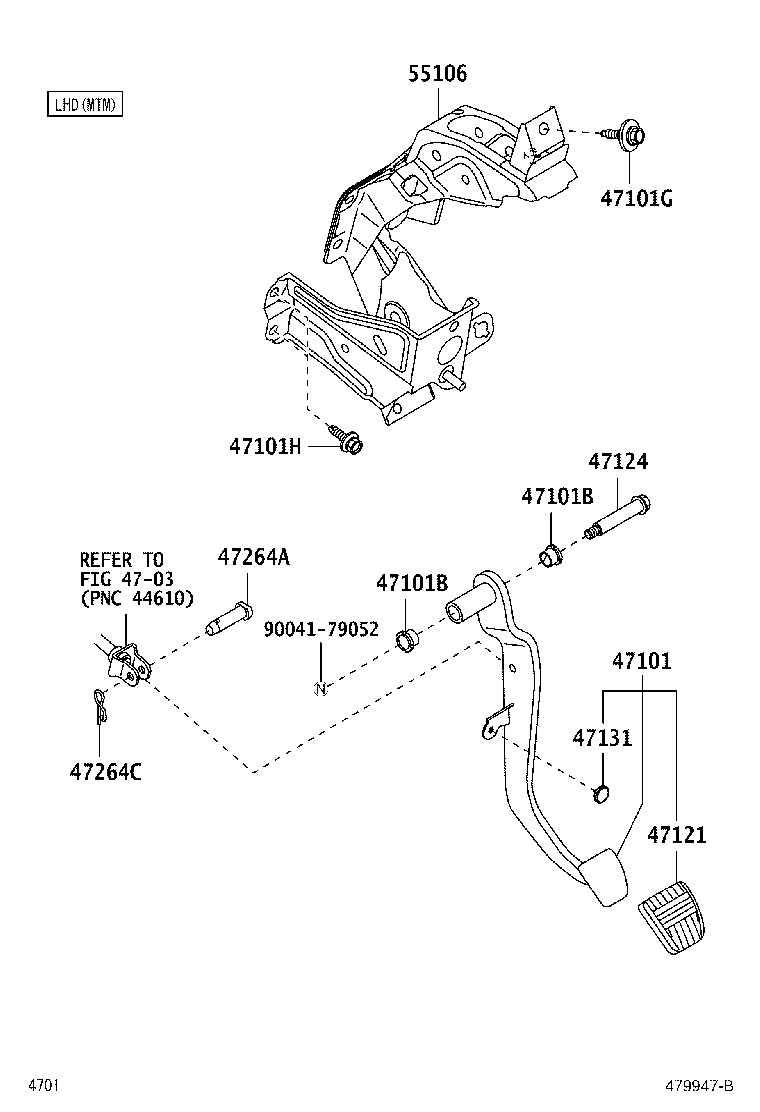

Figure 477964A 477964A 2011-11 → 2013-05 Figure 479017A 479017A 2013-05 → — Figure 477965B 477965B 2011-12 → 2015-08 Figure 479947B 479947B 2015-07 → — Figure 477966B 477966B 2011-12 → 2015-08 Figure 479948B 479948B 2015-07 → —

Part groups

PNCDescription
47101 Pedal Sub-assy, Brake
47101A Spring(FOR BRAKE PEDAL RETURN)
47101B Bush(FOR BRAKE PEDAL)
47101G Bolt, Brake Pedal Stop, NO.1
47101H Bolt, Brake Pedal Stop, NO.2
47121 Pad, Brake Pedal
47124 Shaft, Brake Pedal
47131 Cushion(FOR STOP LAMP SWITCH)
47264A Pin(FOR PUSH ROD)
47264C Clip(FOR PUSH ROD CLEVIS PIN)
55106 Support Sub-assy, Brake Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
