Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

13 part groups · 6 illustrations

Illustrations

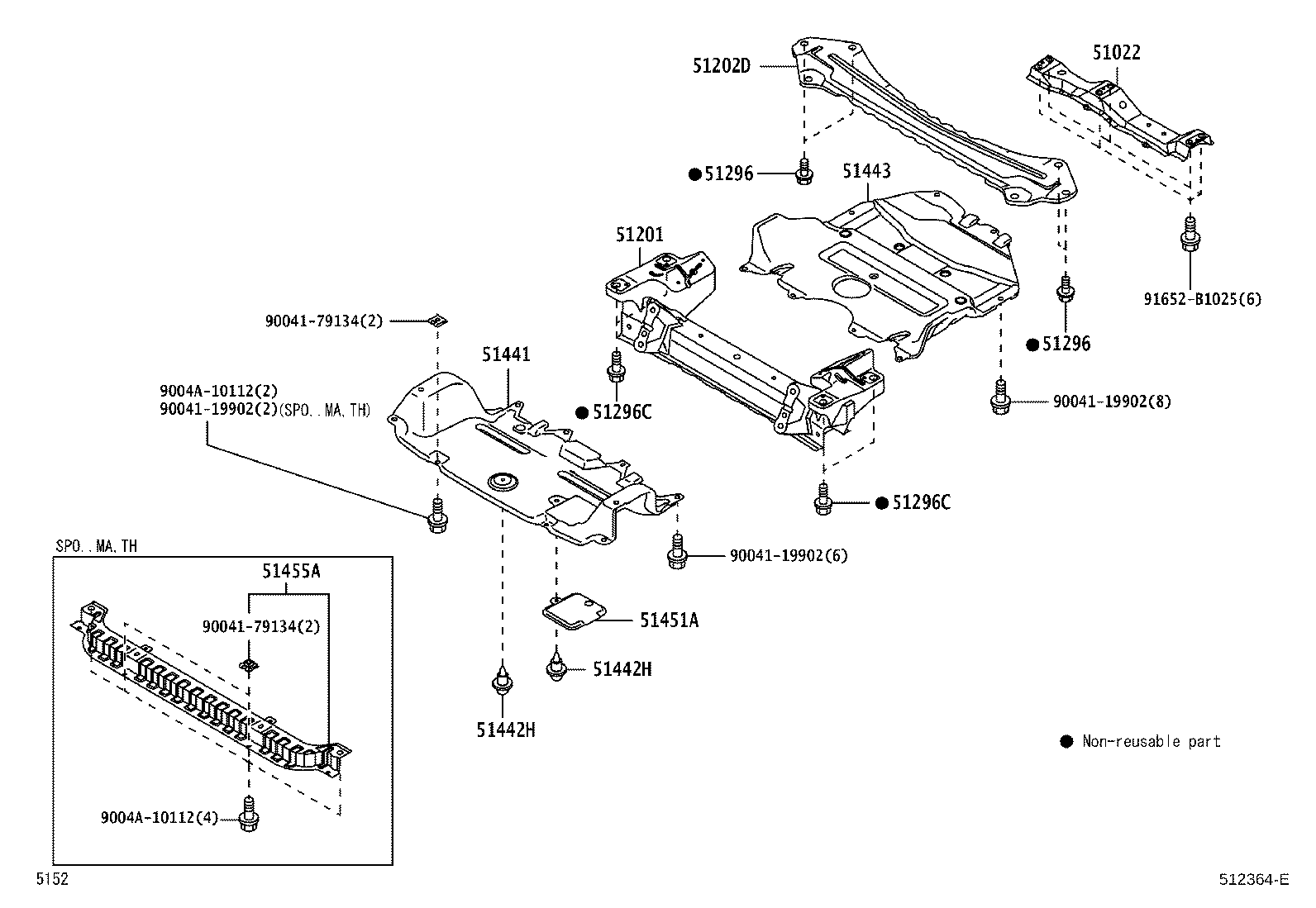

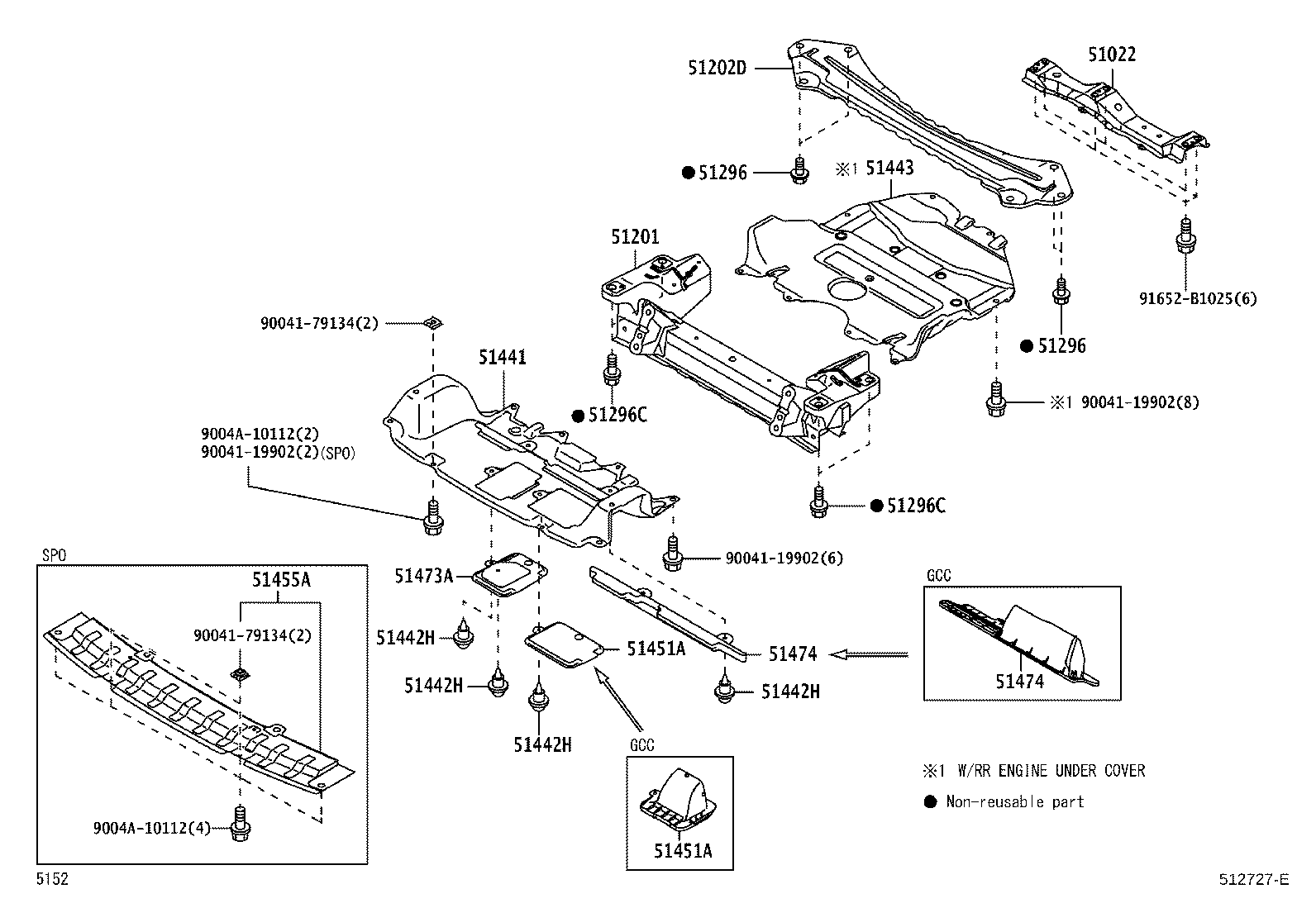

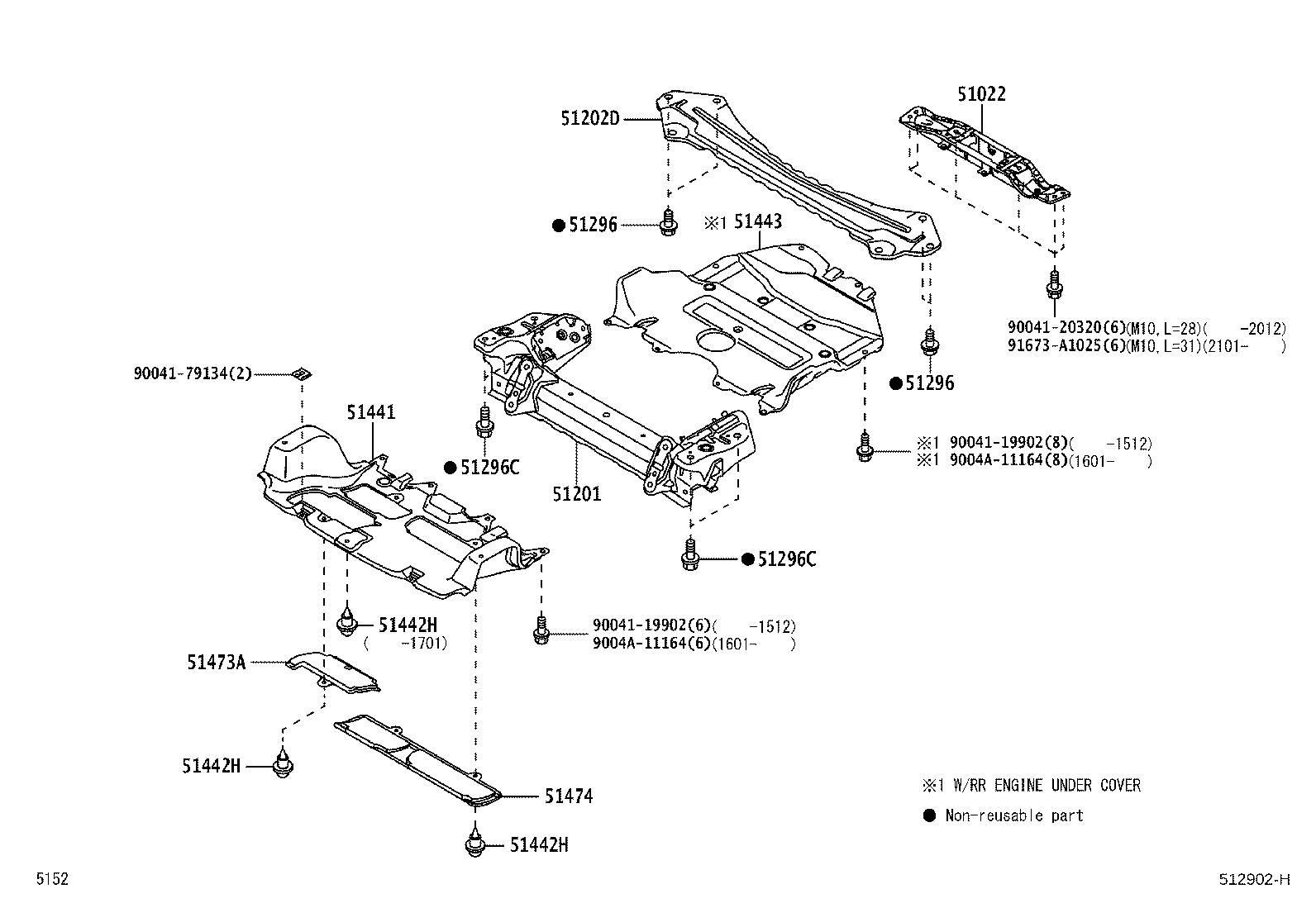

Figure 51454P 51454P 2011-11 → 2014-01 Figure 512364E 512364E 2011-11 → 2014-01 Figure 512727E 512727E 2014-01 → 2015-07 Figure 512727E 512727E 2014-01 → 2015-08 Figure 512902H 512902H 2015-07 → — Figure 512902H 512902H 2015-08 → —

Part groups

PNCDescription
51022 Member Sub-assy, Engine Rear Support
51201 Crossmember Sub-assy, Front Suspension
51202D Crossmenber Sub-assy, Front Suspension, Lower
51296 Bolt, Front Suspension Member Mounting
51296C Bolt, Front Suspension Member Mounting
51441 Cover, Engine Under, NO.1
51441D Cover, Engine Under
51442H Clip, Engine Under Cover, NO.2
51443 Cover, Engine Under, Rear RH
51451A Cover, Engine Under, Center
51455A Seal, Engine Under Cover, NO.1
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
