Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 15 illustrations

Illustrations

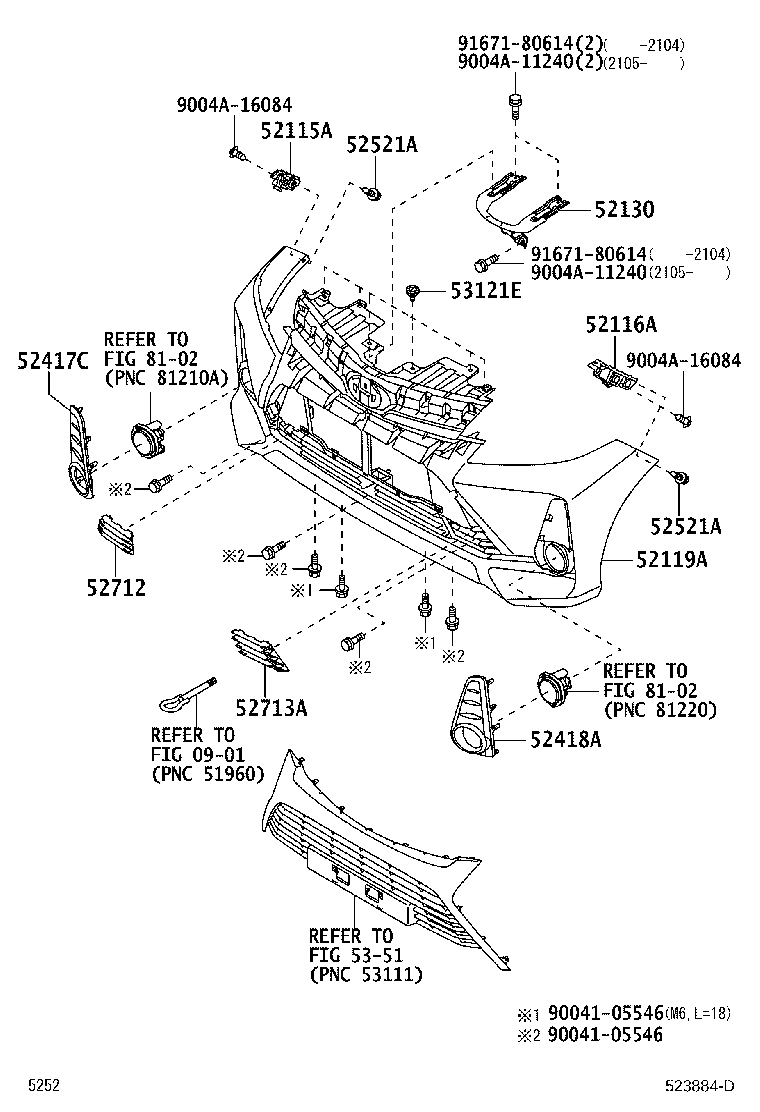

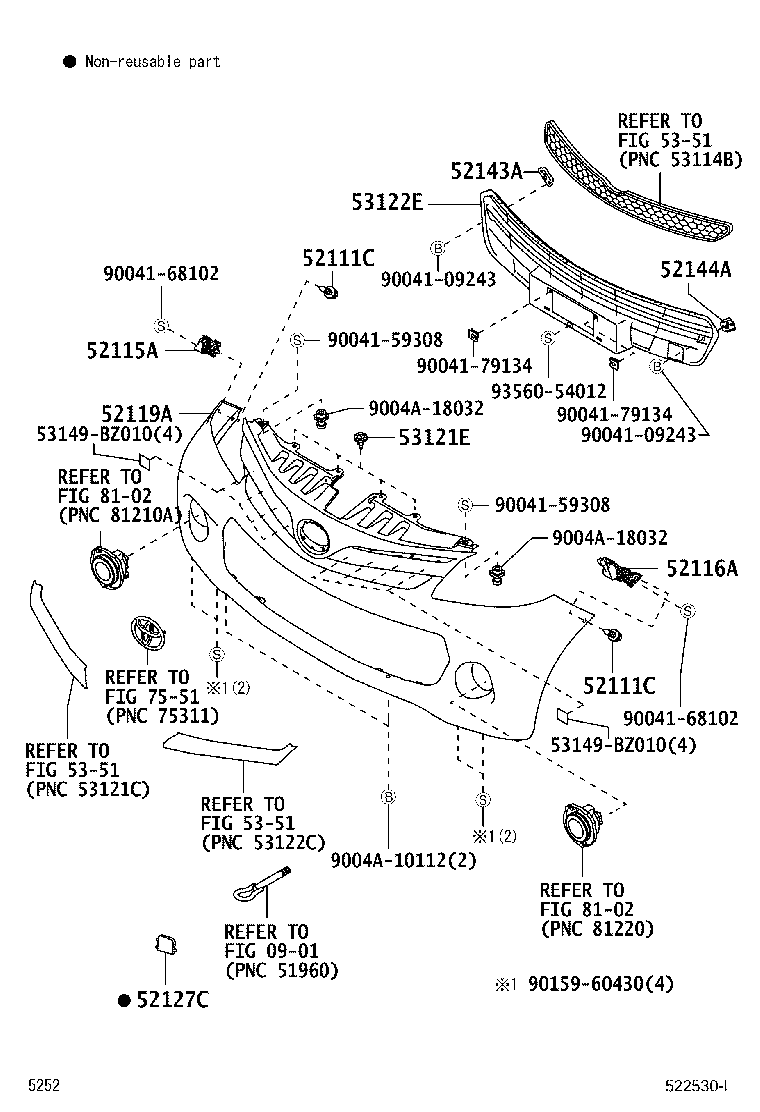

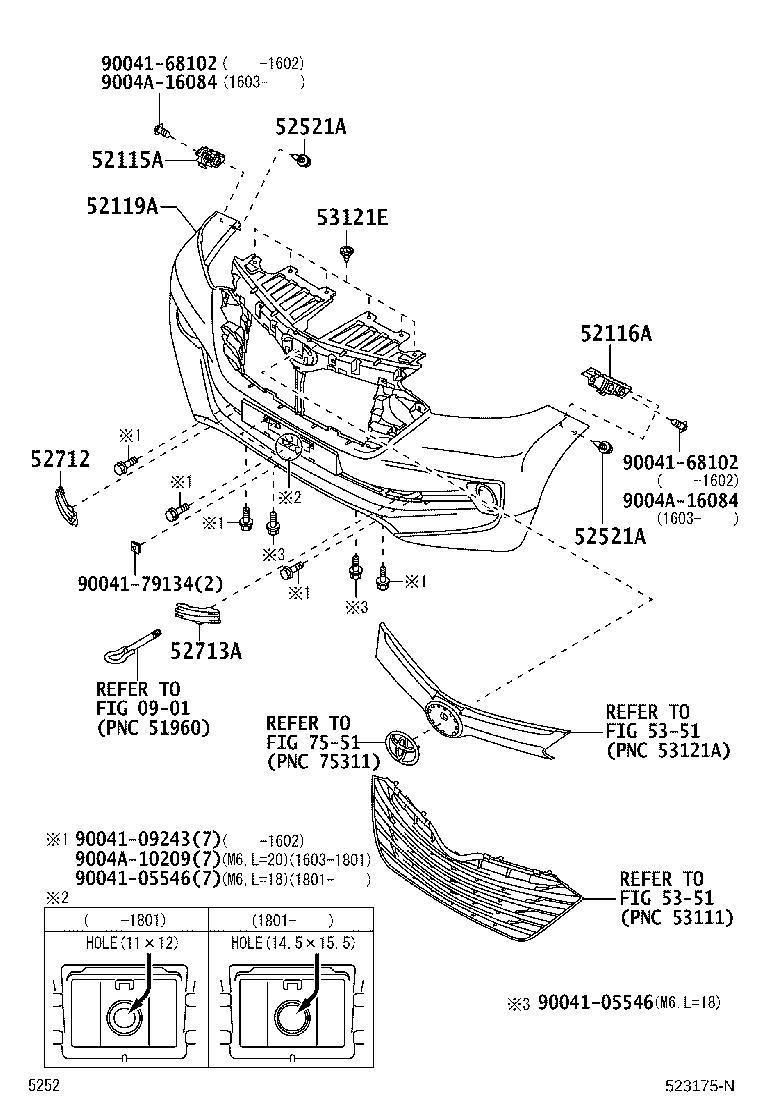

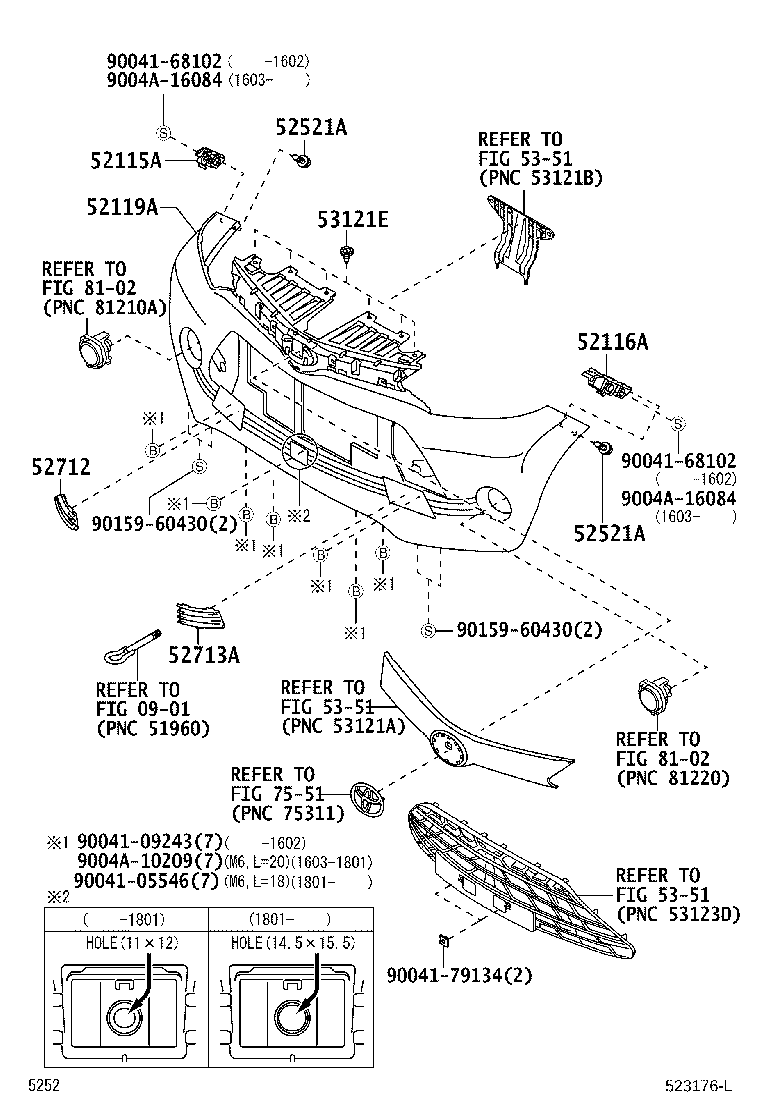

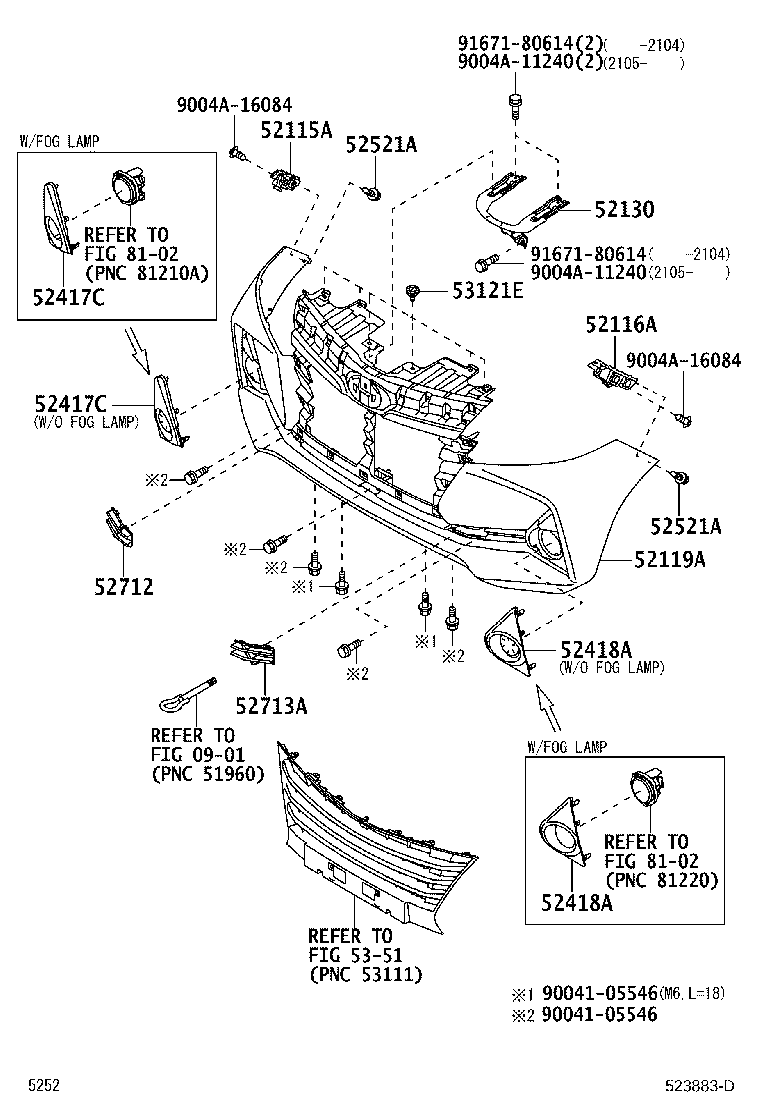

Figure 522528G 522528G 2011-11 → 2015-08 Figure 522530I 522530I 2011-11 → 2015-08 Figure 523175N 523175N 2015-07 → 2019-01 Figure 523175N 523175N 2015-07 → 2019-04 Figure 523175N 523175N 2015-07 → — Figure 523175N 523175N 2019-01 → — Figure 523175N 523175N 2019-04 → — Figure 523175N 523175N 2019-04 → — Figure 523175N 523175N 2021-11 → — Figure 523176L 523176L 2015-07 → 2019-01 Figure 523176L 523176L 2015-07 → 2019-04 Figure 523883D 523883D 2019-01 → — Figure 523883D 523883D 2019-04 → — Figure 523884D 523884D 2019-01 → — Figure 523884D 523884D 2019-04 → —

Part groups

PNCDescription
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52112C Extension, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52130 Bracket Assy, Front Bumper Side Mounting, RH
52143A Arm, Front Bumper, Inner RH
52144A Arm, Front Bumper, Inner LH
52417C Insert, Front Bumper Guard, Lower RH
52418A Insert, Front Bumper Guard, Lower LH
52521A Clip(FOR FRONT BUMPER RETAINER)
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53121E Clip(FOR FRONT BUMPER), NO.1
53122E Moulding, Radiator Grille, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
