Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

18 part groups · 11 illustrations

Illustrations

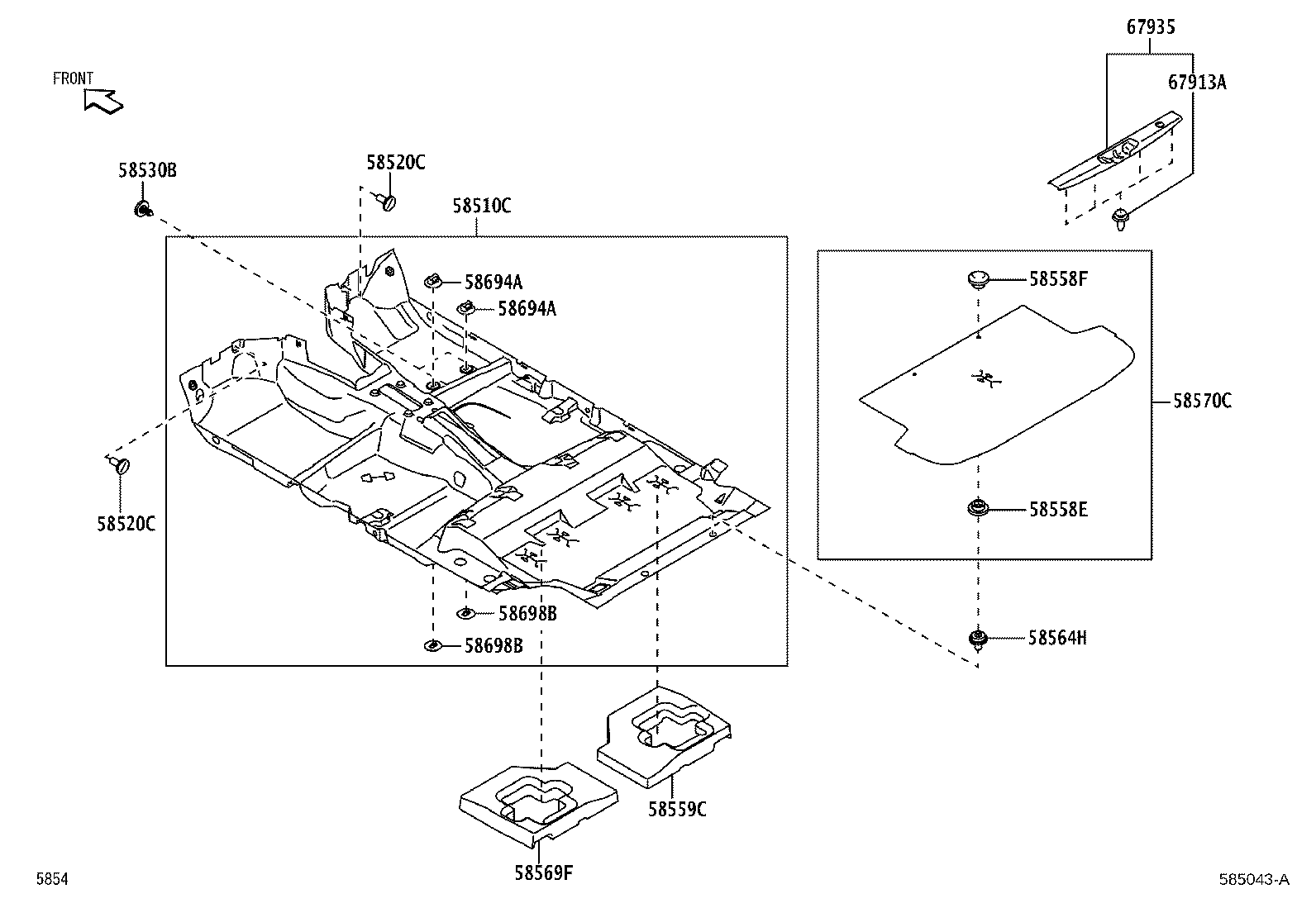

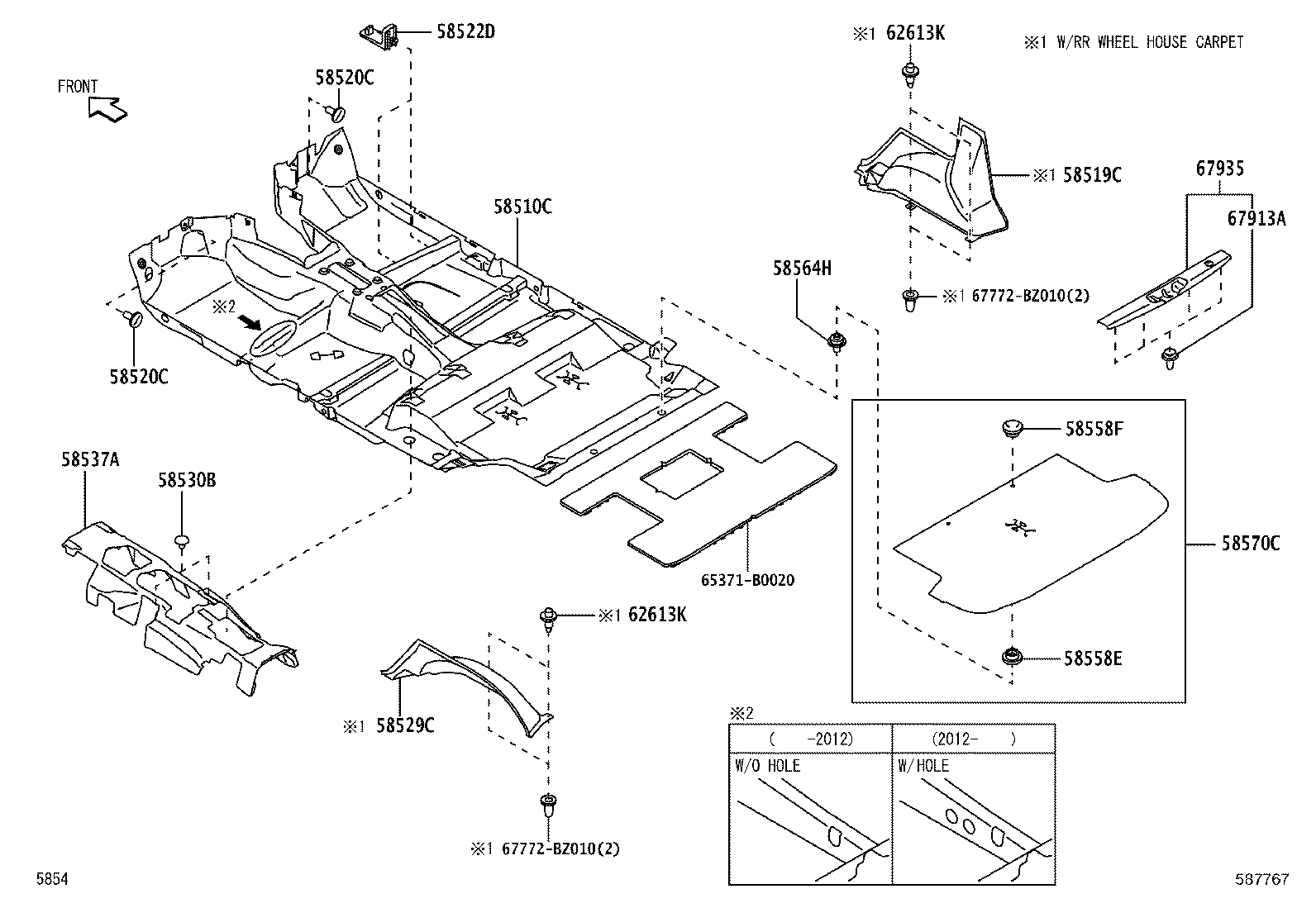

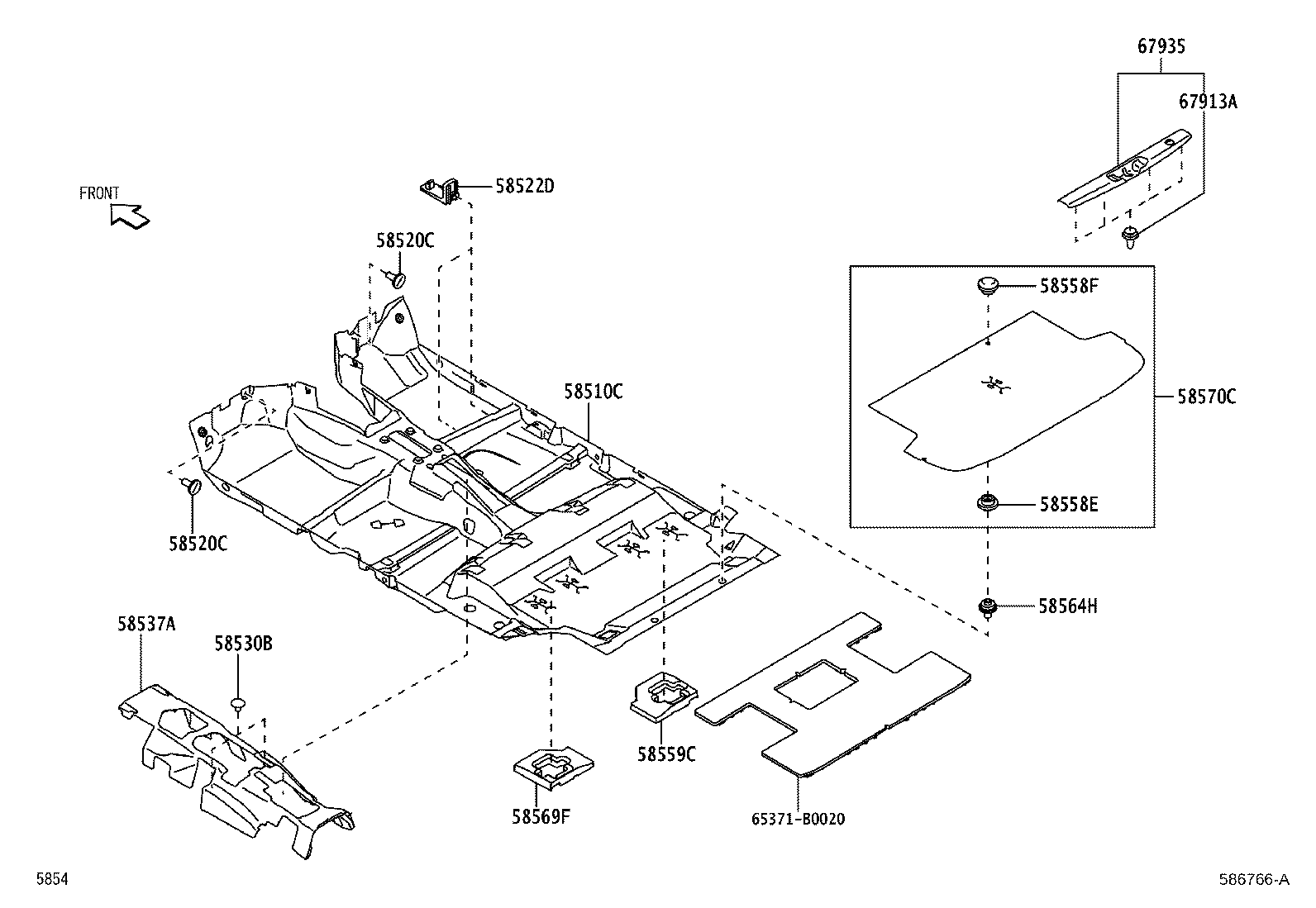

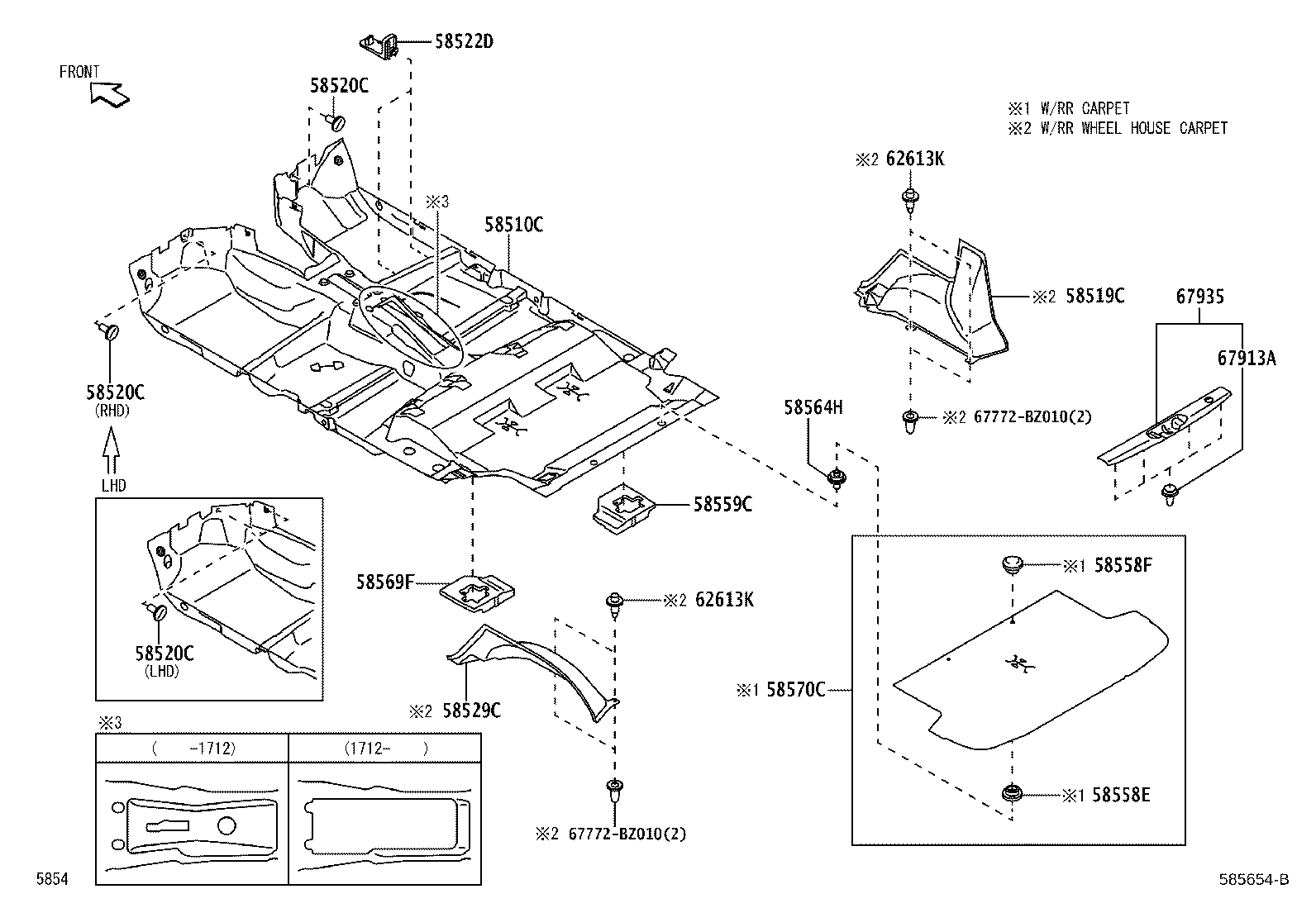

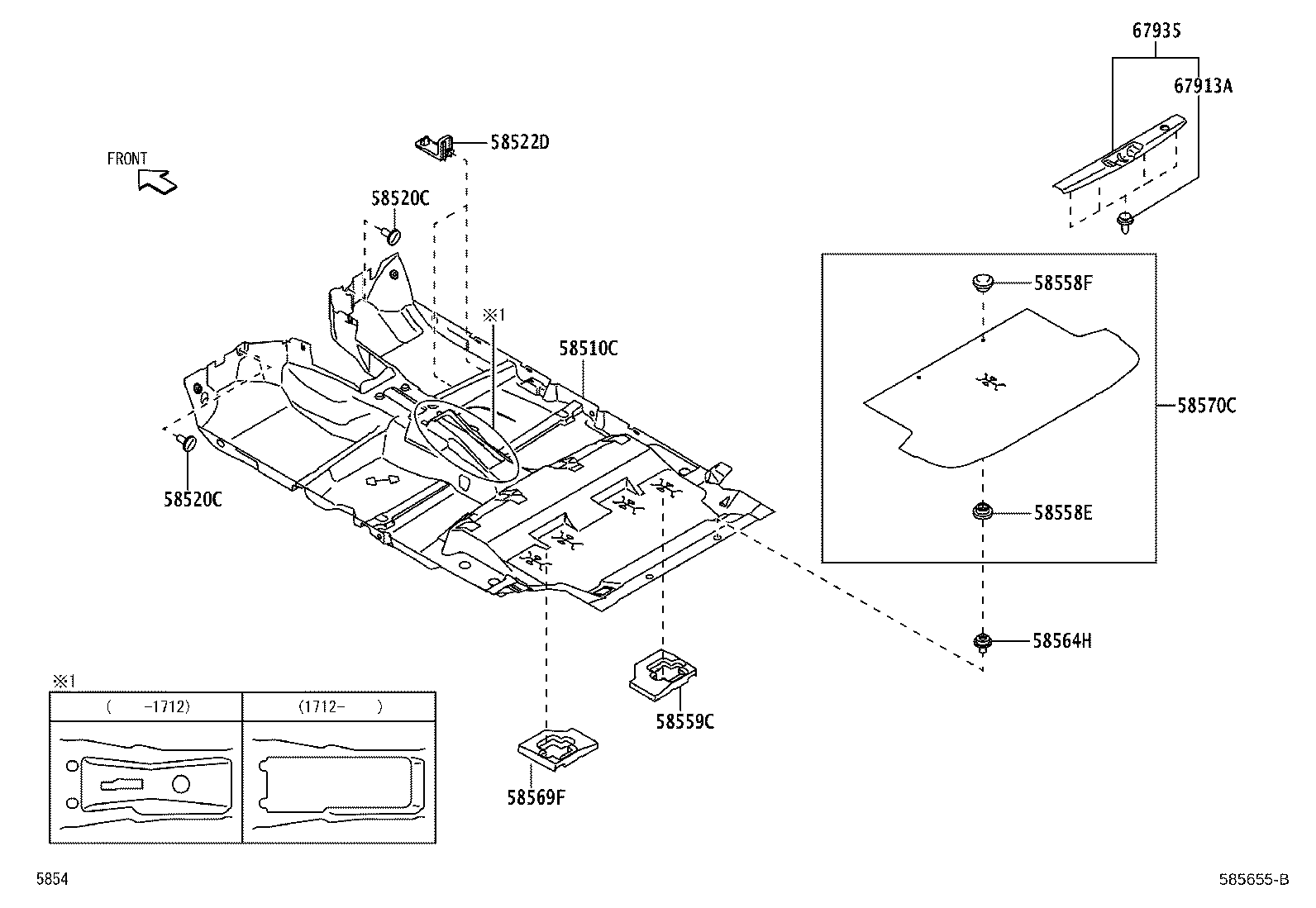

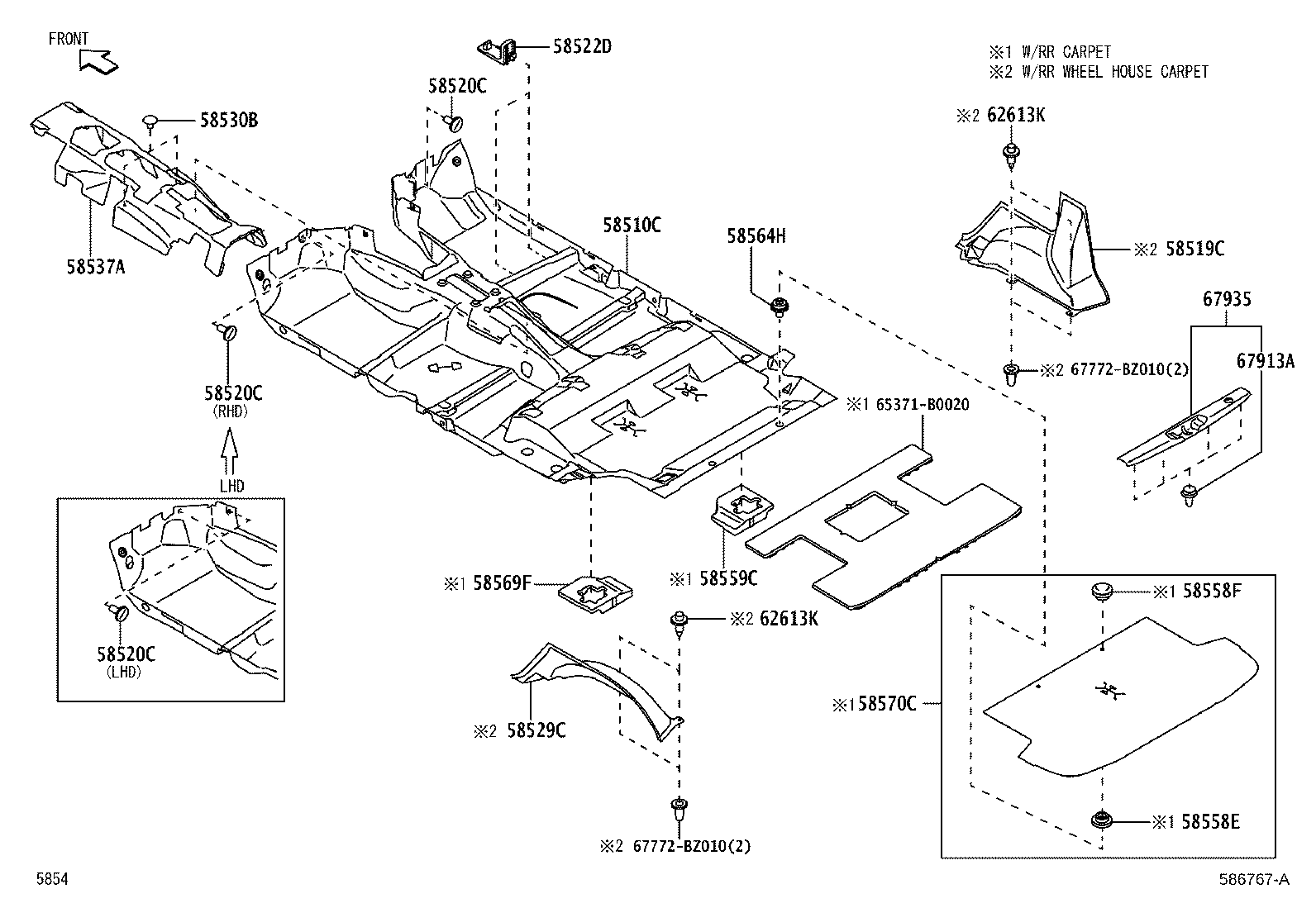

Figure 584274C 584274C 2011-11 → 2013-12 Figure 584274C 584274C 2011-11 → 2015-07 Figure 584274C 584274C 2011-11 → 2015-08 Figure 585654B 585654B 2015-07 → 2019-01 Figure 585654B 585654B 2015-07 → 2019-04 Figure 587767 587767 2019-01 → — Figure 586767A 586767A 2019-04 → — Figure 585043A 585043A 2013-12 → 2015-08 Figure 585655B 585655B 2015-08 → 2019-01 Figure 585655B 585655B 2015-08 → 2019-04 Figure 586766A 586766A 2019-04 → —

Part groups

PNCDescription
58510C Carpet Assy, Front Floor, Front
58519C Carpet, Rear Wheel House, RH
58520C Clip(FOR FRONT FLOOR CARPET)
58522D Hook, Floor Carpet, NO.2
58529C Carpet, Rear Wheel House, LH
58530B Clip(FOR FRONT FLOOR CARPET)
58537A Silencer, Front Floor, NO.1
58558E Fastener, Pile
58558F Fastener, Pile, Upr
58559C Pad, Front Floor Side, RH
58564H Clip(FOR REAR FLOOR CARPET)
58569F Pad, Front Floor Side, LH
58570C Carpet Assy, Rear Floor
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
62613K Clip (FOR QUARTER WHEEL HOUSE COVER)
67913A Clip(FOR SCUFF PLATE)
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
