Seat & Seat Track

154 part groups · 35 illustrations

Illustrations

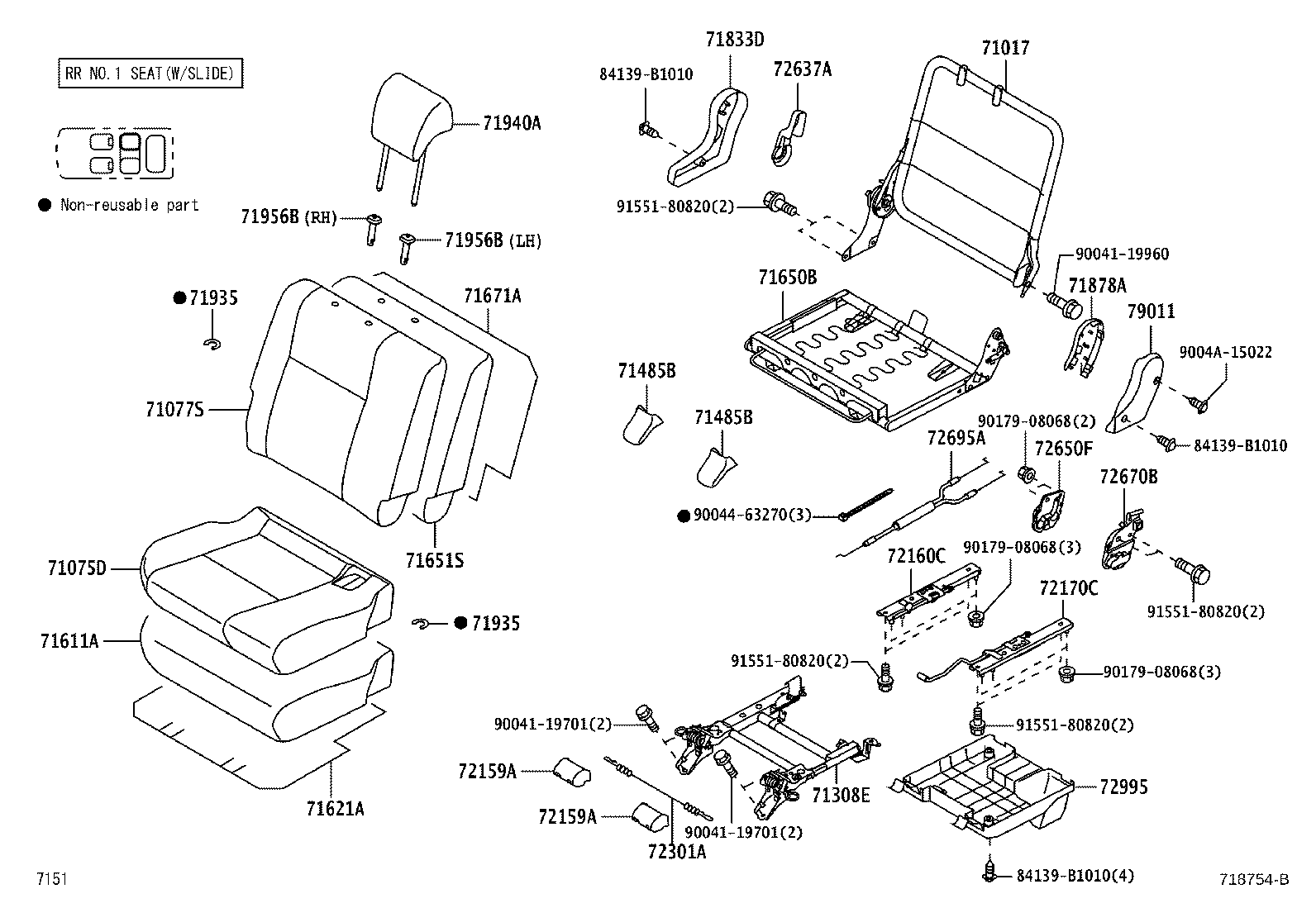

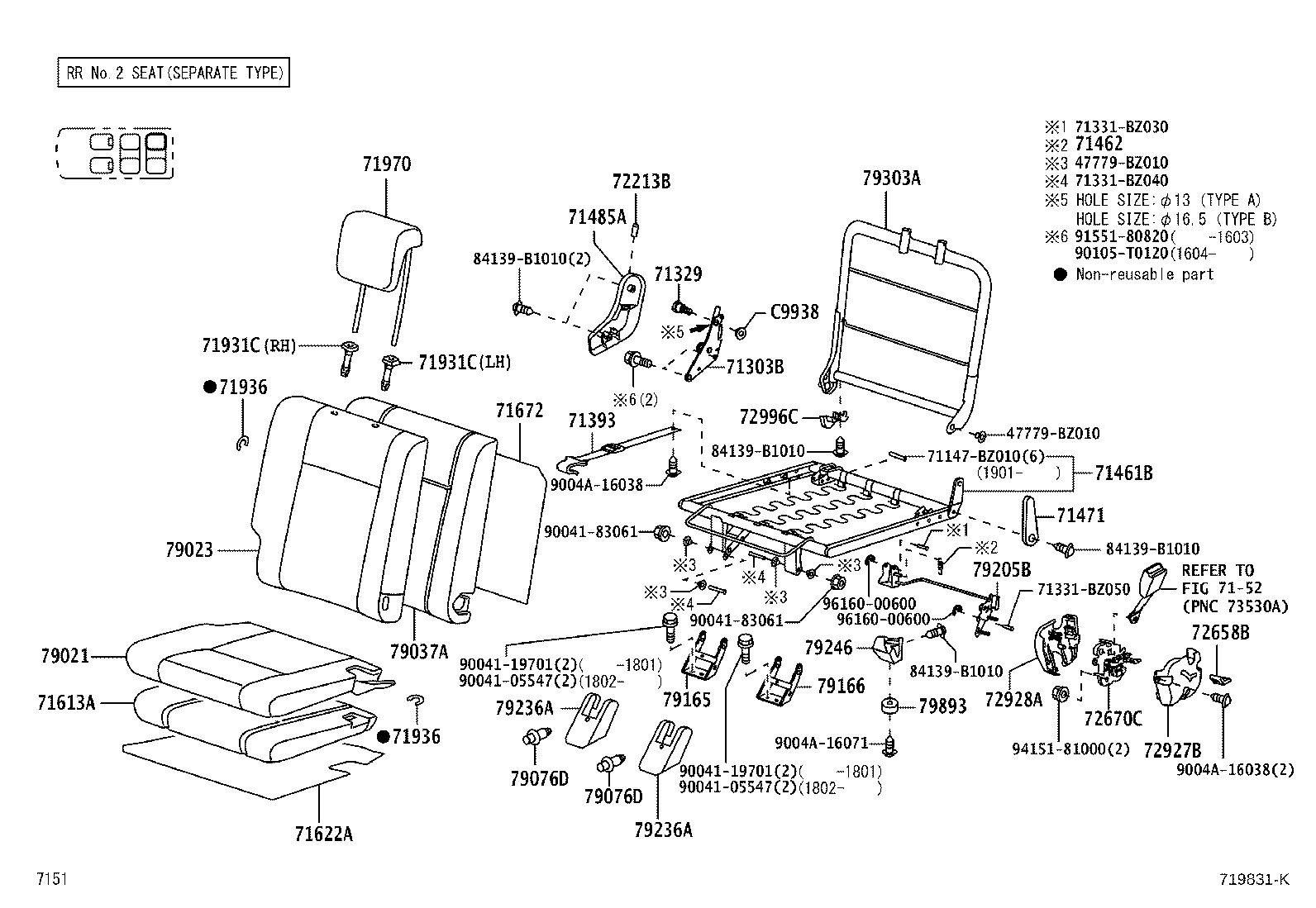

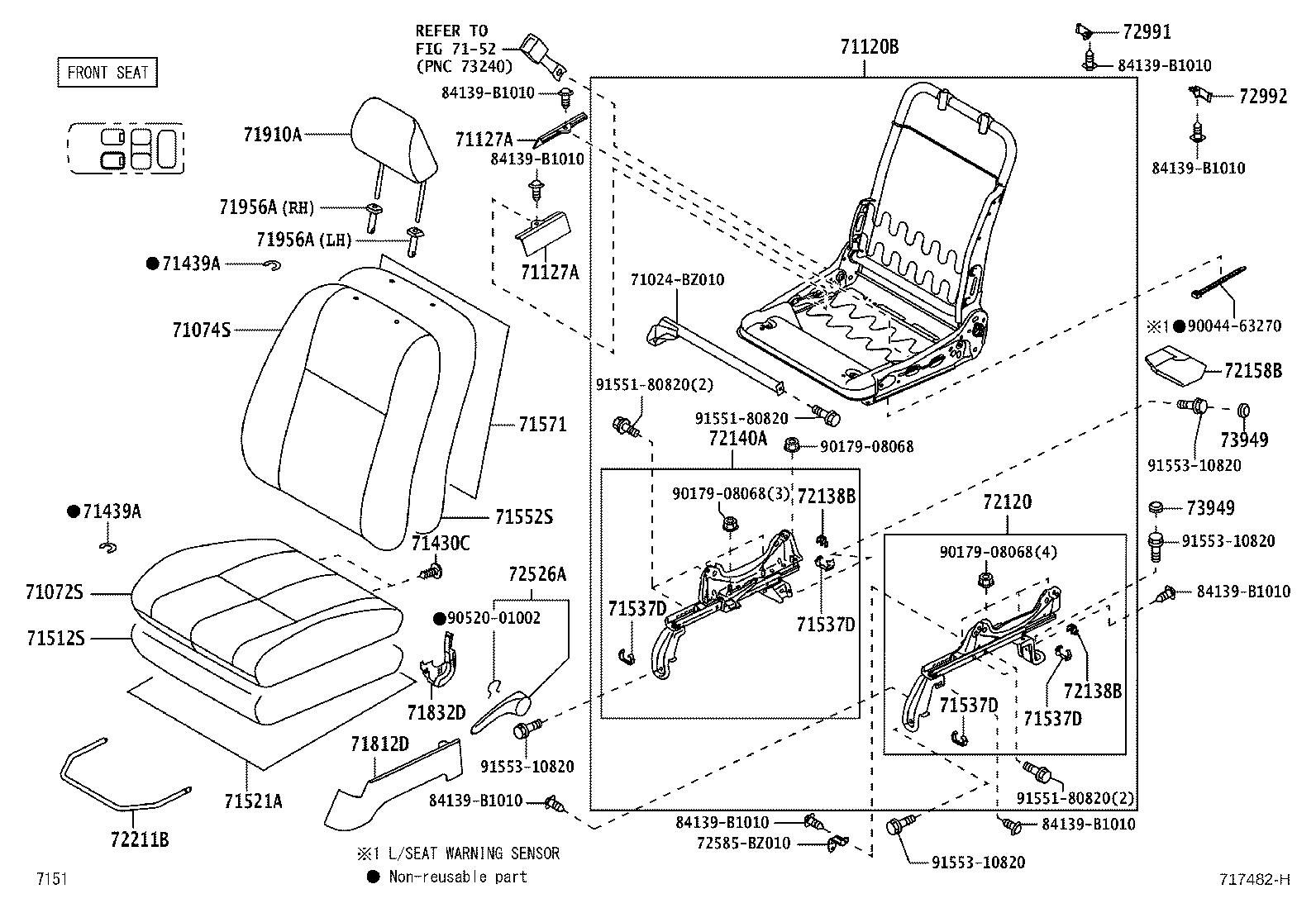

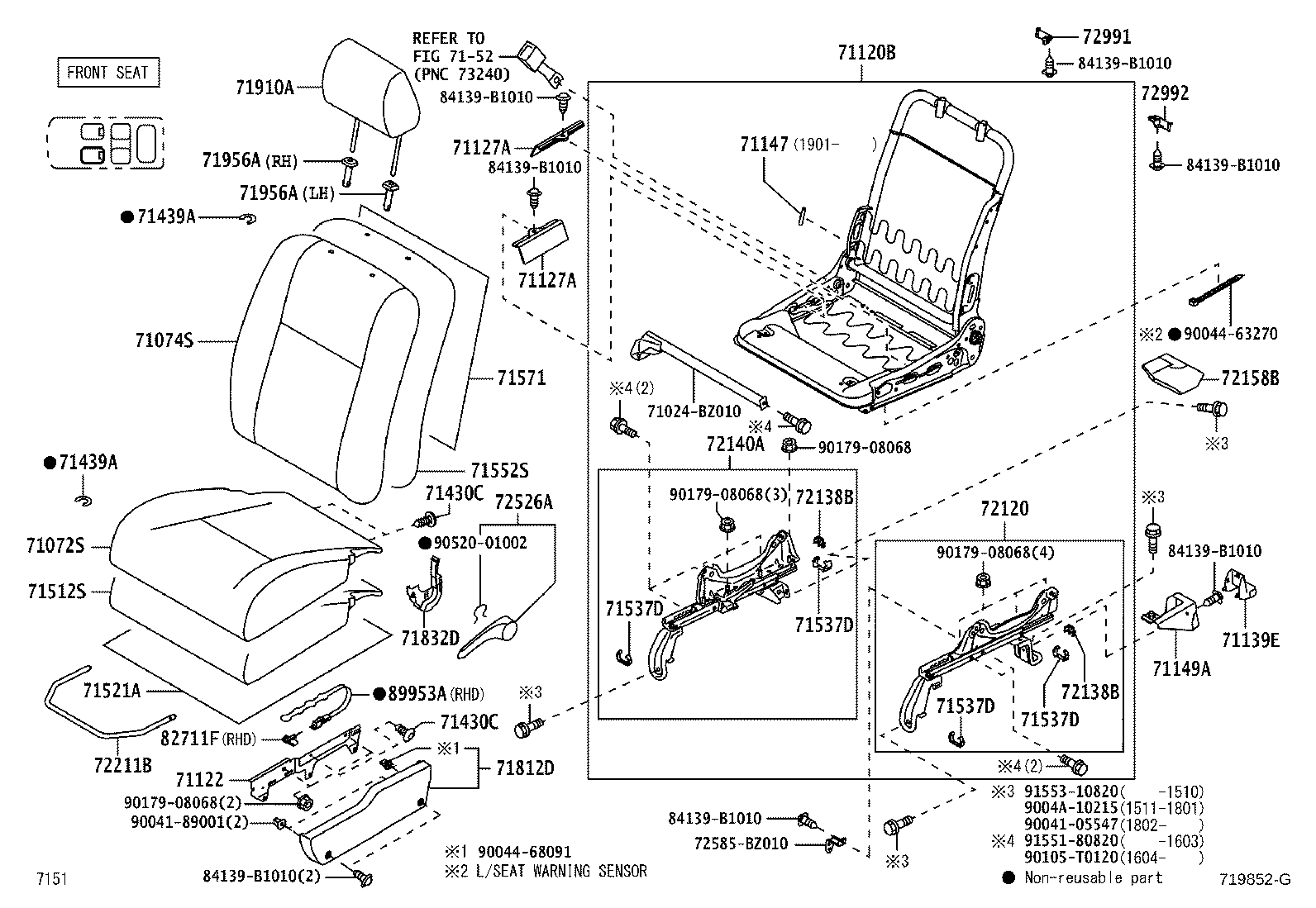

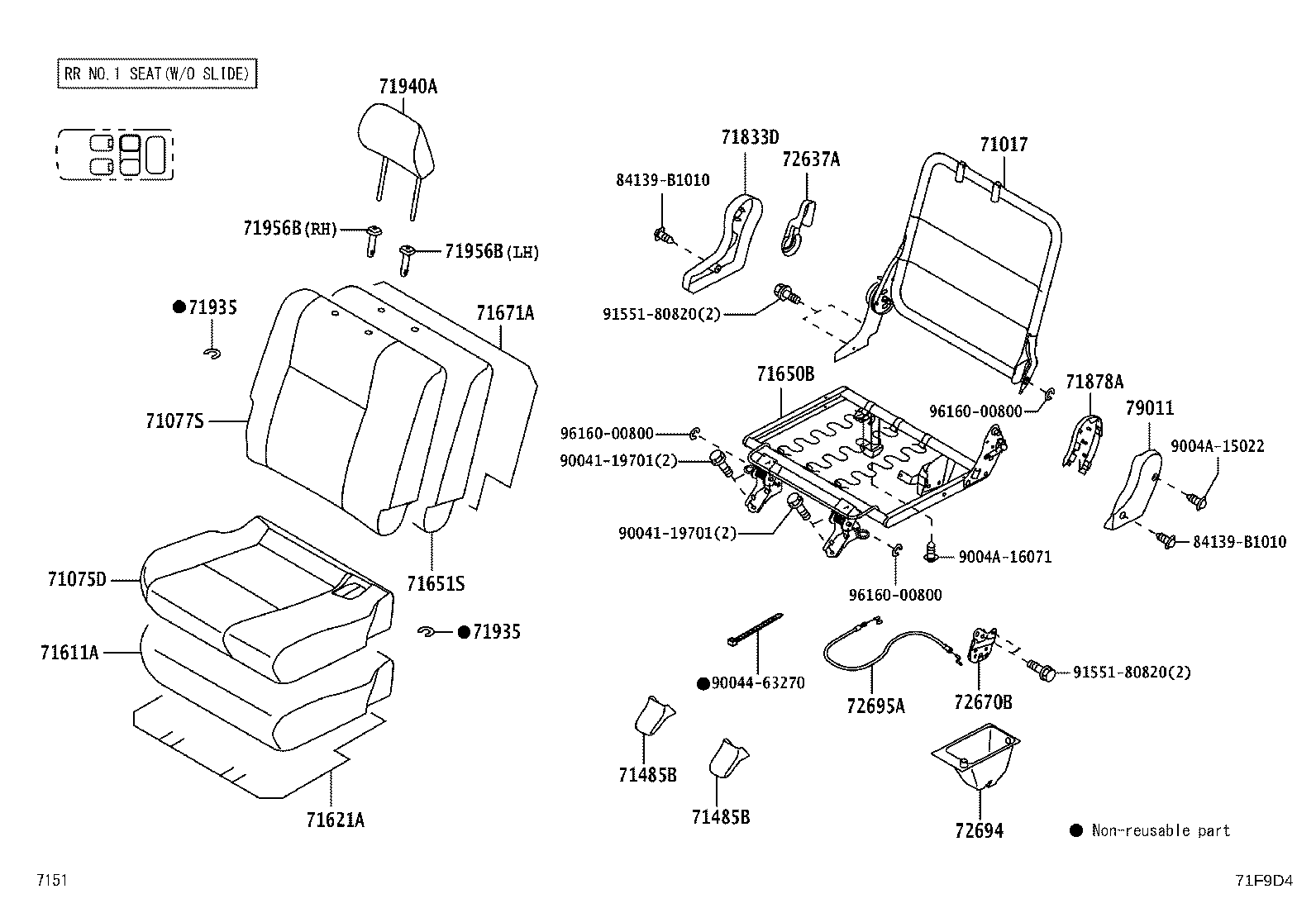

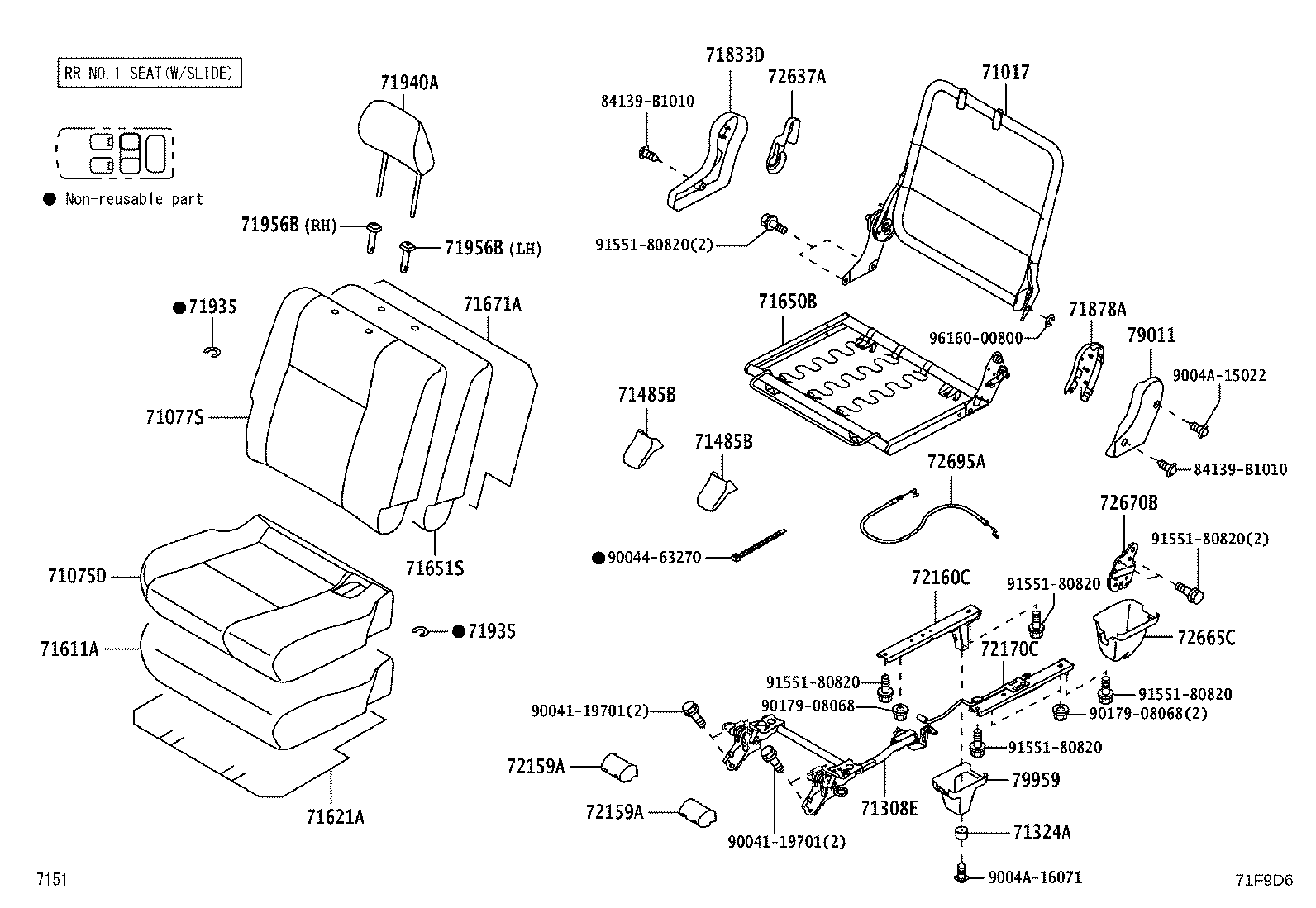

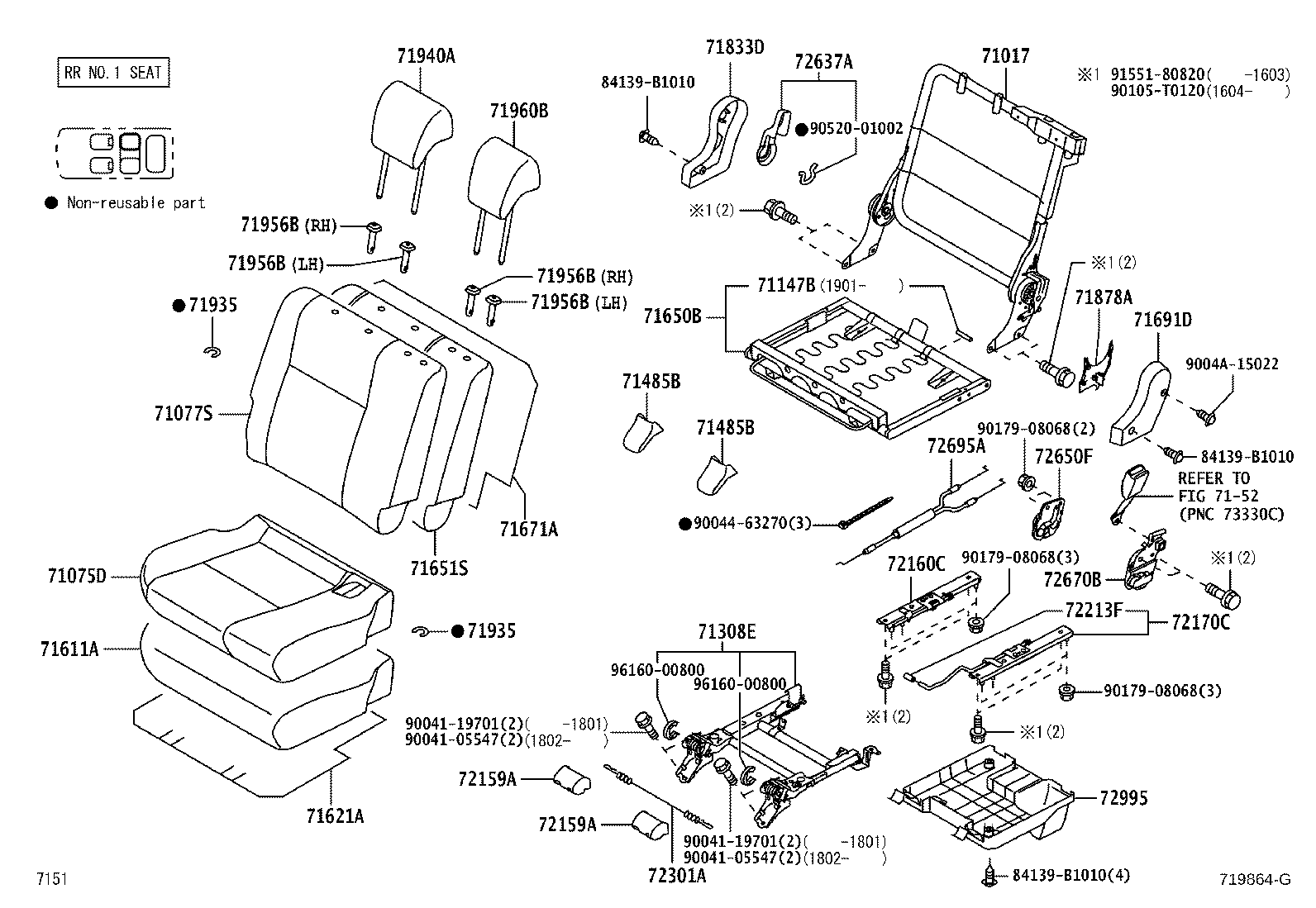

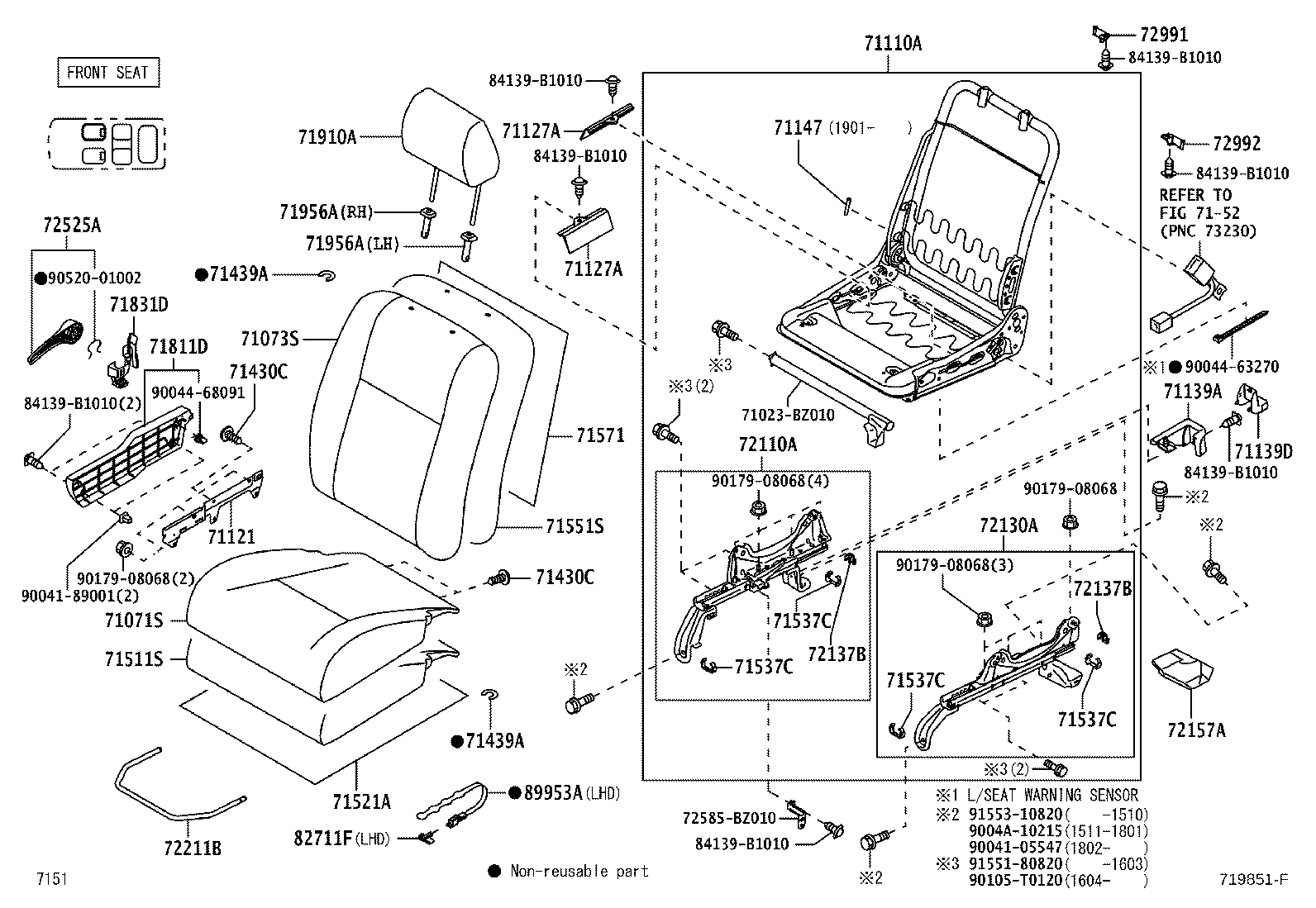

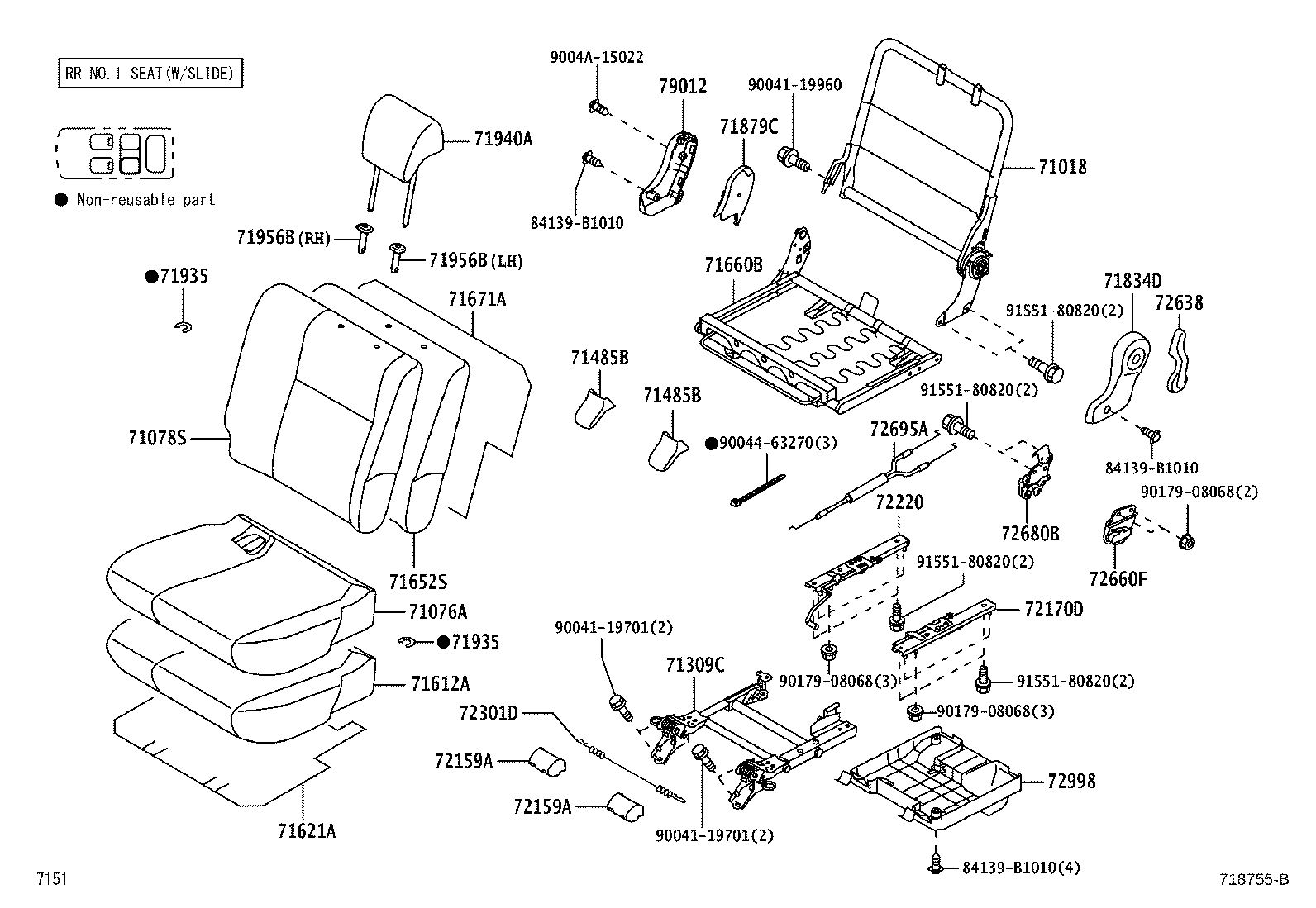

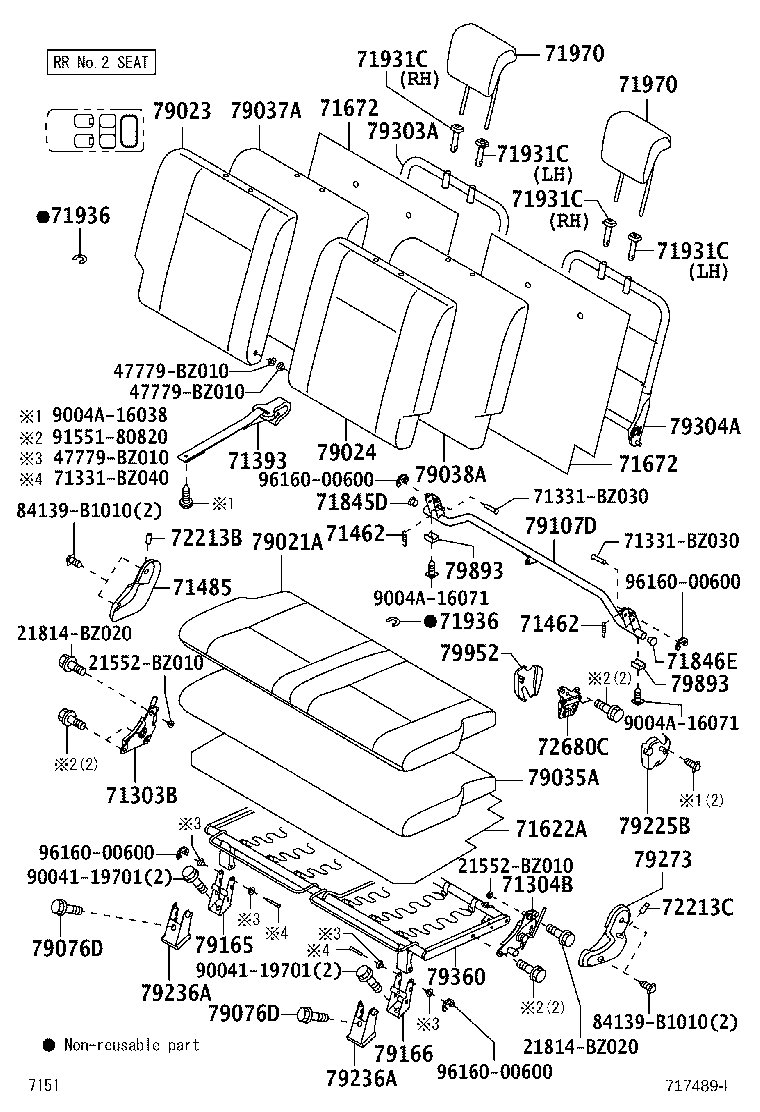

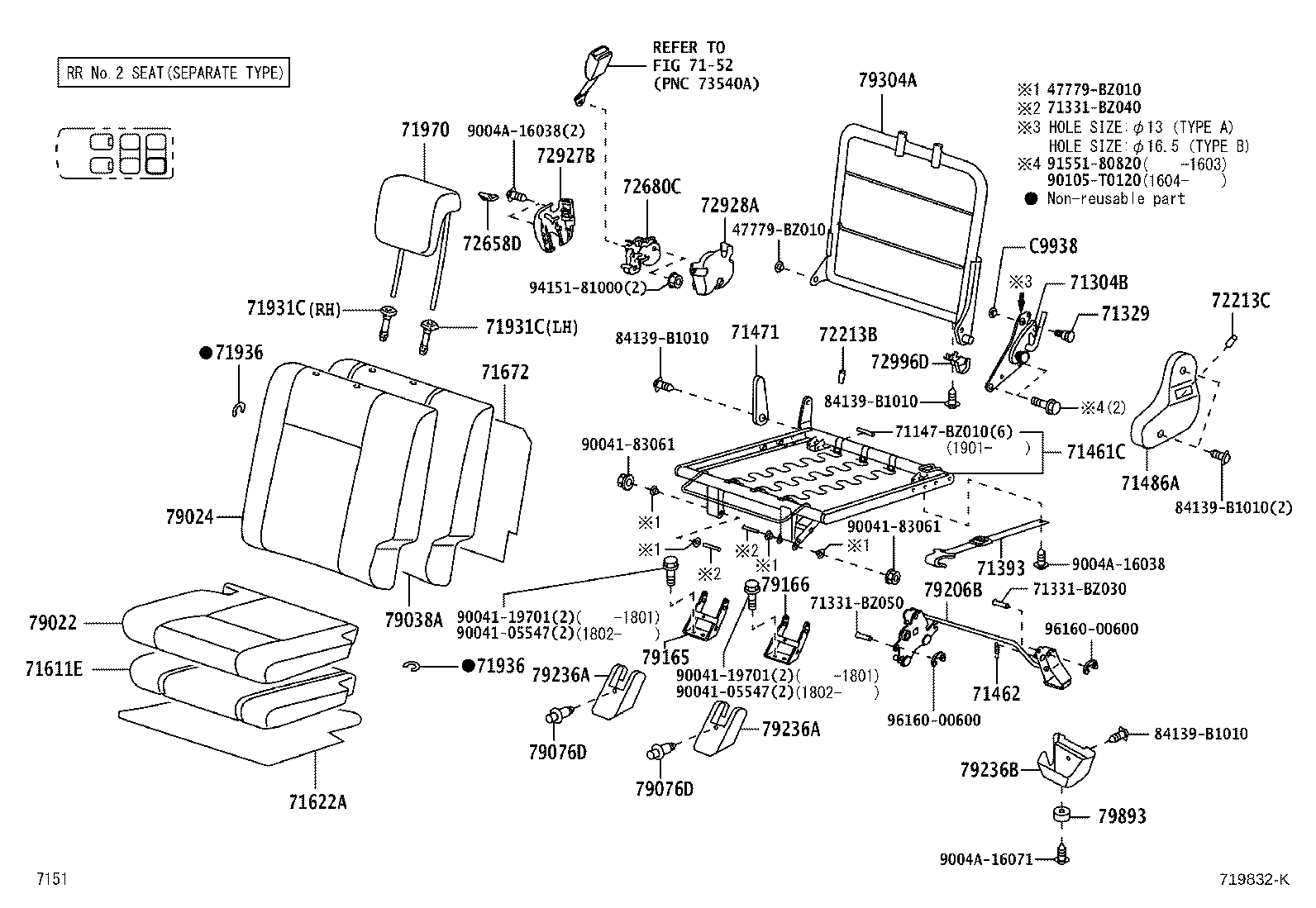

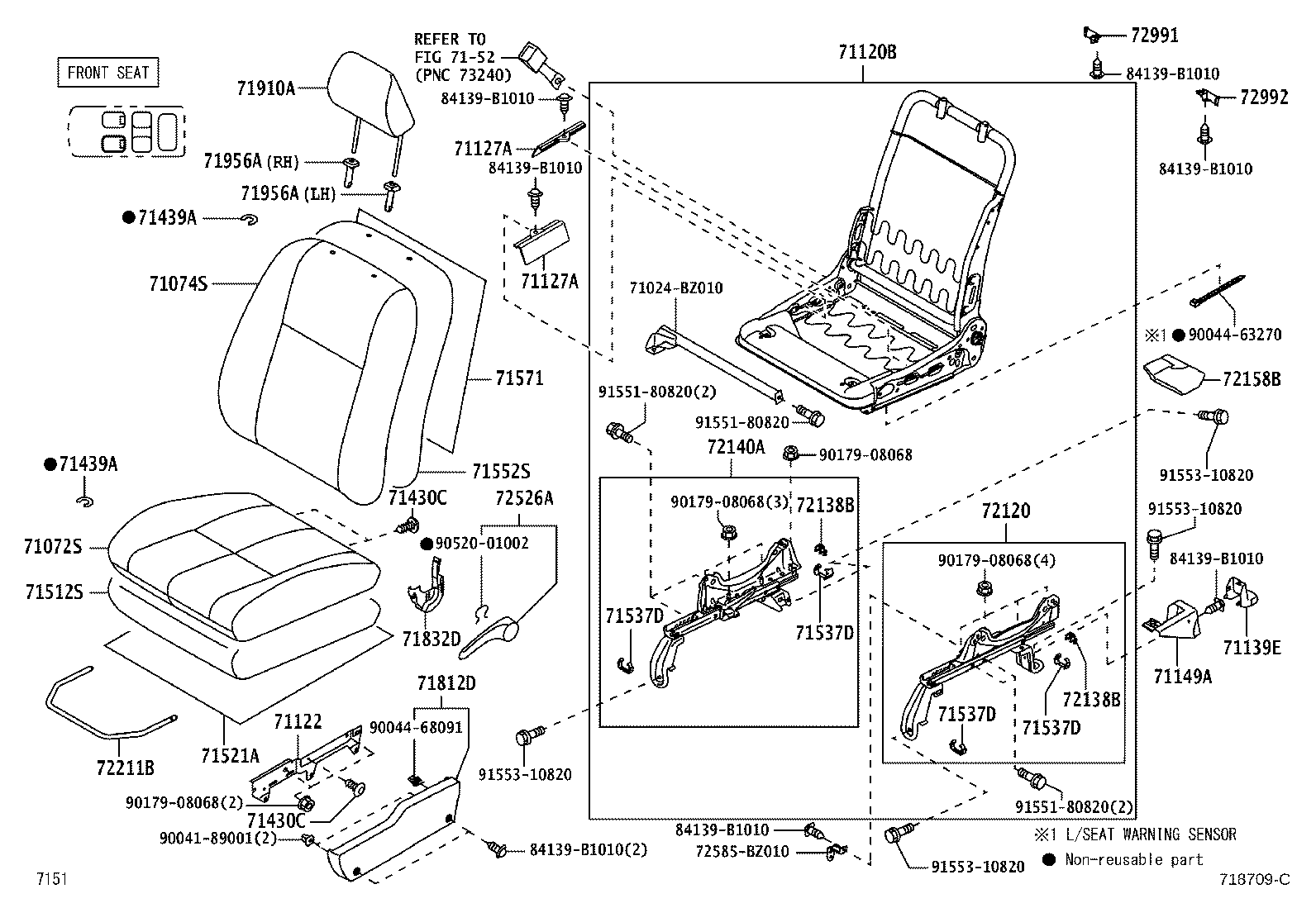

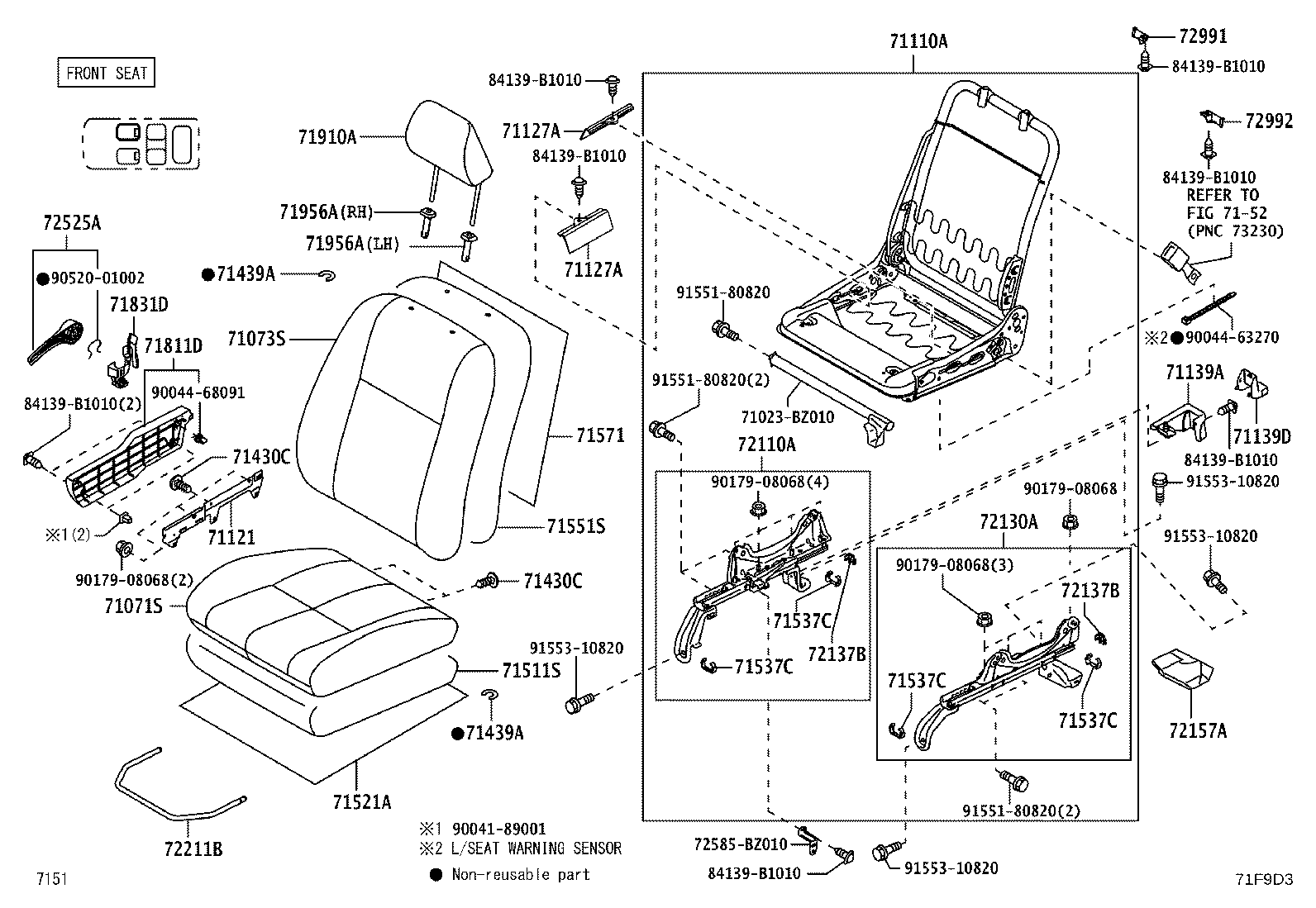

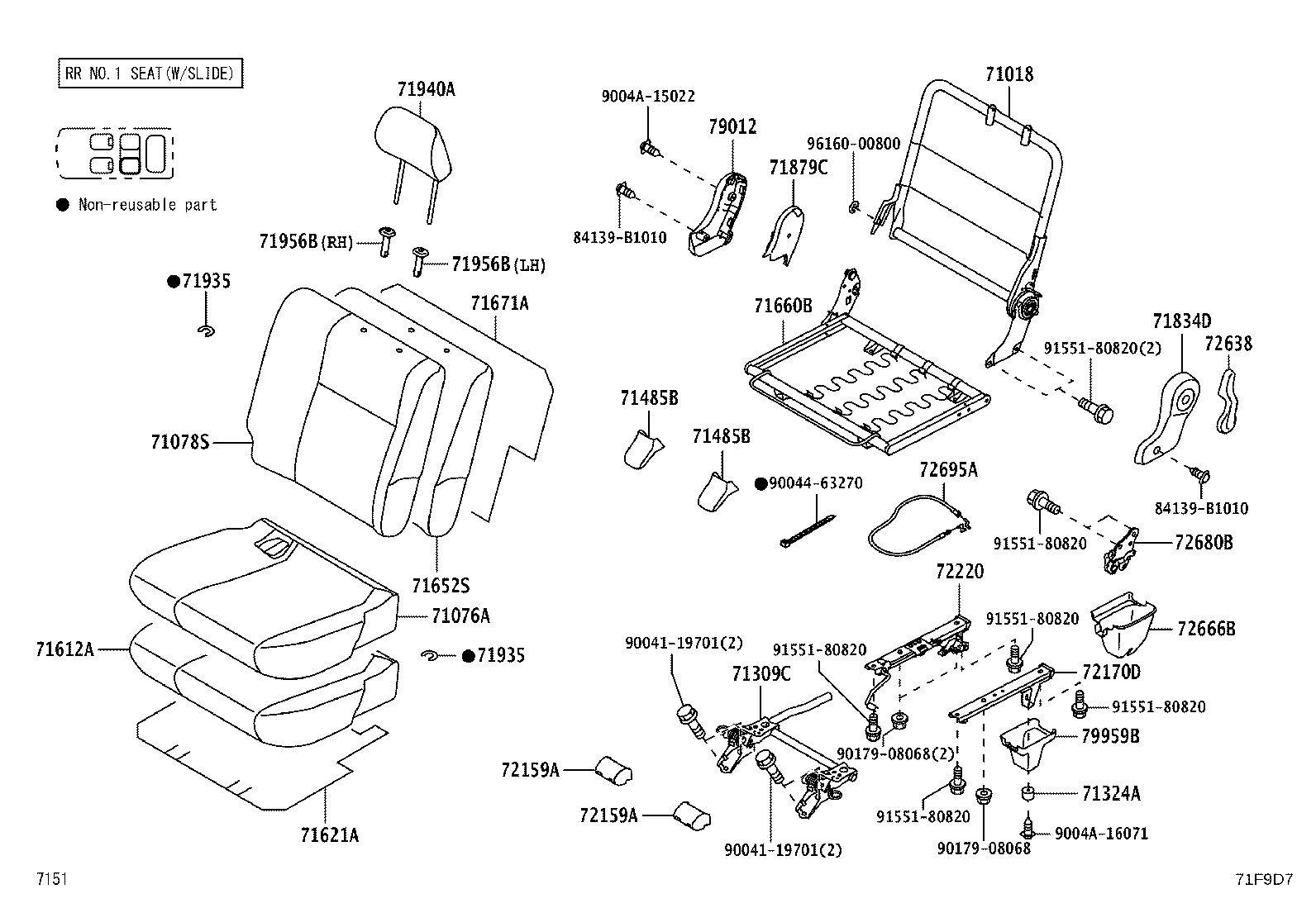

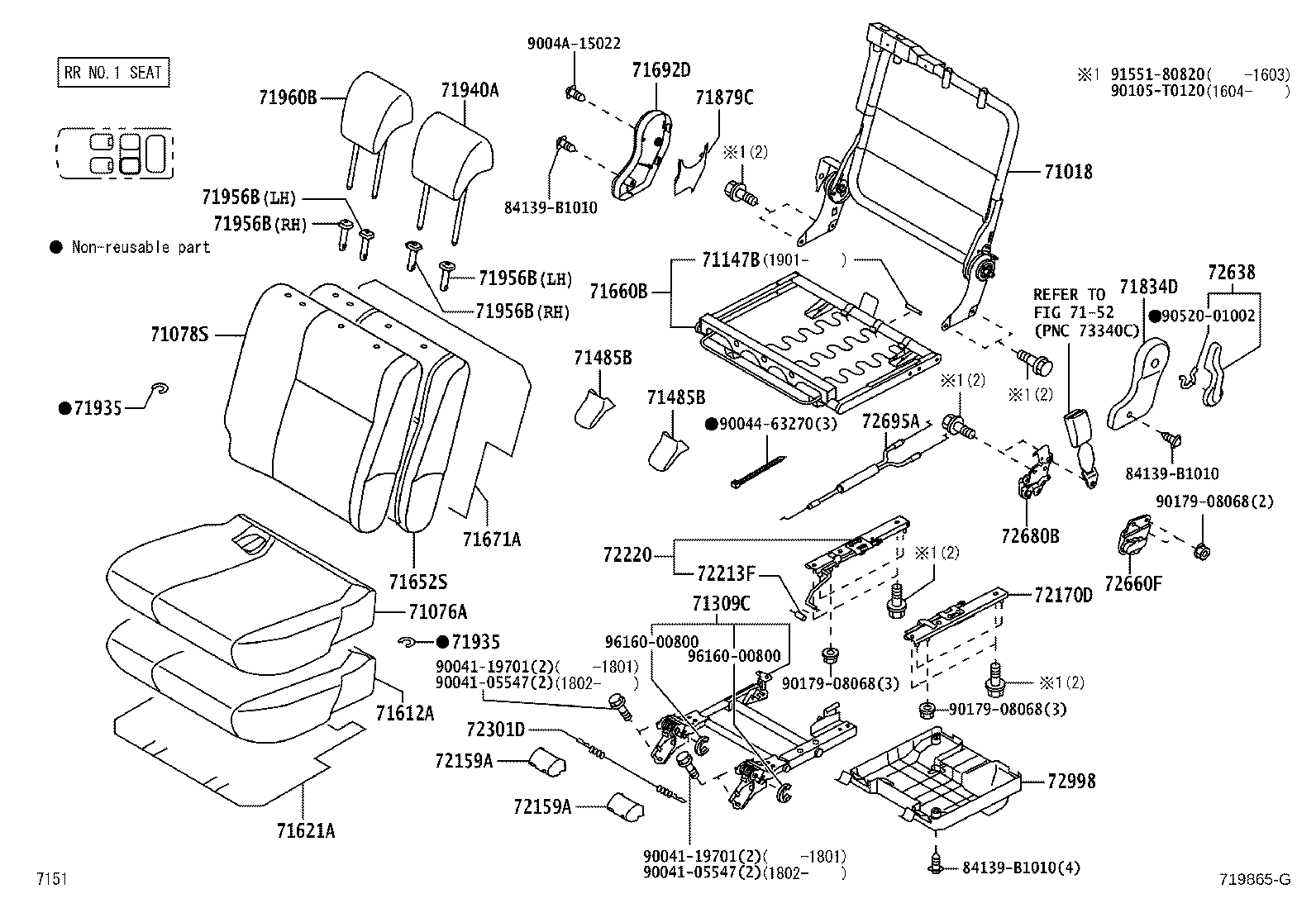

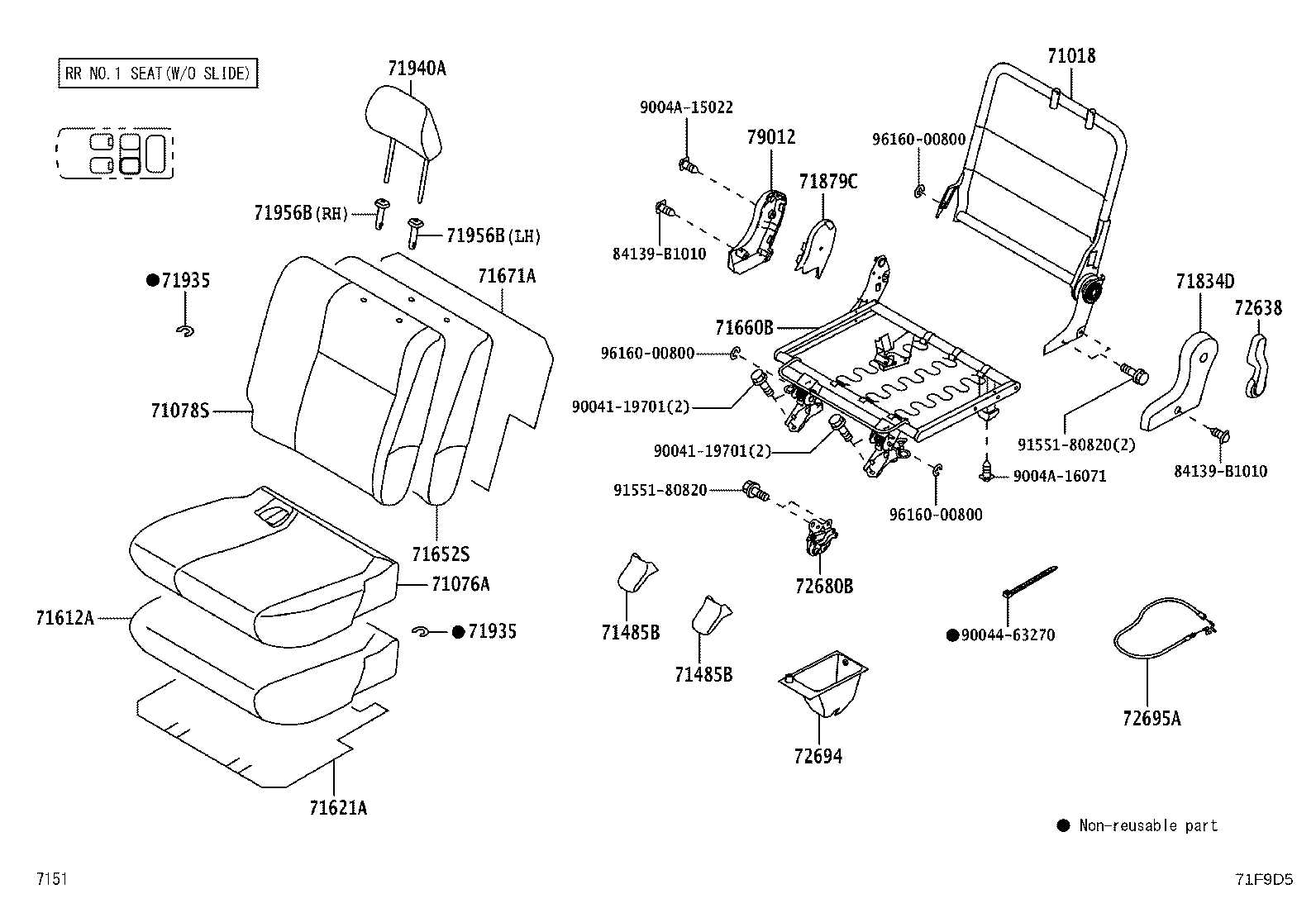

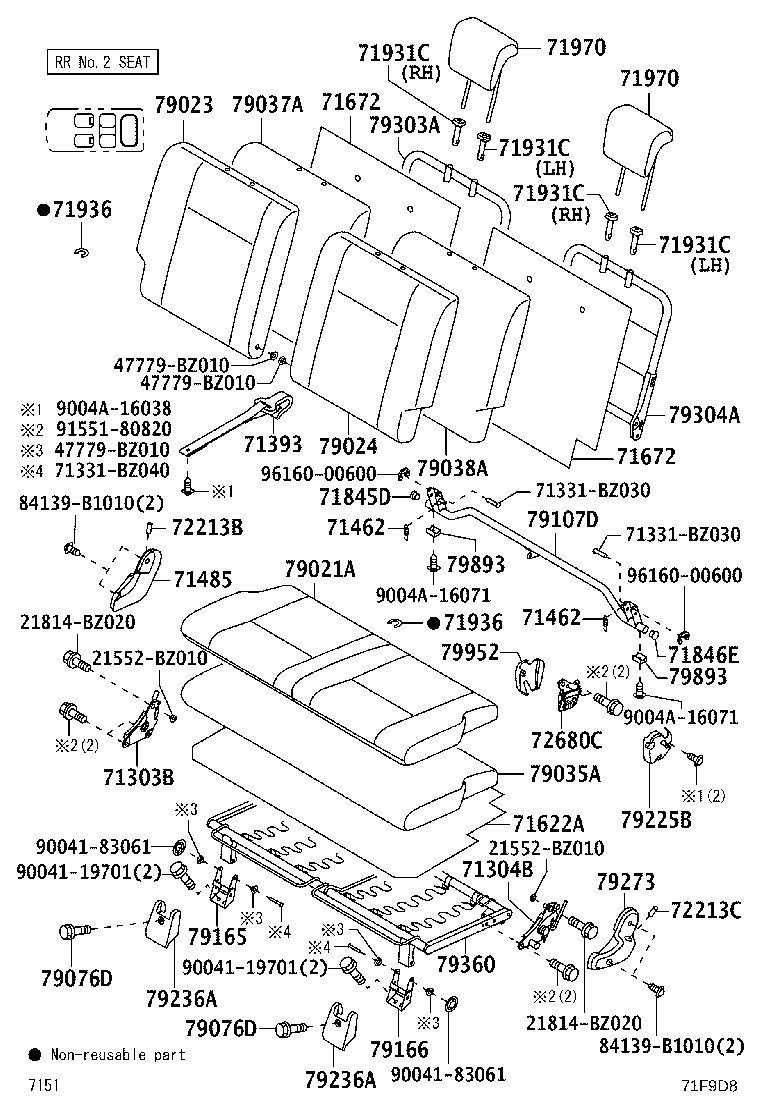

Figure 717480H 717480H 2011-11 → 2013-05 Figure 717482H 717482H 2011-11 → 2013-05 Figure 71F9D3 71F9D3 2013-05 → 2015-07 Figure 71F9D3 71F9D3 2013-05 → 2015-08 Figure 718709C 718709C 2013-05 → 2015-07 Figure 718709C 718709C 2013-05 → 2015-08 Figure 719851F 719851F 2015-07 → — Figure 719851F 719851F 2015-08 → — Figure 719852G 719852G 2015-07 → — Figure 719852G 719852G 2015-08 → — Figure 71F9D4 71F9D4 2011-11 → 2013-05 Figure 71F9D4 71F9D4 2011-11 → 2015-08 Figure 71F9D5 71F9D5 2011-11 → 2013-05 Figure 71F9D5 71F9D5 2011-11 → 2015-08 Figure 71F9D6 71F9D6 2011-11 → 2013-12 Figure 71F9D6 71F9D6 2011-11 → 2015-07 Figure 71F9D6 71F9D6 2011-11 → 2015-08 Figure 71F9D6 71F9D6 2013-05 → 2015-08 Figure 71F9D7 71F9D7 2011-11 → 2013-12 Figure 71F9D7 71F9D7 2011-11 → 2015-07 Figure 71F9D7 71F9D7 2011-11 → 2015-08 Figure 71F9D7 71F9D7 2013-05 → 2015-08 Figure 718754B 718754B 2013-12 → 2015-08 Figure 718755B 718755B 2013-12 → 2015-08 Figure 719864G 719864G 2015-07 → — Figure 719864G 719864G 2015-08 → — Figure 719865G 719865G 2015-07 → — Figure 719865G 719865G 2015-08 → — Figure 717489I 717489I 2011-11 → 2013-12 Figure 71F9D8 71F9D8 2013-12 → 2015-07 Figure 71F9D8 71F9D8 2013-12 → 2015-08 Figure 719831K 719831K 2015-07 → — Figure 719831K 719831K 2015-08 → — Figure 719832K 719832K 2015-07 → — Figure 719832K 719832K 2015-08 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075D Cover Sub-assy, Rear Seat Cushion, RH
71076A Cover Sub-assy, Rear Seat Cushion, Front LH
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71121 Bracket, Front Seat Cushion, RH
71122 Bracket, Front Seat Cushion, LH
71127A Plate, FR0NT Seat Cushion Cover Set
71139A Cover, Front Seat Leg, NO.1
71139D Cover, Front Seat Leg NO.1
71139E Cover, Front Seat Leg NO.2
71147 Silencer, Seat Spring
71147B Silencer, Seat Spring
71149A Cover, Front Seat Leg, LH
71303B Hinge Sub-assy, Rear NO.2 Seat, RH
71304B Hinge Sub-assy, Rear NO.2 Seat, LH
71308E Leg Sub-assy, Rear Seat, RH
71309C Leg Sub-assy, Rear Seat, Rear LH
71324A Cushion, Rear Seat
71329 Bolt, Rear Seat Hinge
71393 Band, Rear Seat Cushion
71430C Clip
71439A Clip
71461B Spring, Rear Seat Cushion, RH
71461C Spring, Rear Seat Cushion, LH
71462 Spring, Rear Seat Cushion, NO.2
71471 Cover, Rear Seat Hinge
71485 Cover, Rear Seat Hinge
71485A Cover, Rear Seat Hinge, NO.2 RH
71485B Cover, Rear Seat Hinge
71486A Cover, Rear Seat Hinge, NO.2 LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521A Pad,Front Seat Cushion Silencer
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71571 Pad, Front Seatback Silencer, A
71611A Pad, Rear Seat Cushion, RH
71611E Pad, Rear NO.2 Seat Cushion, A
71612A Pad, Rear Seat Cushion, LH
71613A Pad, Rear NO.2 Seat Cushion
71621A Pad, Rear Seat Cushion Silencer, A
71622A Pad, Rear Seat Cushion Silencer, B
71650B Spring Assy, Rear Seat Cushion, RH
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B Spring Assy, Rear Seat Cushion, LH
71671A Pad, Rear Seatback Silencer, A
71672 Pad, Rear Seatback Silencer, B
71691D Cover, Rear Seat Cushion Hinge, Upper RH
71692D Cover, Rear Seat Cushion Hinge, Upper LH
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833D Cover Rear Seat Reclining, RH
71834D Cover, Rear Seat Reclining, LH
71845D Cap, Rear Seat Cover, RH
71846E Cap, Rear Seat Cover, LH
71878A Cover, Rear Seat Reclining, Inner RH
71879C Cover, Rear Seat Reclining, Inner LH
71910A Headrest Assy, Front Seat
71931C Support Assy, Rear NO.2 Seat Headrest
71935 Clip
71936 Clip
71940A Headrest Assy, Rear Seat
71956A Support, Front Seat Headrest
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72157A Cover, Seat Track Bracket, Inner RH
72158B Cover, Seat Track Bracket, Inner LH
72159A Cover, Rear Seat Track Bracket
72160C Track Assy, Rear NO.1 Seat, Outer RH
72170C Track Assy, Rear NO.1 Seat, Inner RH
72170D Track Assy, Rear Seat, Outer LH
72211B Handle, Seat Track Adjusting
72213B Knob, Seat Track Adjusting Handle, RH
72213C Knob, Seat Track Adjusting Handle, LH
72213F Knob, Seat Track Adjusting Handle
72220 Track Assy, Rear NO.1 Seat, Inner LH
72301A Wire Sub-assy, Seat Track Equalizing, RH
72301D Wire Sub-assy, Seat Track Equalizing, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72637A Handle, Rear Seat Lock
72638 Handle, Rear Seat Lock, LH
72650F Lock Assy, Rear Seat, RH
72658B Knob, Rear Seat Lock Handle
72658D Knob, Rear Seat Lock Handle
72660F Lock Assy, Rear Seat, LH
72665C Cover, Rear Seat Lock, RH
72666B Cover, Rear Seat Lock, LH
72670B Lock Assy, Rear Seat Cushion, RH
72670C Lock Assy, Rear Seat Cushion, NO.2 RH
72680B Lock Assy, Rear Seat Cushion, LH
72680C Lock Assy, Rear Seat Cushion, NO.2 LH
72694 Cover, Rear Seat Cushion Lock
72695A Cable, Rear Seat Lock Control
72927B Cover, Rear Seat Cushion Under
72928A Cover, Rear Seat Cushion Under, NO.2
72991 Cover, Front Seat Cushion, RH
72992 Cover, Front Seat Cushion, LH
72995 Cover, Rear Seat Cushion, RH
72996C Cover, Rear NO.2 Seatback, RH
72996D Cover, Rear NO.2 Seatback, LH
72998 Cover, Rear Seat Cushion, LH
73949 Cap
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79021A Cover Sub-assy, NO.2 Seat Cushion
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79035A Pad Sub-assy, NO.3 Seat Cushion, RH
79037A Pad Sub-assy, NO.3 Seatback, RH
79038A Pad Sub-assy, NO.3 Seatback, LH
79076D Clip, Seat Leg Cover
79107D Leg Sub-assy, NO.2 Seat, Rear
79165 Bracket, NO.3 Seat Leg, Rear RH
79166 Bracket, NO.3 Seat Leg, Rear LH
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79225B Carpet, Rear NO.2 Seat Cushion, LH
79236A Cover, NO.2 Seat Leg
79236B Cover, NO.2 Seat Leg, LH
79246 Cover, NO.2 Seat Leg, NO.1
79273 Cover, NO.2 Seat Hinge
79303A Frame Sub-assy, NO.3 Seatback, RH
79304A Frame Sub-assy, NO.3 Seatback, LH
79360 Spring Assy, NO.3 Seat Cushion
79893 Cushion, Fold Seat Leg
79952 Cover, NO.2 Seat Cushion
79959 Cover, RR Seat Leg
79959B Cover, Rear Seat Leg, LH
82711F Clamp, Wiring Harness
89953A Sensor, Belt Warning Occupant Detection
C9938 Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
