Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

80 part groups · 34 illustrations

Illustrations

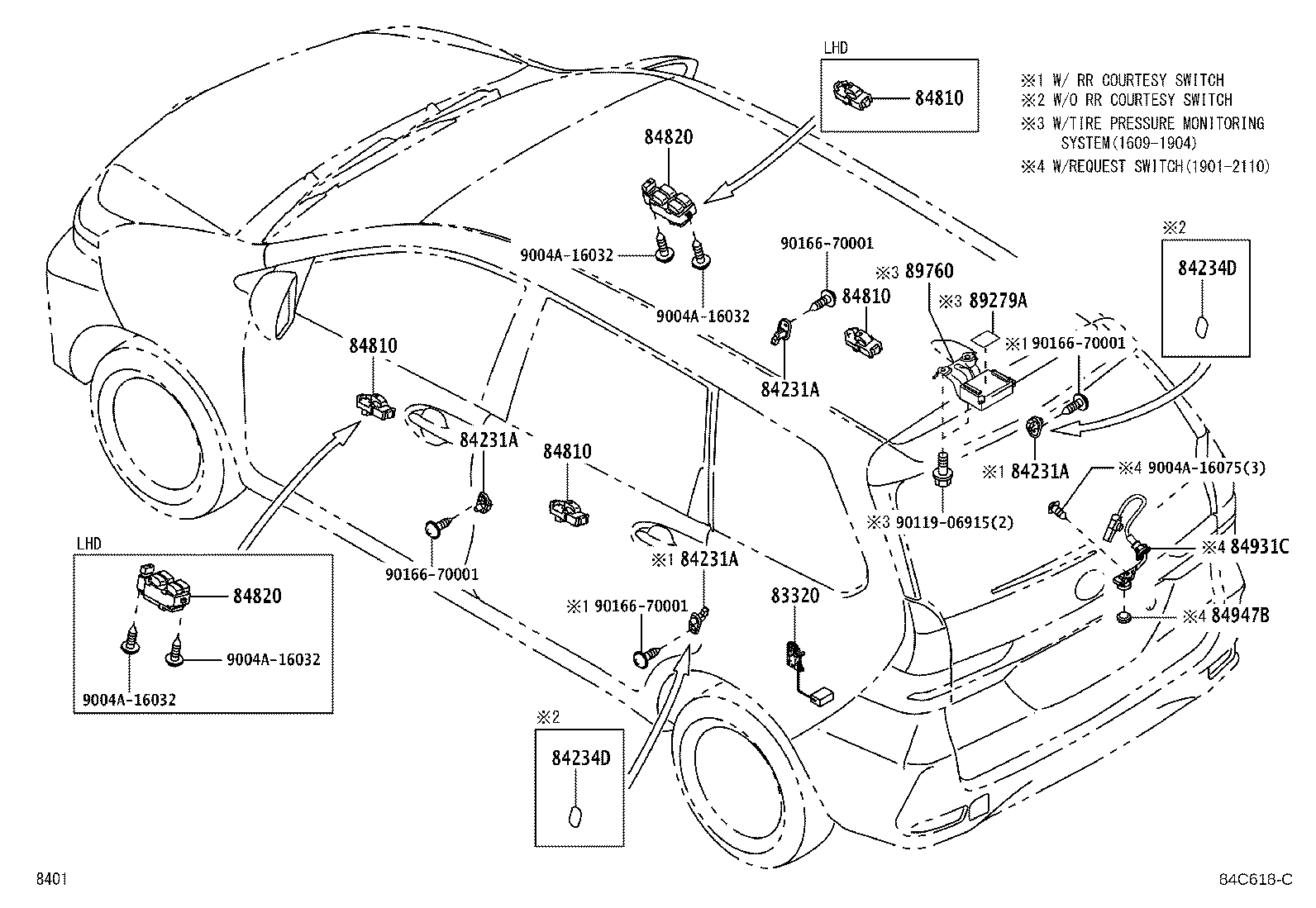

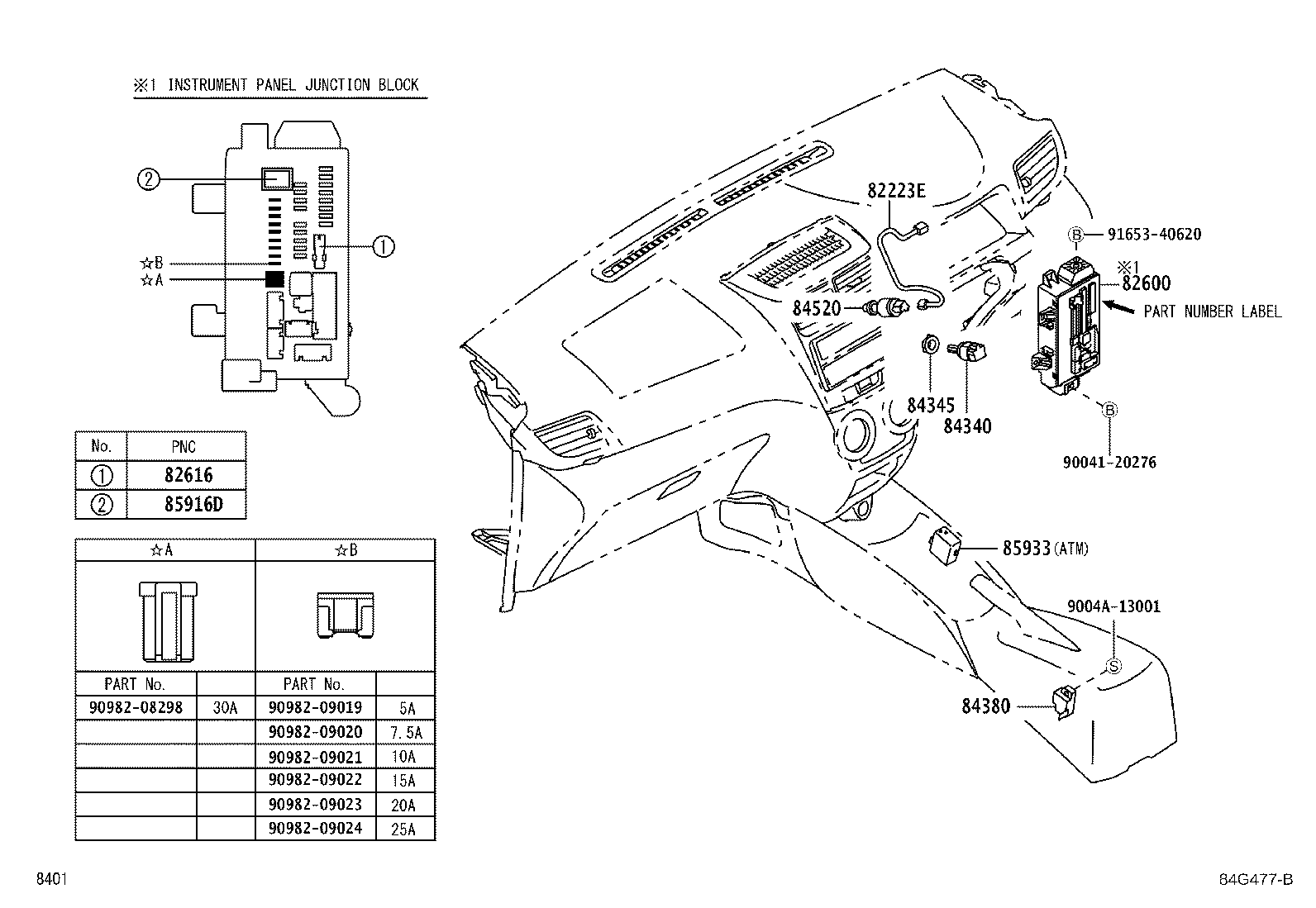

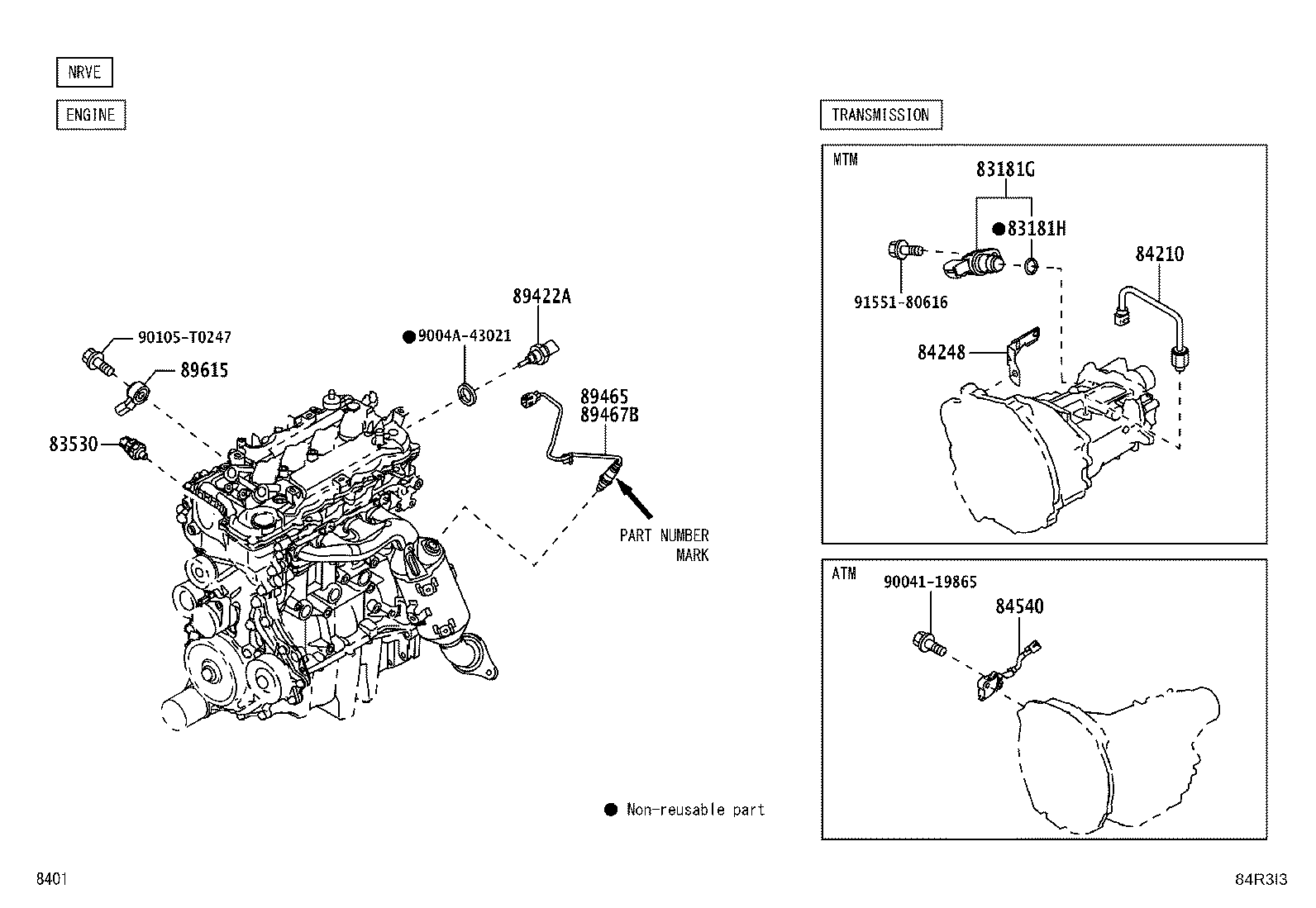

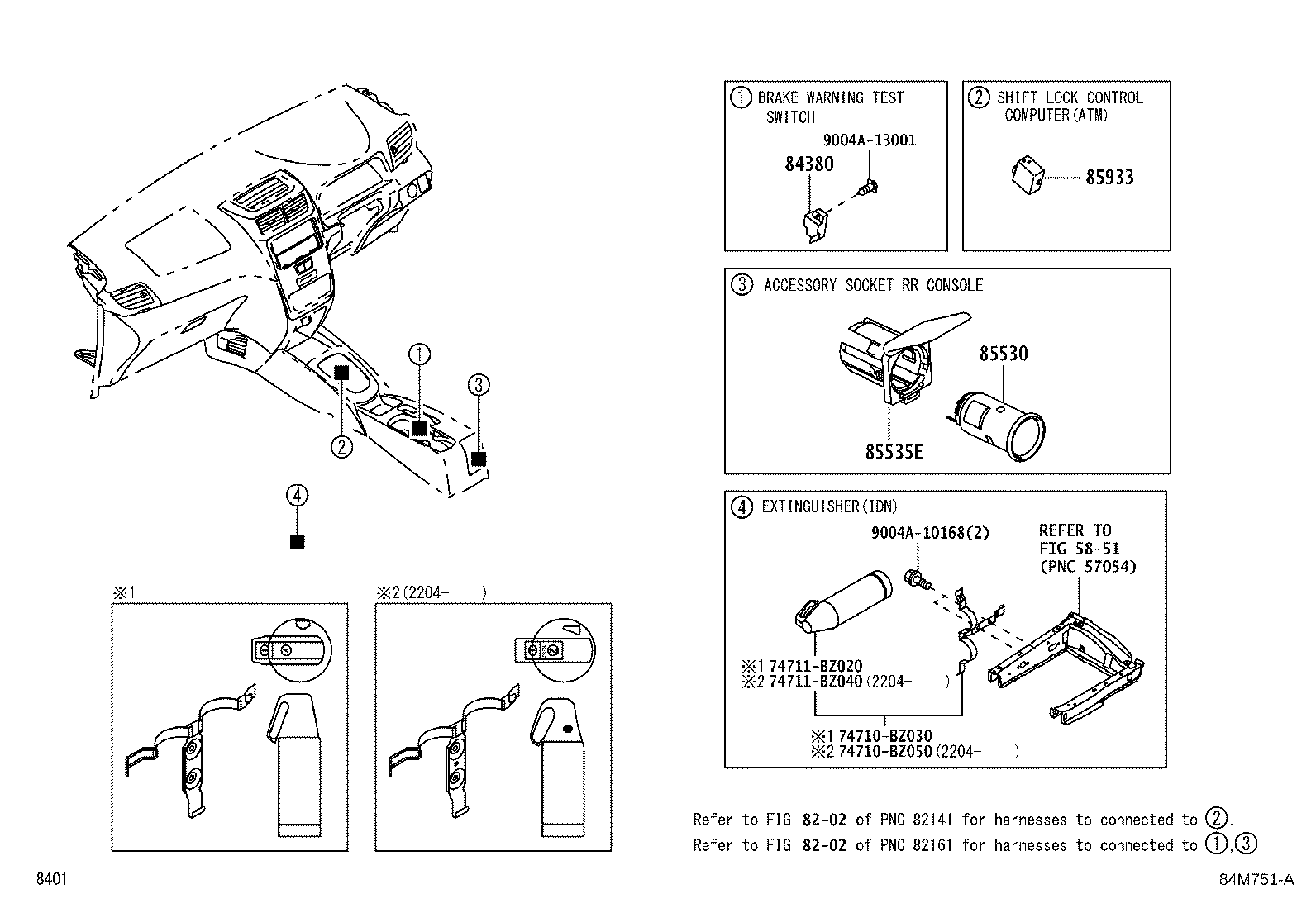

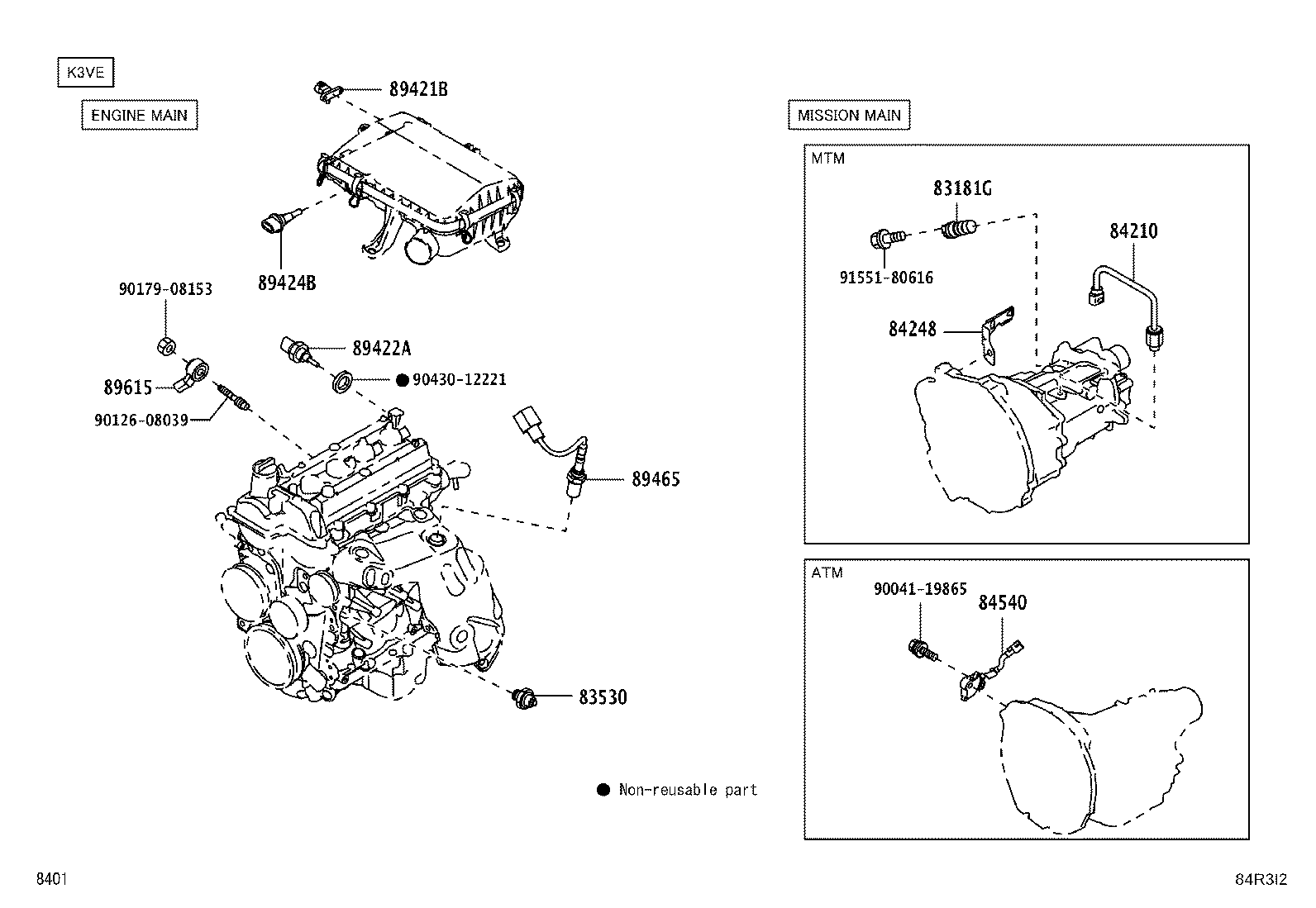

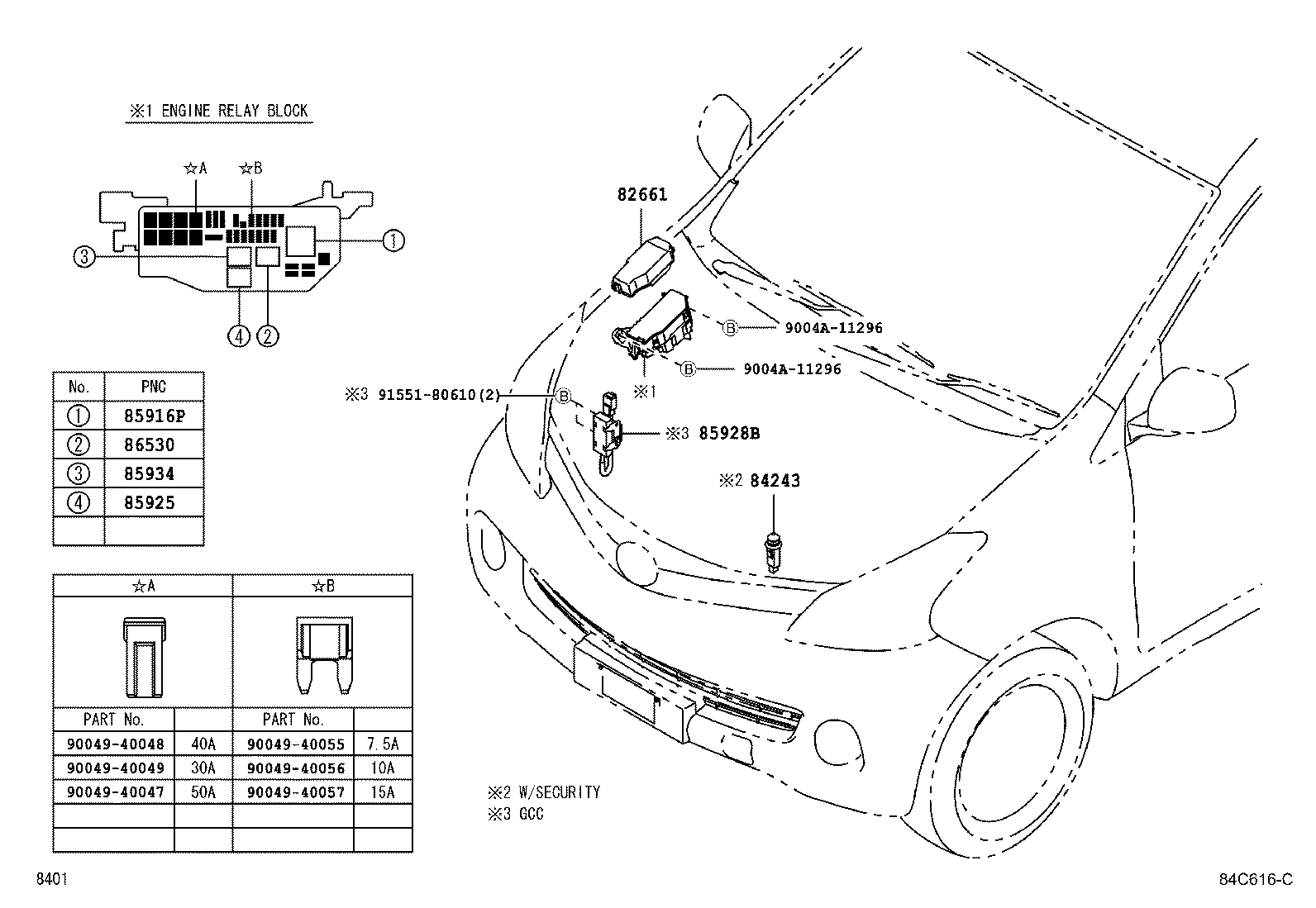

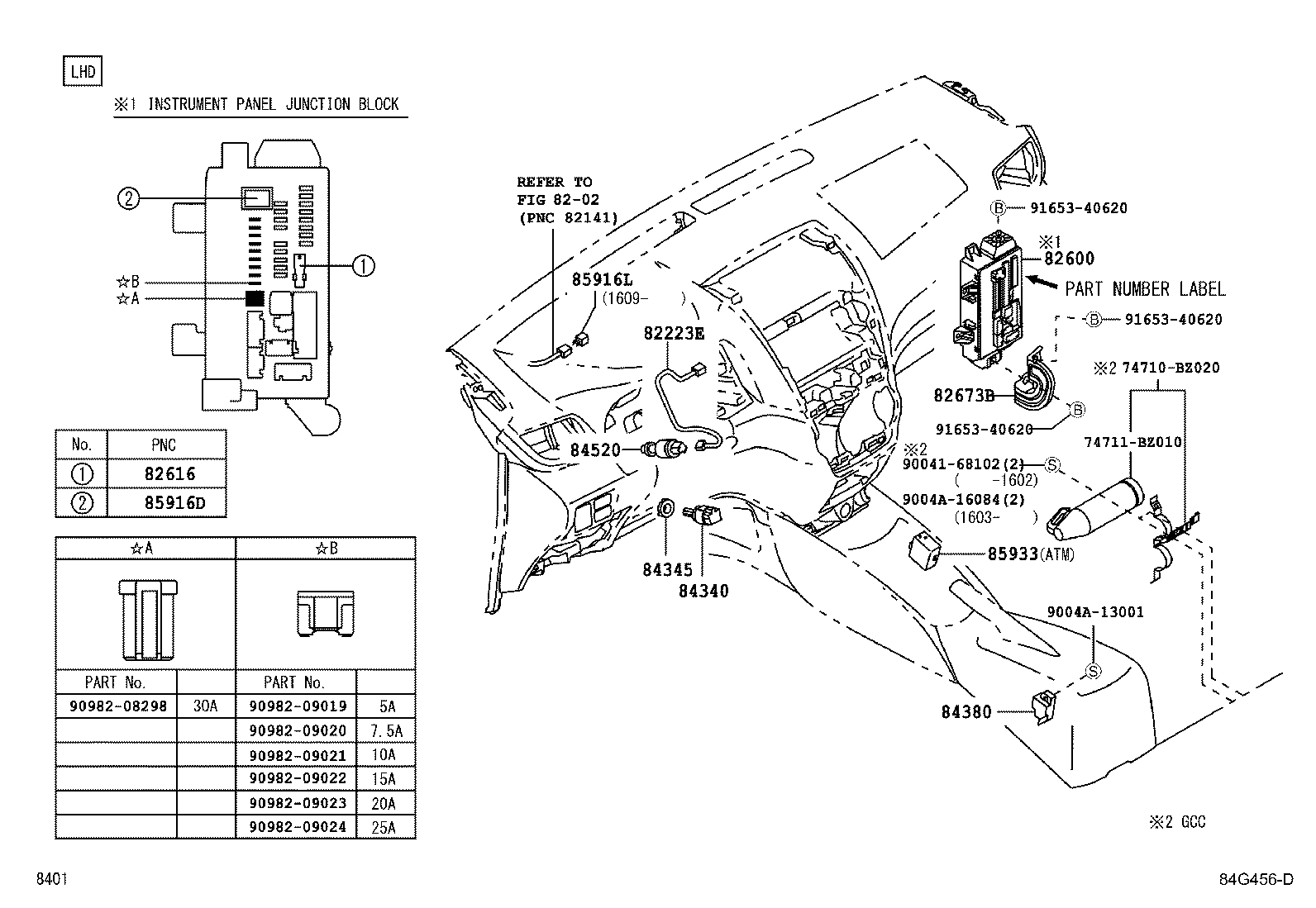

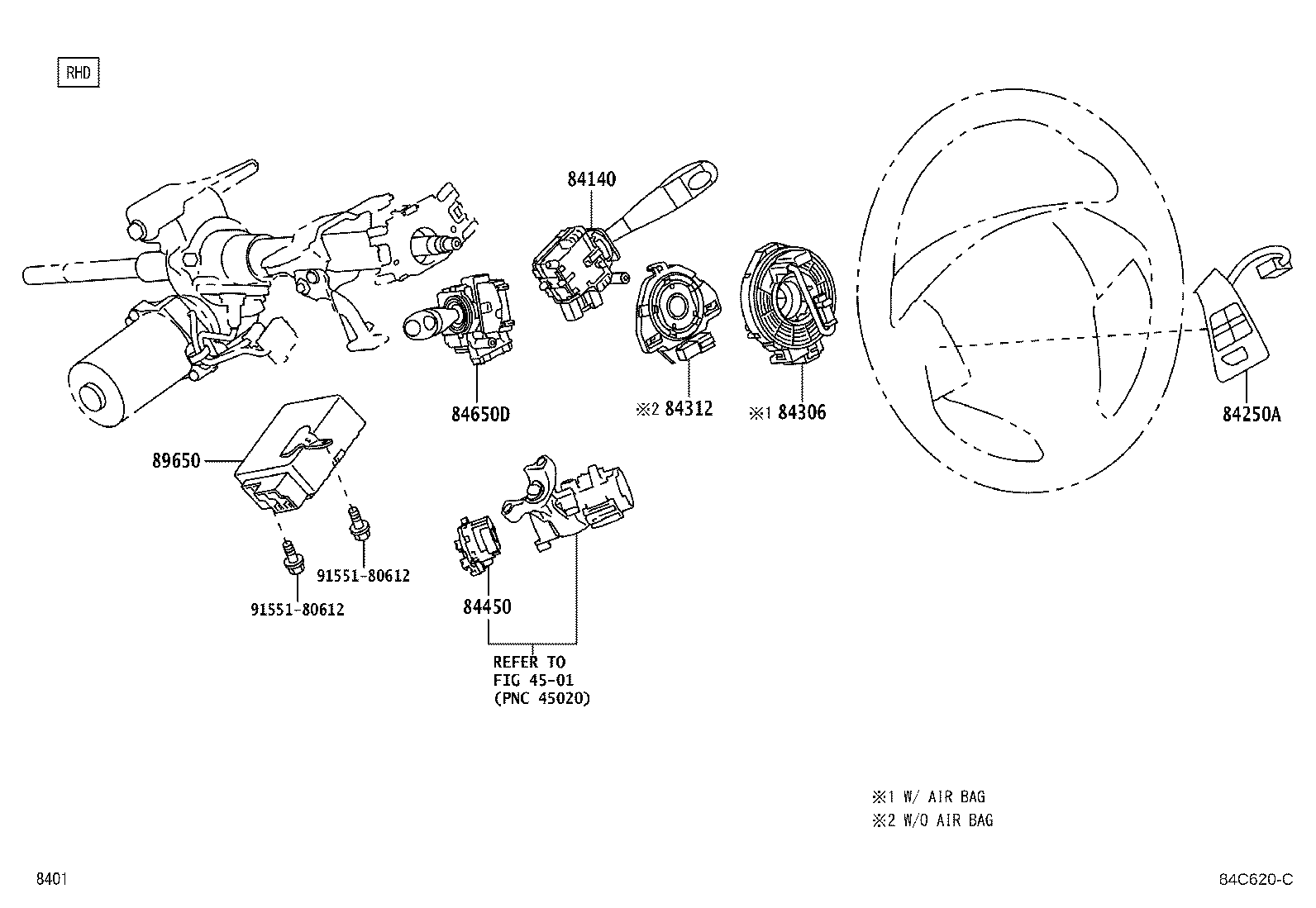

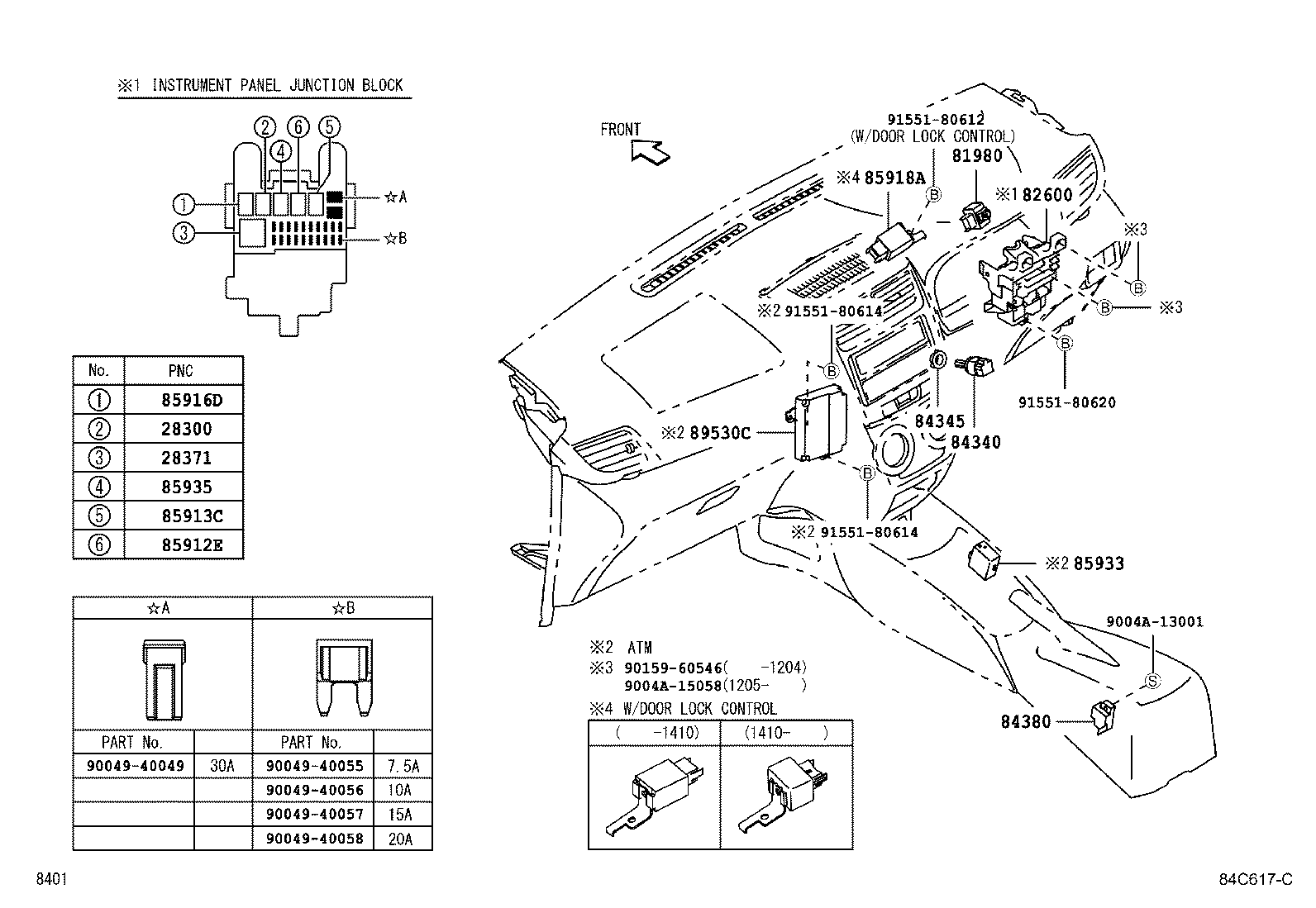

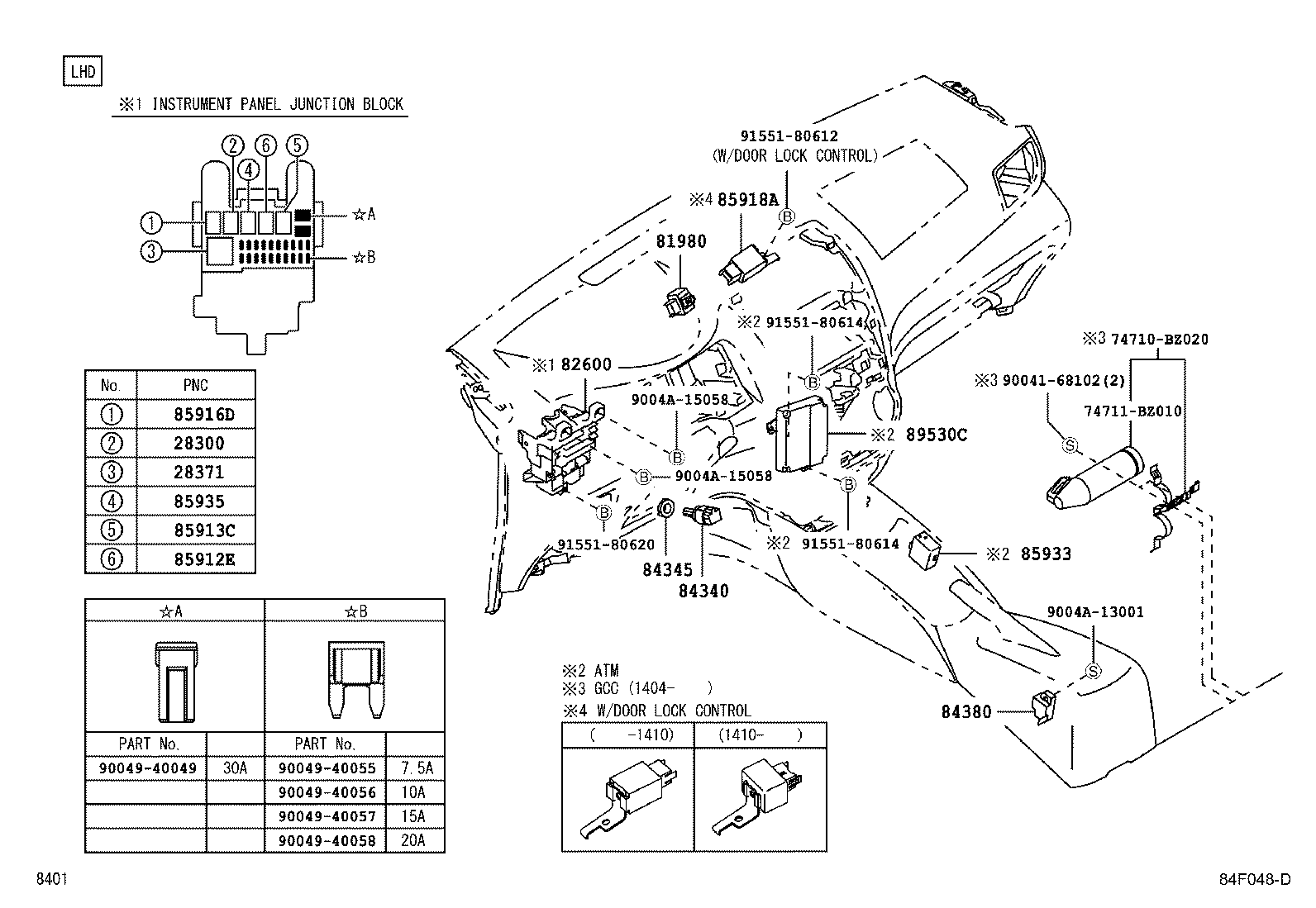

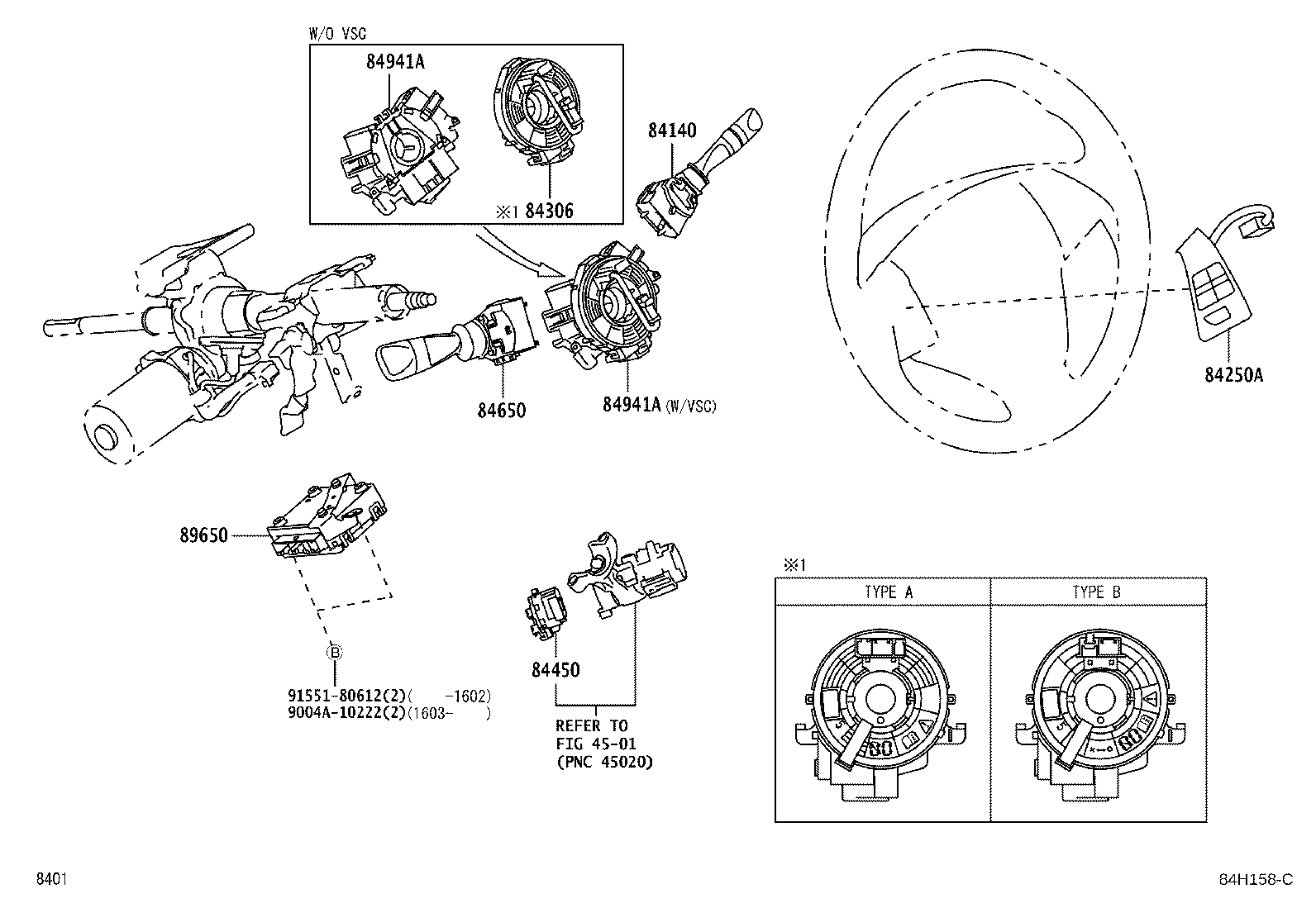

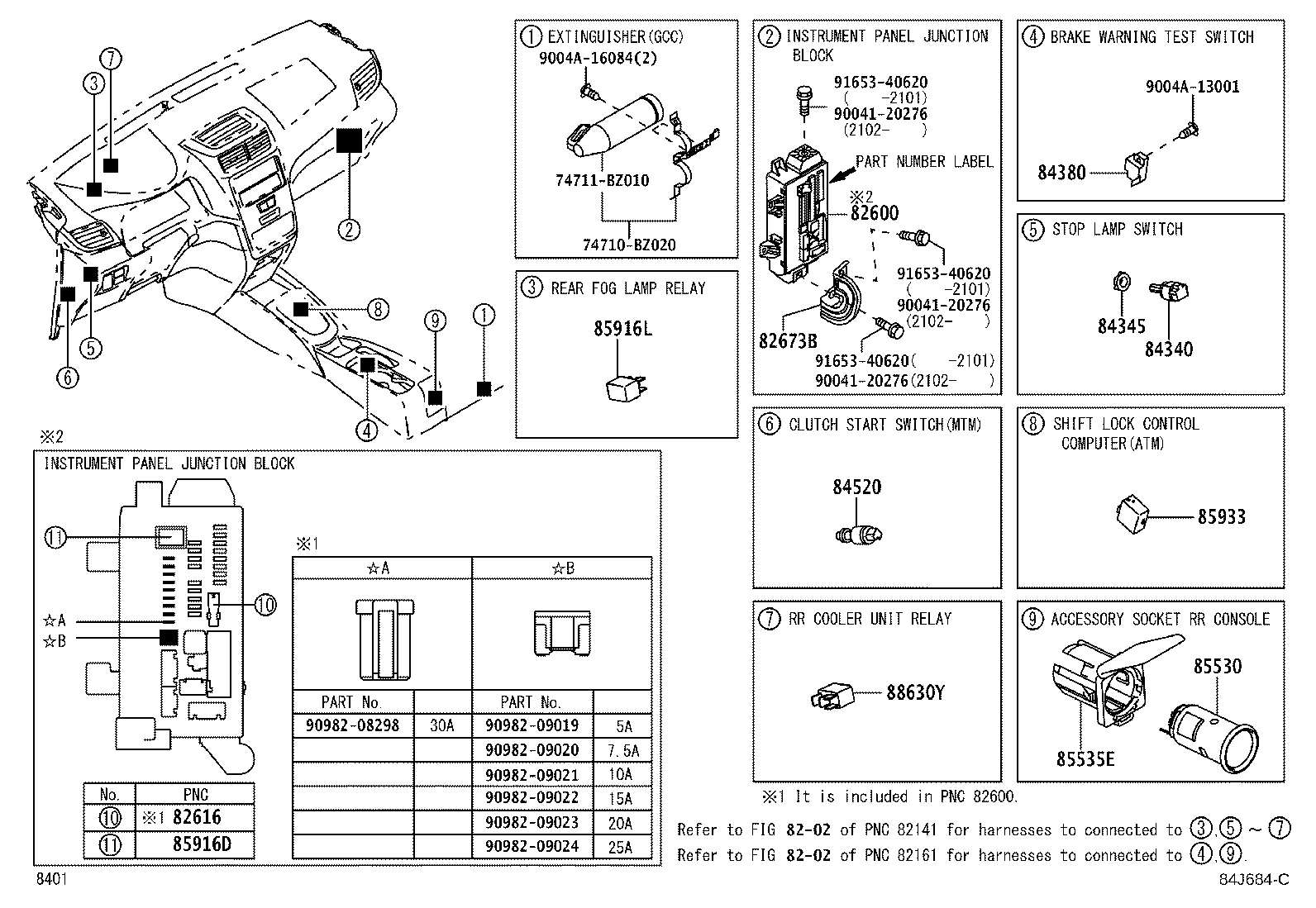

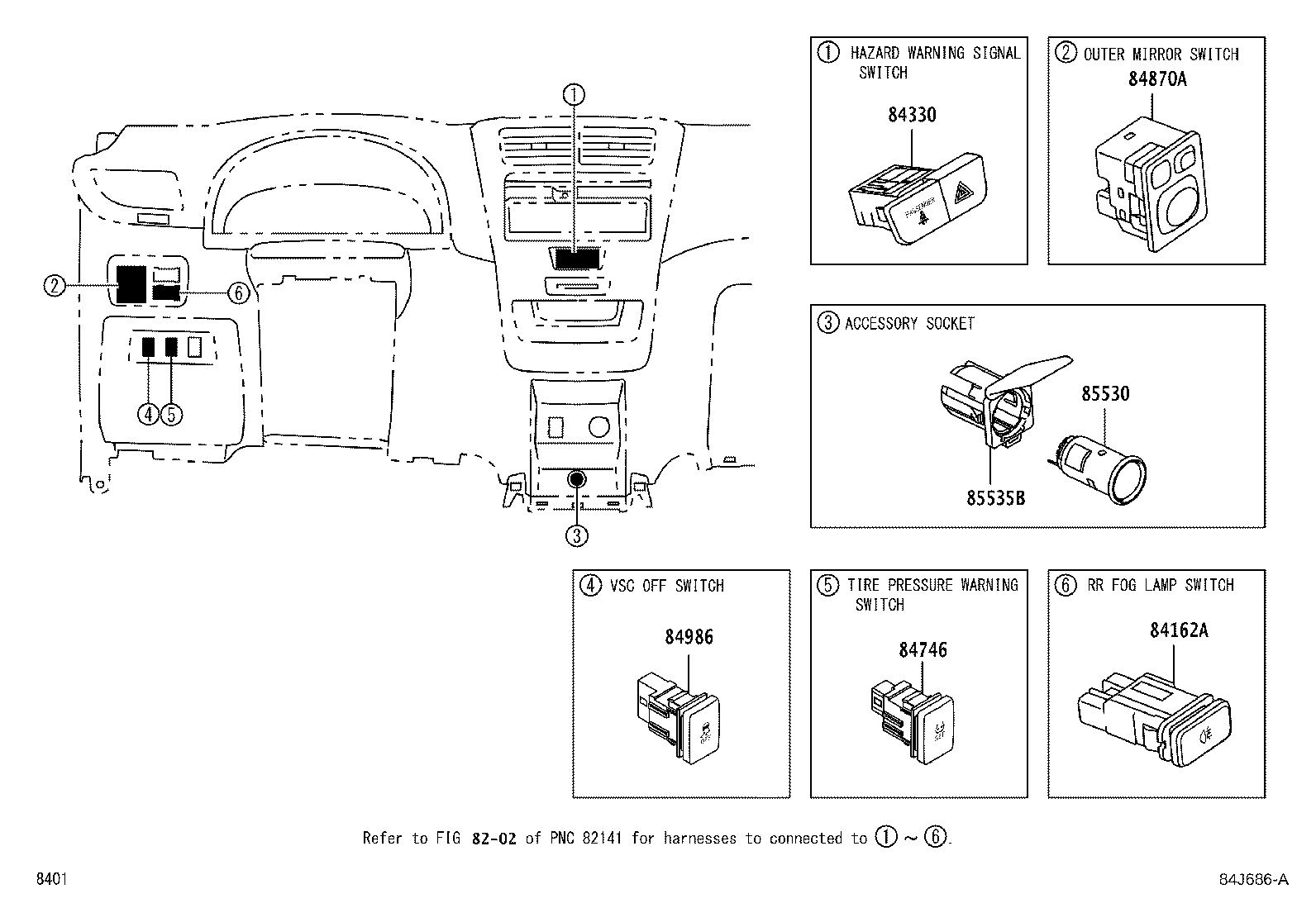

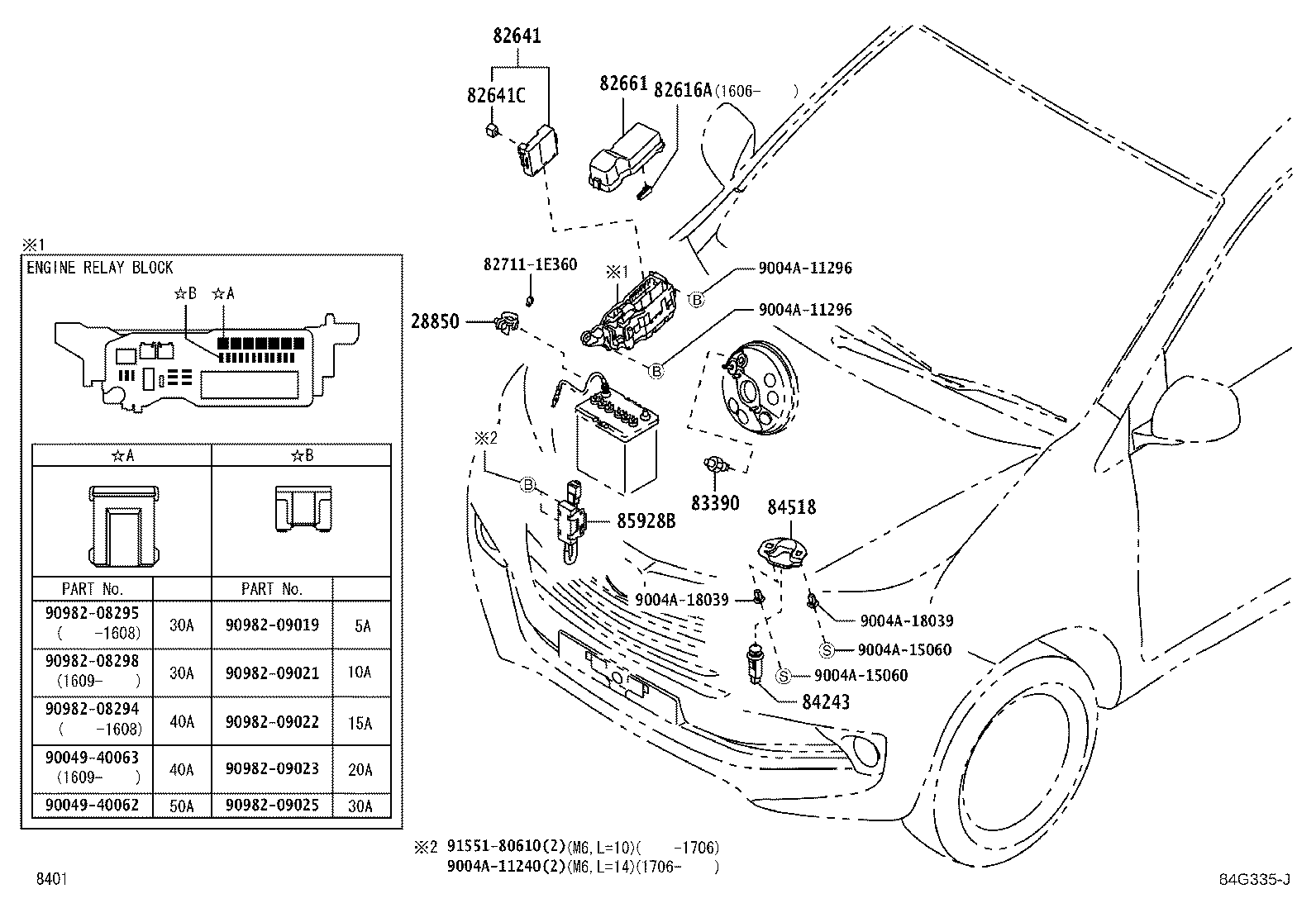

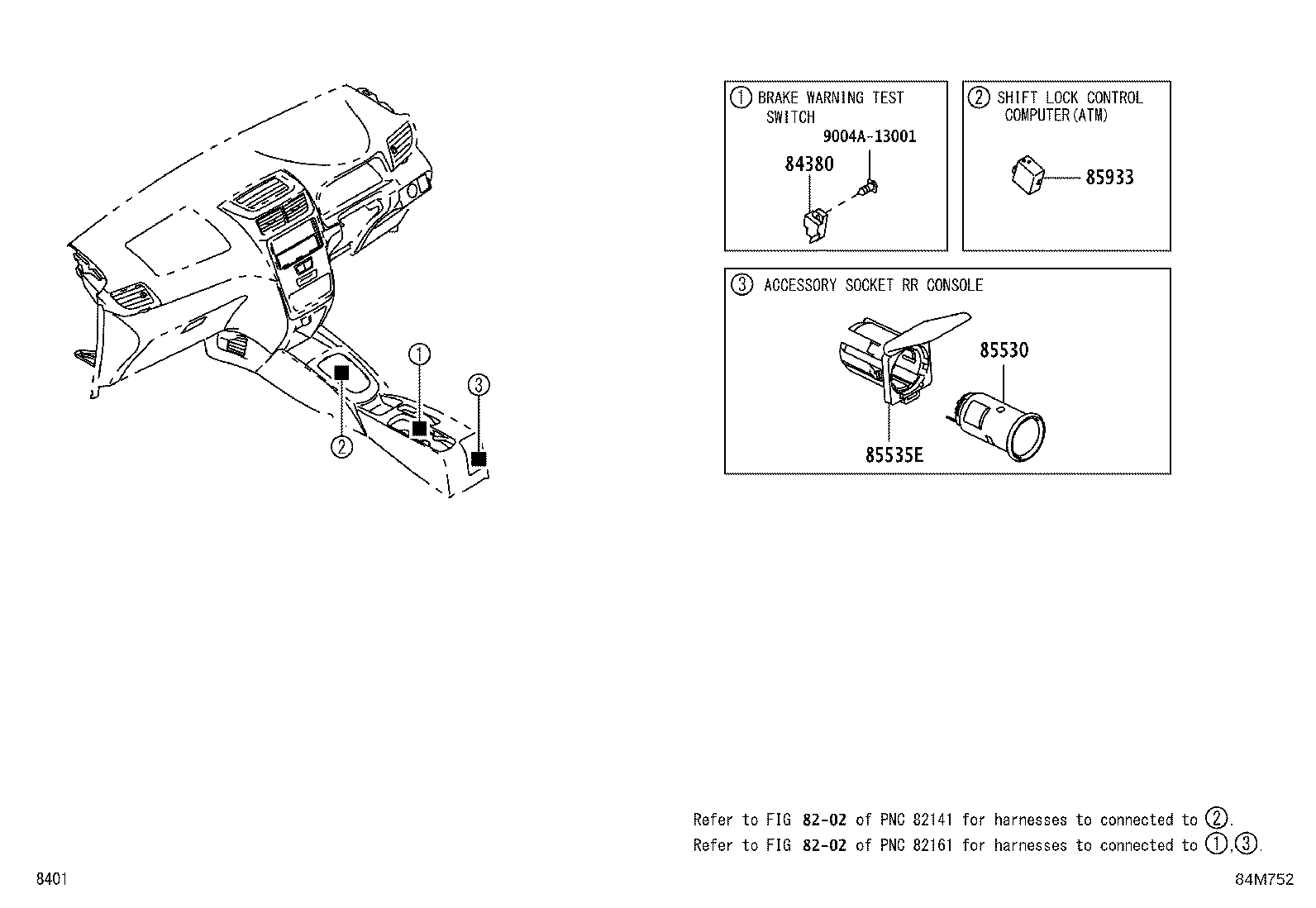

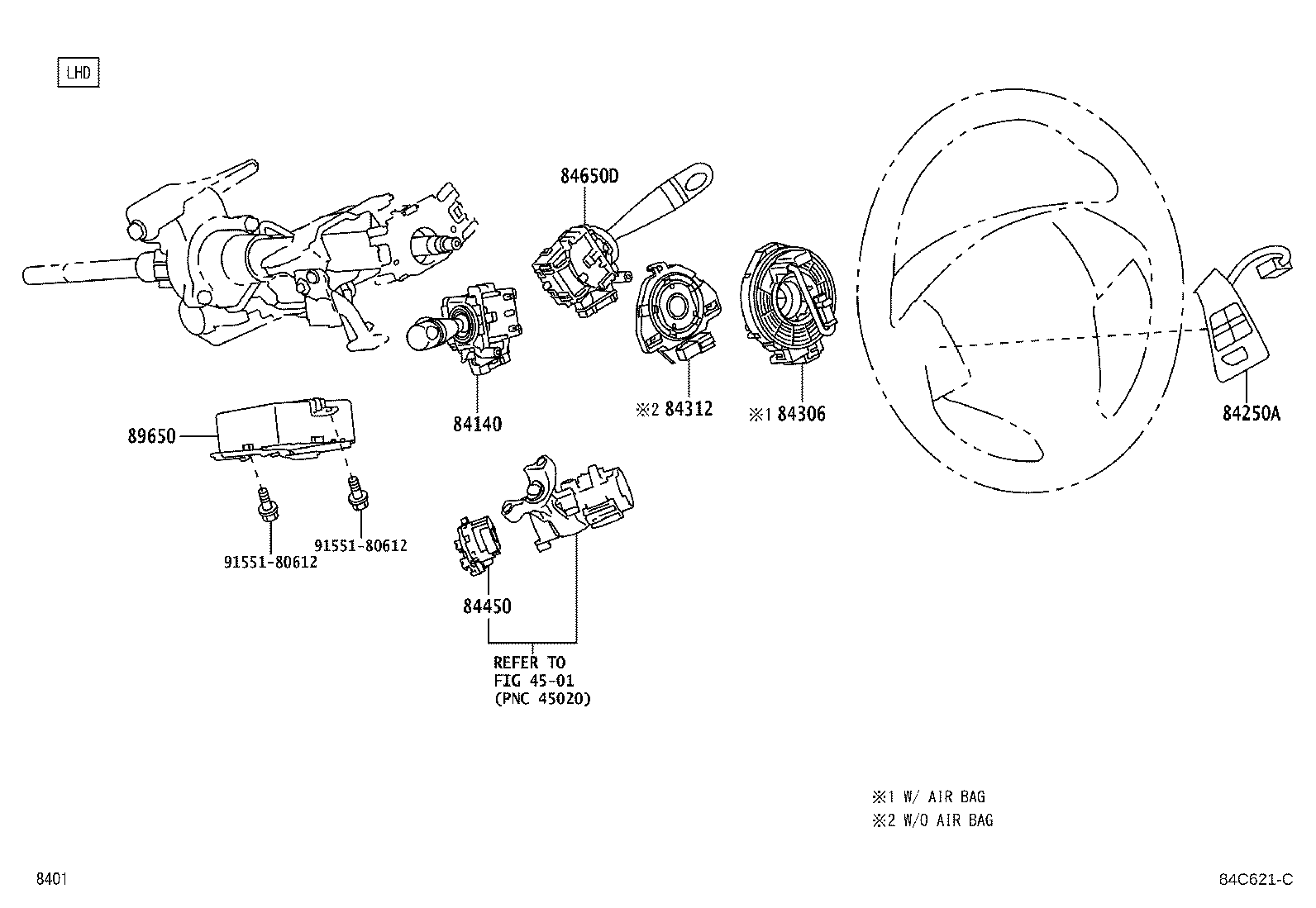

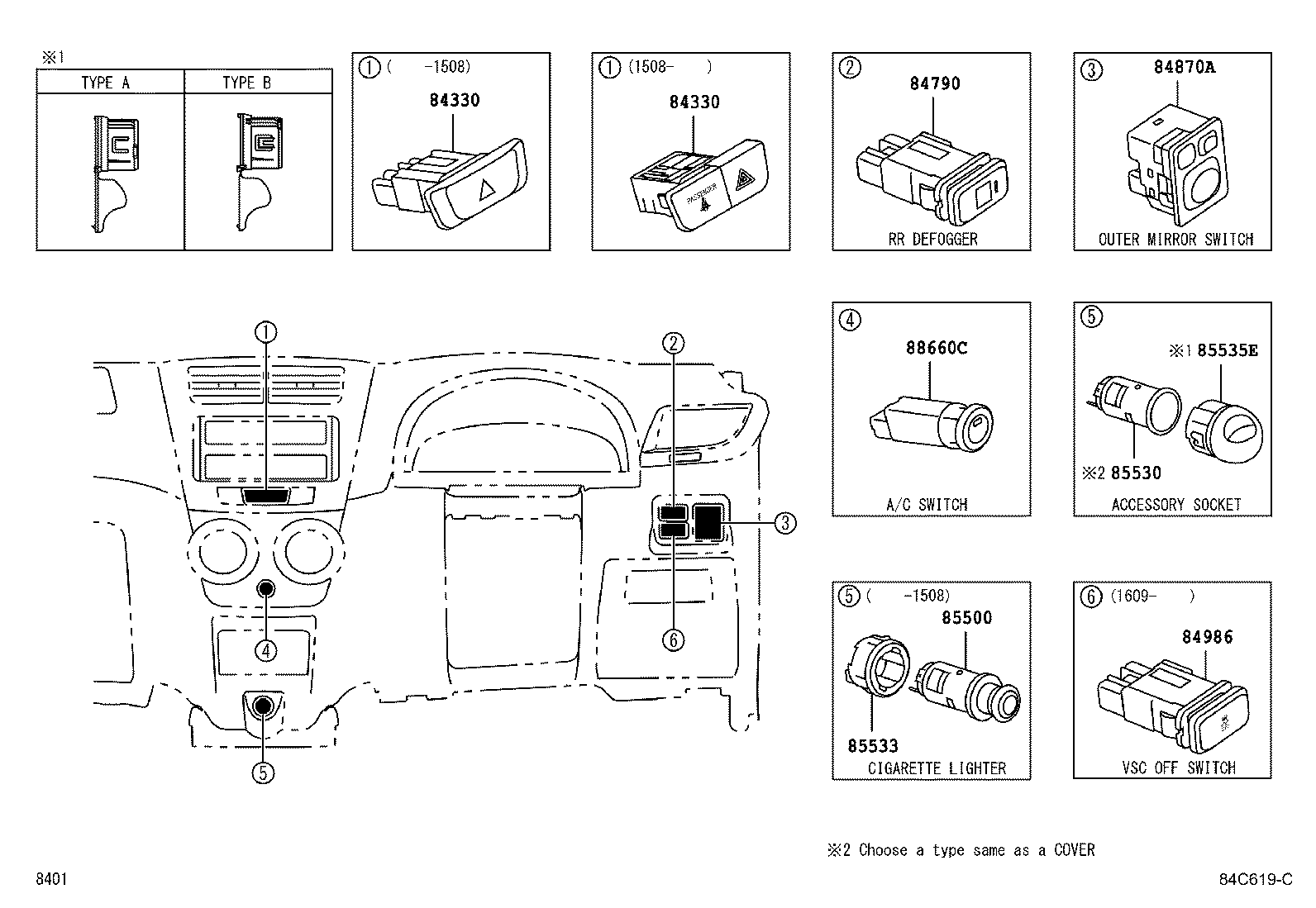

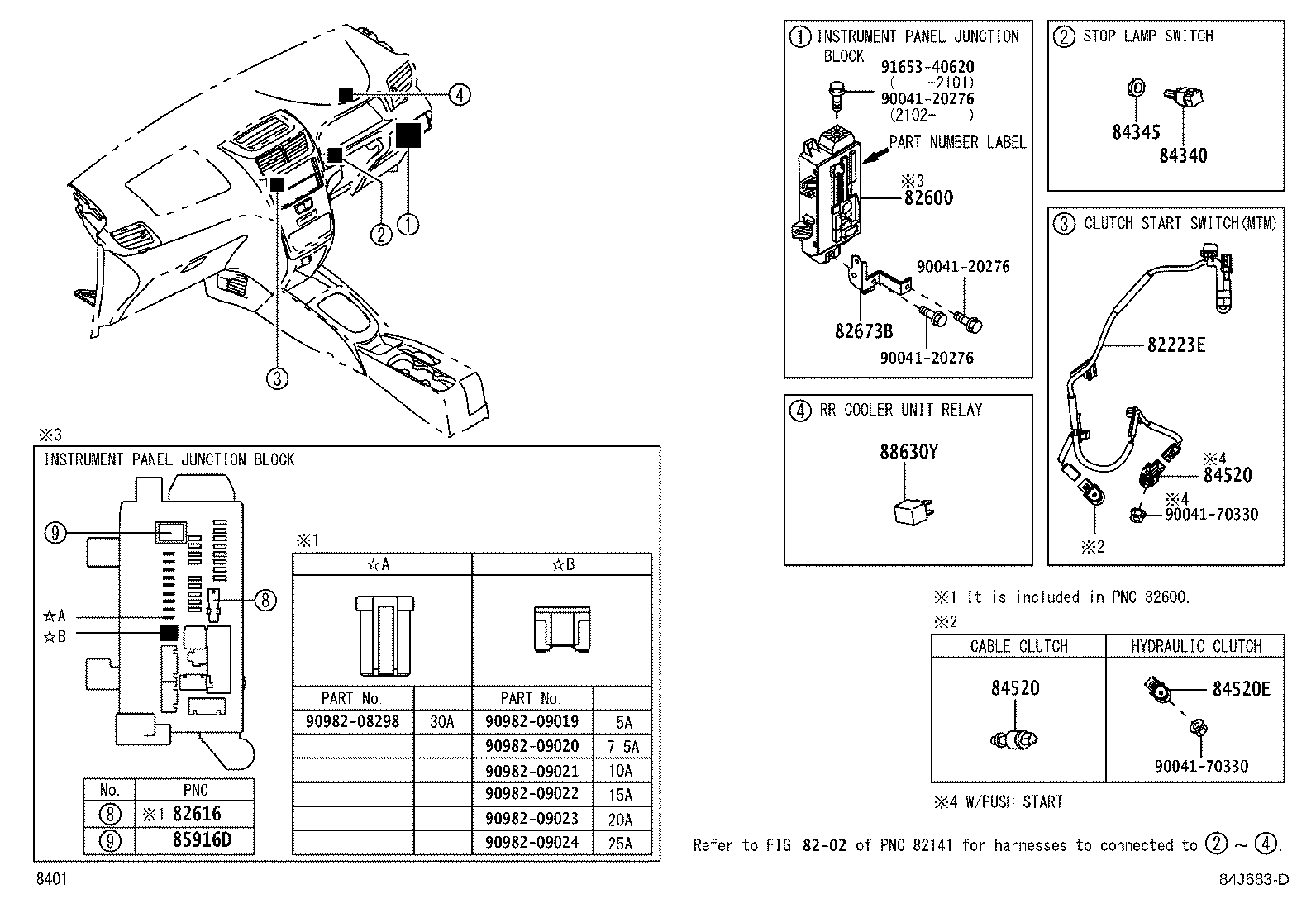

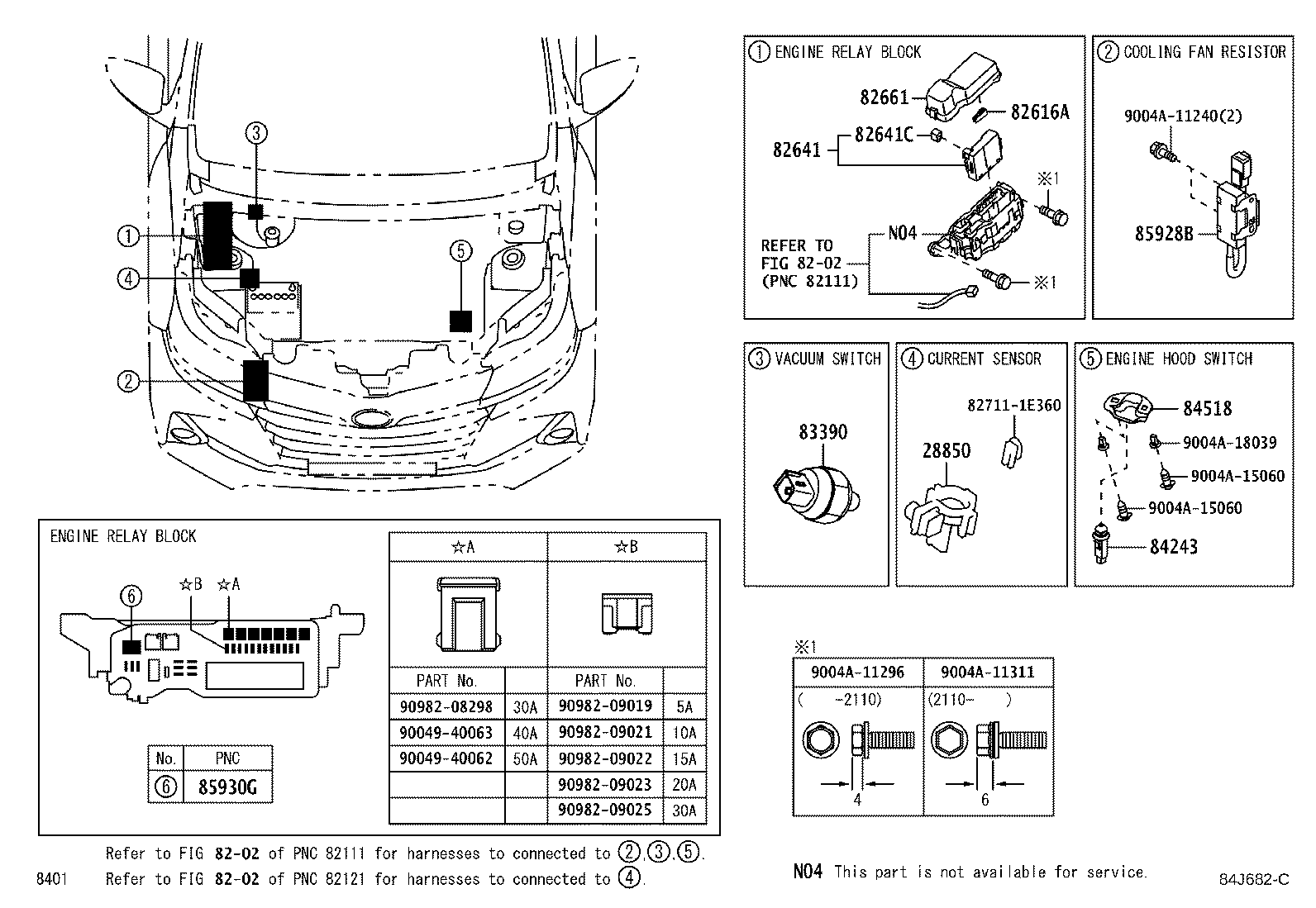

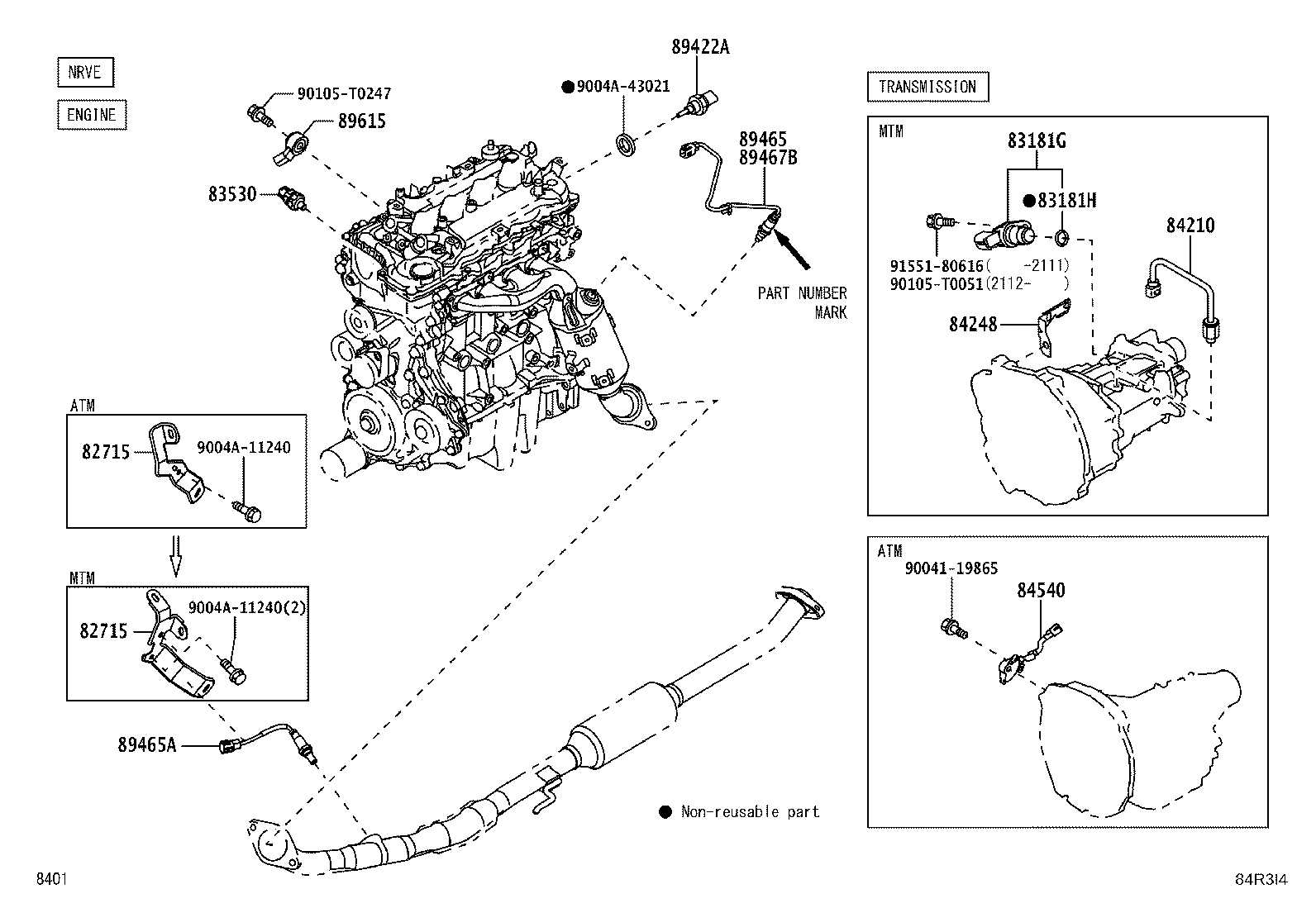

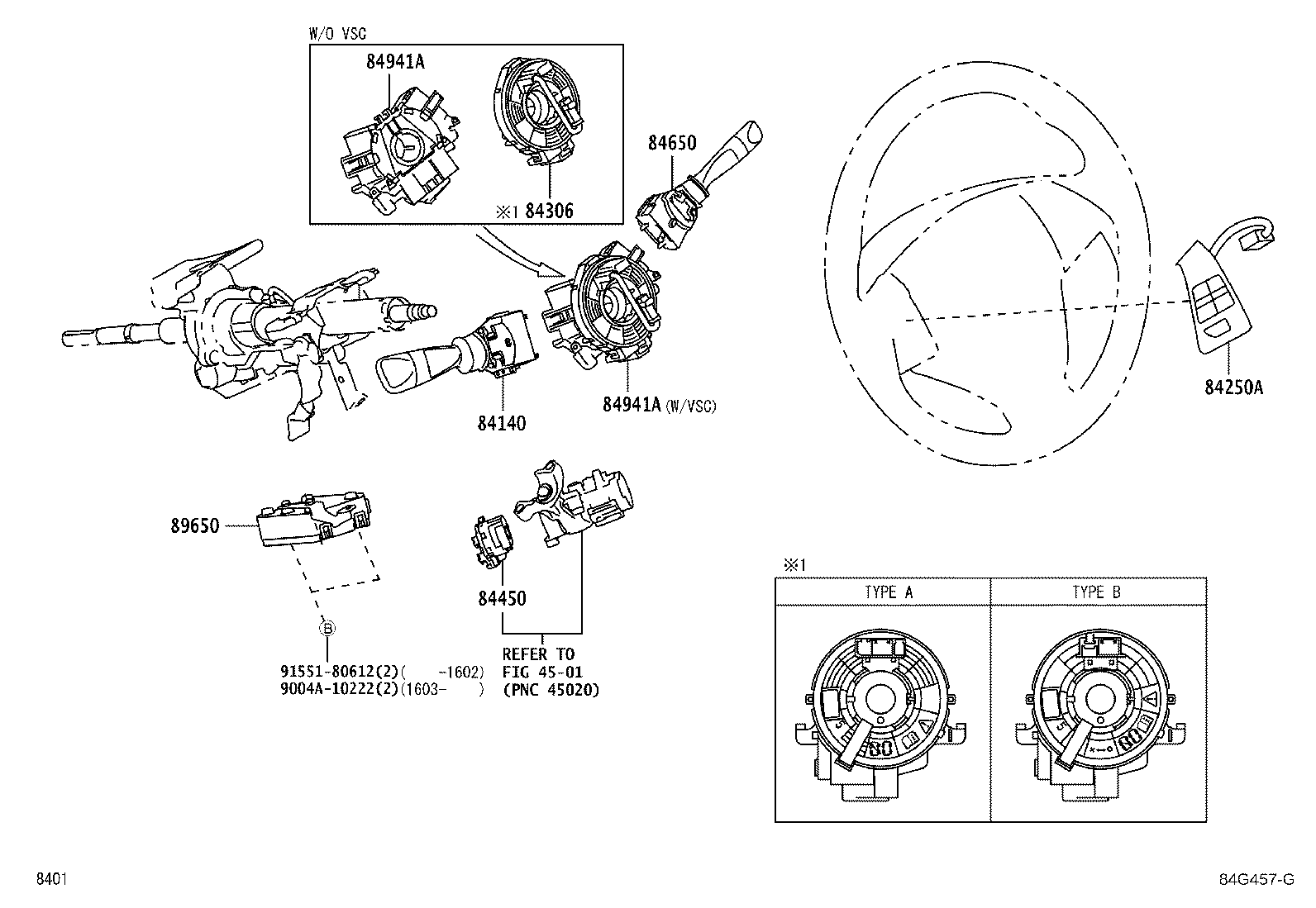

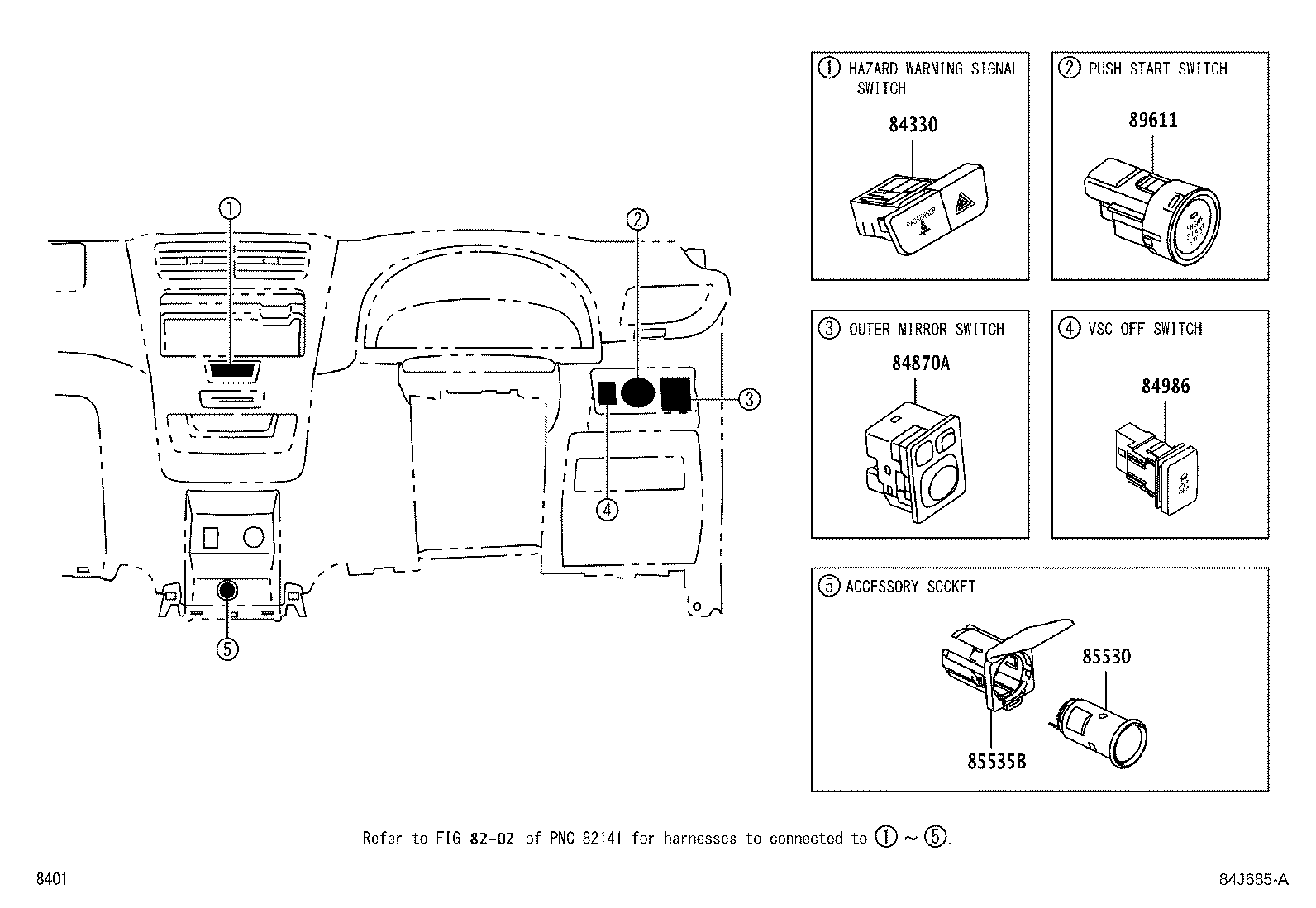

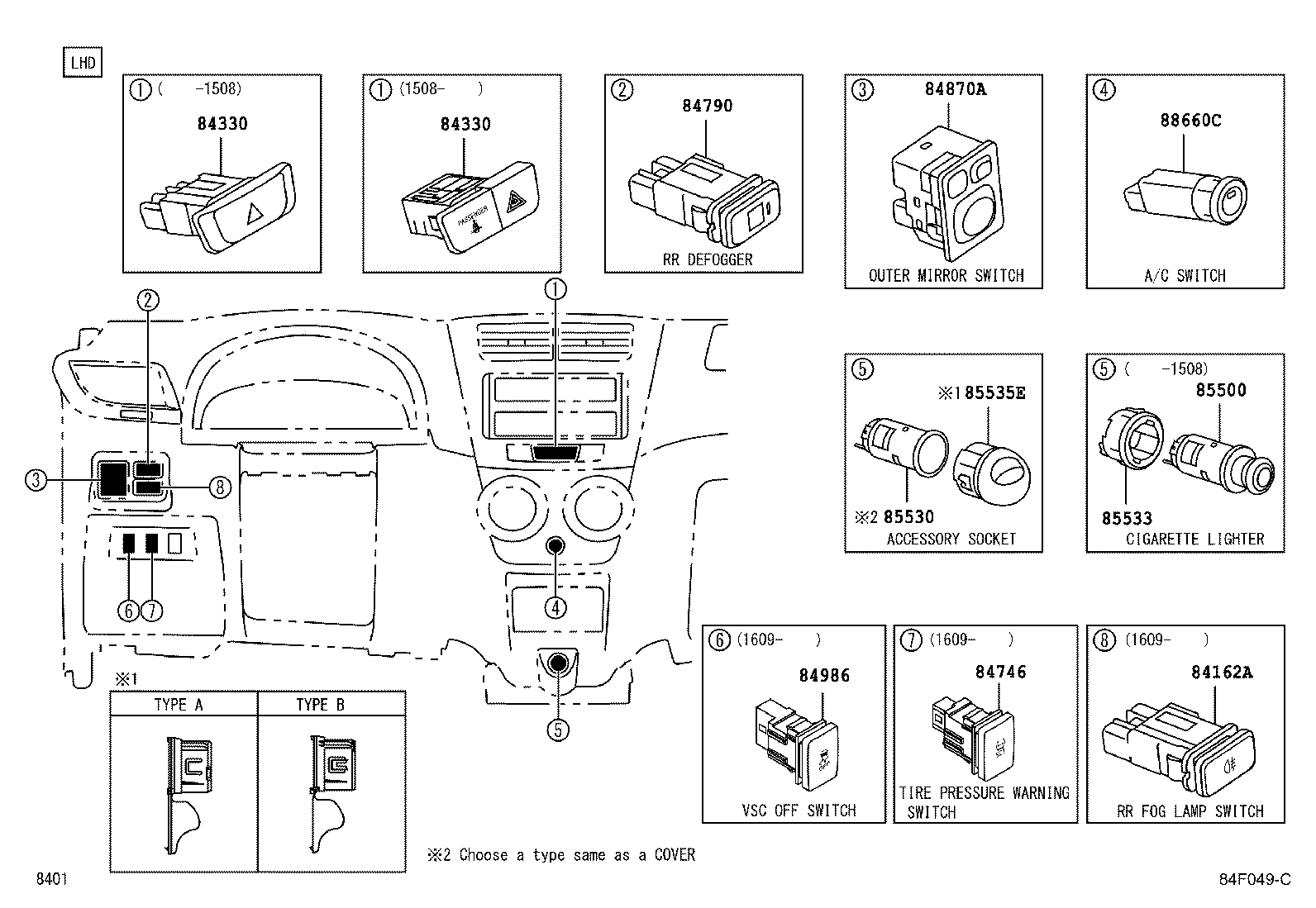

Figure 84C614A 84C614A 2011-11 → 2015-08 Figure 84R3I2 84R3I2 2011-11 → 2015-08 Figure 84R3I3 84R3I3 2015-07 → 2018-07 Figure 84R3I3 84R3I3 2015-08 → 2015-12 Figure 84R3I4 84R3I4 2015-08 → — Figure 84R3I4 84R3I4 2015-12 → — Figure 84R3I4 84R3I4 2018-07 → — Figure 84C616C 84C616C 2011-11 → 2015-08 Figure 84G335J 84G335J 2015-07 → 2019-01 Figure 84G335J 84G335J 2015-08 → 2019-04 Figure 84J682C 84J682C 2019-01 → — Figure 84J682C 84J682C 2019-04 → — Figure 84C617C 84C617C 2011-11 → 2015-08 Figure 84F048D 84F048D 2011-12 → 2015-08 Figure 84G477B 84G477B 2015-07 → 2019-01 Figure 84G477B 84G477B 2015-08 → 2019-04 Figure 84J683D 84J683D 2019-01 → — Figure 84J683D 84J683D 2019-04 → — Figure 84M752 84M752 2019-01 → 2020-12 Figure 84M752 84M752 2019-04 → 2020-12 Figure 84M751A 84M751A 2020-12 → — Figure 84G456D 84G456D 2015-08 → 2019-04 Figure 84J684C 84J684C 2019-04 → — Figure 84C618C 84C618C 2011-11 → — Figure 84C619C 84C619C 2011-11 → 2019-01 Figure 84C619C 84C619C 2011-11 → 2019-04 Figure 84J685A 84J685A 2019-01 → — Figure 84J685A 84J685A 2019-04 → — Figure 84F049C 84F049C 2011-12 → 2019-04 Figure 84J686A 84J686A 2019-04 → — Figure 84C620C 84C620C 2011-11 → 2015-08 Figure 84C621C 84C621C 2011-11 → 2015-08 Figure 84H158C 84H158C 2015-07 → — Figure 84G457G 84G457G 2015-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28850 Sensor Assy, Battery Current
81980 Flasher Assy, Turn Signal
82223E Wire, Clutch Start Switch
82600 Block Assy, Fuse
82616 Puller, Fuse
82616A Puller, Fuse, NO.2
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82661 Cover, Relay Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84140 Switch Assy, Headlamp Dimmer
84162A Switch, Rear Fog Lamp
84210 Switch Assy, Back-up Lamp
84231A Switch, Courtesy Lamp
84234D Cushion, Courtesy Switch
84243 Switch, Engine Hood
84248 Clamp, Center Cluster Module Switch Harness
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84518 Holder, Switch Cover
84520 Switch Assy, Clutch Start
84520E Switch Assy, Clutch Start, NO.2
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84746 Switch, Tire Pressure Warning
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84931C Switch, Back Door Control
84941A Base, Switch
84947B Cover, Switch
84986 Switch, Vehicle Stability Control
85500 Lighter Assy, Cigarette
85530 Socket Assy, Power Outlet, NO.1
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85912E Relay, Computer(FOR EFI)
85913C Relay, Heater, NO.1
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85918A Relay, Door Control
85925 Relay, Radiator Fan
85928B Resistor, Cooling Fan
85930G Relay, Acc
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85935 Relay, Fuel Pump
86530 Relay Assy, Horn
88630Y Relay, Rear Cooler
88660C Switch Assy, Cooler Control
89279A Cover, Computer
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89424B Switch, Inlet Air Temperature
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89530C Computer Assy, Transmission Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89760 Computer Assy, Tire Pressure Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
