Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

5 part groups · 5 illustrations

Illustrations

Figure 84C635F

84C635F 2011-11 → 2015-08

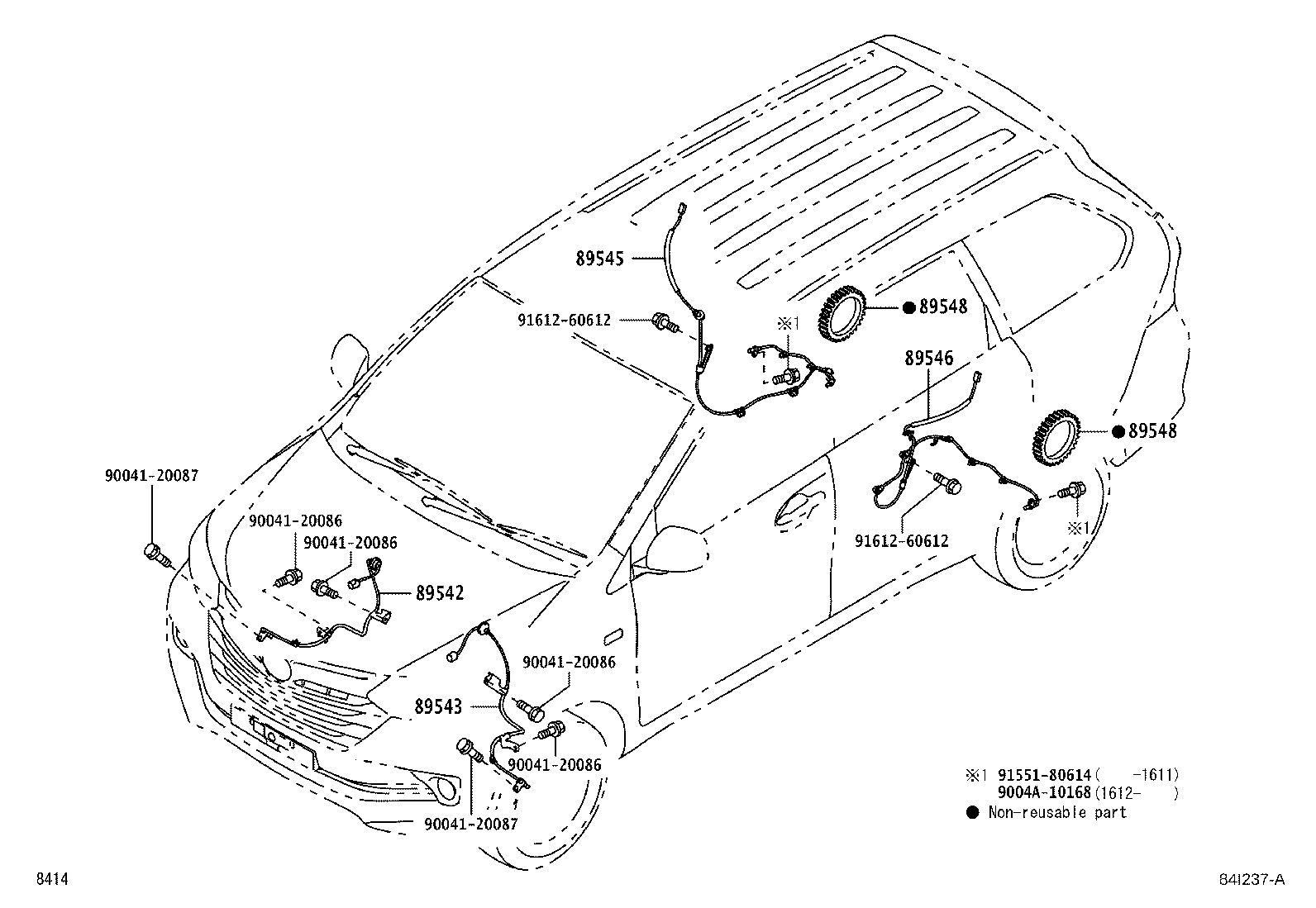

Figure 84I237A

84I237A 2015-07 → 2019-01

Figure 84I237A

84I237A 2015-07 → 2019-04

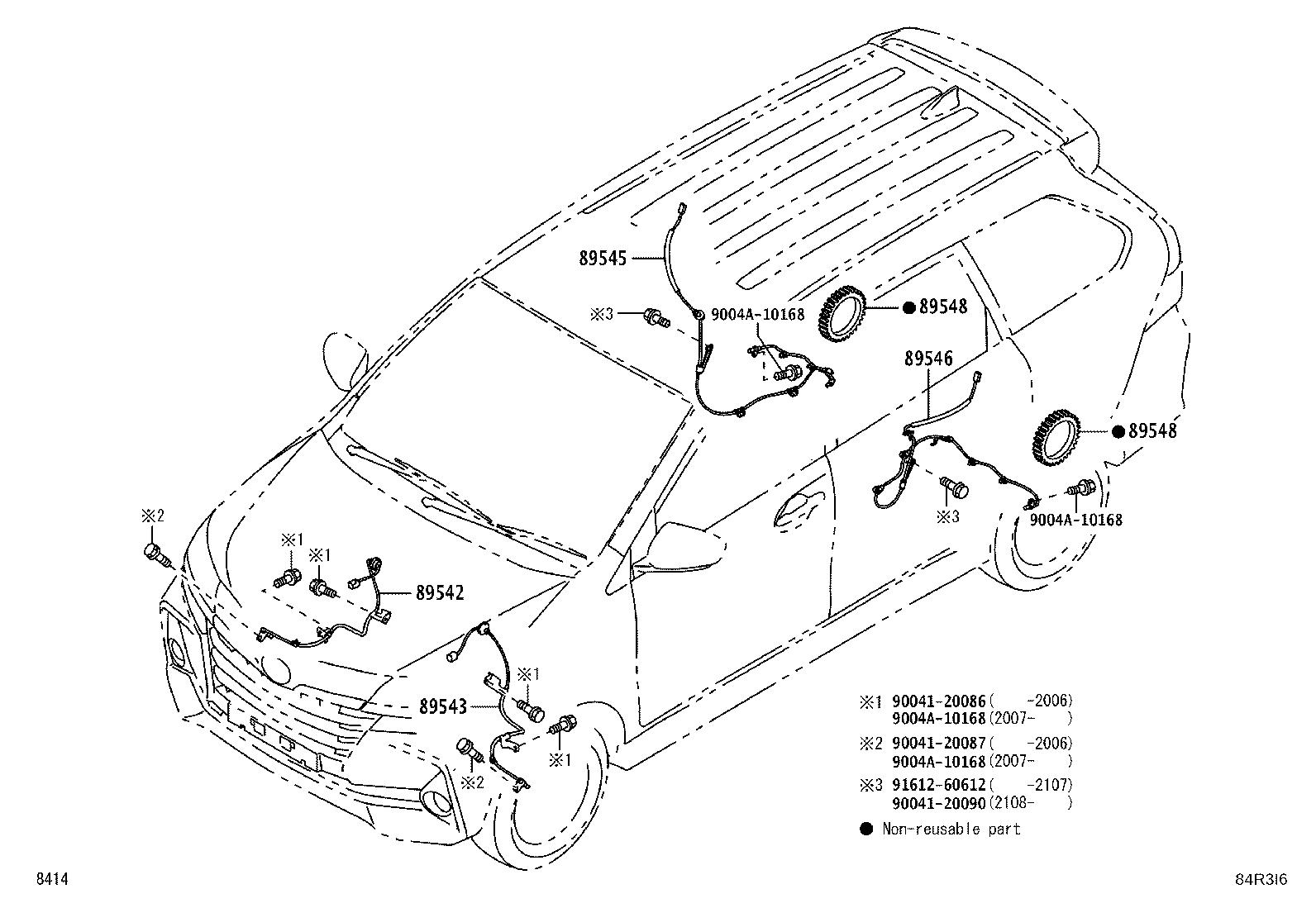

Figure 84R3I6

84R3I6 2019-01 → —

Figure 84R3I6

84R3I6 2019-04 → —

Part groups

PNC	Description
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89548	Rotor, Skid Control Sensor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
