Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 13 illustrations

Illustrations

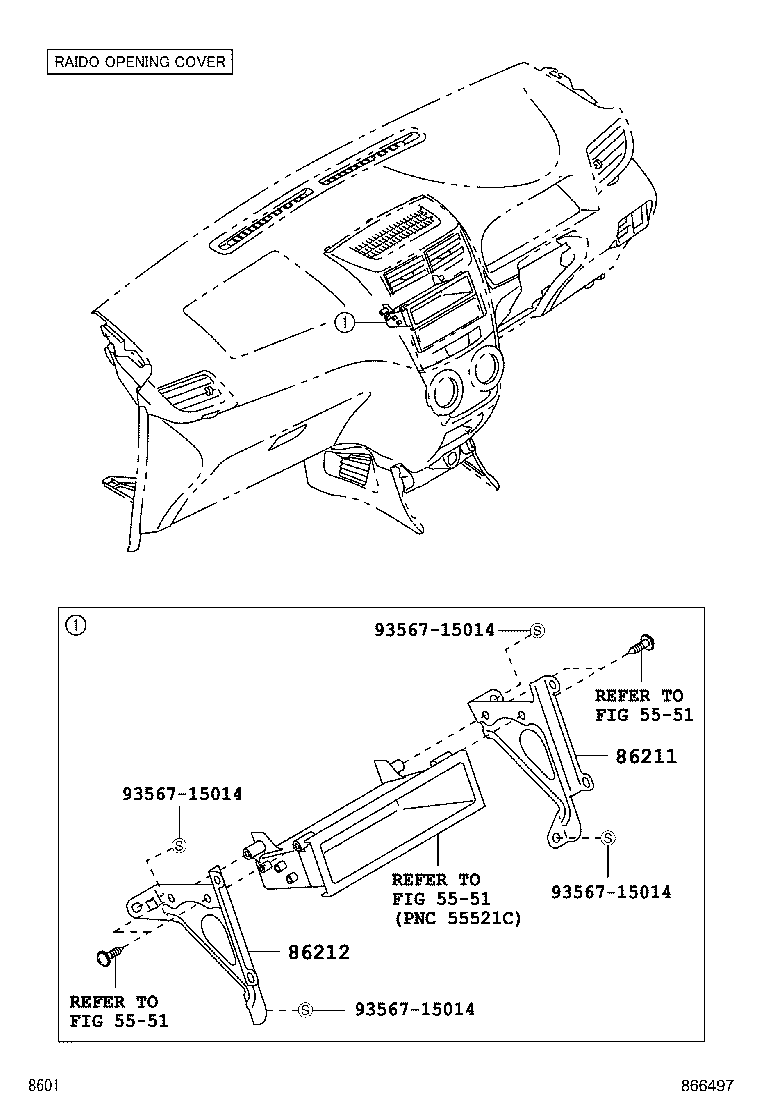

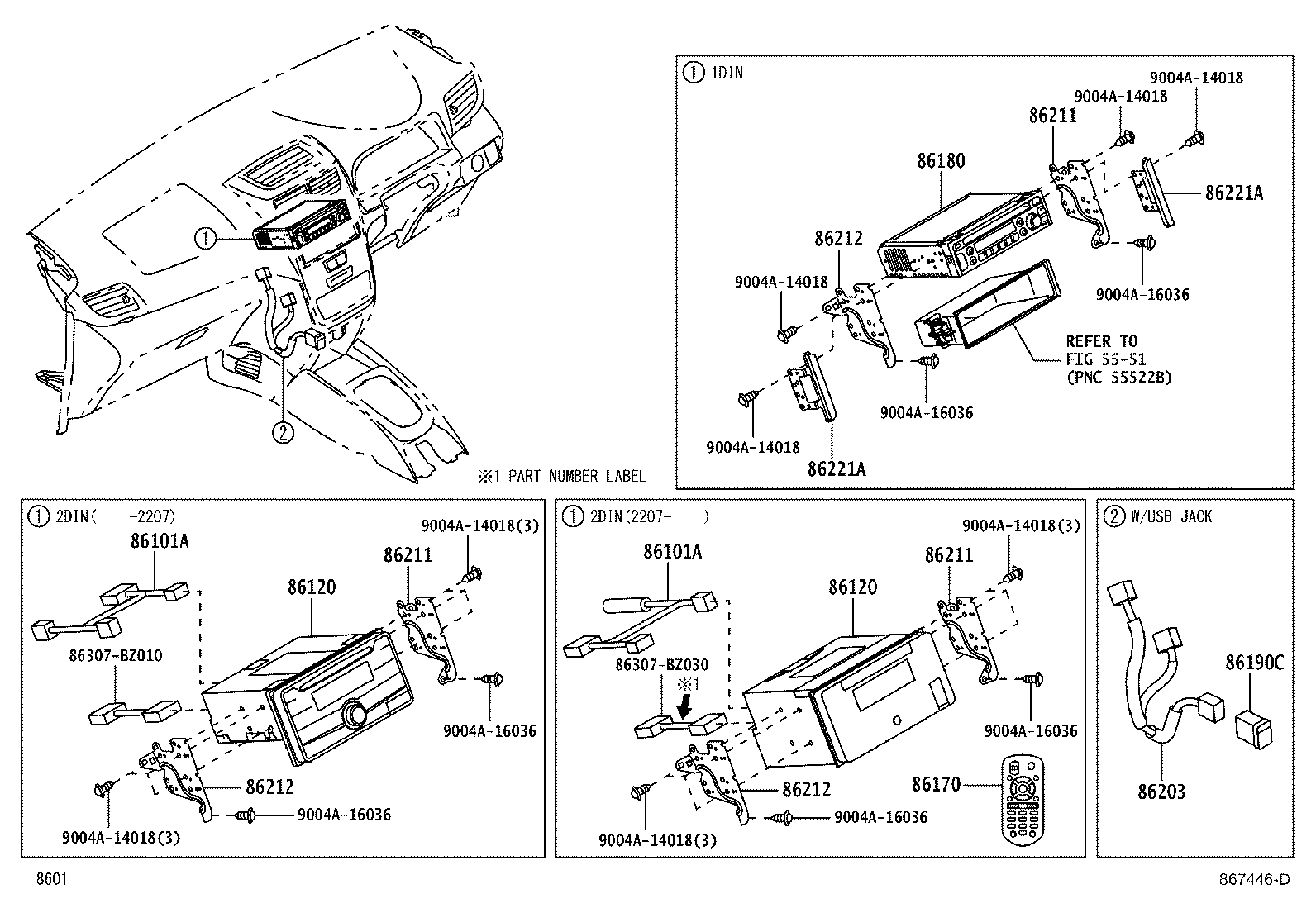

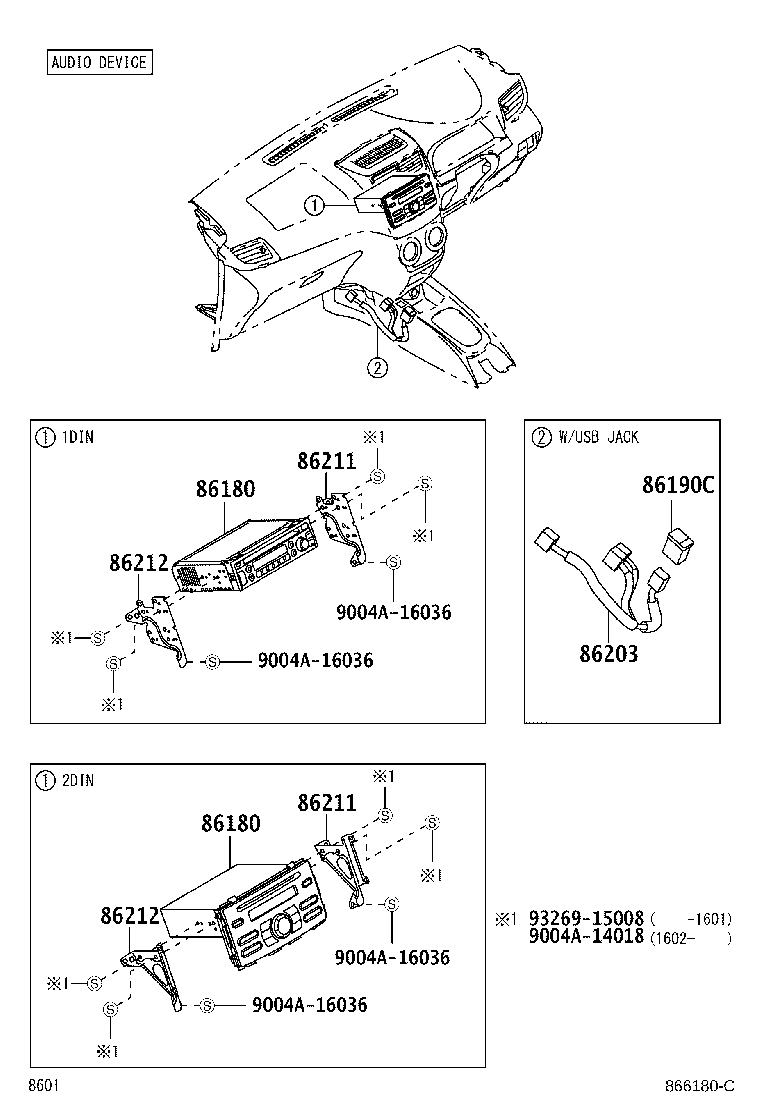

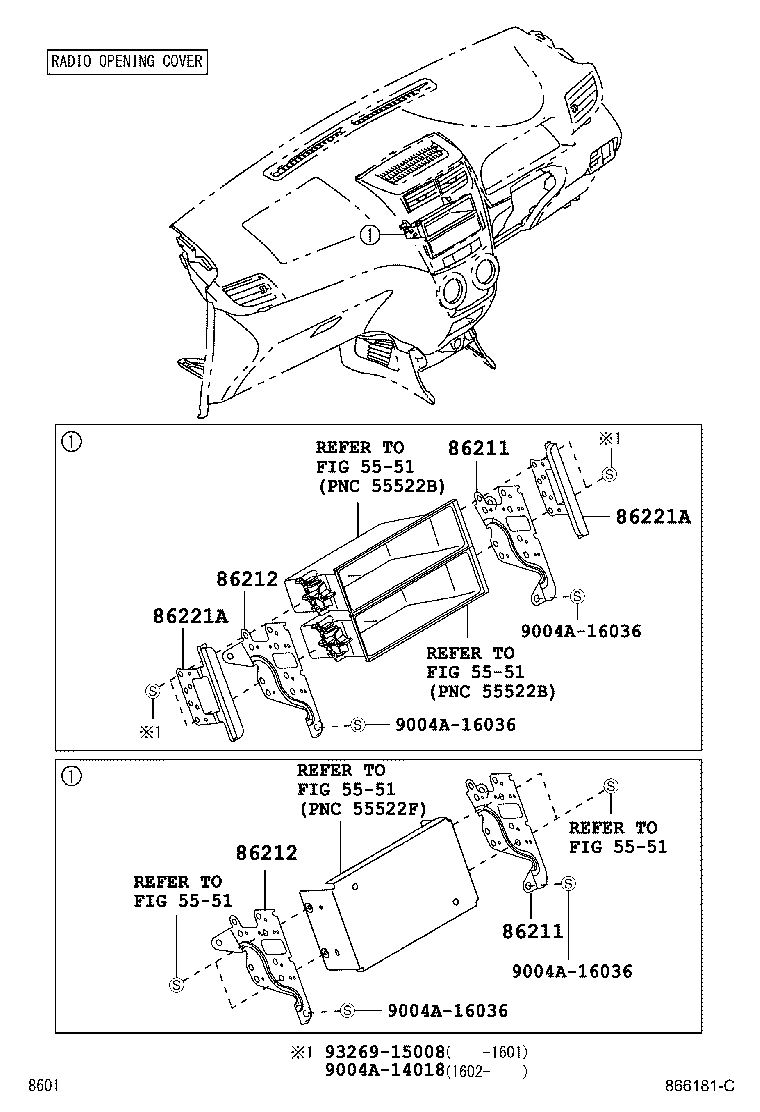

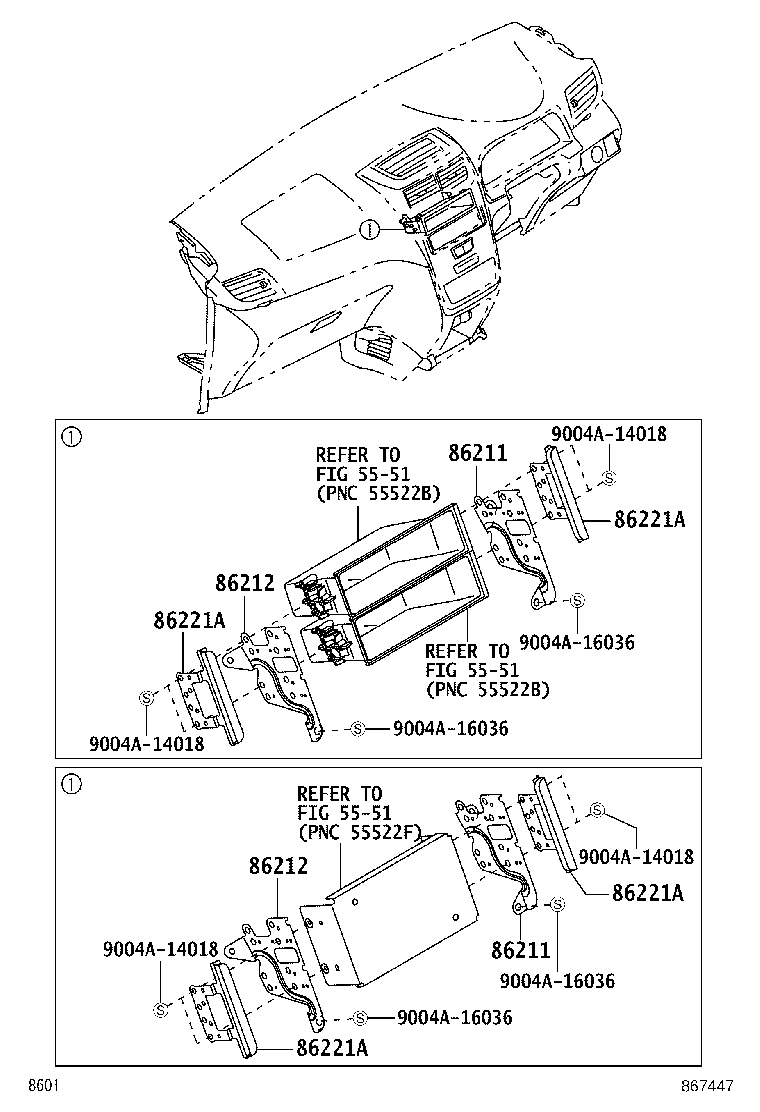

Figure 864710C 864710C 2011-11 → 2015-08 Figure 864710C 864710C 2011-11 → 2015-08 Figure 866180C 866180C 2015-07 → 2019-01 Figure 866180C 866180C 2015-07 → 2019-04 Figure 866180C 866180C 2016-09 → 2019-04 Figure 867446D 867446D 2019-01 → — Figure 867446D 867446D 2019-04 → — Figure 866497 866497 2011-11 → 2015-08 Figure 866181C 866181C 2015-07 → 2019-01 Figure 866181C 866181C 2015-08 → 2019-04 Figure 866181C 866181C 2015-08 → 2019-04 Figure 867447 867447 2019-01 → — Figure 867447 867447 2019-04 → —

Part groups

PNCDescription
86101A Cord Sub-assy, Antenna, NO.1
86120 Receiver Assy, Radio
86170 Switch And Volume Assy, Radio
86180 Tuner Assy, Stereo Component
86190C Adapter Assy, Stereo Jack, NO.1
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
