Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

15 part groups · 8 illustrations

Illustrations

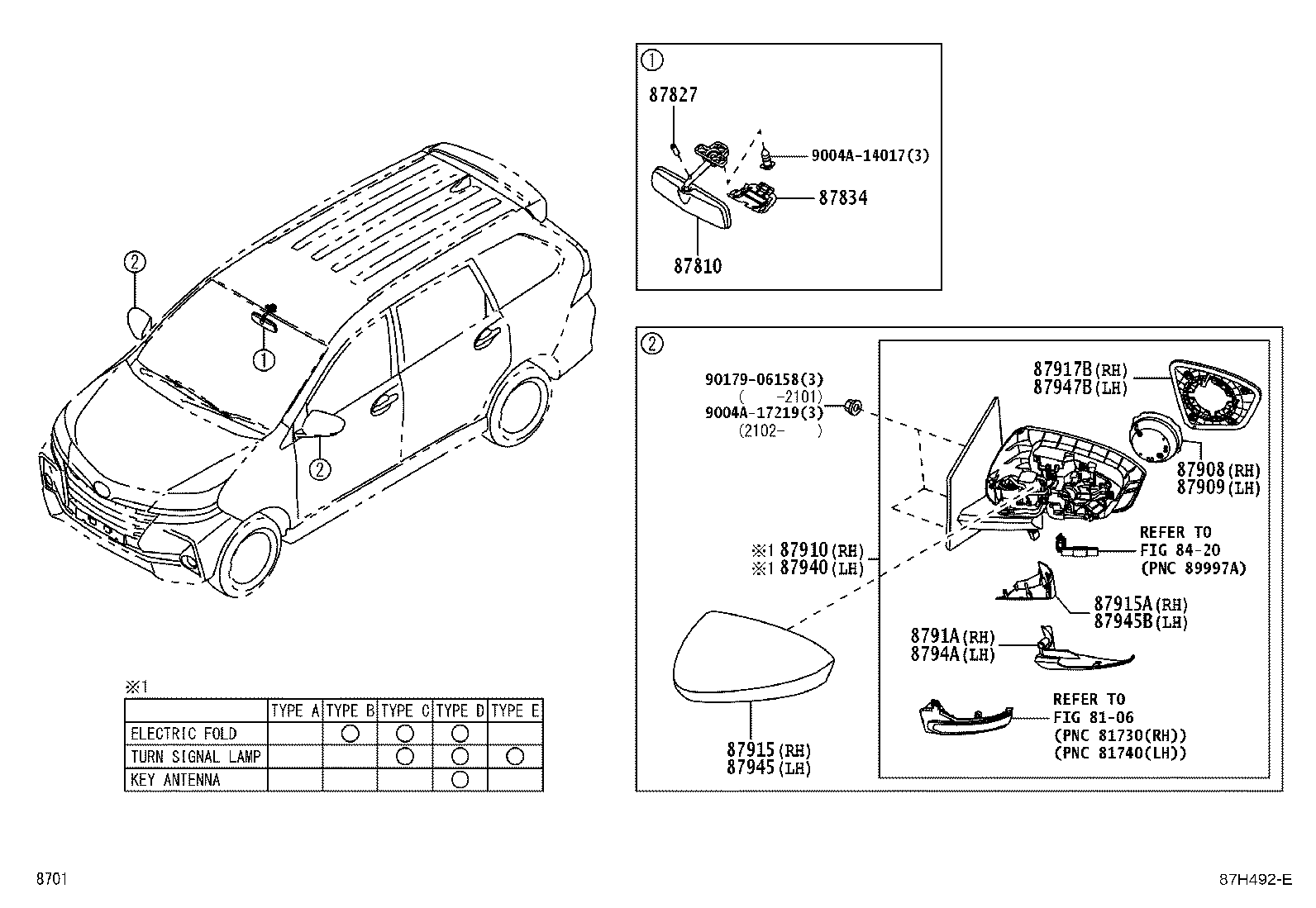

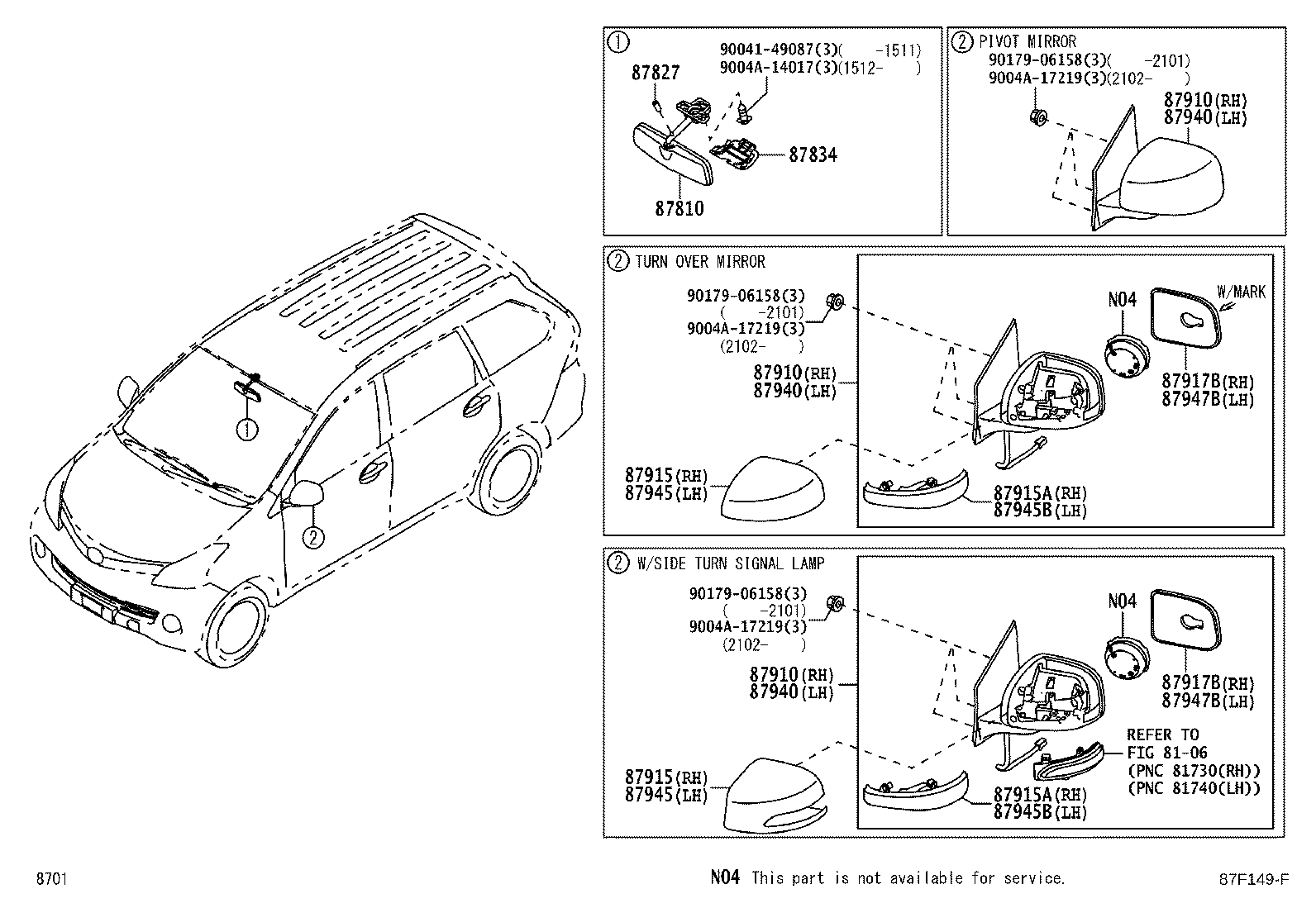

Figure 87C487B 87C487B 2011-11 → 2015-08 Figure 87F149F 87F149F 2015-07 → 2019-01 Figure 87F149F 87F149F 2015-08 → 2019-04 Figure 87F149F 87F149F 2019-01 → — Figure 87F149F 87F149F 2019-04 → — Figure 87F149F 87F149F 2019-04 → — Figure 87H492E 87H492E 2019-01 → — Figure 87H492E 87H492E 2019-04 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87908 Actuator Assy, Outer Mirror, RH
87909 Actuator Assy, Outer Mirror, LH
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87915A Cover, Outer Mirror, RH
87917B Mirror, Outer Rear View, RH
8791A Cover, Outer Mirror, RH NO.2
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
87945B Cover, Outer Mirror, LH
87947B Mirror, Outer Rear View, LH
8794A Cover, Outer Mirror, LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
