Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · General
Supported model
Data version 2022-11

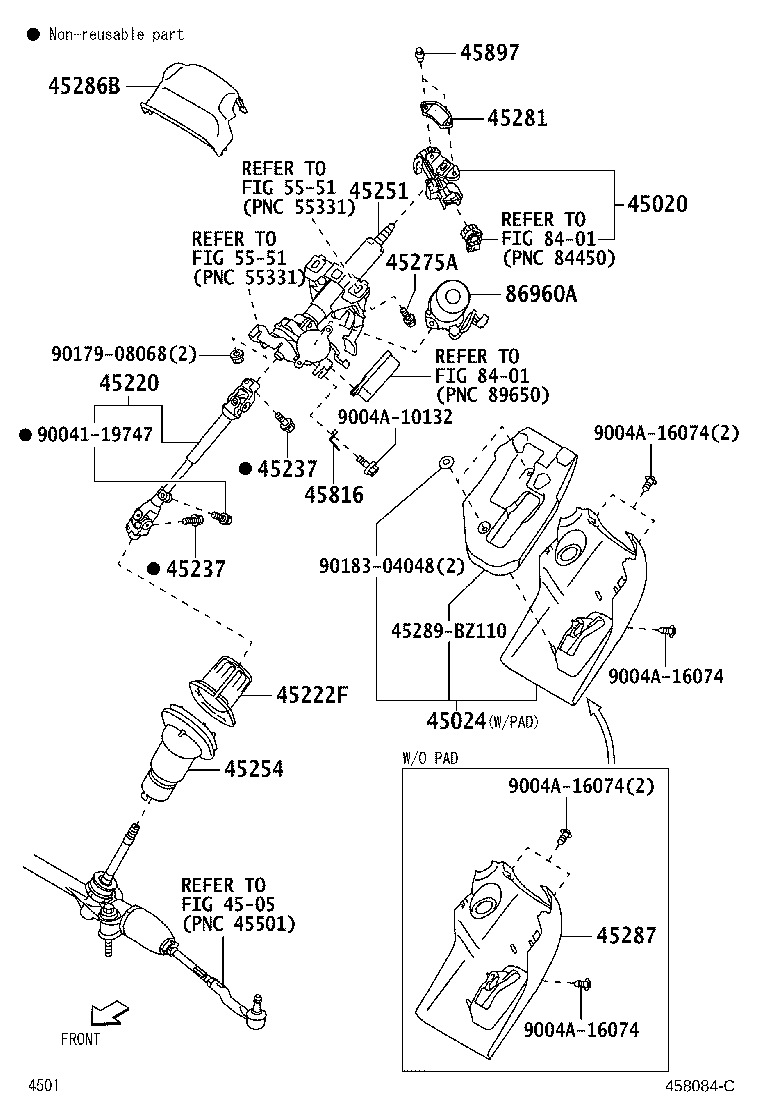

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45020 — Bracket Assy, Steering Column Upper W/Switch | ||||
| 45020-BZ400 |
Bracket Assy, Steering Column Upper W/Switch
2021-11 → —
|
W100 CVT;W101 CVT MXC | — | |
| 45020-BZ410 |
Bracket Assy, Steering Column Upper W/Switch
2021-11 → —
|
W100 5F;W101 5F G | — | |
| 45024 — Cover Sub-assy, Steering Column, Lower | ||||
| 45024-BZ100-C0 note |
Cover Sub-assy, Steering Column, Lower
2021-11 → —
|
W100 IDN,PHL | — | |
| 45024-BZ110-C0 note |
Cover Sub-assy, Steering Column, Lower
2021-11 → 2024-09
ended
|
W101 (S,V) (IDN,PHL,THAI,VN) | — | |
| 45024-BZ110-C0 note |
Cover Sub-assy, Steering Column, Lower
2021-11 → —
|
W101 M (IDN,PHL,VN) | — | |
| 45024-BZ210-C0 note |
Cover Sub-assy, Steering Column, Lower
2024-09 → —
|
W101 (S,V) (IDN,PHL,THAI,VN) | — | |
| 45220 — Shaft Assy, Steering Intermediate | ||||
| 45220-BZ450 |
Shaft Assy, Steering Intermediate
2021-11 → —
|
W100,101 RHD | — | |
| 45220-BZ460 |
Shaft Assy, Steering Intermediate
2022-01 → —
|
W100,101 LHD | — | |
| 45222F — Cover, Dust | ||||
| 45222-BZ210 |
Cover, Dust
2021-11 → —
|
W100,101 RHD | — | |
| 45222-BZ220 |
Cover, Dust
2022-01 → —
|
W100,101 LHD | — | |
| 45237 — Bolt, Flexible Attaching(FOR STEERING MAIN SHAFT) | ||||
| 90041-19747 |
Bolt, Flexible Attaching(FOR STEERING MAIN SHAFT)
2021-11 → —
|
W100,101 | — | |
| 45251 — Tube Set, Steering Column | ||||
| 45251-B9270 |
Tube Set, Steering Column
2021-11 → —
|
W100;W101 MXC;W101 5F GEN | — | |
| 45251-B9280 |
Tube Set, Steering Column
2022-01 → —
|
W101 LHD 5F M | — | |
| 45251-B9290 |
Tube Set, Steering Column
2021-11 → —
|
W101 LHD CVT (GEN,PHL,VN);W101 +2 | — | |
| 45251-B9715 note |
Tube Set, Steering Column
2024-09 → —
|
W101 RHD CVT | — | |
| 45251-B9720 note |
Tube Set, Steering Column
2024-09 → —
|
W101 LHD CVT (GCC,GEN,PHL) | — | |
| 45254 — Shield, Steering Column Hole | ||||
| 45254-BZ270 |
Shield, Steering Column Hole
2021-11 → —
|
W100,101 RHD | — | |
| 45254-BZ280 |
Shield, Steering Column Hole
2022-01 → —
|
W100,101 LHD | — | |
| 45275A — Bolt, Hexagon(FOR STEERING COLUMN BRACKET) | ||||
| 90041-20097 |
Bolt, Hexagon(FOR STEERING COLUMN BRACKET)
2021-11 → —
|
W100,101 | — | |
| 45281 — Housing, Steering Column | ||||
| 45281-BZ160 |
Housing, Steering Column
2021-11 → —
|
W100;W101 MXC;W101 5F GEN | — | |
| 45286B — Cover, Steering Column, Upr | ||||
| 45023-BZ010-C0 note |
Cover, Steering Column, Upr
2021-11 → 2024-09
ended
|
W101 S,V | — | |
| 45023-BZ010-C0 note |
Cover, Steering Column, Upr
2021-11 → —
|
W101 M;W101 CVT G +1 | — | |
| 45023-BZ040-C0 note |
Cover, Steering Column, Upr
2024-09 → —
|
W101 S,V | — | |
| 45286-BZ340-C0 note |
Cover, Steering Column, Upr
2021-11 → —
|
W100;W101 MXC;W101 5F GEN | — | |
| 45287 — Cover, Steering Column, Lwr | ||||
| 45287-BZ430-C0 note |
Cover, Steering Column, Lwr
2021-11 → —
|
W100 CVT IDN | — | |
| 45287-BZ430-C0 note |
Cover, Steering Column, Lwr
2022-01 → —
|
W101 MXC;W100,101 5F GEN | — | |
| 45287-BZ440-C0 note |
Cover, Steering Column, Lwr
2021-11 → 2024-09
ended
|
W101 S,V | — | |
| 45287-BZ440-C0 note |
Cover, Steering Column, Lwr
2021-11 → —
|
W101 M;W101 CVT G +1 | — | |
| 45816 — Bracket, Wire Harness | ||||
| 82715-BZE80 |
Bracket, Wire Harness
2021-11 → 2022-12
ended
|
W101 5F PHL | — | |
| 82715-BZE80 |
Bracket, Wire Harness
2021-11 → —
|
W100;W101 CVT PHL;W101 GCC,GEN,IDN,MXC,THAI,VN | — | |
| 45897 — Bolt, Steering Lock Set | ||||
| 45897-B2010 |
Bolt, Steering Lock Set
2021-11 → —
|
W100;W101 MXC;W101 5F GEN | — | |
| 86960A — Motor Set, Power Steering | ||||
| 80960-B9191 |
Motor Set, Power Steering
2021-11 → —
|
W100,101 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
