Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

11 part groups · 2 illustrations

Illustrations

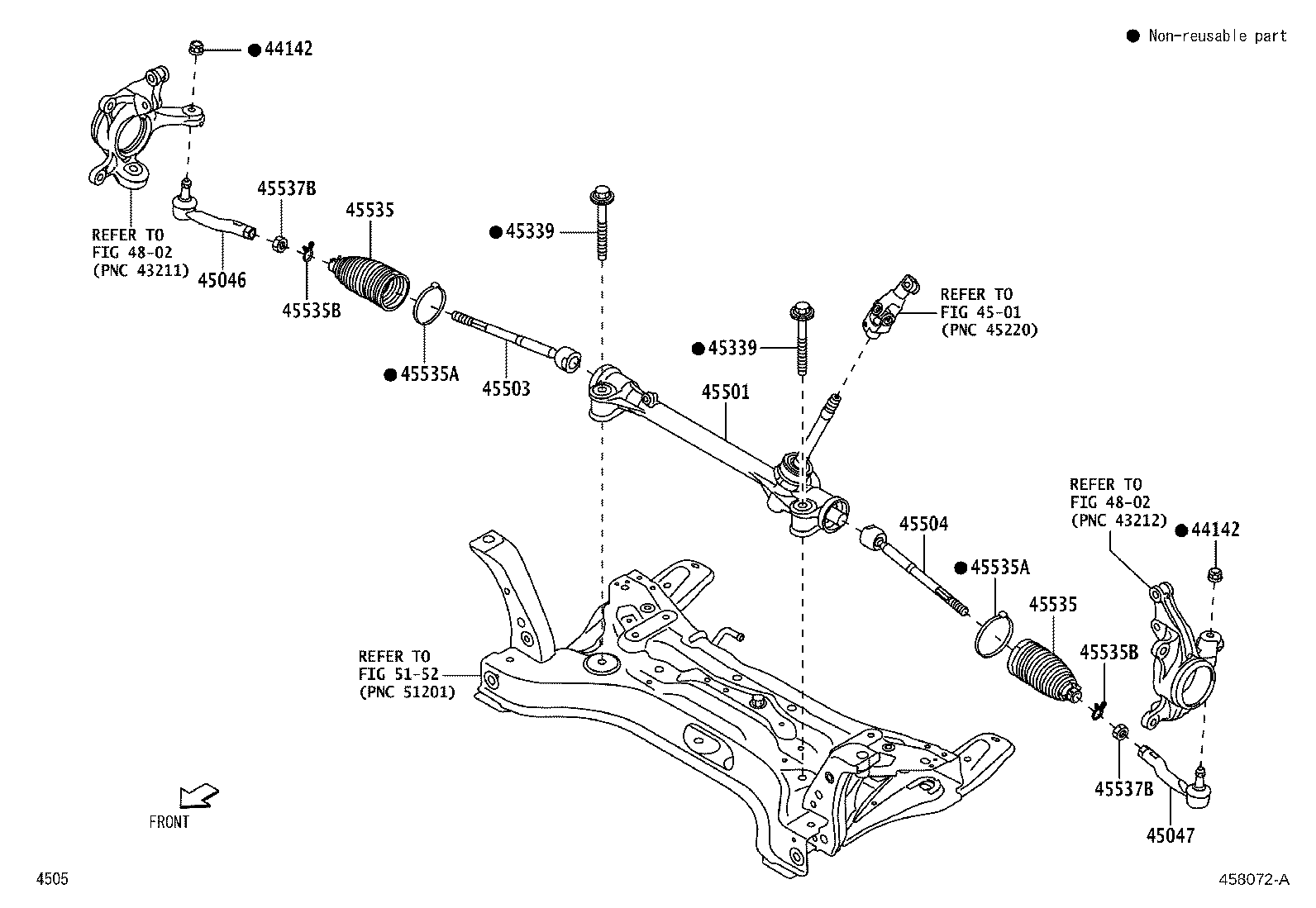

Figure 458071A 458071A 2021-11 → — Figure 458072A 458072A 2022-01 → —

Part groups

PNCDescription
44142 Nut, Lock
45046 End Sub-assy, Tie Rod, RH
45047 End Sub-assy, Tie Rod, LH
45339 Bolt, Steering Gear Housing
45501 Housing Sub-assy, Steering Rack
45503 End Sub-assy, Steering Rack
45504 End Sub-assy, Steering Rack, NO.2
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
45537B Nut, Rack End Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
