Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

12 part groups · 2 illustrations

Illustrations

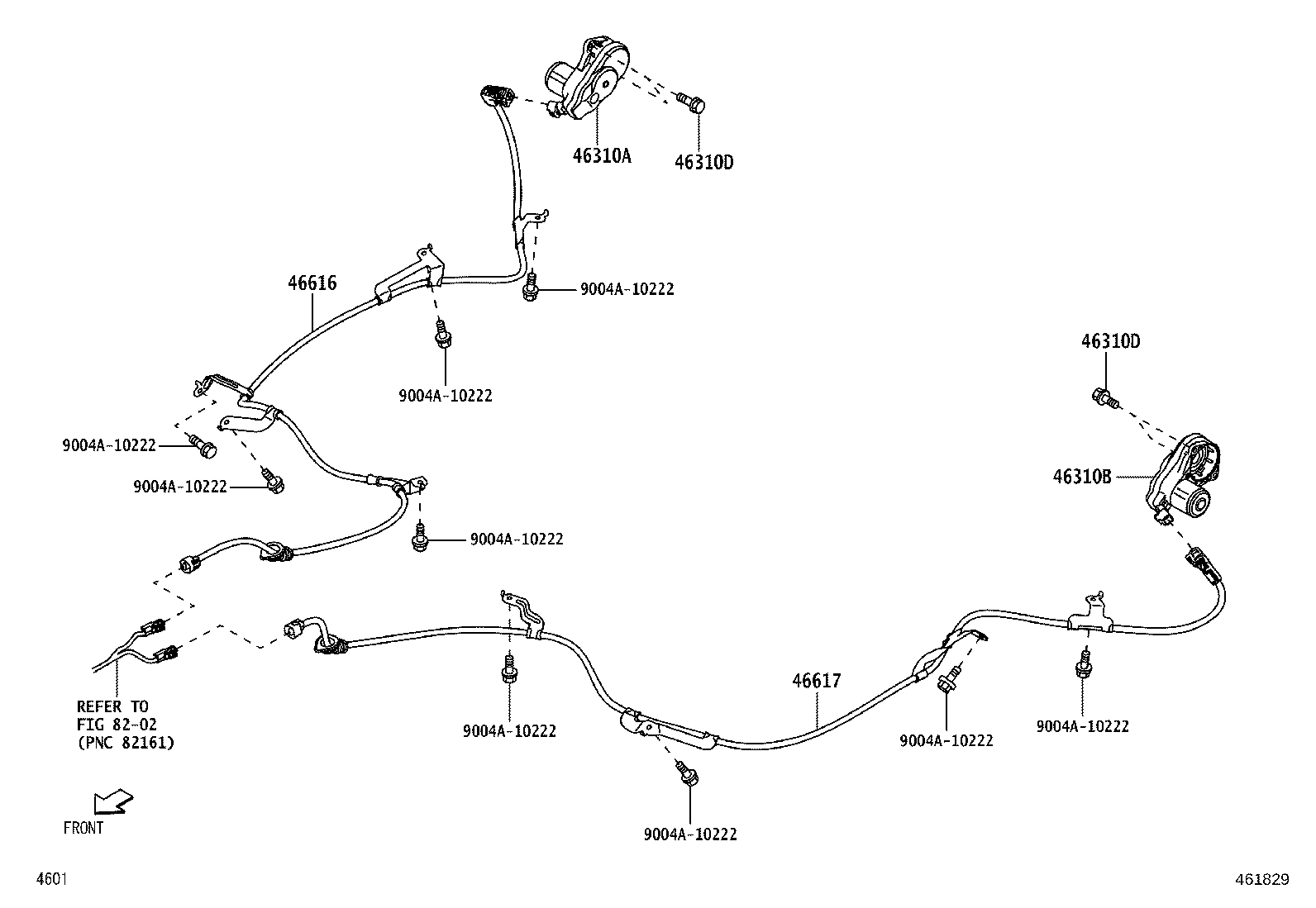

Figure 461828A 461828A 2021-11 → — Figure 461829 461829 2021-11 → —

Part groups

PNCDescription
46210 Lever Assy, Parking Brake
46233 Support, Parking Brake Center
46310A Actuator Assy, Parking Brake, RH
46310B Actuator Assy, Parking Brake, LH
46310D Bolt(FOR PARKING BRAKE ACTUATOR)
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46467 Clamp, Cable
46616 Wire, Parking Brake, RH
46617 Wire, Parking Brake, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
