Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 3 illustrations

Illustrations

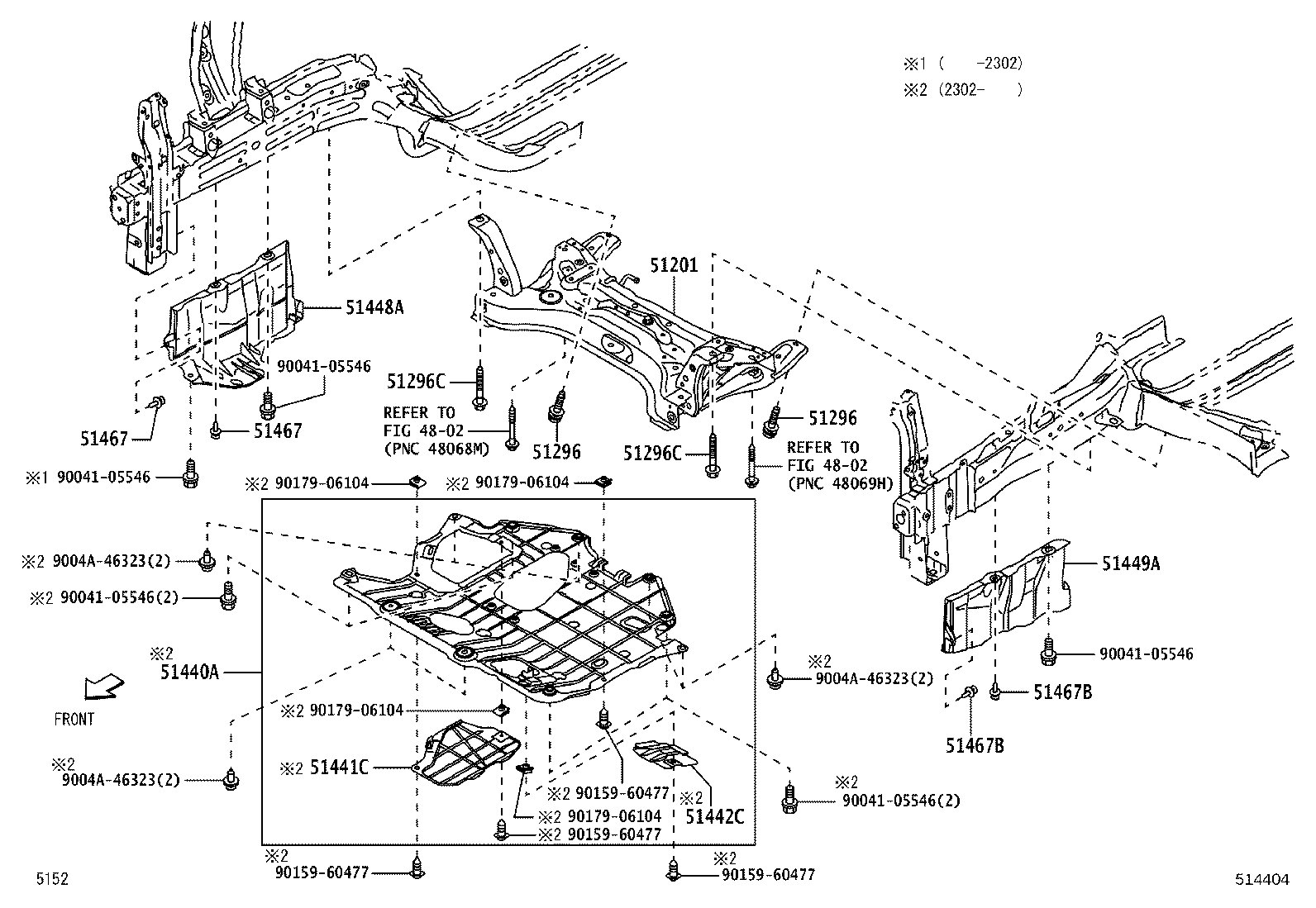

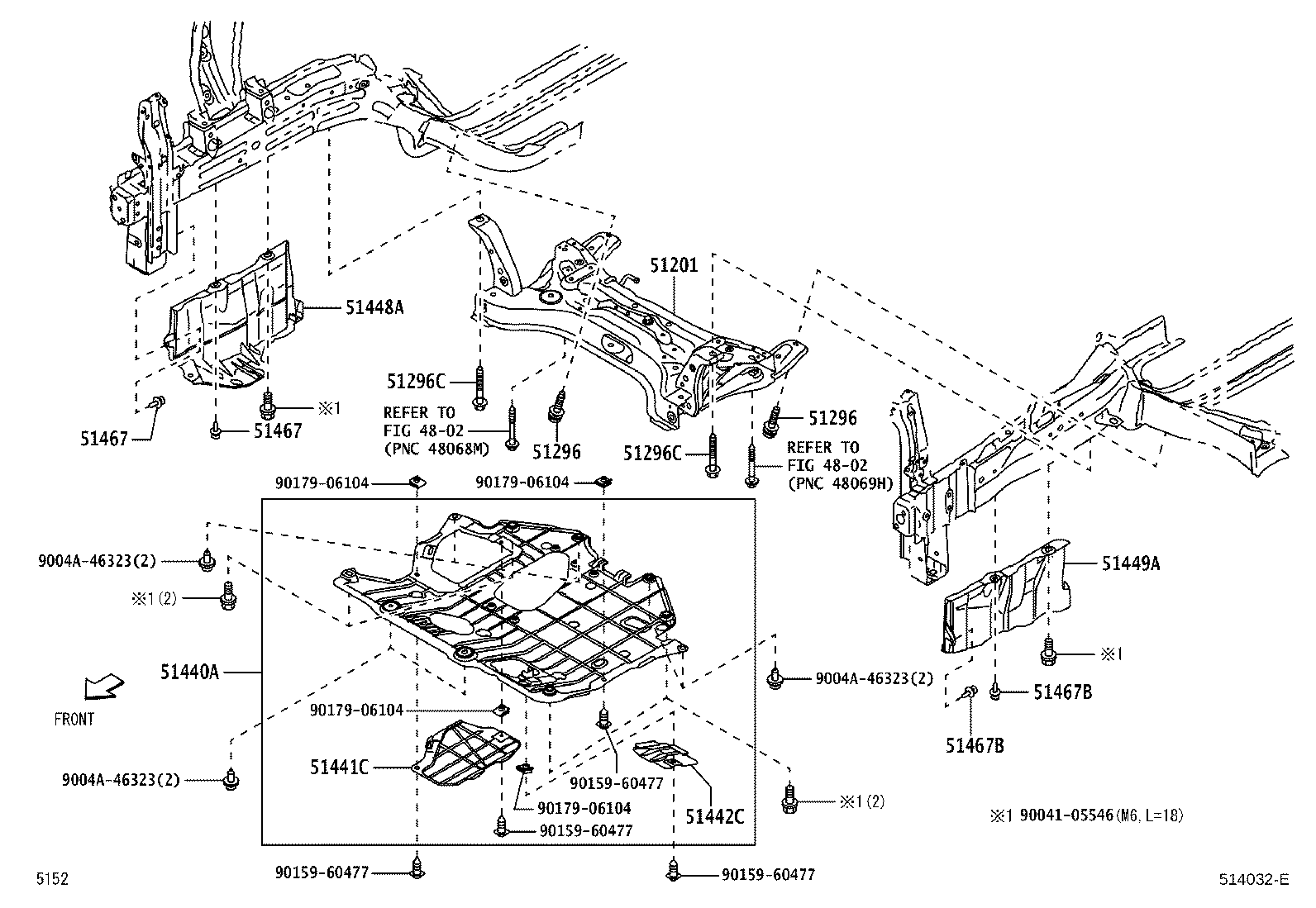

Figure 514389B 514389B 2021-11 → — Figure 514032E 514032E 2022-01 → — Figure 514404 514404 2022-12 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51296 Bolt, Front Suspension Member Mounting
51296C Bolt, Front Suspension Member Mounting
51440A Cover Assy, Engine Under
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51448A Cover, Engine Side Under, RH
51449A Cover, Engine Side Under, LH
51467 Retainer, Engine Under Cover
51467B Retainer, Engine Under Cover
52255A Brace, Front Suspension Member, Front RH
52256A Brace, Front Suspension Member, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
