Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · General
Supported model
Data version 2022-11
Hood & Front Fender
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

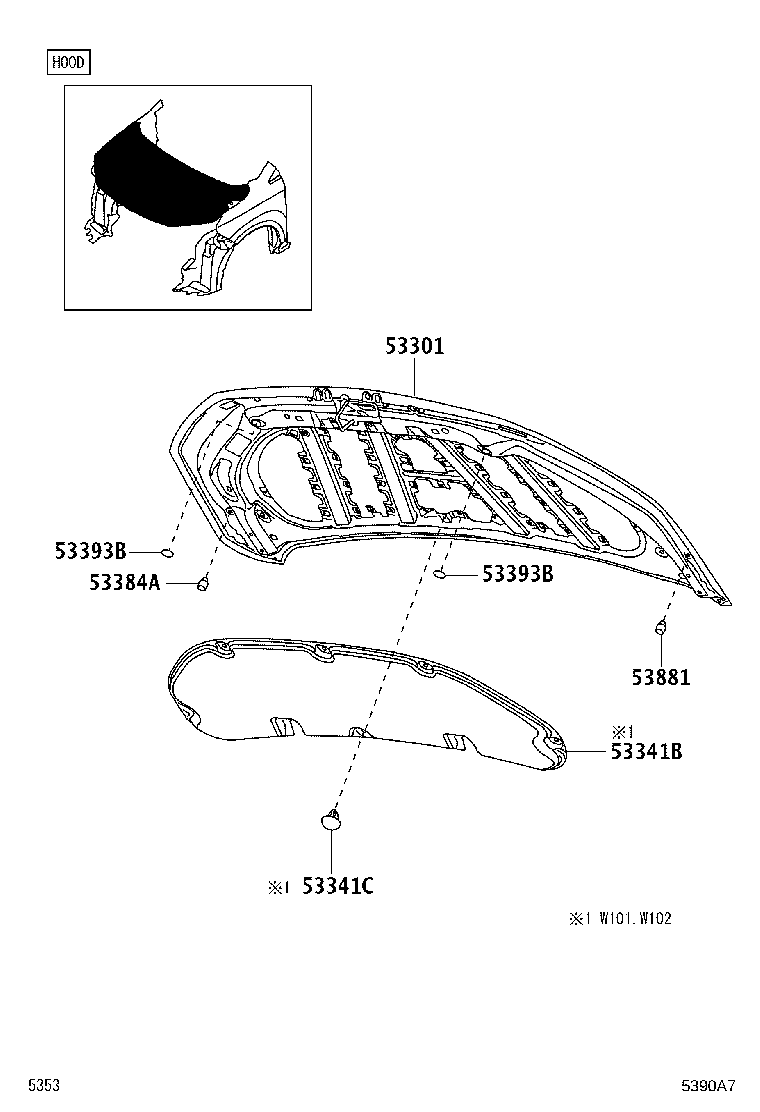

| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53384A | Bumper, Fender TO Hood |
| 53393B | Protector, Hood, Front |

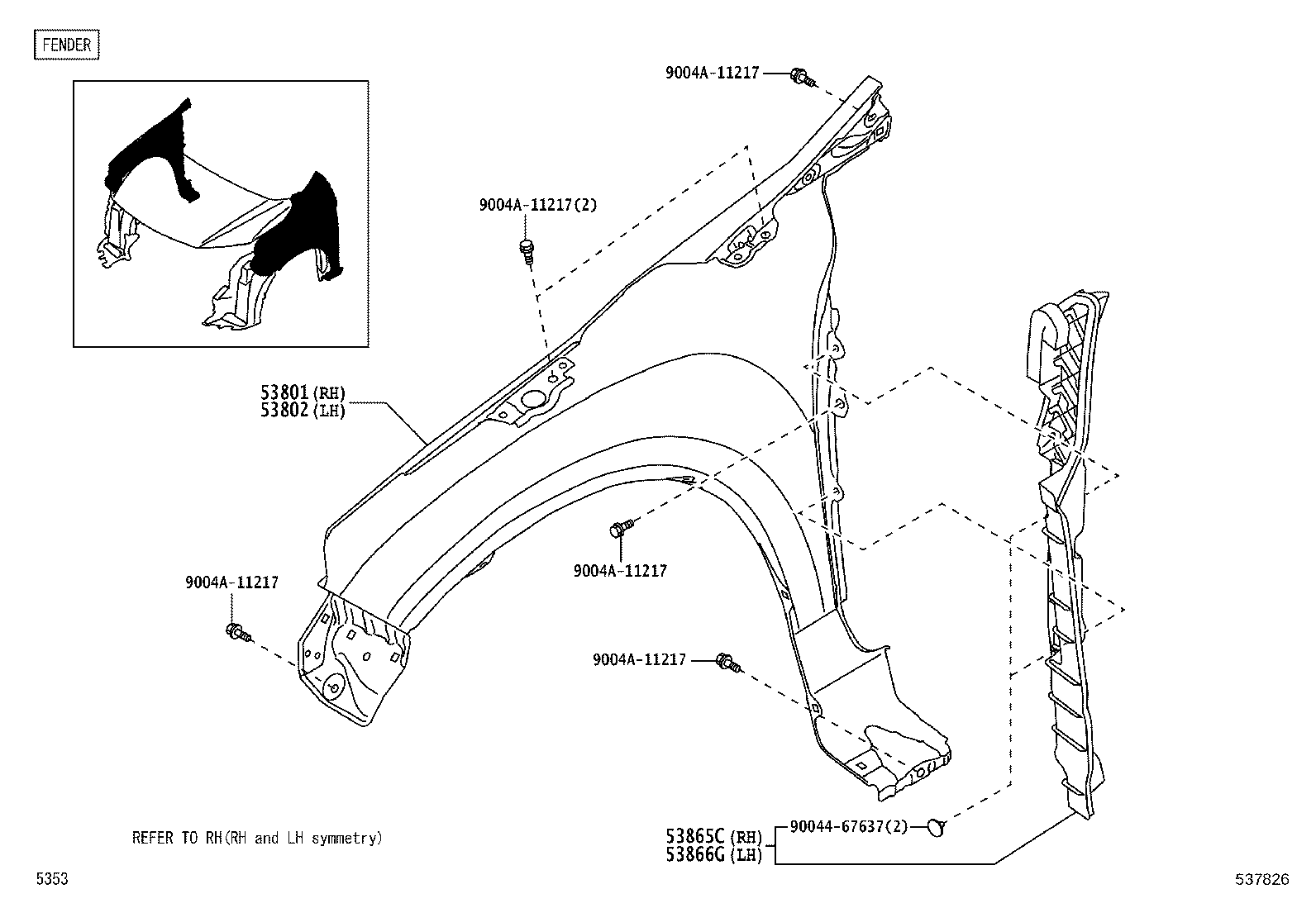

| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53813B | Extension, Front Fender, RH |
| 53814B | Extension, Front Fender, LH |
| 53865C | Plate, Front Fender Extension, RH |
| 53866G | Plate, Front Fender Extension, LH |

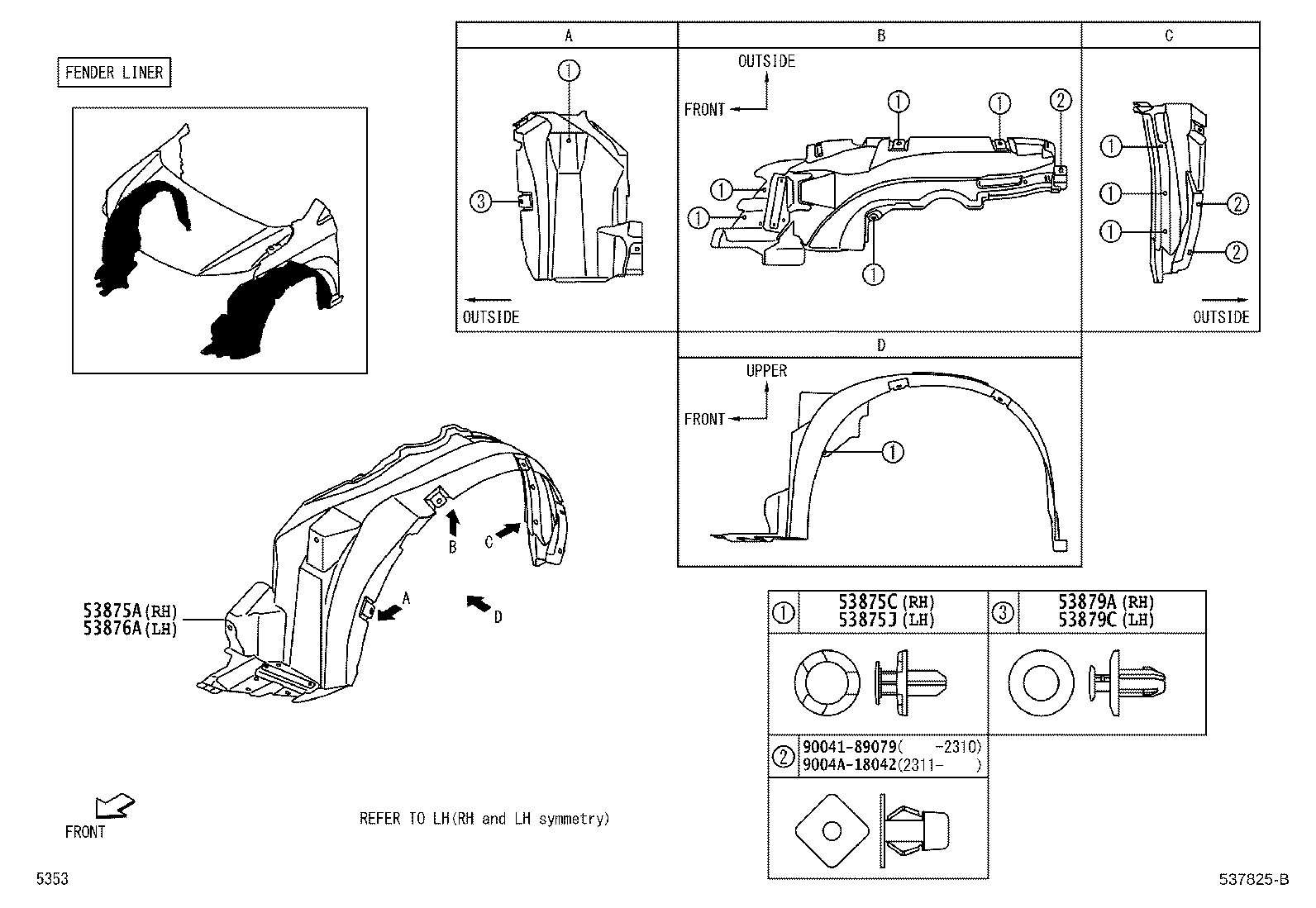

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875J | Clip, Front Fender Liner |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53879C | Retainer, Front Fender Liner |
| 53881 | Bumper, Fender TO Hood |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
