Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · General
Supported model
Data version 2022-11

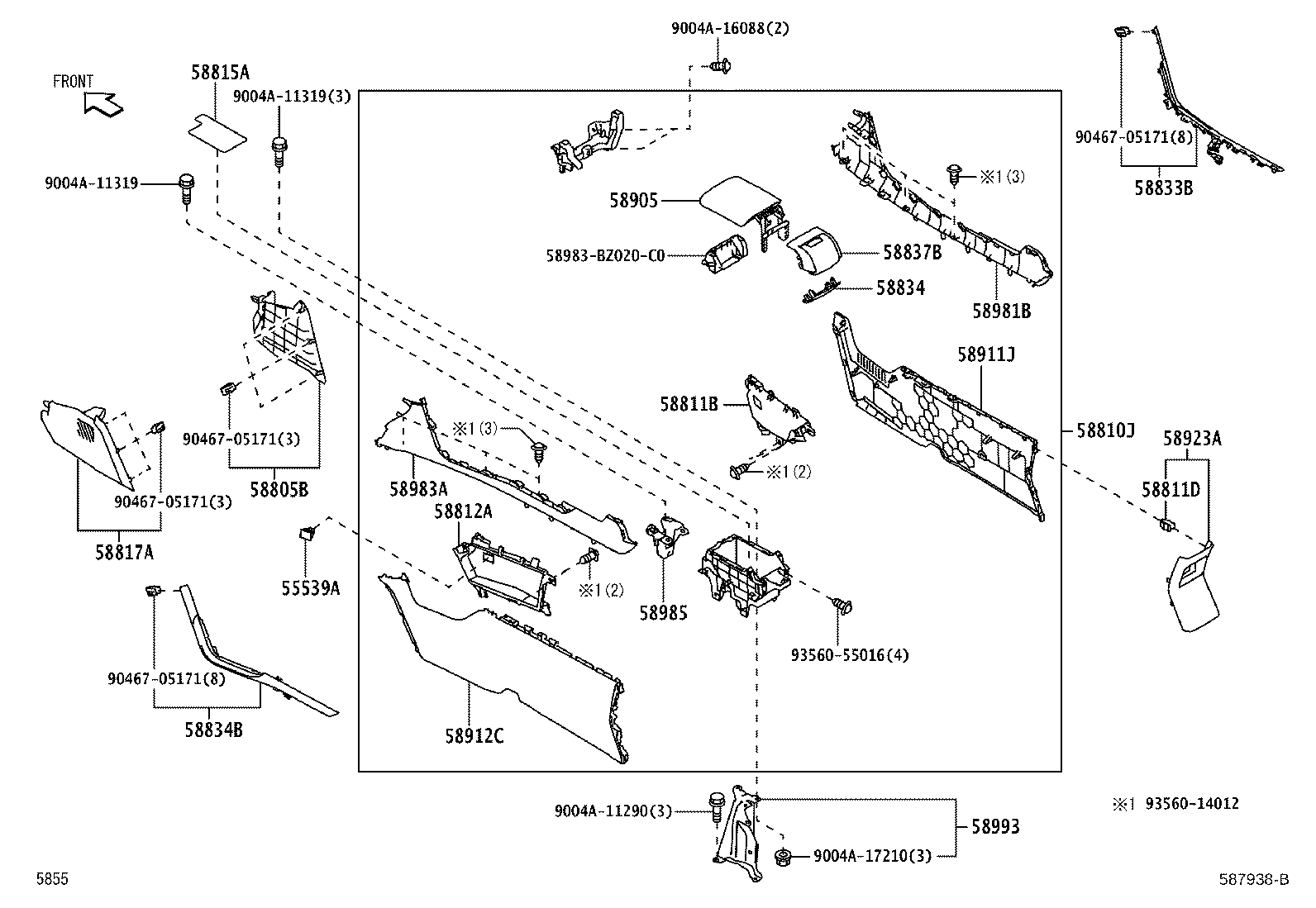

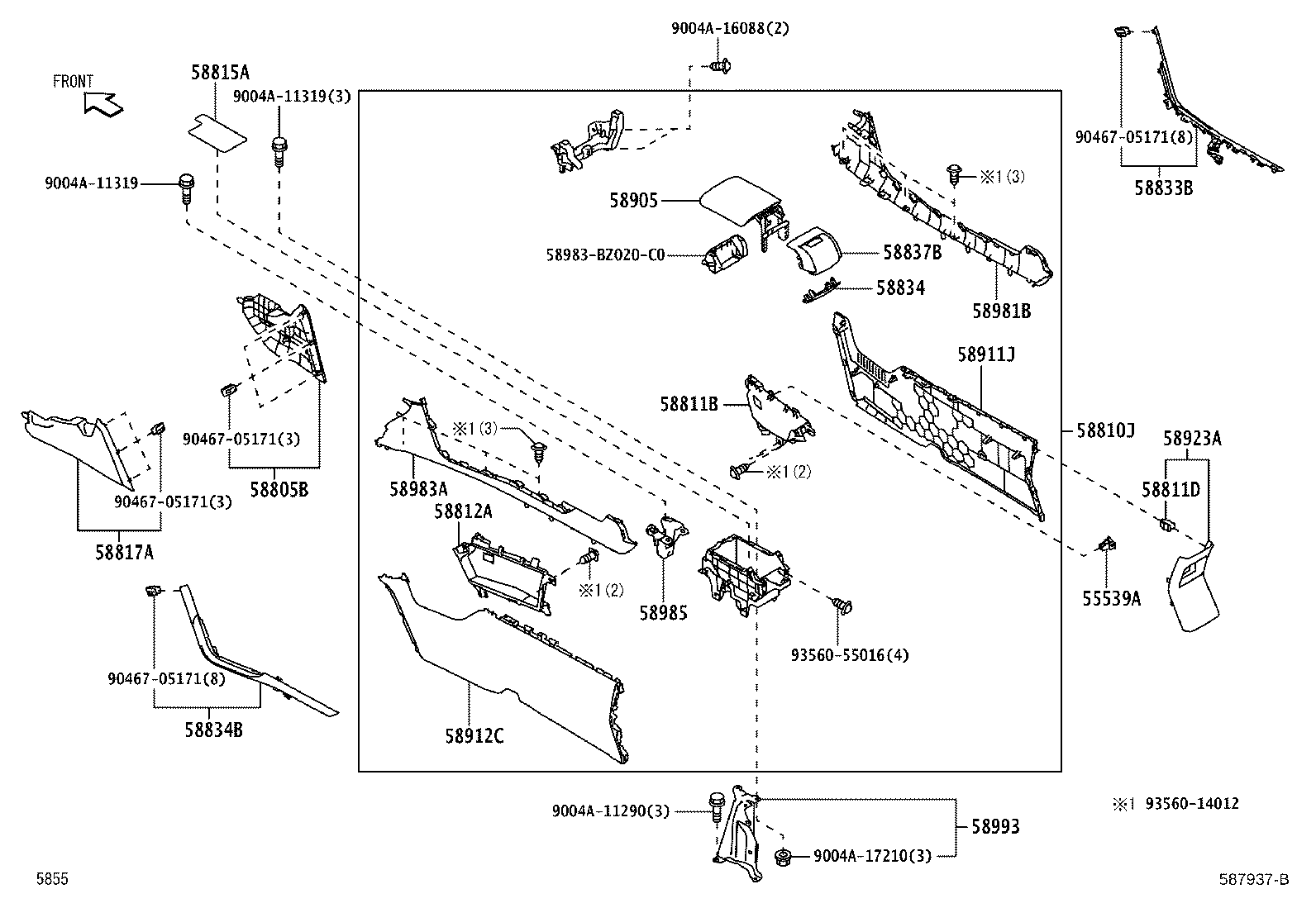

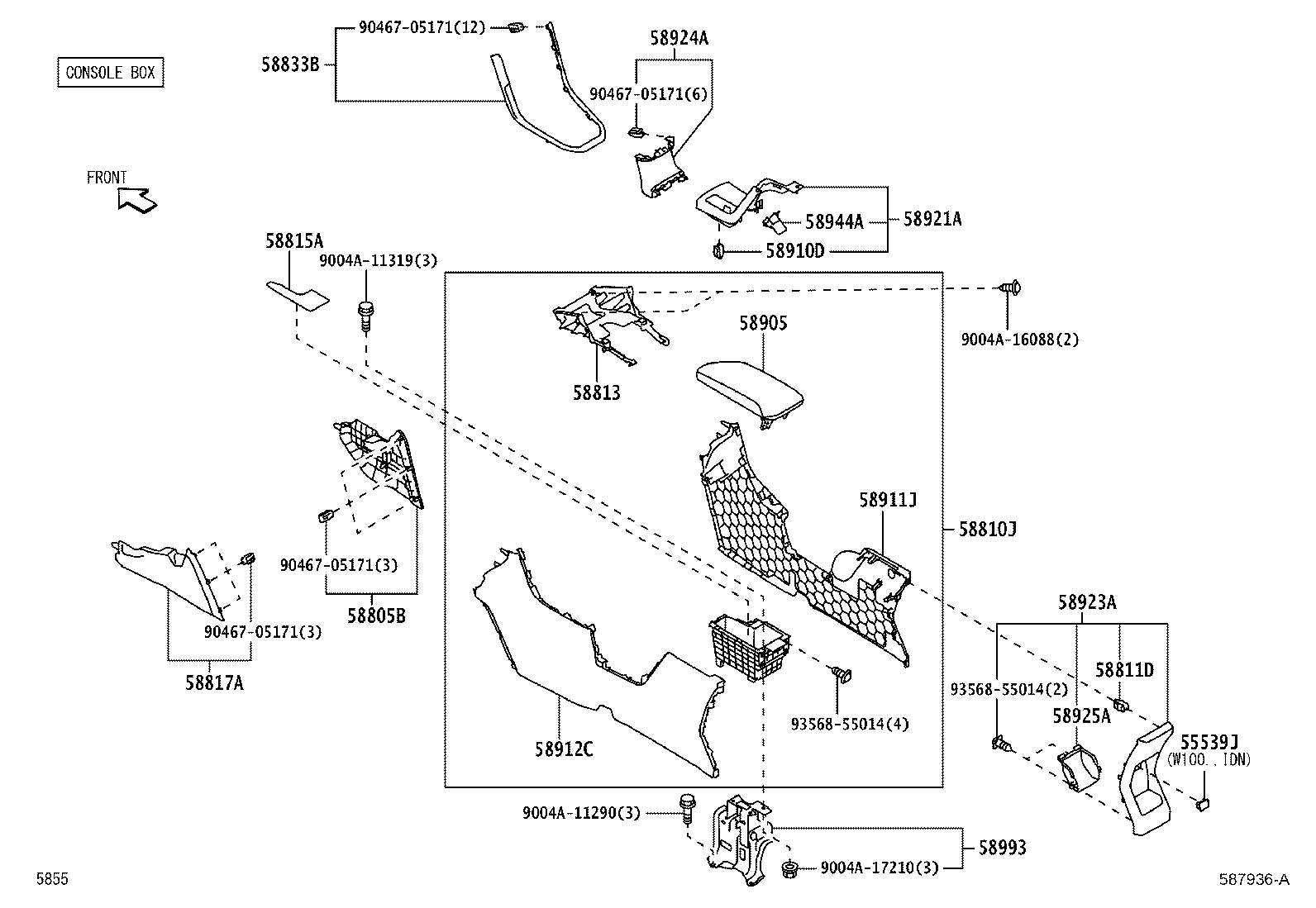

Console Box & Bracket
32 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805B | Panel Sub-assy, Console, Lower |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58810J | Box Assy, Console |
| 58811B | Box, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58812A | Box, Console, Lower |
| 58813 | Box, Console, Upper |
| 58815A | Carpet, Console Box |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58834 | Panel, Console End |
| 58834B | Garnish, Console Upper Panel, NO.2 |
| 58835 | Panel, Console, Upper |
| 58837B | Box, Console Cup Holder |
| 58840A | Cover Assy, Shifting Hole |
| 58905 | Door Sub-assy, Console Compartment |
| 58910D | Clip(FOR CONSOLE BOX) |
| 58911J | Panel, Box Side, NO.1 |
| 58912C | Panel, Box Side, NO.2 |
| 58921A | Panel, Rear Console, Upper |
| 58923A | Panel, Console Rear End |
| 58924A | Panel, Console Rear End, NO.2 |
| 58925A | Pocket, Console Box, Rear |
| 58944A | Cover, Console, Rear |
| 58981B | Retainer, Console Mounting, NO.1 |
| 58983A | Retainer, Console Mounting |
| 58985 | Retainer, Console Box |
| 58993 | Bracket, Console Box Mounting, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
