Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

21 part groups · 7 illustrations

Illustrations

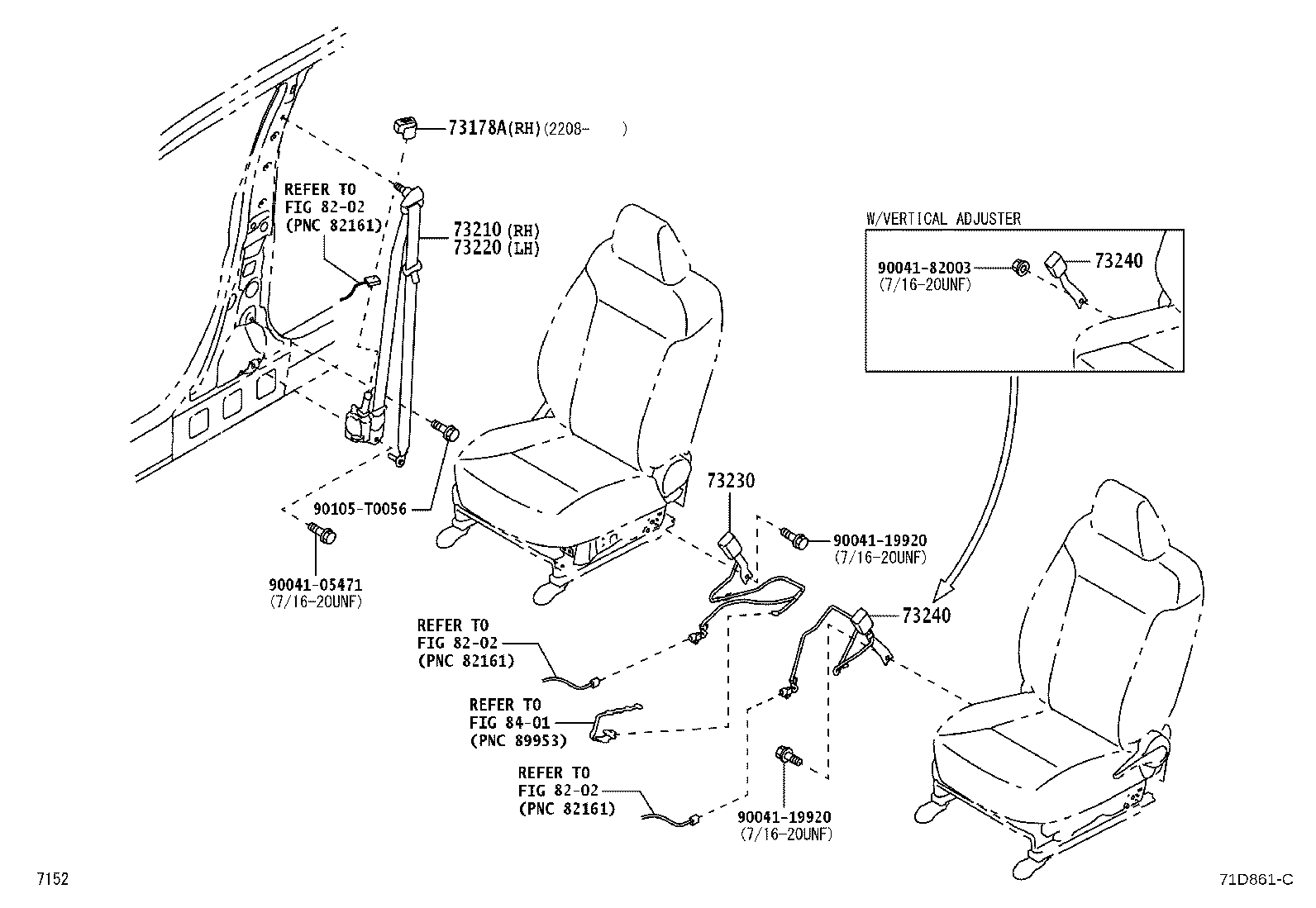

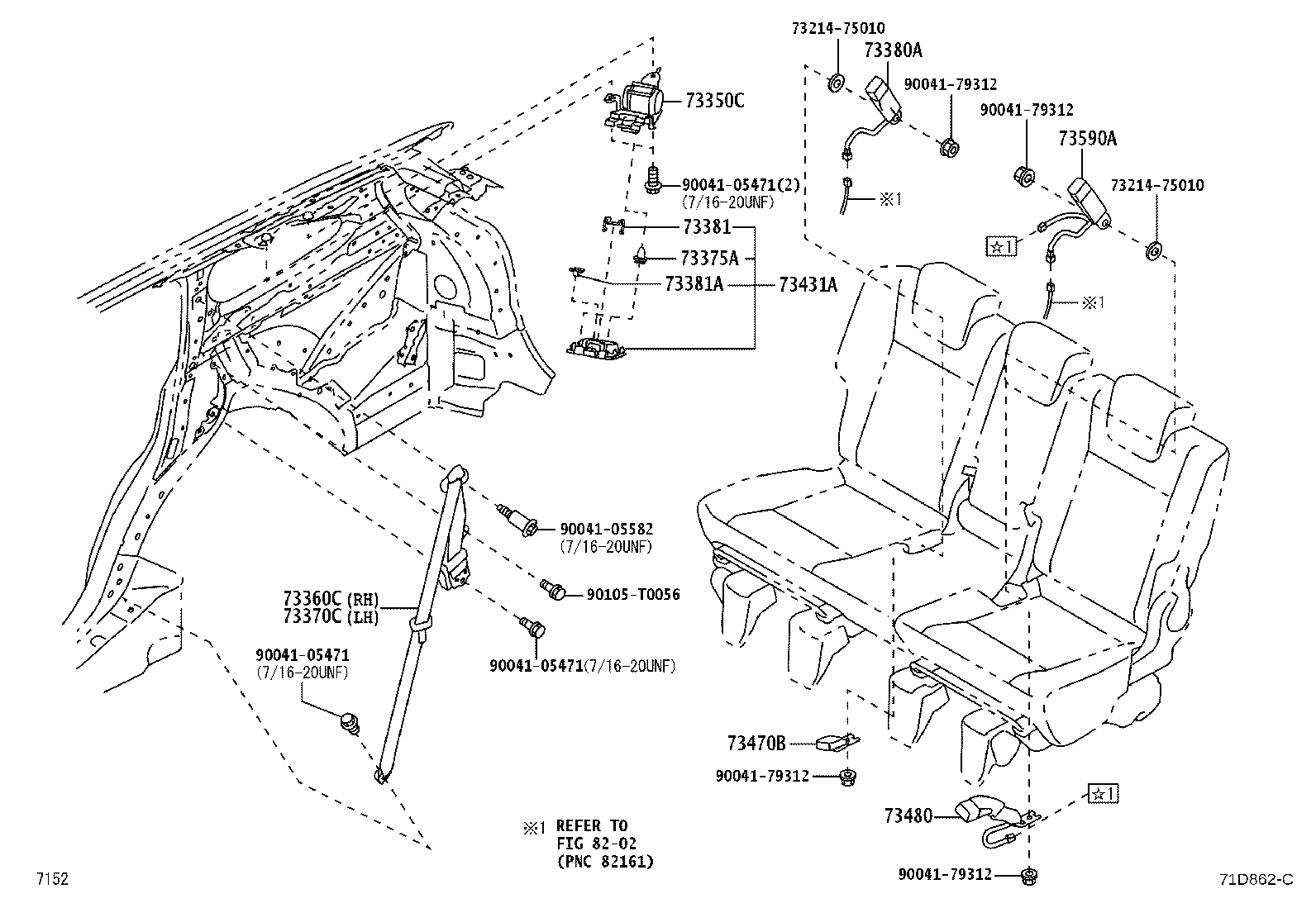

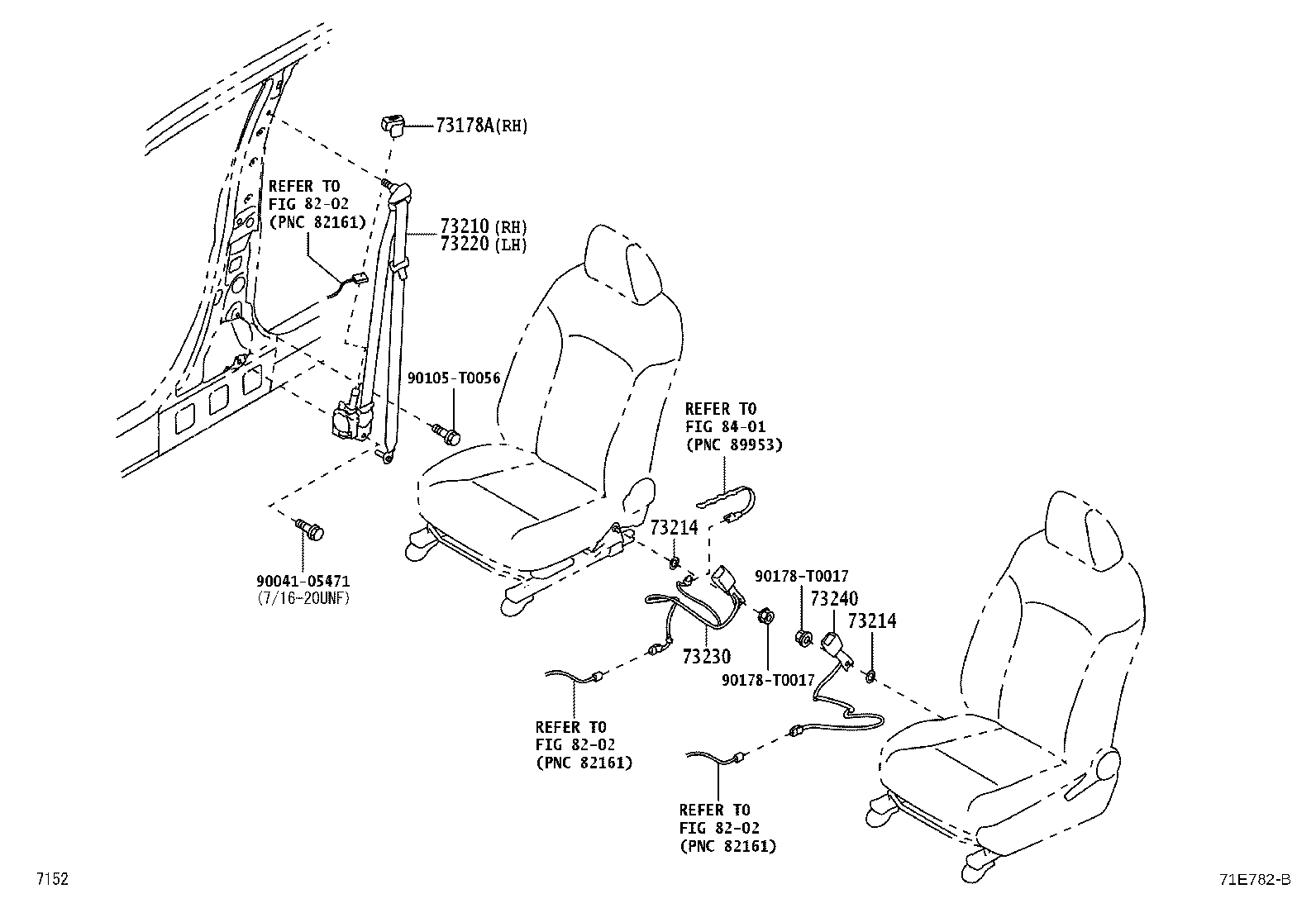

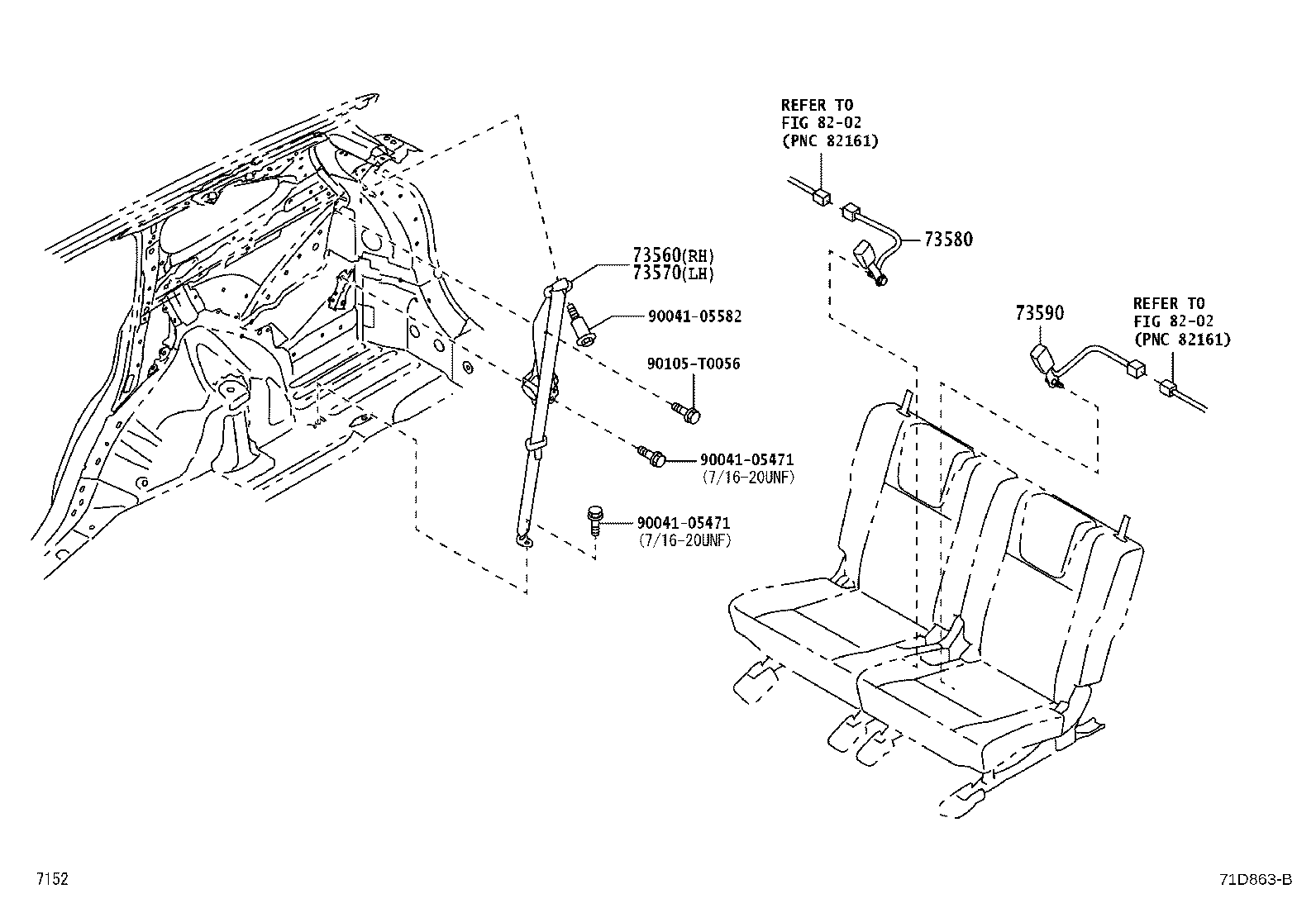

Figure 71D860B 71D860B 2021-11 → — Figure 71D861C 71D861C 2022-01 → — Figure 71D861C 71D861C 2022-12 → 2023-09 Figure 71D861C 71D861C 2022-12 → — Figure 71E782B 71E782B 2023-09 → — Figure 71D862C 71D862C 2021-11 → — Figure 71D863B 71D863B 2021-11 → —

Part groups

PNCDescription
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73375A Clip, Rear Seat Belt Cover
73380A Belt Assy, Rear Seat, Inner
73381 Holder, Rear Seat Belt
73381A Holder, Rear Seat Belt NO.2
73431A Cover, Rear Seat Belt Retractor
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73590A Belt Assy, Rear Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
