Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · General
Supported model
Data version 2022-11
Armrest & Visor
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

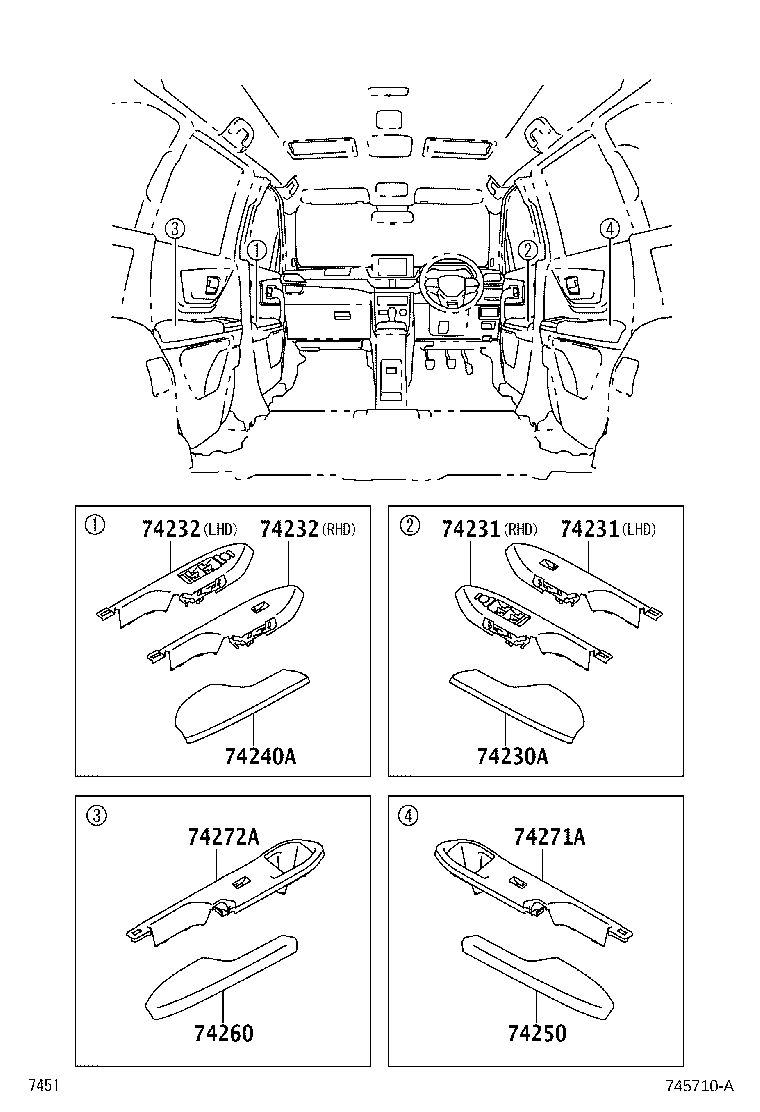

| 74230A | Panel Assy, Front Door Armrest Base, RH |

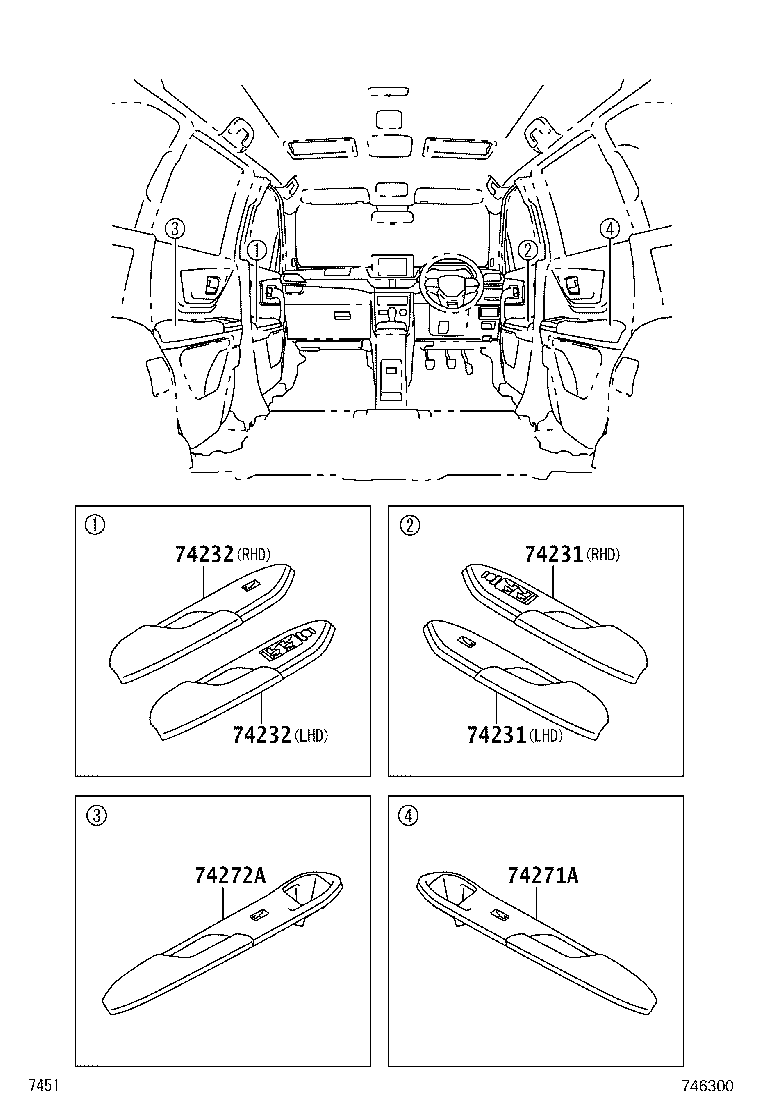

| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74240A | Panel Assy, Front Door Armrest Base, LH |
| 74250 | Armrest Assy, Rear RH |
| 74260 | Armrest Assy, Rear LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |

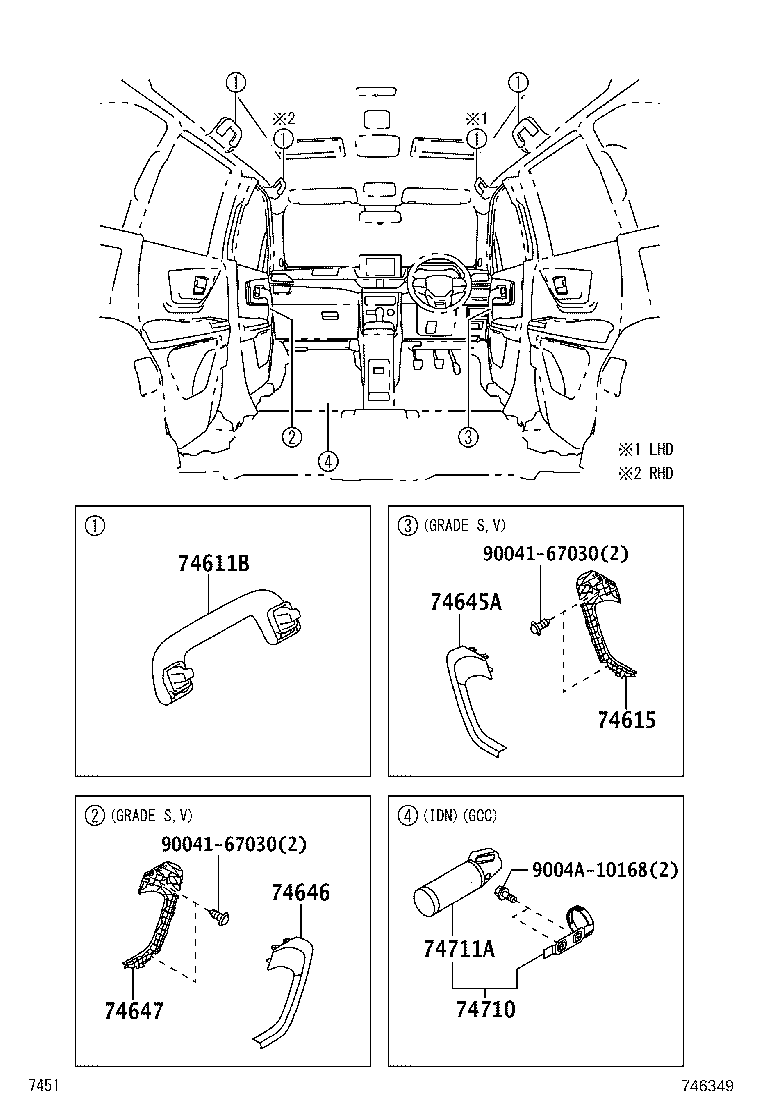

| 74611B | Grip, Assist |
| 74615 | Base, Assist Grip |
| 74645A | Cover, Door Assist Grip, RH |
| 74646 | Cover, Door Assist Grip, LH |
| 74647 | Base, Door Assist Grip |
| 74710 | Extinguisher Assy |
| 74711A | Extinguisher |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
