Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · General
Supported model
Data version 2022-11
Moulding

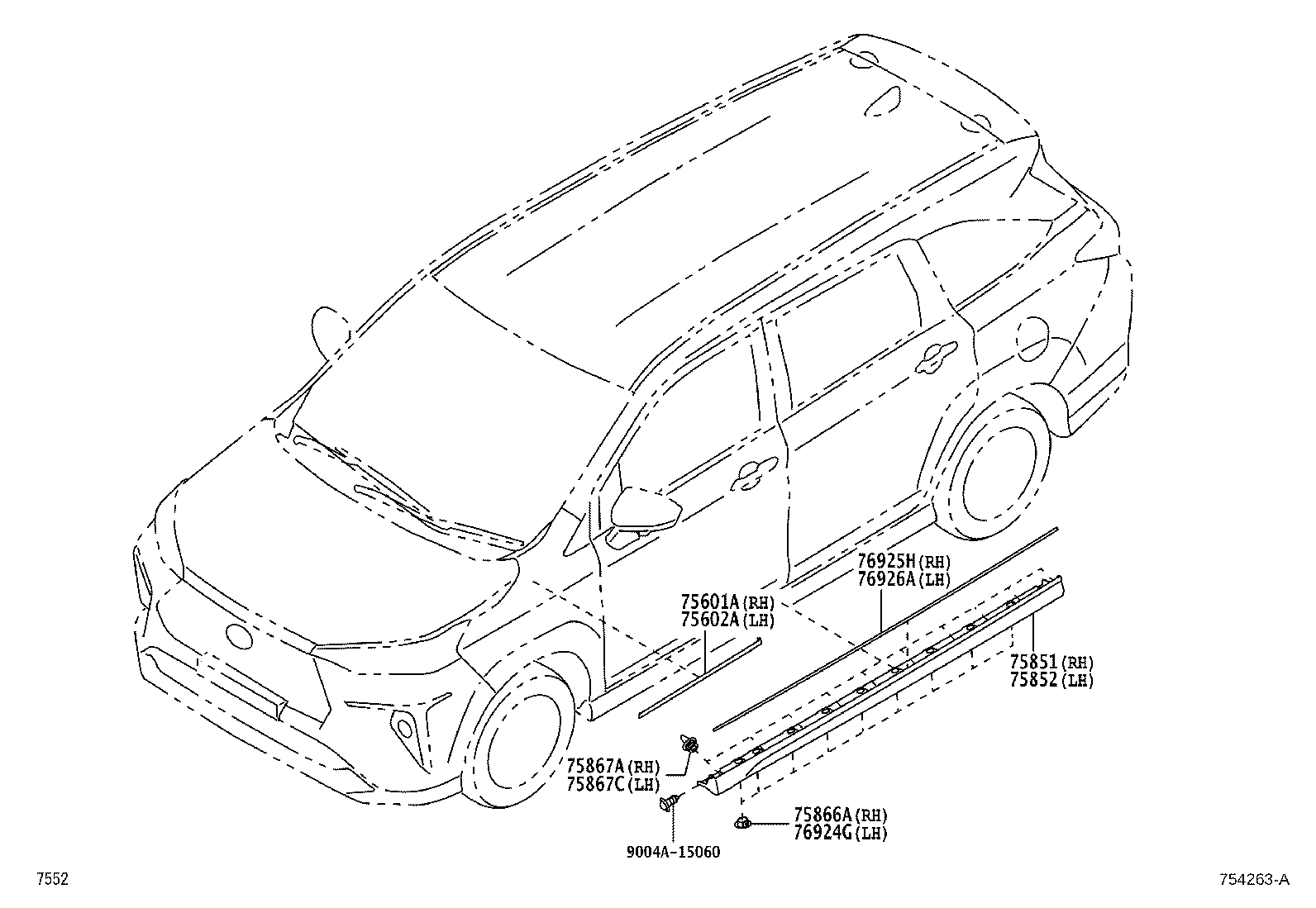

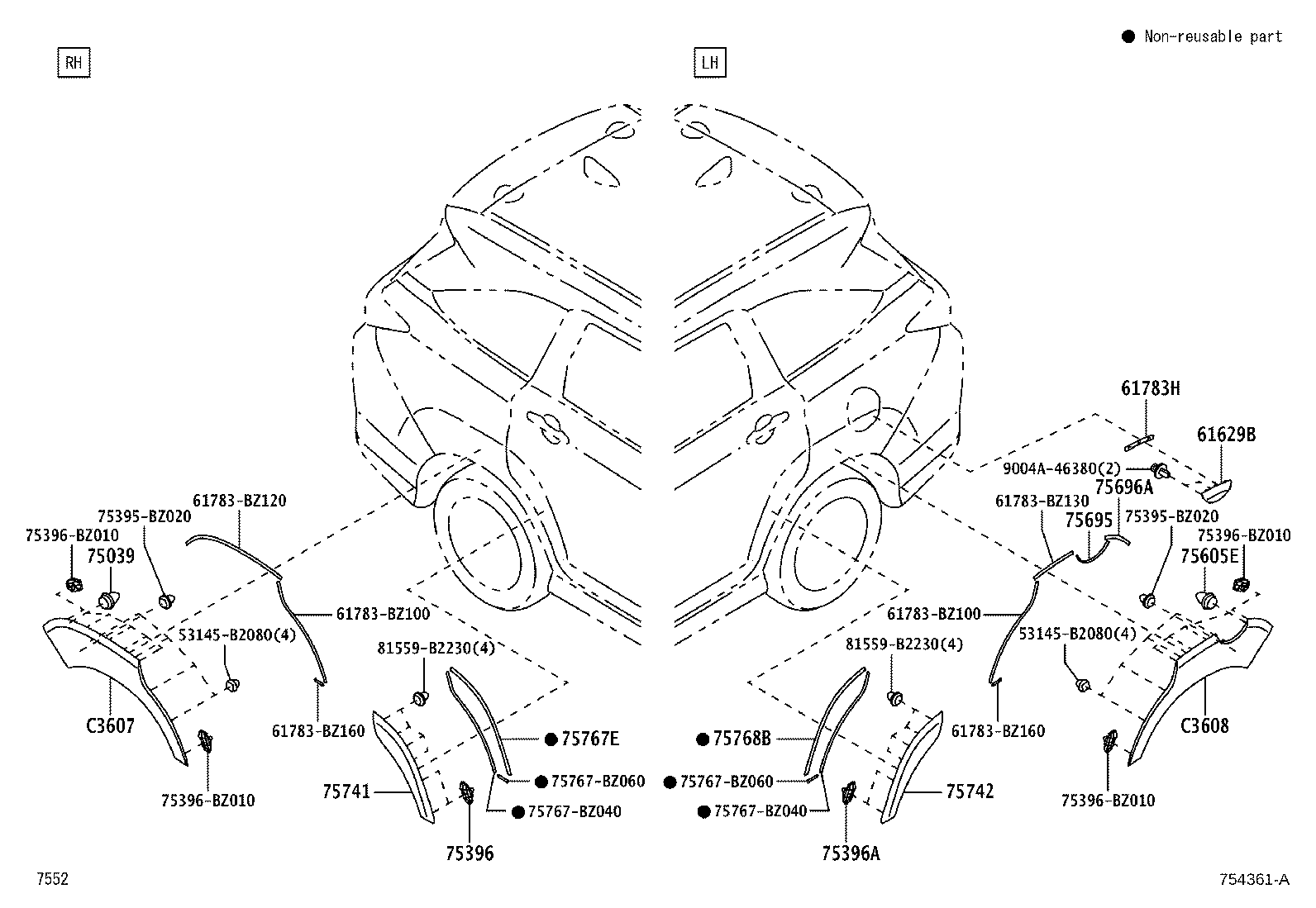

37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61629B | Extension, Quarter Outer Panel, RR |
| 61783H | Pad, Reae Wheel Opening Extension, NO.2 |
| 75039 | Clip Sub-assy, Outside Moulding |
| 75392F | Retainer, Outside Moulding |
| 75392H | Retainer, Outside Moulding |
| 75396 | Clip, Outside Moulding, NO.2 |
| 75396A | Clip, Outside Moulding, NO.2 |
| 75533C | Garnish, Front Pillar, Outer RH |
| 75534C | Garnish, Front Pillar, Outer LH |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75597B | Retainer, Quarter Garnish, Front RH |
| 75598A | Retainer, Quarter Garnish, Front LH |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605A | Moulding Sub-assy, Quarter Outside, RH |
| 75605E | Clip, Quarter Outside Moulding |
| 75606A | Moulding Sub-assy, Quarter Outside, LH |
| 75641 | Moulding, Quarter Window, Outside Front RH |
| 75642 | Moulding, Quarter Window, Outside Front LH |
| 75695 | Pad, Quarter Outside Moulding |
| 75696A | Pad, Body Outside Moulding |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75767E | Pad, Rear Door Moulding, RH |
| 75768B | Pad, Rear Door Moulding, LH |
| 75851 | Moulding, Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 75866A | Retainer, Rocker Panel Moulding |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 76924G | Retainer, Rocker Panel Moulding |
| 76925H | Protector, Rocker Panel Moulding, RH |
| 76926A | Protector, Rocker Panel Moulding, LH |
| C3607 | Extension Sub-assy, Rear Fender, RH |
| C3608 | Extension Sub-assy, Rear Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
