Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 2 illustrations

Illustrations

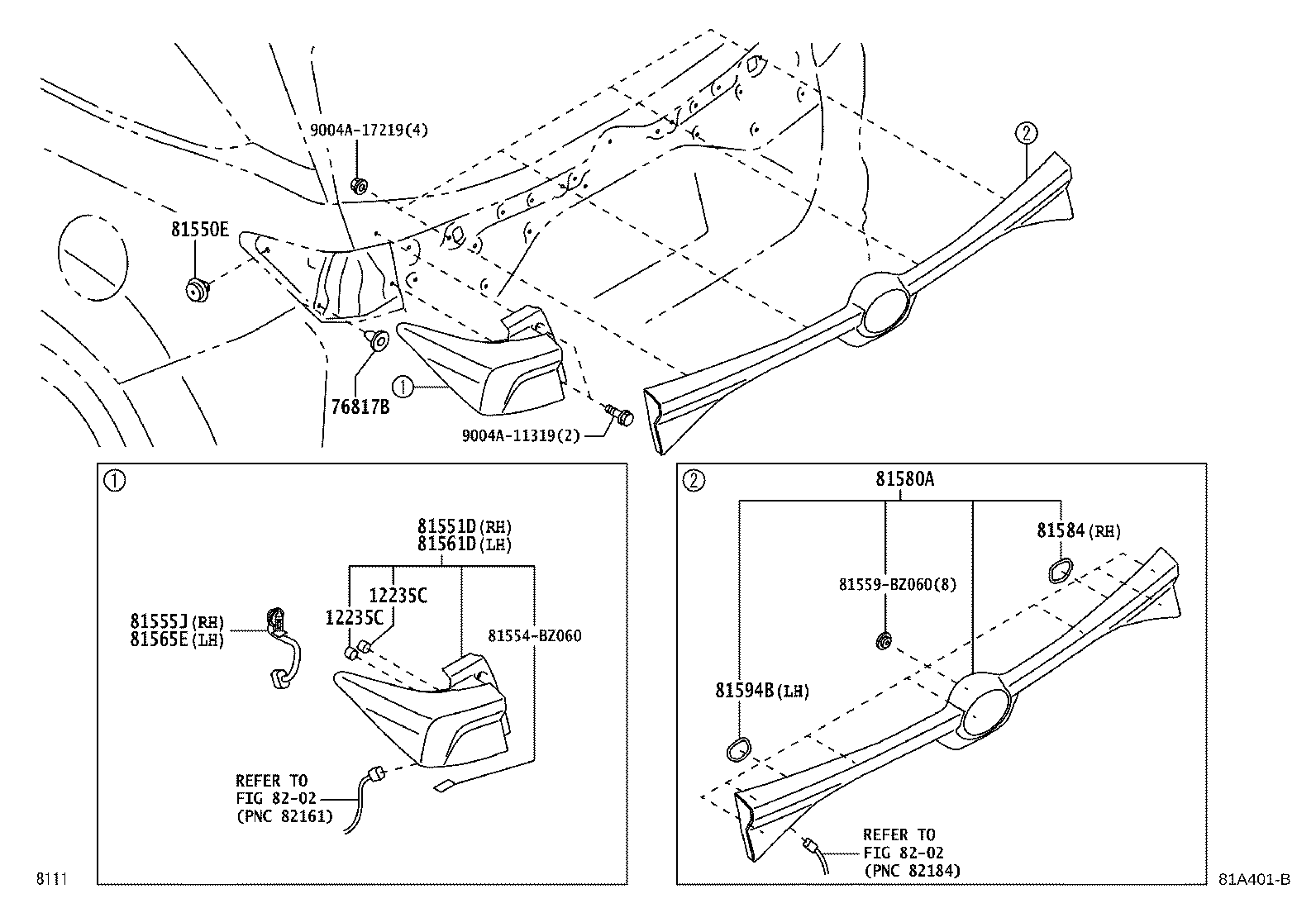

Figure 81A400A 81A400A 2021-11 → — Figure 81A401B 81A401B 2021-11 → —

Part groups

PNCDescription
12235C Cap, Ventilation
76817B Clip, Rear Lamp
81550E Clip(FOR REAR COMBINATION LAMP)
81551D Lens & Body, Rear Combination Lamp, RH
81555J Socket & Wire, Rear Combination Lamp, RH
81559F Clip, RR Combination Lamp, LH
81559G Clip, RR Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81565E Socket & Wire, Rear Combination Lamp, LH
81580A Lamp Assy, Rear
81580D Lamp Assy, Rear, RH
81584 Packing, Rear Lamp RH
81590A Lamp Assy, Rear, LH
81594B Packing, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
