Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

18 part groups · 2 illustrations

Illustrations

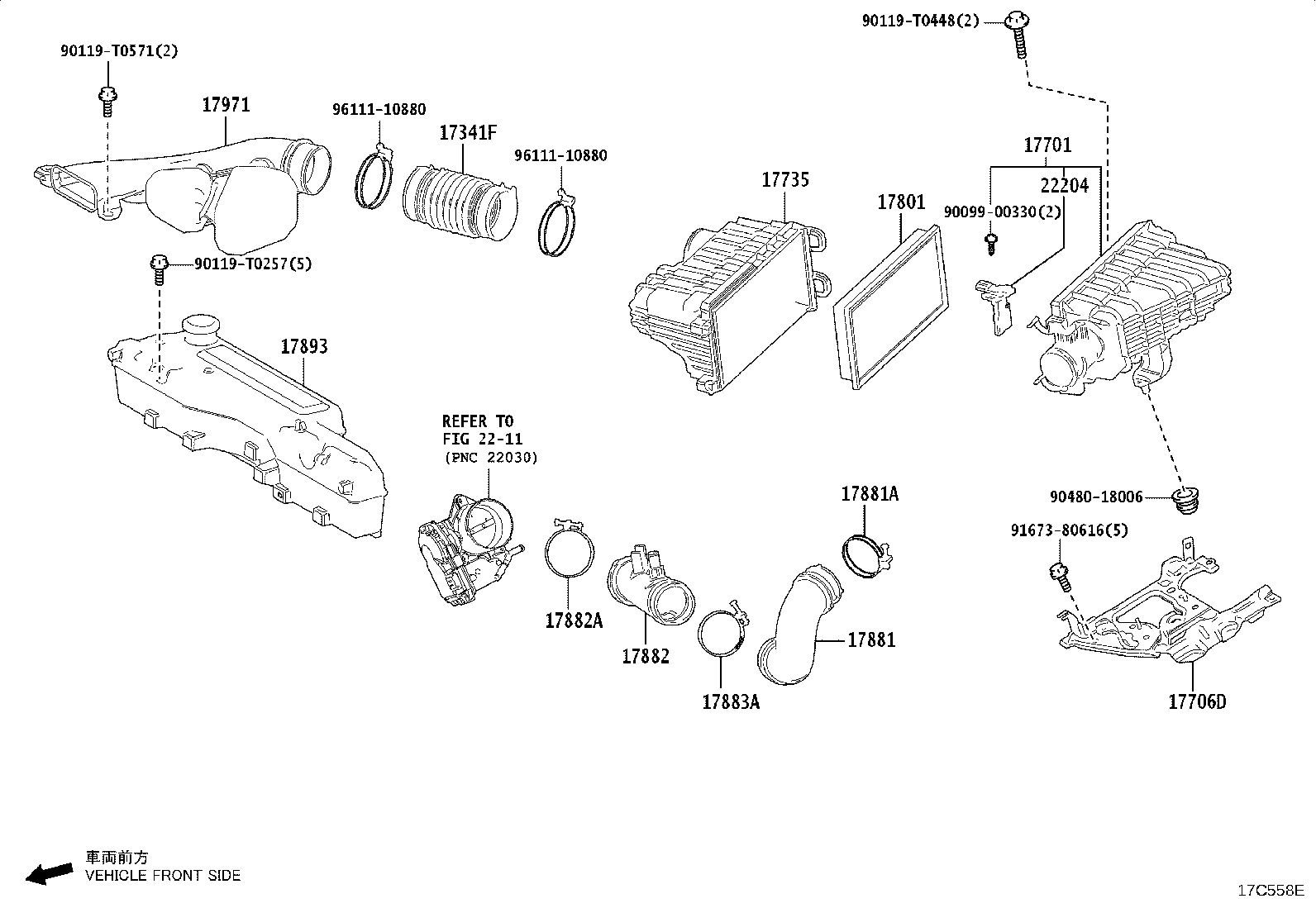

Figure 17C557B 17C557B 2022-11 → — Figure 17C558E 17C558E 2022-11 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17706D Stay Sub-assy, Air Cleaner
17735 Cap, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17769C Support, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17893 Resonator, Intake Air
17971 Inlet, Cool Air, NO.1
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
