Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

14 part groups · 4 illustrations

Illustrations

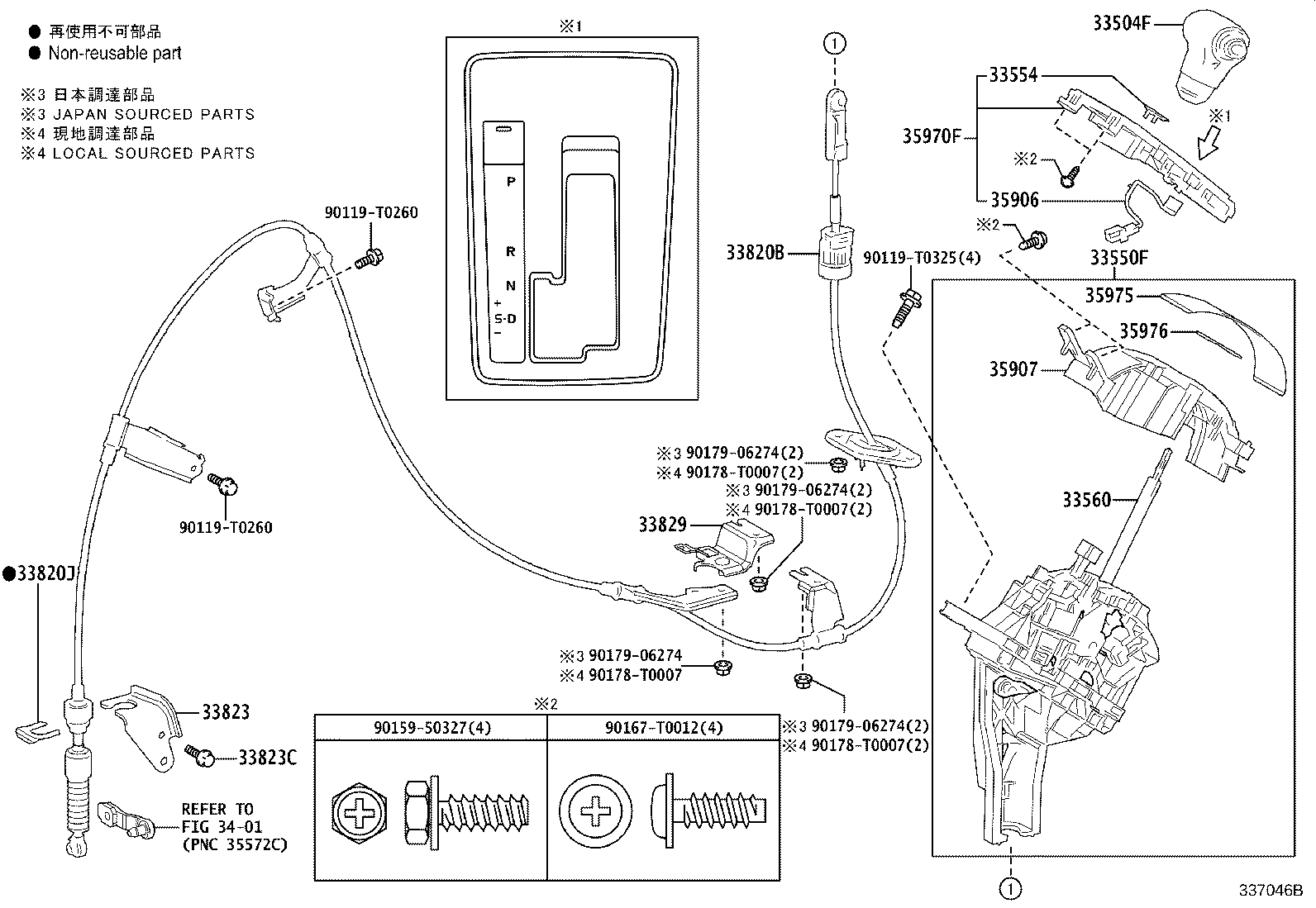

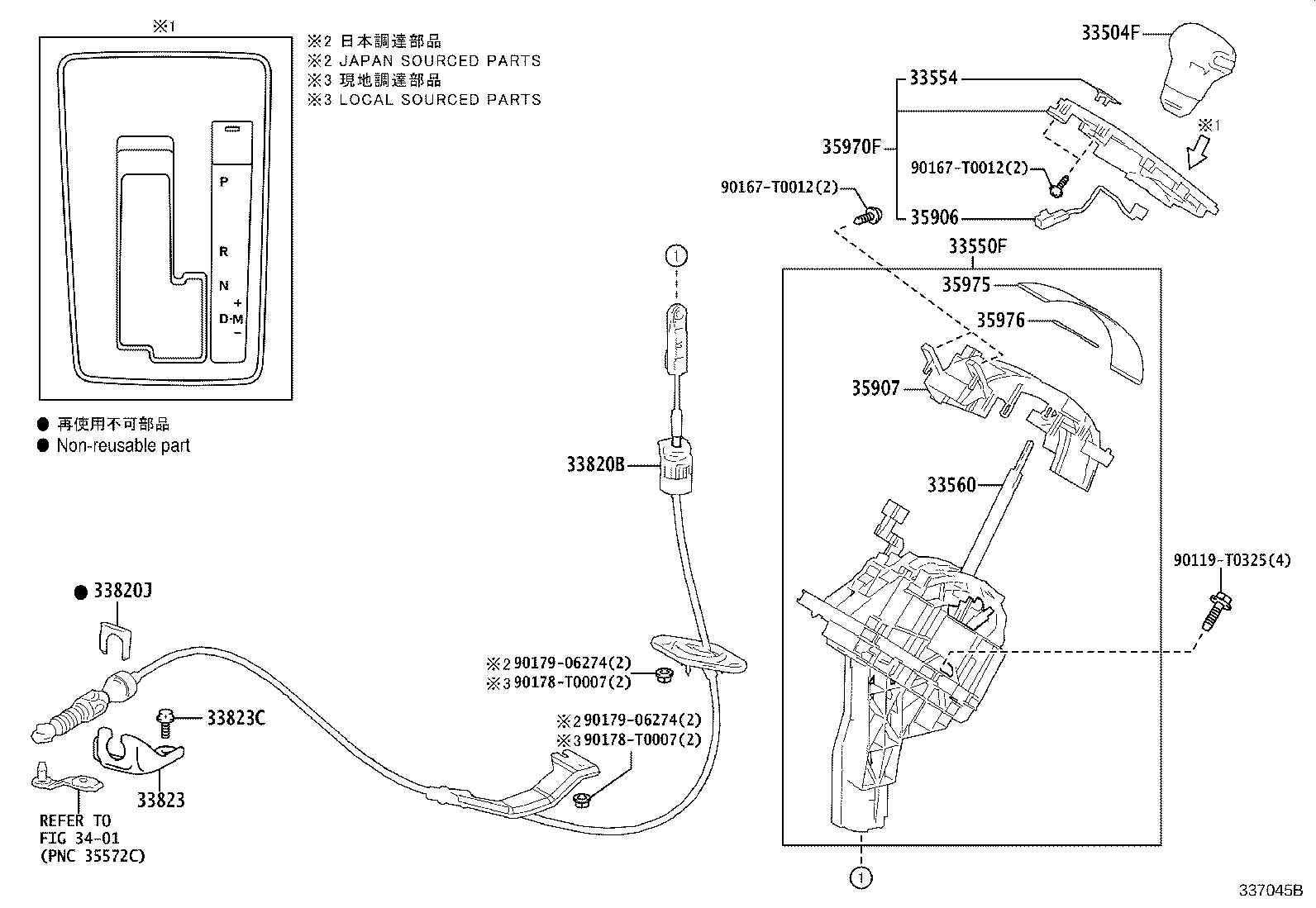

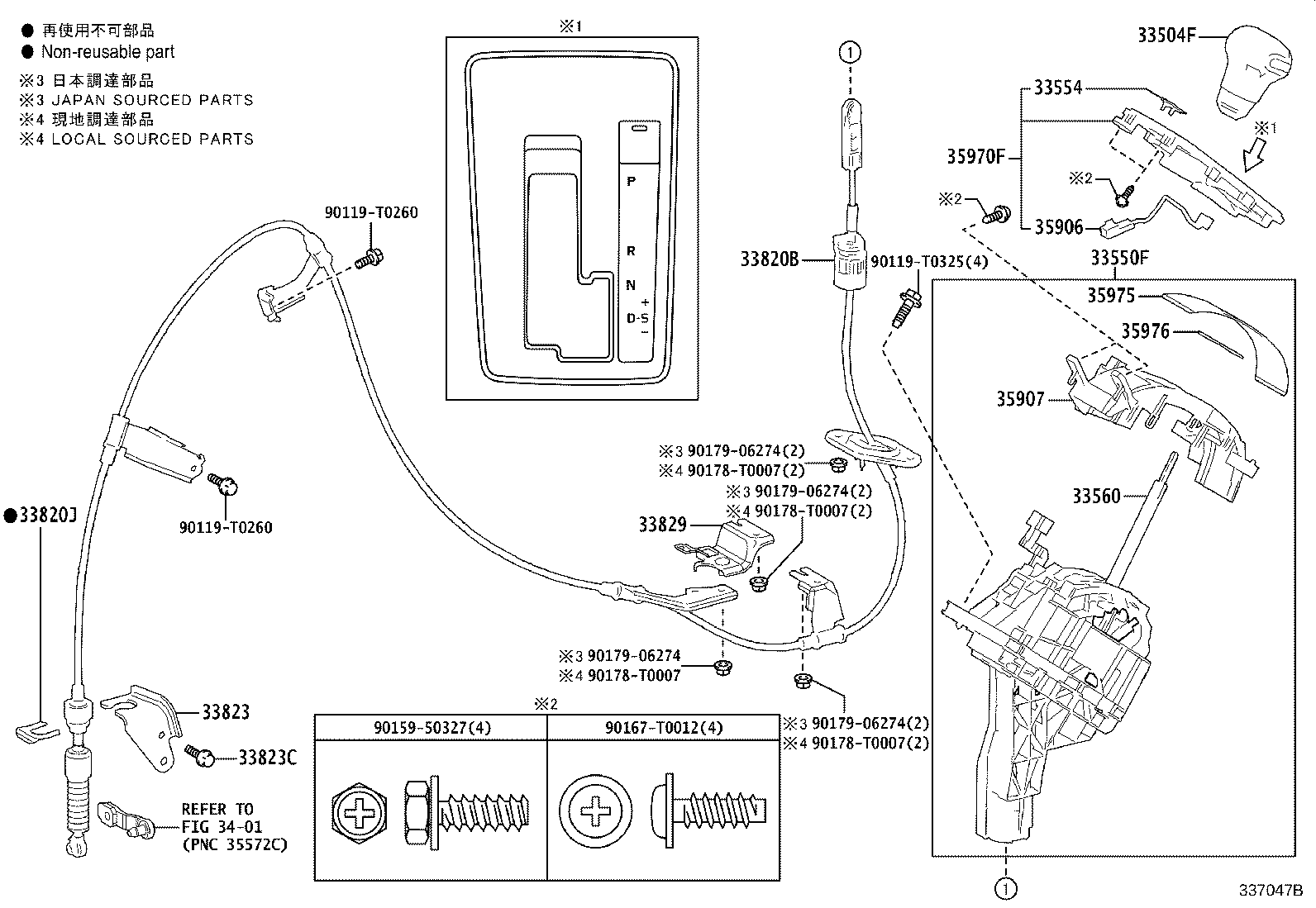

Figure 337044B 337044B 2022-11 → — Figure 337045B 337045B 2022-11 → — Figure 337046B 337046B 2022-11 → — Figure 337047B 337047B 2022-11 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550F Shift Assy, Transmission Instrument Panel
33554 Cap, Shift Lever
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33820J Clip(FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829 Support, Transmission Control Cable
35906 Wire Sub-assy, Indicator Lamp
35907 Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
35970F Housing Assy, Position Indicator
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
