Toyota Innova
2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General
Supported model
Data version 2024-03
Disc Wheel & Wheel Cap
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04423 | Fitting Kit, Tire Pressure Monitor OR Balancer Valve |

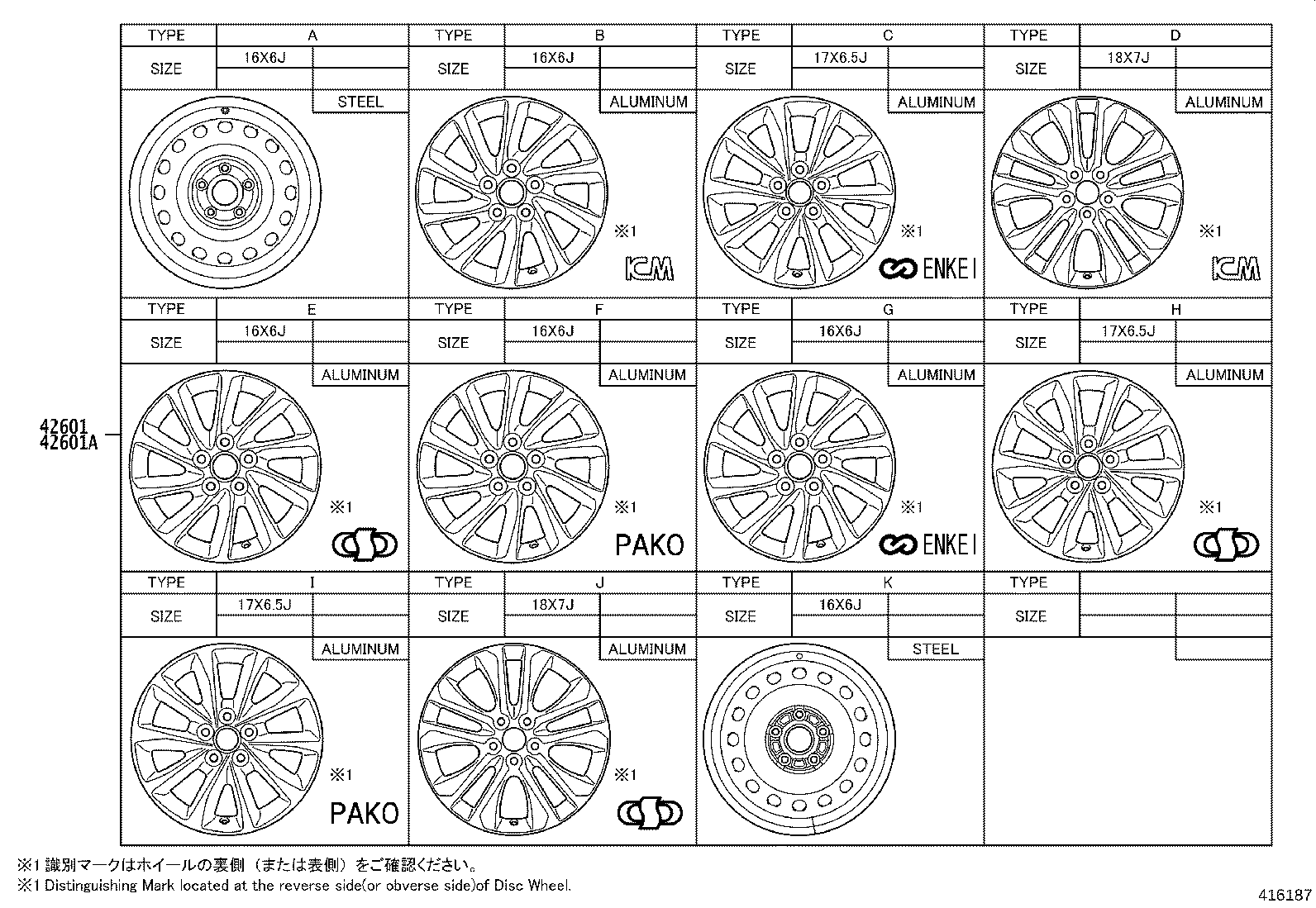

| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42607 | Valve Sub-assy, Tire Pressure Monitor |
| 42607D | Valve, Tire Pressure Monitor |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42611U | Cap, Tire Valve |
| 42621 | Cap, Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
