Toyota Innova
2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General
Supported model
Data version 2024-03

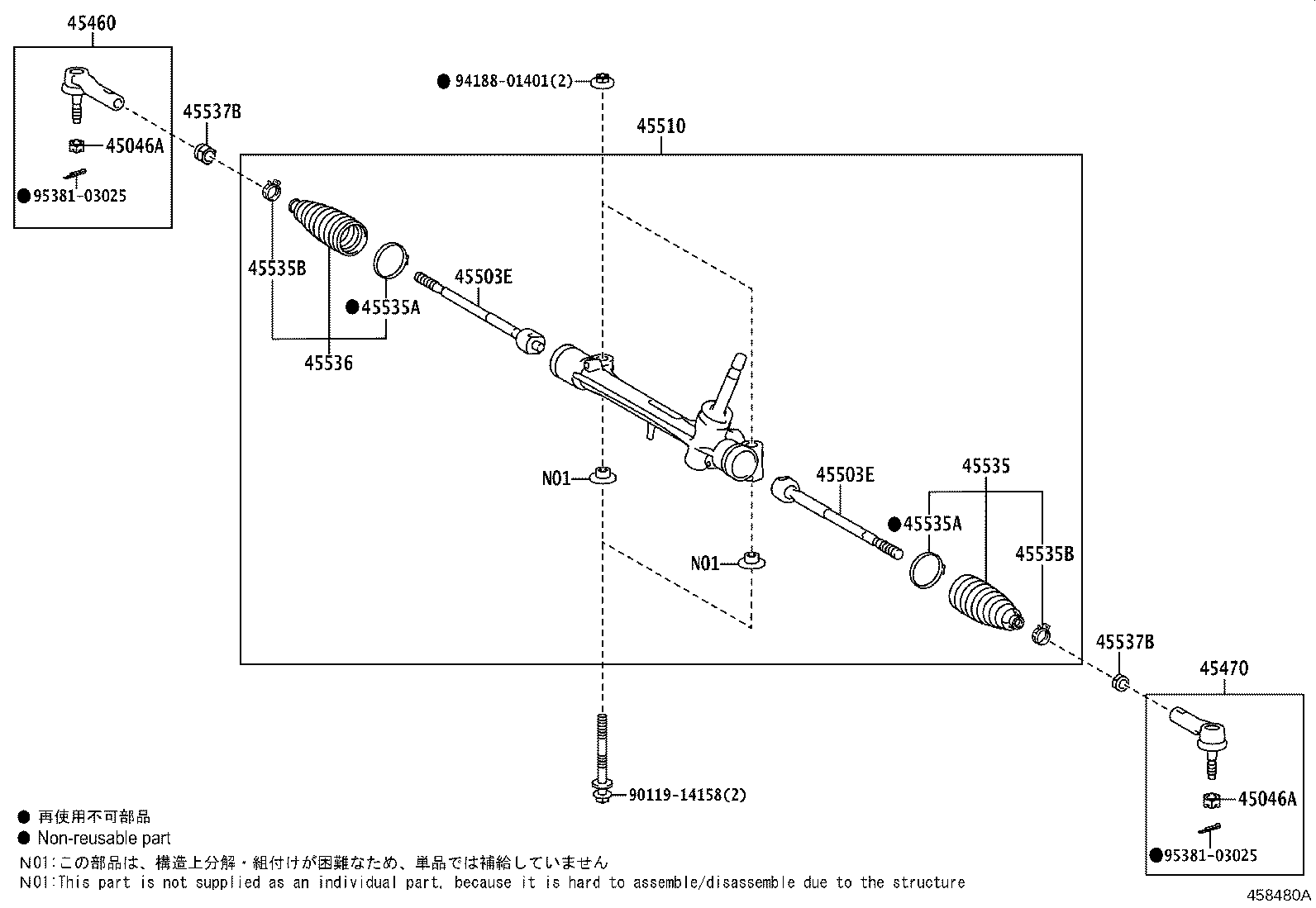

Front Steering Gear & Link
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45460 | Rod Assy, Tie, RH |
| 45470 | Rod Assy, Tie, LH |
| 45503E | End Sub-assy, Steering Rack |
| 45510 | Gear Assy, Steering |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535A | Clamp(FOR STEERING RACK BOOT) |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45537B | Nut, Rack End Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
