Toyota Innova
2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General
Supported model
Data version 2024-03

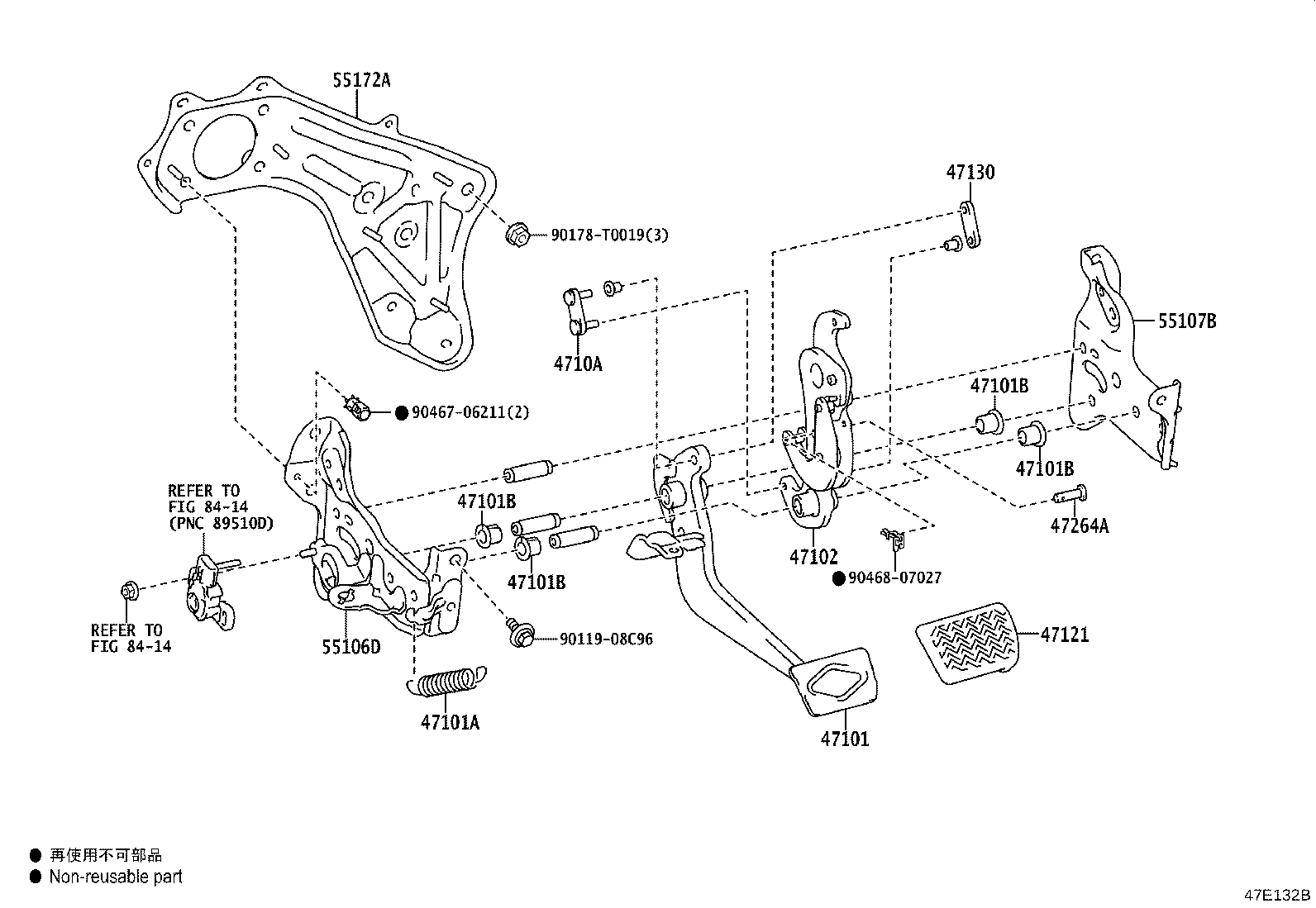

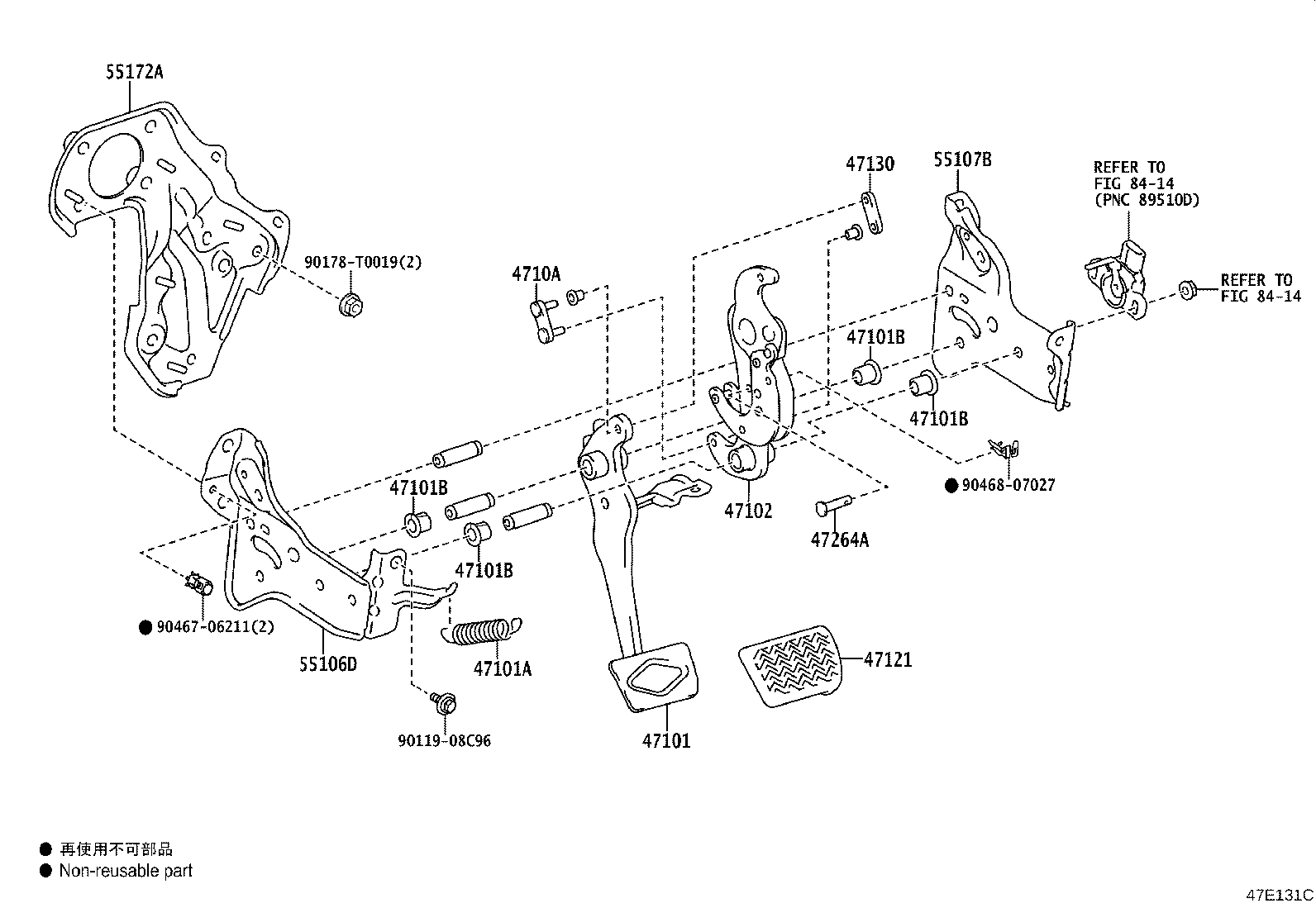

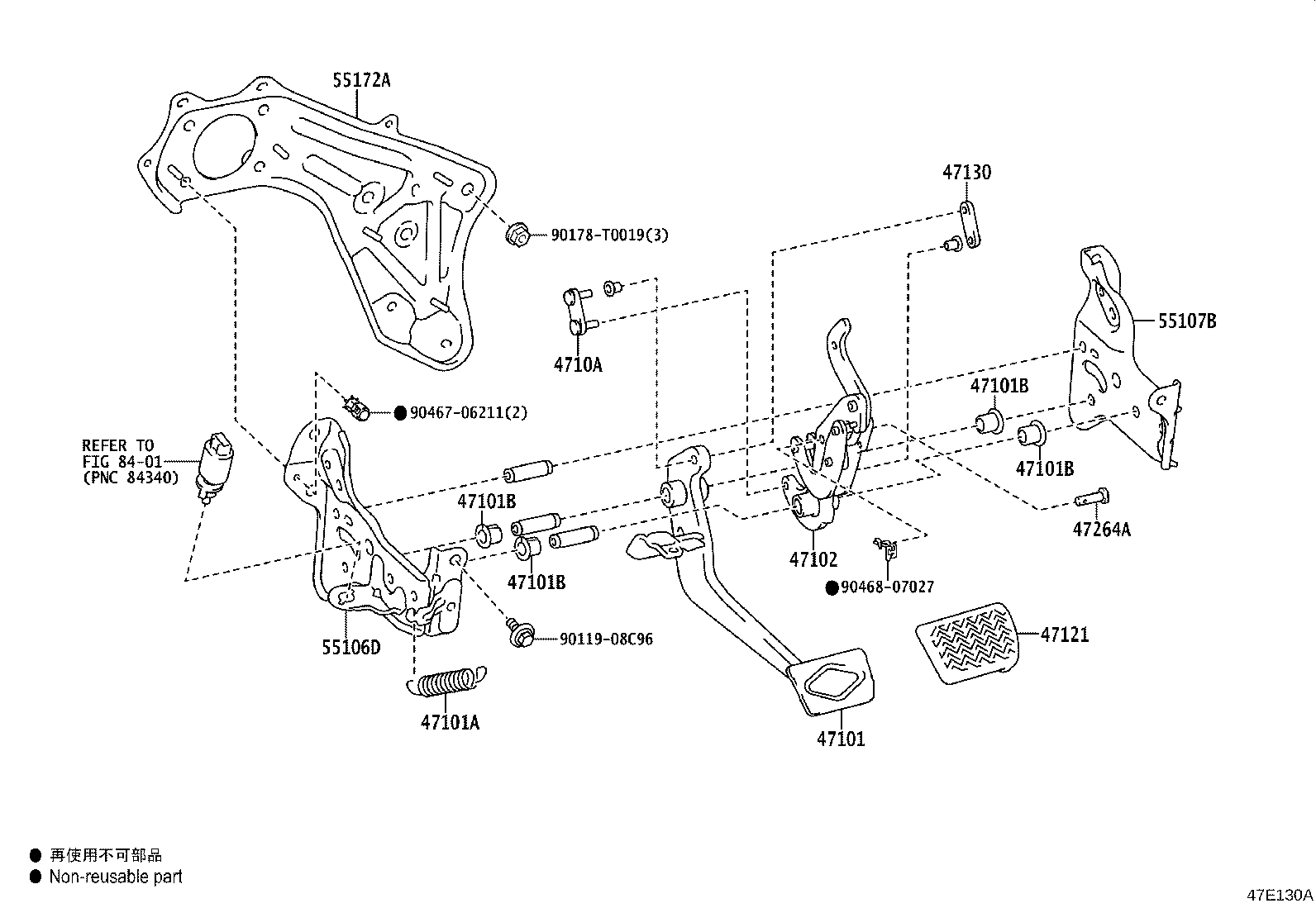

Brake Pedal & Bracket
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101 | Pedal Sub-assy, Brake |
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47102 | Lever Sub-assy, Brake Pedal |
| 4710A | Link Sub-assy, Brake Pedal |
| 47121 | Pad, Brake Pedal |
| 47130 | Link Assy, Brake Pedal |
| 47264A | Pin(FOR PUSH ROD) |
| 55106D | Bracket Sub-assy, Pedal |
| 55107B | Bracket Sub-assy, Pedal, NO.2 |
| 55172A | Base, Brake Pedal Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
