Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 3 illustrations

Illustrations

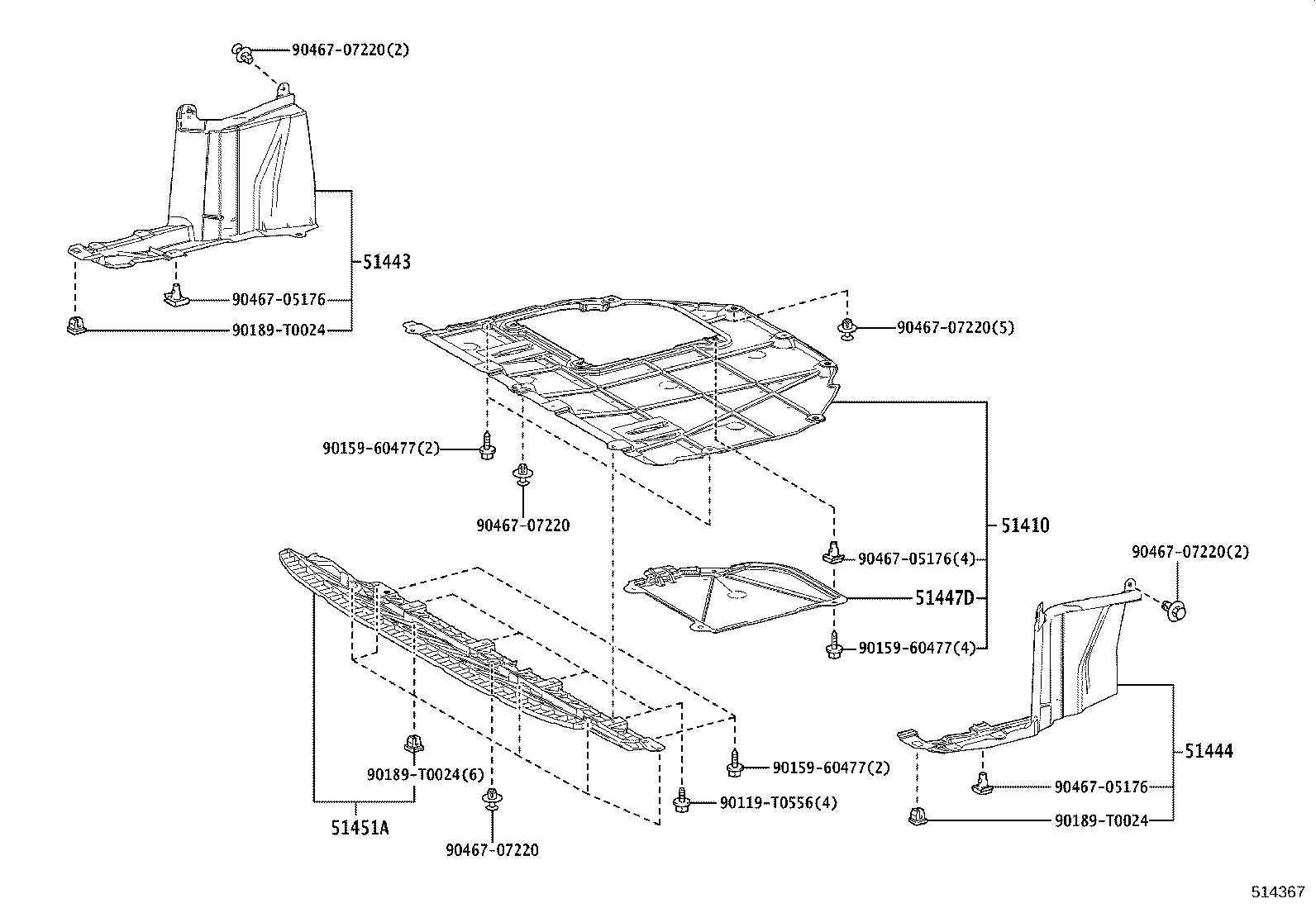

Figure 514366 514366 2022-11 → — Figure 514368A 514368A 2022-11 → — Figure 514367 514367 2022-12 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51410 Cover Assy, Engine Under, NO.1
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
51451A Cover, Engine Under, Center
53165C Support, Radiator, Center RH
53166D Support, Radiator, Center LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
