Toyota Innova
2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General
Supported model
Data version 2024-03
Hood & Front Fender
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161F | Piece, Front Bumper |
| 53301 | Hood Sub-assy |
| 53326A | Clip, Hood Moulding |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53384B | Cushion, Hood, Center |
| 53384F | Cushion, Hood, Center |
| 53811B | Panel, Front Fender, RH |
| 53812D | Panel, Front Fender, LH |
| 53827K | Protector, Front Fender Side Panel, RH |
| 53828J | Protector, Front Fender Side Panel, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |

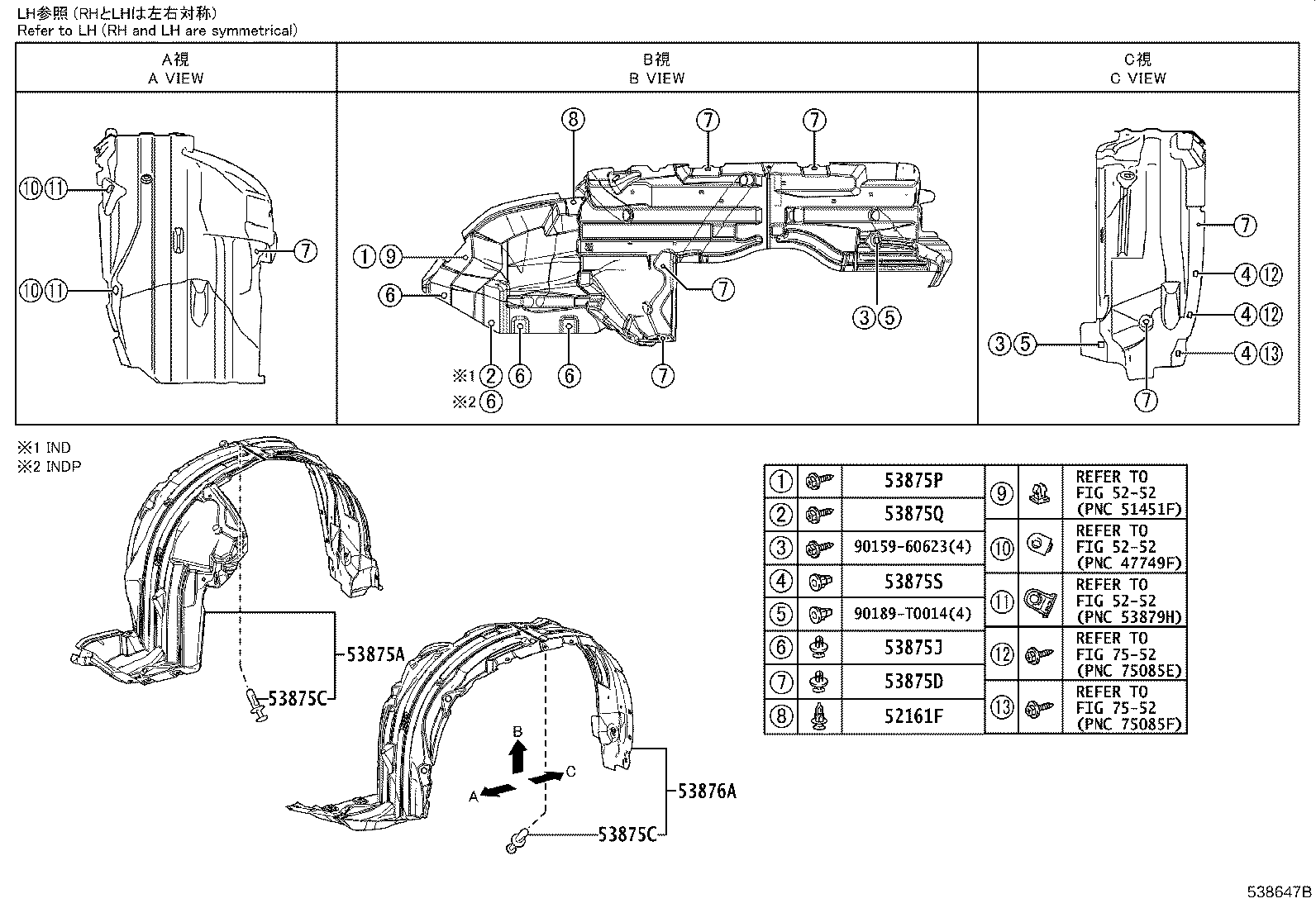

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875D | Clip, Front Fender Liner, NO.2 |
| 53875J | Clip, Front Fender Liner |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53875S | Grommet, NO.1 |
| 53876A | Liner, Front Fender, LH |
| 53882K | Seal, Front Fender |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
