Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

16 part groups · 2 illustrations

Illustrations

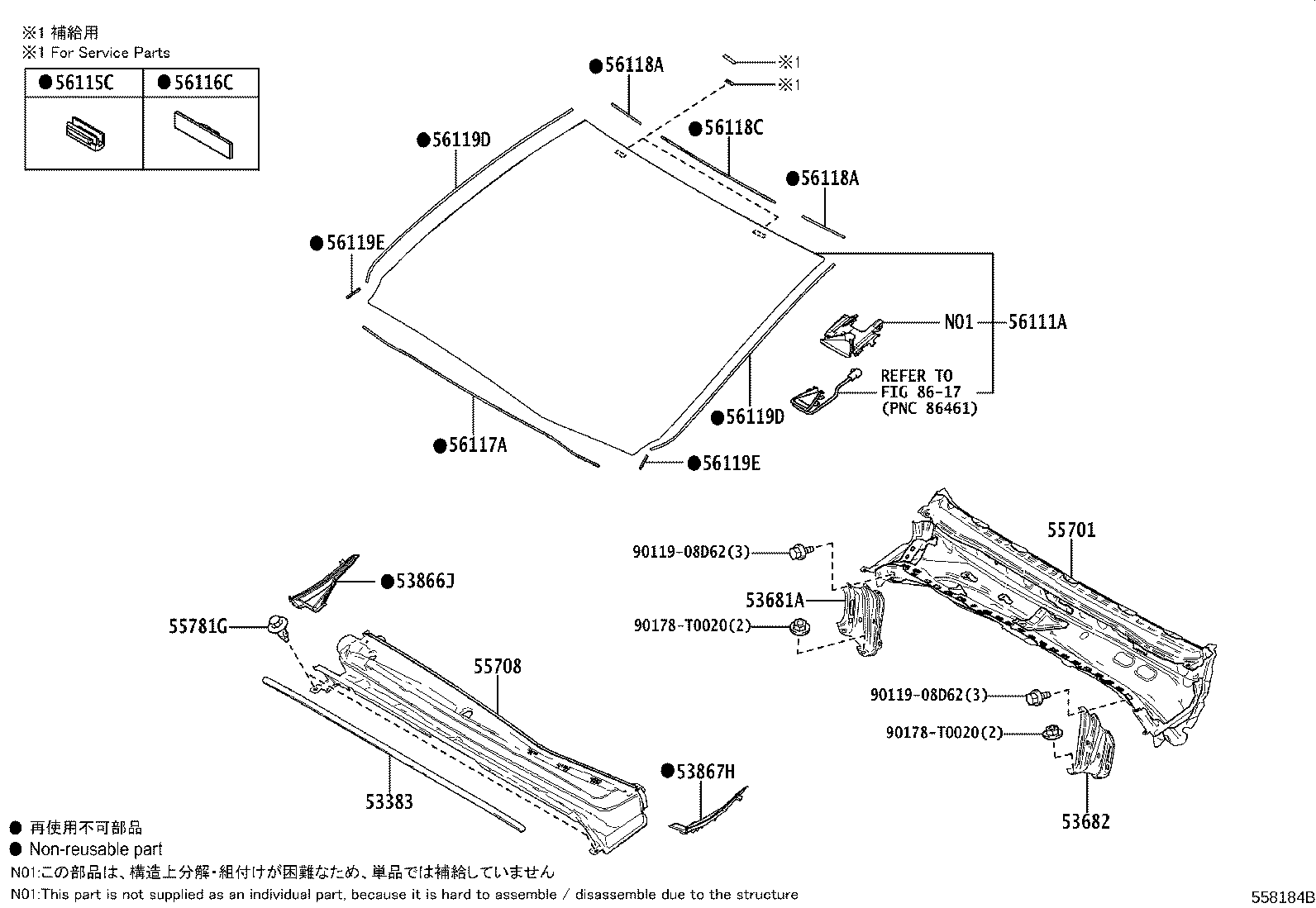

Figure 558183B 558183B 2022-11 → — Figure 558184B 558184B 2022-11 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
53681A Brace, Front Suspension Upper TO Cowl, RH
53682 Brace, Front Suspension Upper TO Cowl, LH
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55701 Panel Sub-assy, Cowl
55708 Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
56111A Glass, Windshield
56115C Stopper, Windshield Glass
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56118A Dam, Window Glass Adhesive, NO.2
56118C Retainer, Windshield Glass, NO.2
56119D Dam, Window Glass Adhesive, NO.3
56119E Dam, Window Glass Adhesive, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
