Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

17 part groups · 2 illustrations

Illustrations

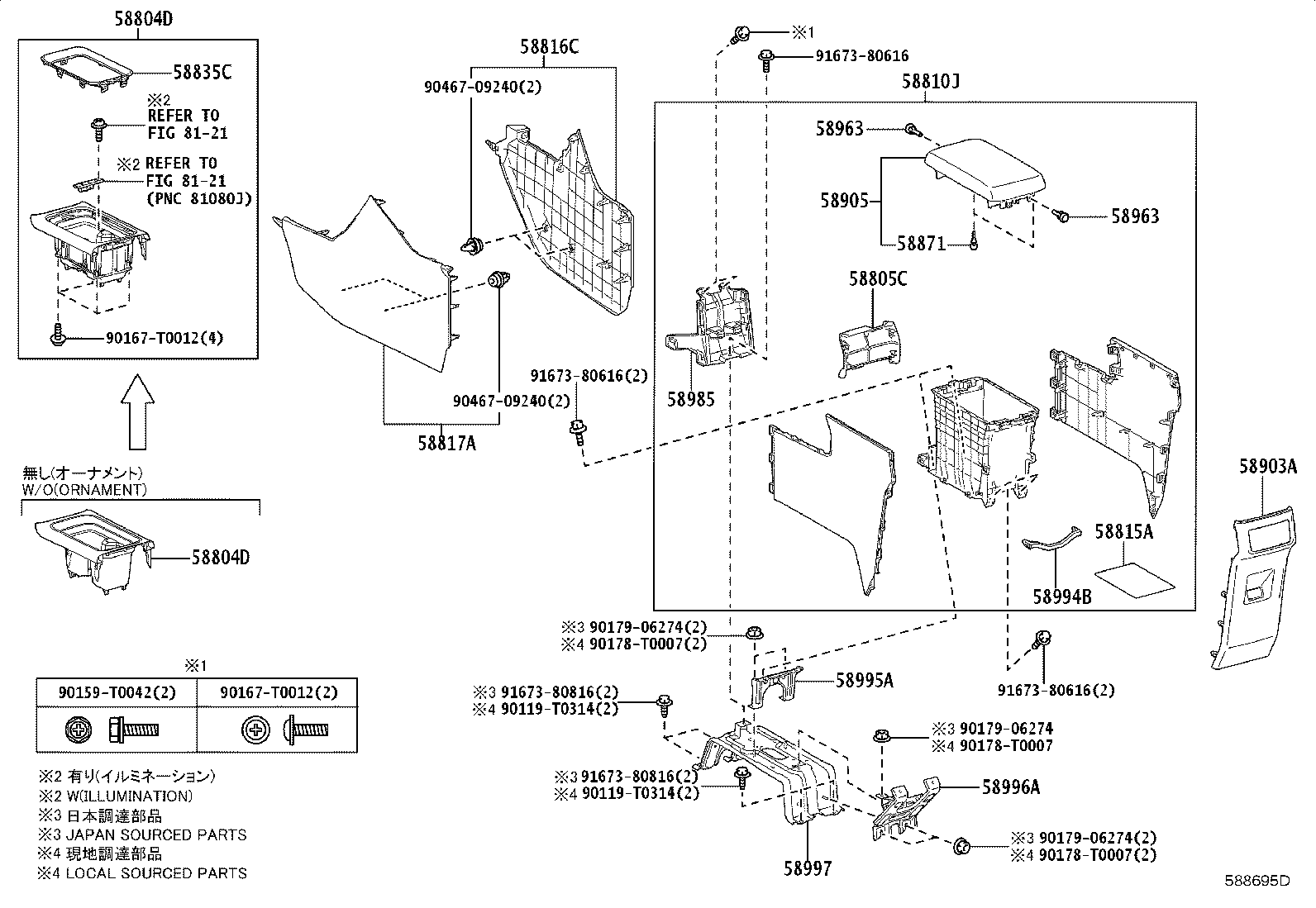

Figure 588694B 588694B 2022-11 → — Figure 588695D 588695D 2022-12 → —

Part groups

PNCDescription
58804D Panel Sub-assy, Console, Upper Front
58805C Panel Sub-assy, Console, Upper Rear
58810J Box Assy, Console
58815A Carpet, Console Box
58816C Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58835C Ornament, Console Box
58871 Cushion, Console Box
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58951D Door, Console Compartment, Outer
58963 Shaft, Console Compartment Door Hinge
58985 Retainer, Console Box
58994B Bracket, Console Box Mounting, NO.4
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
