Toyota Innova
2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General
Supported model
Data version 2024-03
Inside Trim Board
36 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

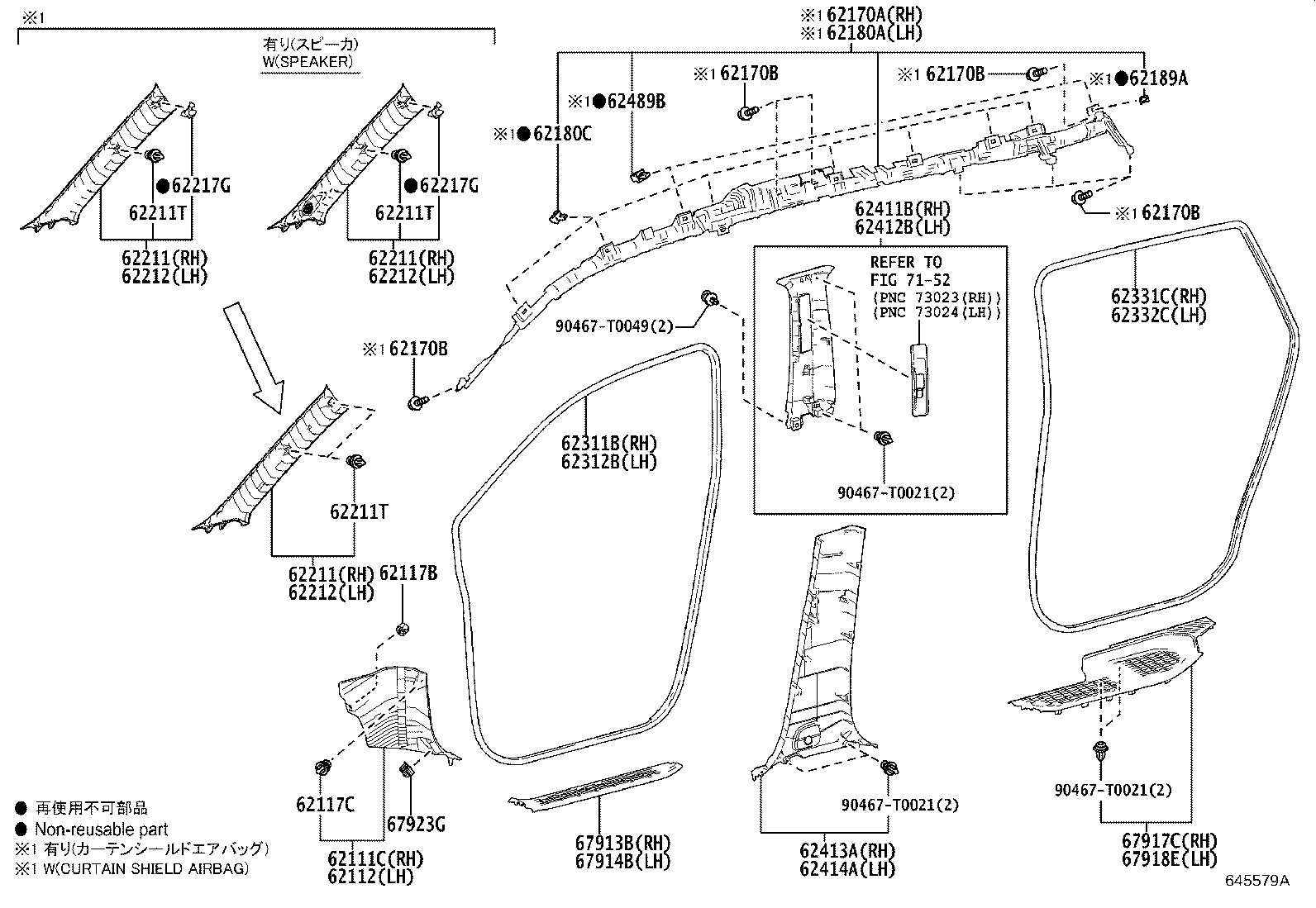

| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62180C | Clip, Curtain Shield Airbag |
| 62189A | Spacer, Curtain Shield Airbag Clip |
| 62211 | Garnish, Front Pillar, RH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471E | Garnish, Roof Side, Inner Upper RH |
| 62471F | Clip (FOR ROOF SIDE, INNER UPPER GARNISH) |
| 62472E | Garnish, Roof Side, Inner Upper LH |
| 62489B | Clip, Roof Side Inner Garnish |

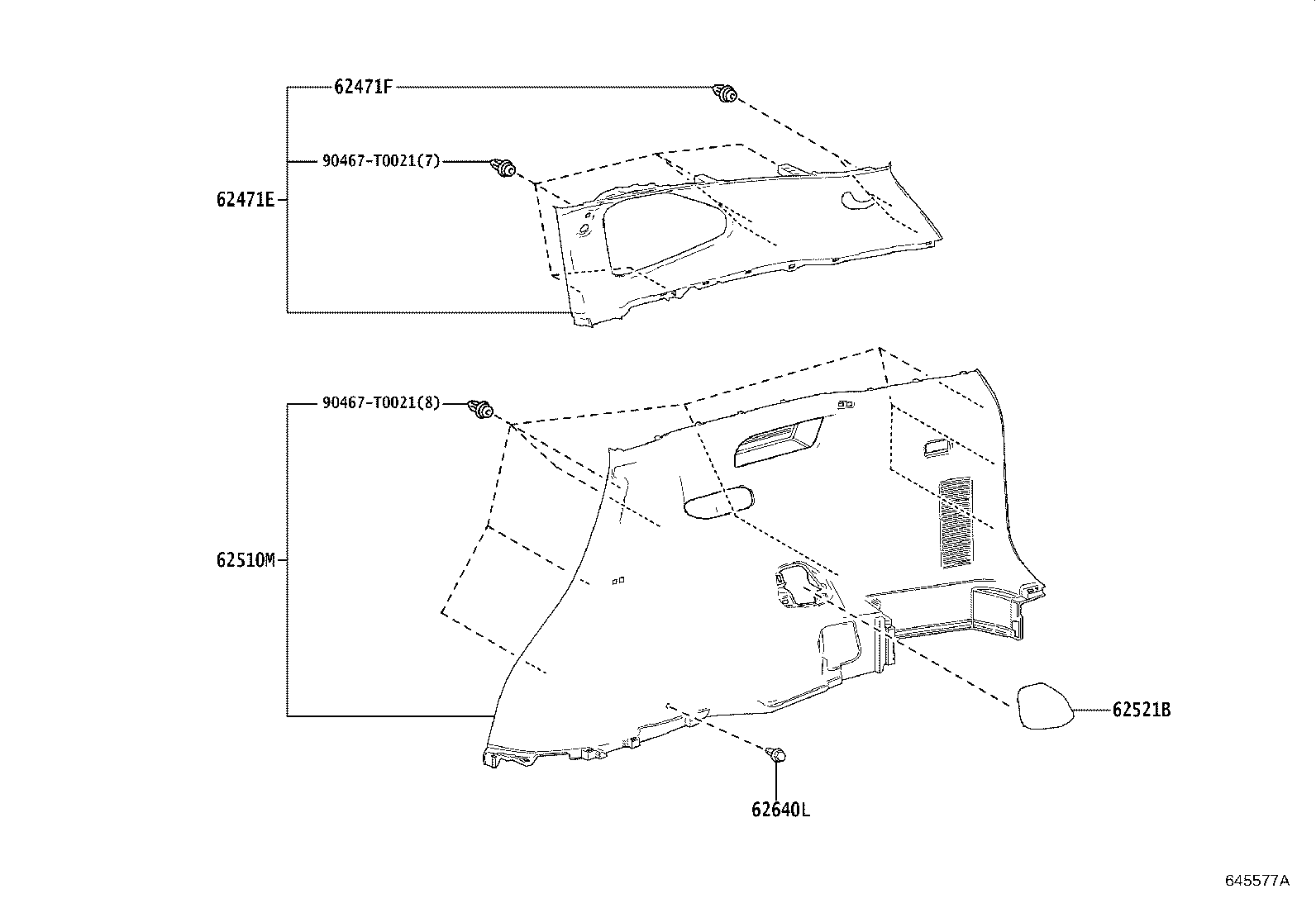

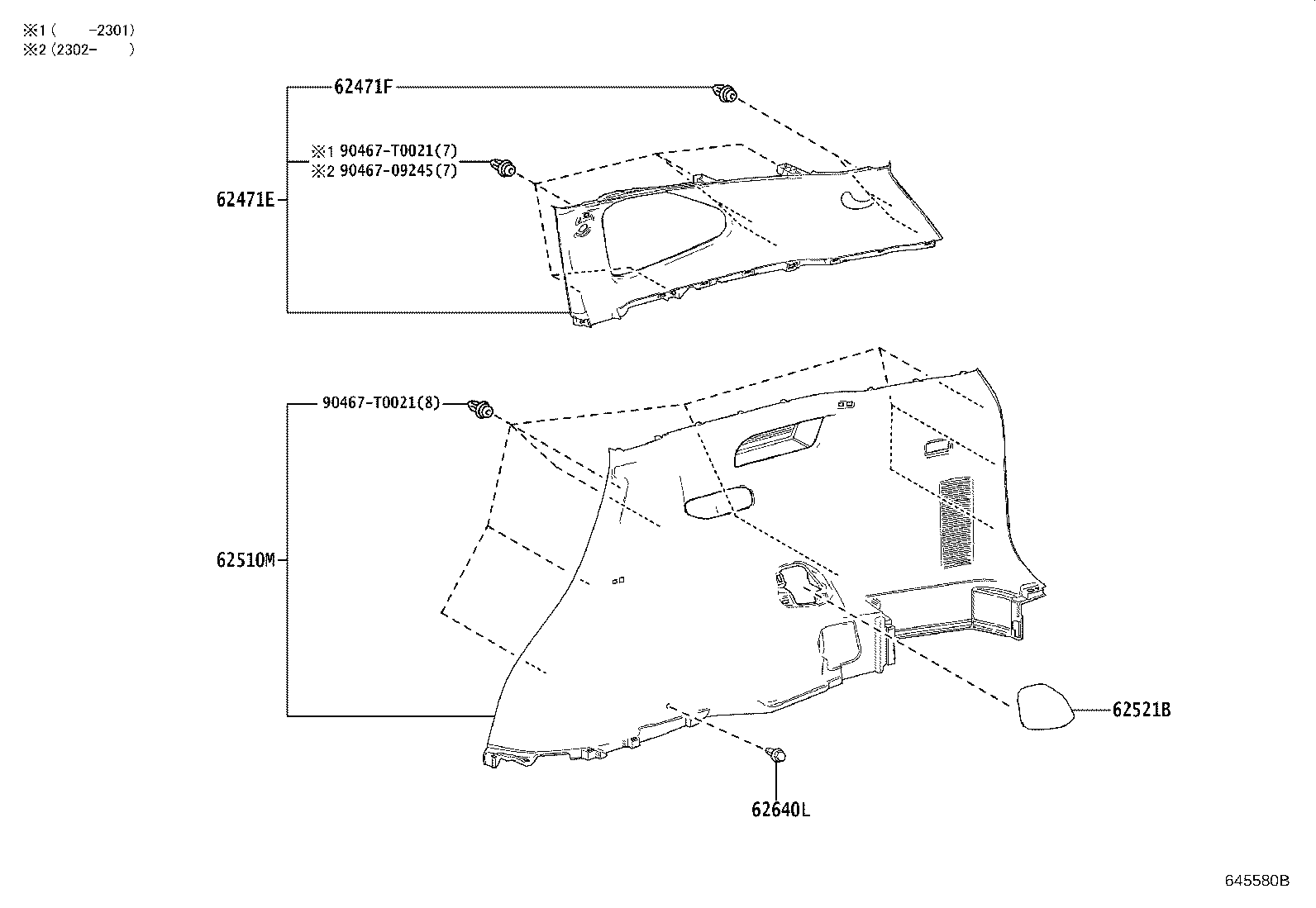

| 62510M | Panel Assy, Quarter Trim, RH |

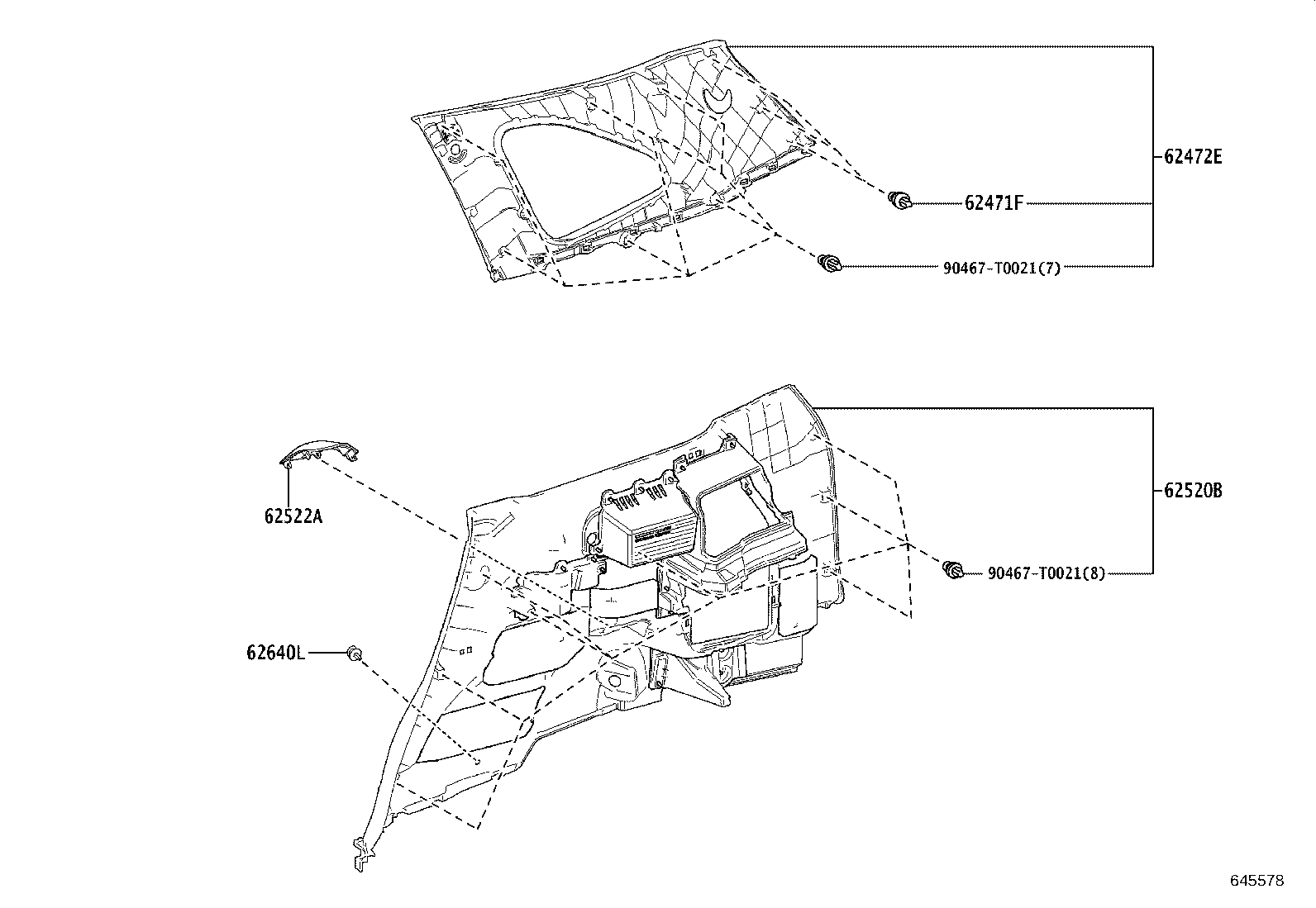

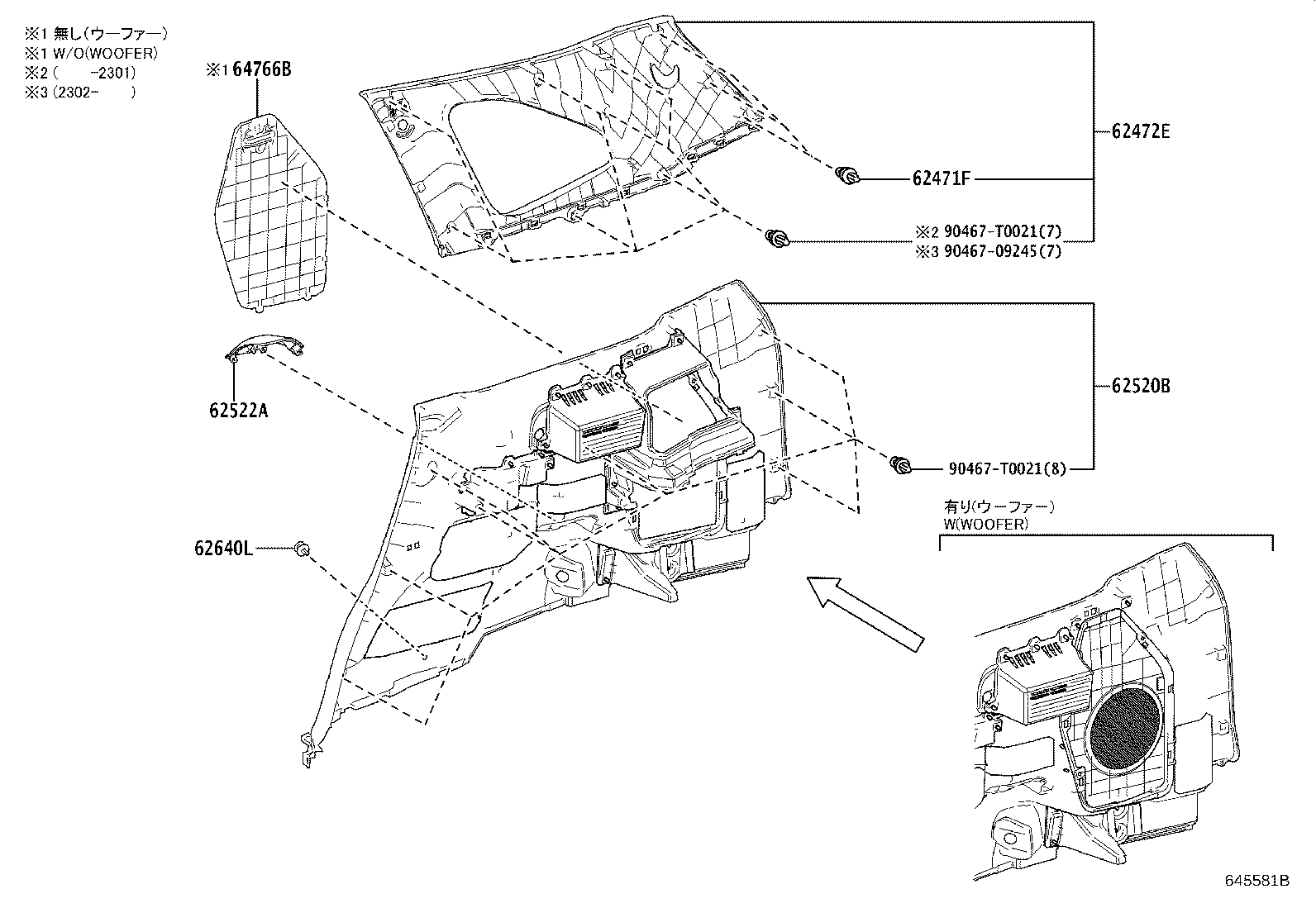

| 62520B | Panel Assy, Quarter Trim, LH |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62640L | Clip(FOR QUARTER TRIM) |
| 64766B | Cover, Quarter Trim Jack |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918E | Plate, Rear Door Scuff, LH |
| 67923G | Clamp, Cowl Side Trim Board |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
